2013 Caterpillar 307D










Product Description

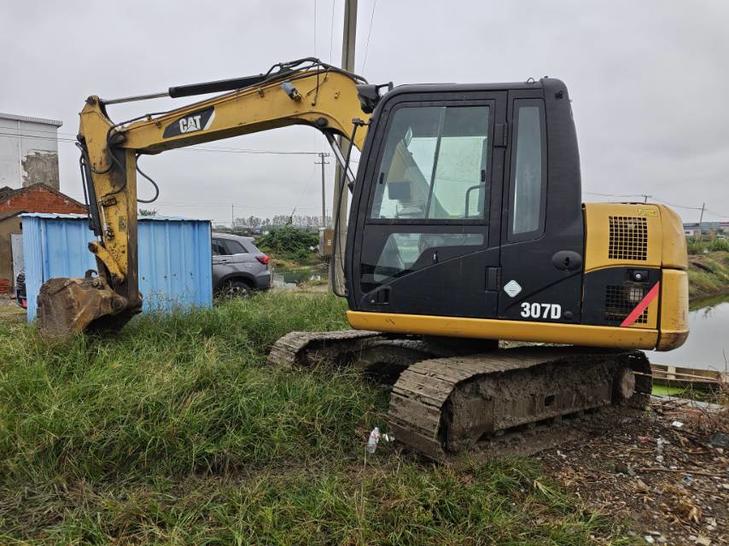

This 2013 Caterpillar 307D mini hydraulic excavator offers reliable performance for construction, landscaping, and site preparation work. Powered by an imported engine, this owner-operated machine has been maintained through active job site use. The 307D series is known for its compact footprint combined with impressive digging depth and reach, making it suitable for confined spaces and urban projects.
- Year of Manufacture: 2013
- Model: Caterpillar 307D
- Engine: Imported specification
- Previous Use: Owner-operator, active duty
- Current Location: Jiangsu Province, China
The Cat 307D delivers efficient fuel consumption and straightforward serviceability. This unit represents a cost-effective solution for contractors seeking proven Caterpillar quality in the mini excavator segment. Machine is available for inspection by appointment.
| Specifications | Value |
|---|---|
| No. | 1167465 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7193 |
| Bucket capacity (m³) | 0.31 |
| Rod length (mm) | 1670 |
| Country of origin | Wujiang |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Mitsubishi 4M40TL |
| Rated power (kw/rpm) | 41.5/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 100 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.83 |
| Working form | Meet U.S. EPA Interim Tier 4 emissions requirements |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 50.6 |
| Rod digging force (kN) | 37.1 |
| Maximum tractive force (kN) | 56.7 |
| Travel speed (km/h) | 3.1/5.0 |
| Maximum flow of main pump (l/min) | 128 |
| Traveling Hydraulic Circuit (Mpa) | 32 |
| Rotary Hydraulic Circuit (Mpa) | 24 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 12.5 |
| Coolant (L) | 15.7 |
| Hydraulic System (L) | 94(including fuel tank) |
| Total transport length (mm) | 6070 |
| Total transport width (mm) | 2300 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Counterweight ground clearance (mm) | 760 |
| Minimum turning radius of front working device (mm) | 1670 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2760 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2290 |
| Maximum digging radius (mm) | 6300 |
| Maximum digging depth (mm) | 4070 |
| Maximum excavation height (mm) | 7240 |
| Maximum unloading height (mm) | 5190 |
| Maximum vertical digging depth (mm) | 3640 |
| Bulldozer lift or depth (mm) | 380/360 |
| Dodging plate width × height (mm) | Height 450 |
| Maximum excavation radius of stop surface (mm) | 6200 |
Overview
No.1167465
Brand Name:
CaterpillarModel Number:
307DYear:
2013
Hour:
13000h
Location:
Jiangsu China
Pub Date:
