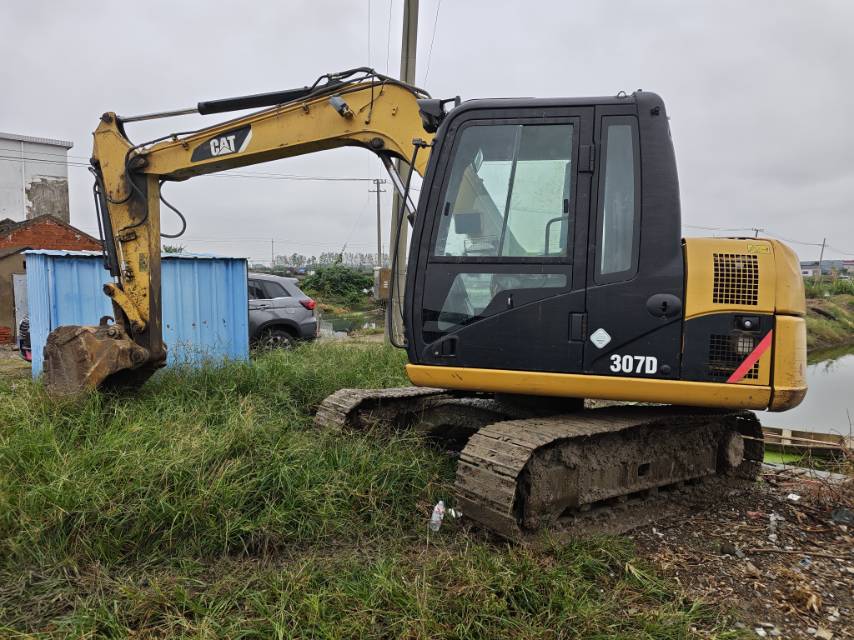

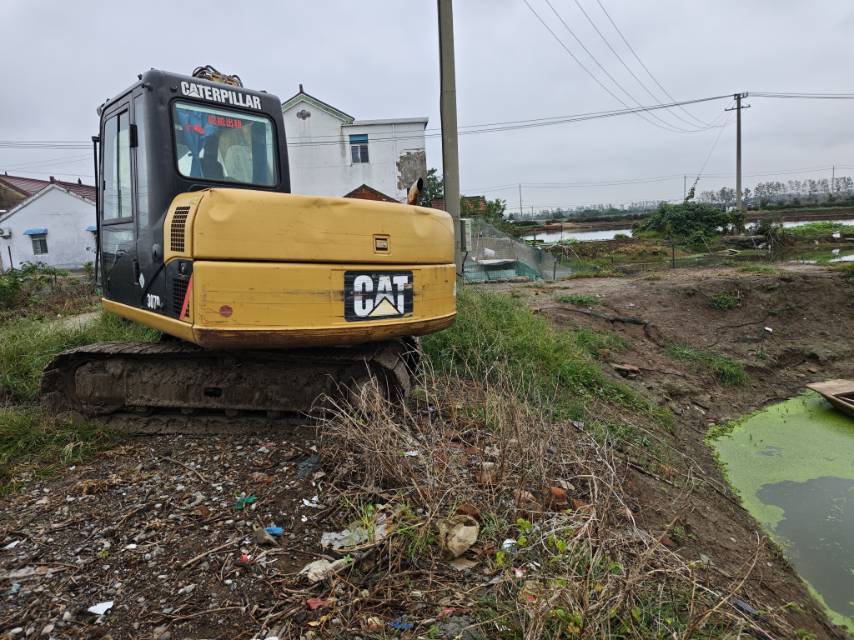

2013 Caterpillar 307D











Product Description

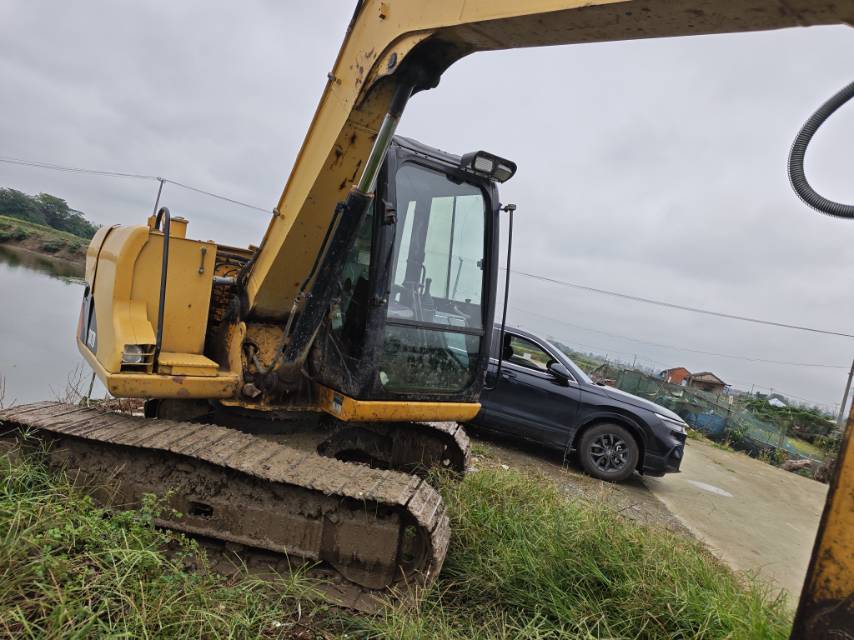

This 2013 Caterpillar 307D mini excavator offers reliable performance for construction and earthmoving applications. Manufactured in February 2013, this machine features imported configuration components and has accumulated approximately 13,000 operating hours. The unit is equipped with a factory-installed air conditioning system that delivers excellent cooling performance for operator comfort during extended work shifts.
Key specifications include:
- Year of Manufacture: 2013 (February)
- Operating Hours: 13,000
- Configuration: Imported specification
- Cab Equipment: Air conditioning system
- Current Location: Jiangsu Province, China
The Caterpillar 307D is recognized in the compact excavator segment for its hydraulic efficiency and serviceability. This unit is available for inspection at our Jiangsu facility. Contact us for detailed technical documentation and export arrangements.
| Specifications | Value |
|---|---|
| No. | 1170190 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7193 |
| Bucket capacity (m³) | 0.31 |
| Rod length (mm) | 1670 |
| Country of origin | Wujiang |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

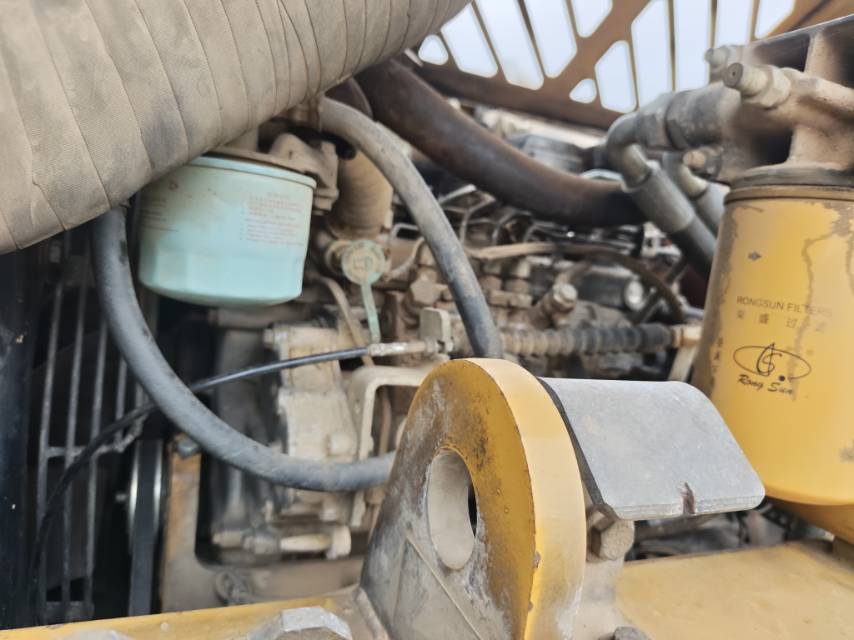

| Engine type | Mitsubishi 4M40TL |
| Rated power (kw/rpm) | 41.5/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 95 x 100 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.83 |
| Working form | Meet U.S. EPA Interim Tier 4 emissions requirements |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 50.6 |
| Rod digging force (kN) | 37.1 |
| Maximum tractive force (kN) | 56.7 |
| Travel speed (km/h) | 3.1/5.0 |
| Maximum flow of main pump (l/min) | 128 |
| Traveling Hydraulic Circuit (Mpa) | 32 |
| Rotary Hydraulic Circuit (Mpa) | 24 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 28 |
| Fuel Tank (L) | 135 |
| Hydraulic Tank (L) | 80 |
| Engine Oil changes (L) | 12.5 |
| Coolant (L) | 15.7 |
| Hydraulic System (L) | 94(including fuel tank) |
| Total transport length (mm) | 6070 |
| Total transport width (mm) | 2300 |
| Total transport height (mm) | 2630 |
| Full cab height (mm) | 2630 |
| Counterweight ground clearance (mm) | 760 |
| Minimum turning radius of front working device (mm) | 1670 |
| Back end turning radius (mm) | 1750 |
| Total track length (mm) | 2760 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2290 |
| Maximum digging radius (mm) | 6300 |
| Maximum digging depth (mm) | 4070 |
| Maximum excavation height (mm) | 7240 |
| Maximum unloading height (mm) | 5190 |
| Maximum vertical digging depth (mm) | 3640 |
| Bulldozer lift or depth (mm) | 380/360 |
| Dodging plate width × height (mm) | Height 450 |
| Maximum excavation radius of stop surface (mm) | 6200 |
Overview
No.1170190
Brand Name:
CaterpillarModel Number:
307DYear:
2013
Hour:
13000h
Location:
Jiangsu China
