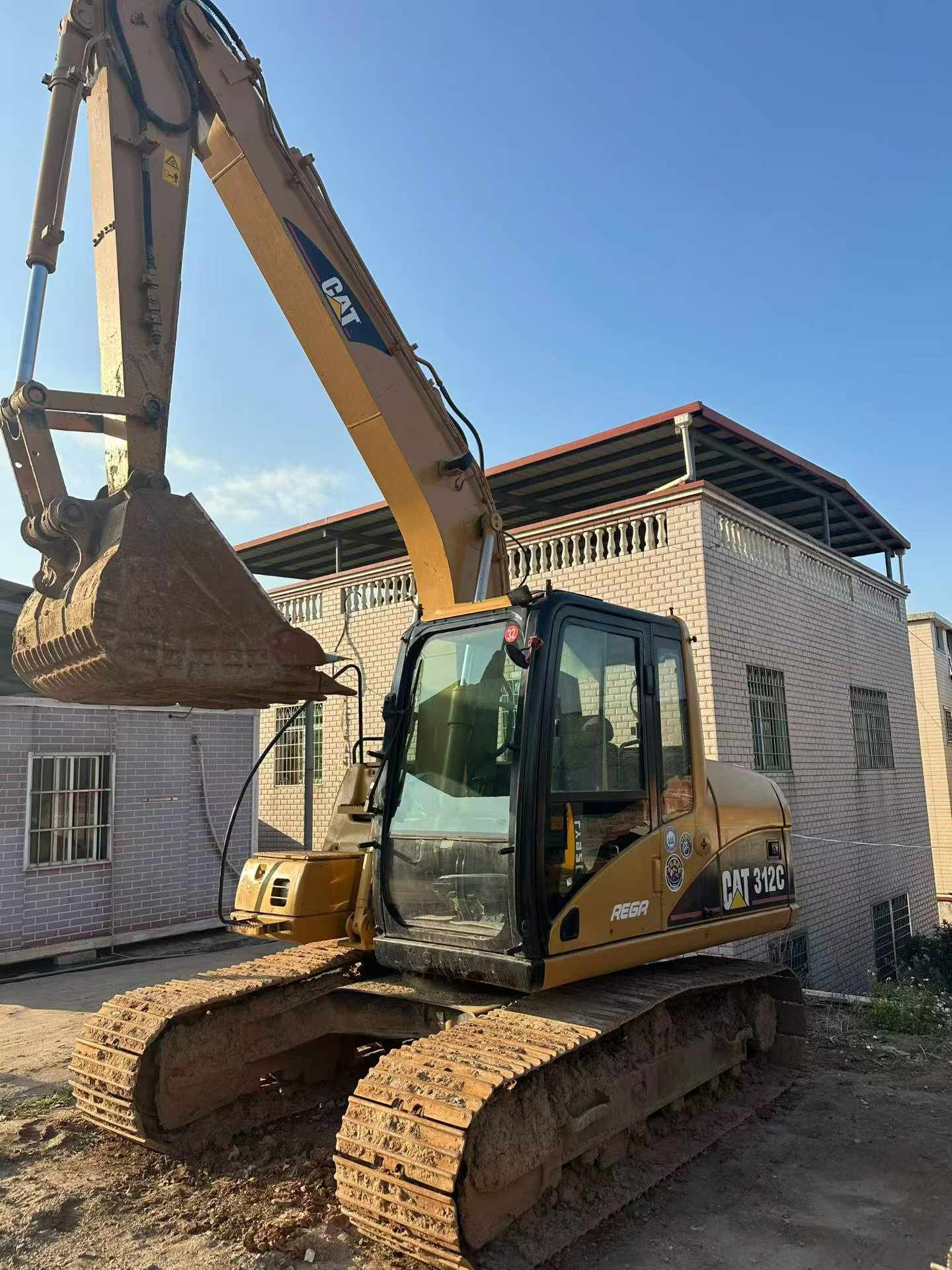

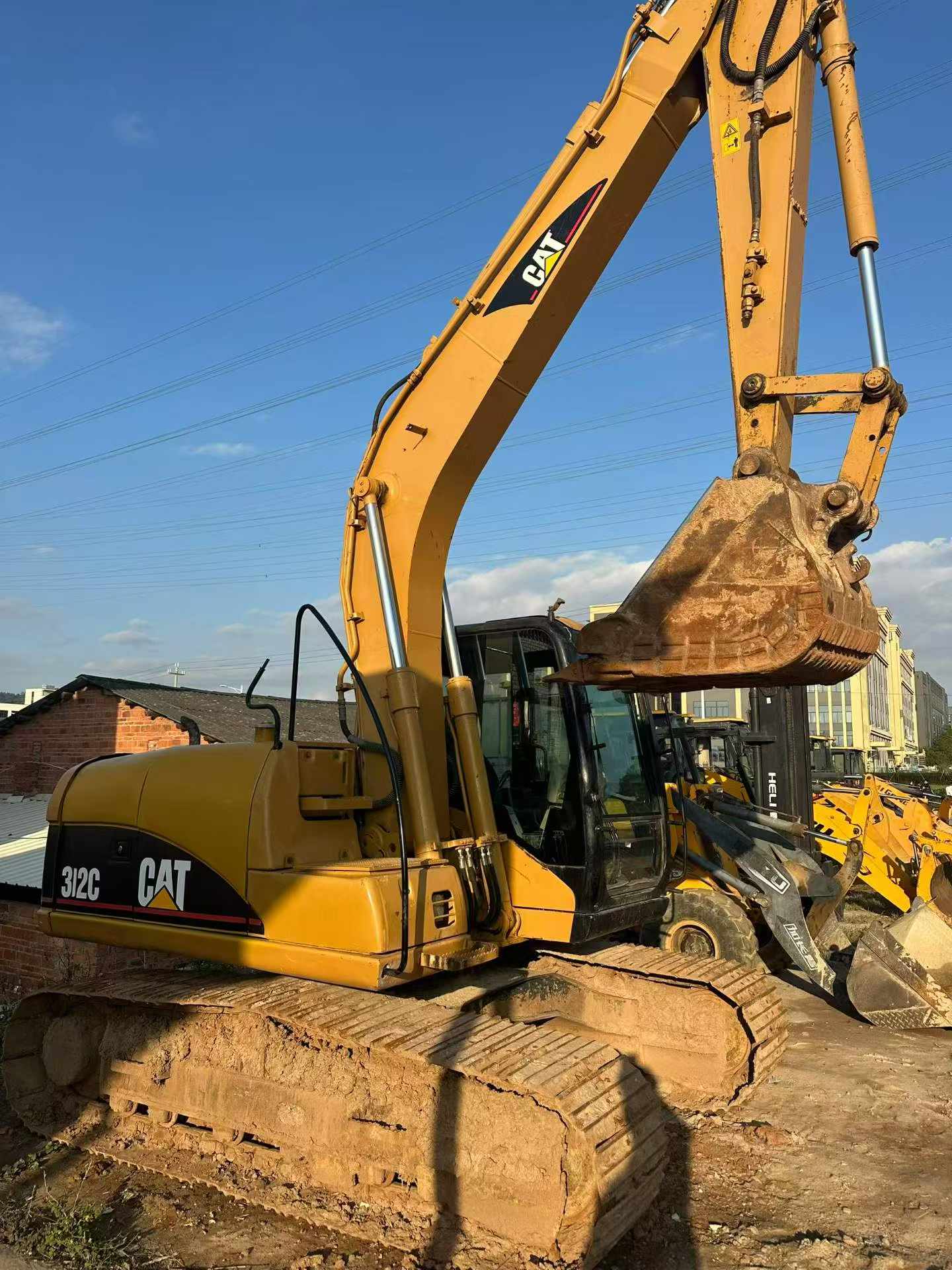

2020 Caterpillar 312C
Product Description
Discover the reliability and performance of the 2020 Caterpillar 312C, now available in Fujian, China. This used excavator is renowned for its robust construction and efficient operation, making it an ideal choice for a variety of construction and excavation projects. The 312C is offered at a competitive price point, ensuring value for your investment. Its condition is impeccable, with no need for additional inspections, allowing you to deploy it immediately into your fleet. Choose the Caterpillar 312C for a machine that combines durability, efficiency, and cost-effectiveness, tailored to meet the demands of your industrial applications.
- Year: 2020
- Brand: Caterpillar
- Model: 312C
- Location: Fujian, China
| Specifications | Value |
|---|---|
| No. | 1166121 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12777.7 |
| Bucket capacity (m³) | 0.55 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 3000 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | 3046T |
| Rated power (kw/rpm) | 70.1/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 4.3 |
| Rotation speed (rpm) | 12.9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 62 |
| Rod digging force (kN) | 96 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 126.8 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.3 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.05 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162(including fuel tank) |
| Total transport length (mm) | 7570 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2760 |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 2780 |
| Maximum digging depth (mm) | 5550 |
| Maximum excavation height (mm) | 8475 |
| Maximum unloading height (mm) | 6095 |
| Maximum vertical digging depth (mm) | 4970 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8175 |
