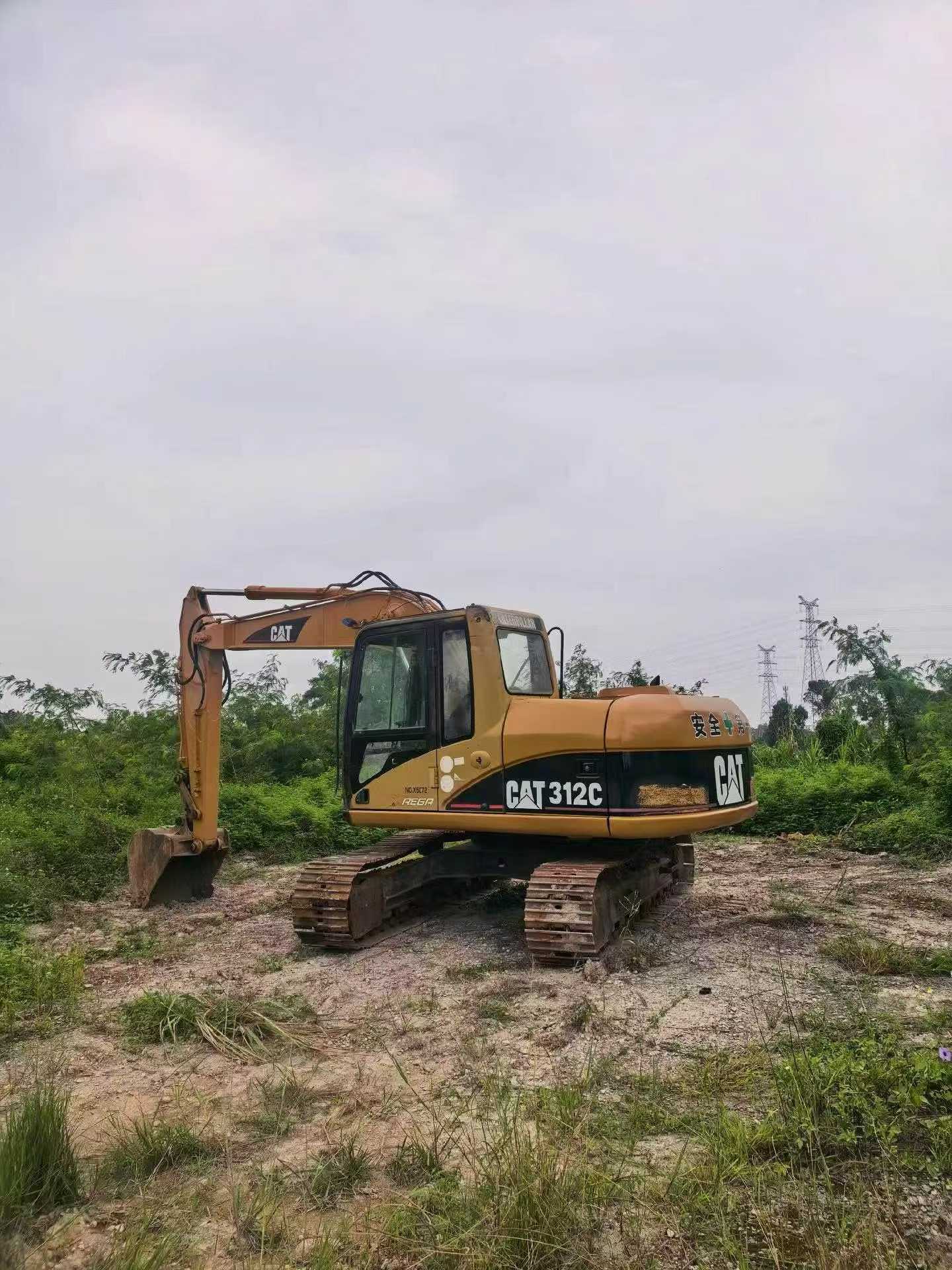

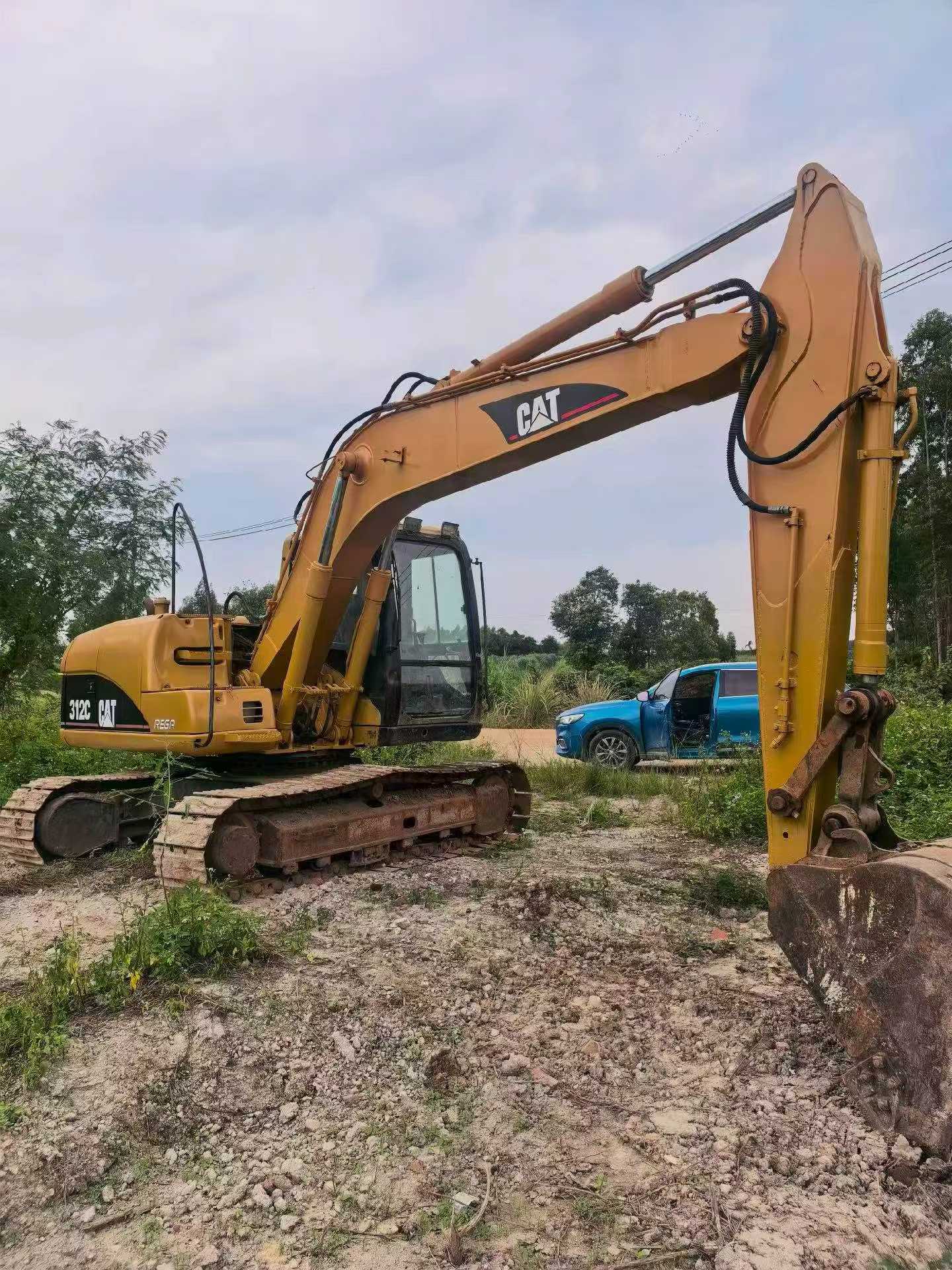

2020 Caterpillar 312C










Product Description
This 2020 Caterpillar 312C excavator is currently located in Guangdong, China and is ready for immediate deployment to your worksite. The machine has been thoroughly inspected and demonstrates reliable performance with well-coordinated hydraulic functions across all operations. Test runs are available in the Mazhang area for qualified buyers to verify operational condition firsthand.
- Year: 2020
- Make: Caterpillar
- Model: 312C
- Location: Guangdong Province, China
- Condition: Performance verified, no major issues detected
- Status: Ready for immediate site work
The Cat 312C is a proven mid-size excavator suitable for construction, excavation, and utility applications. This unit offers the balance of power and efficiency that Caterpillar equipment is known for in the compact excavator segment. Inspection and testing available by appointment.
| Specifications | Value |
|---|---|
| No. | 1167460 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12777.7 |
| Bucket capacity (m³) | 0.55 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 3000 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

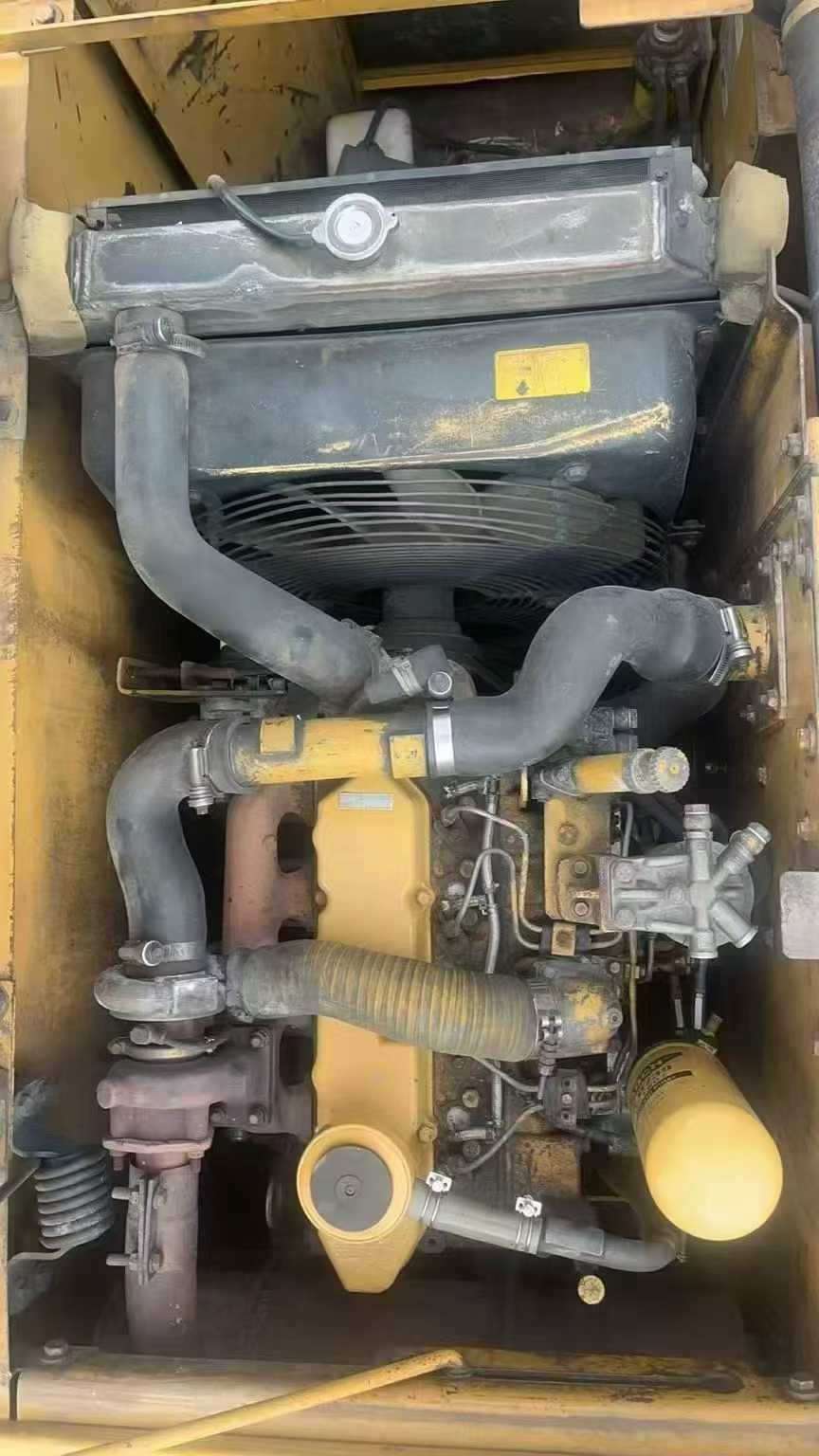

| Engine type | 3046T |
| Rated power (kw/rpm) | 70.1/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 4.3 |
| Rotation speed (rpm) | 12.9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 62 |
| Rod digging force (kN) | 96 |
| Travel speed (km/h) | 3.4/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 126.8 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.3 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.05 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 17.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162(including fuel tank) |
| Total transport length (mm) | 7570 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2760 |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 2780 |
| Maximum digging depth (mm) | 5550 |
| Maximum excavation height (mm) | 8475 |
| Maximum unloading height (mm) | 6095 |
| Maximum vertical digging depth (mm) | 4970 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8175 |
Overview
No.1167460
Brand Name:
CaterpillarModel Number:
312CYear:
2020
Location:
Guangdong China
