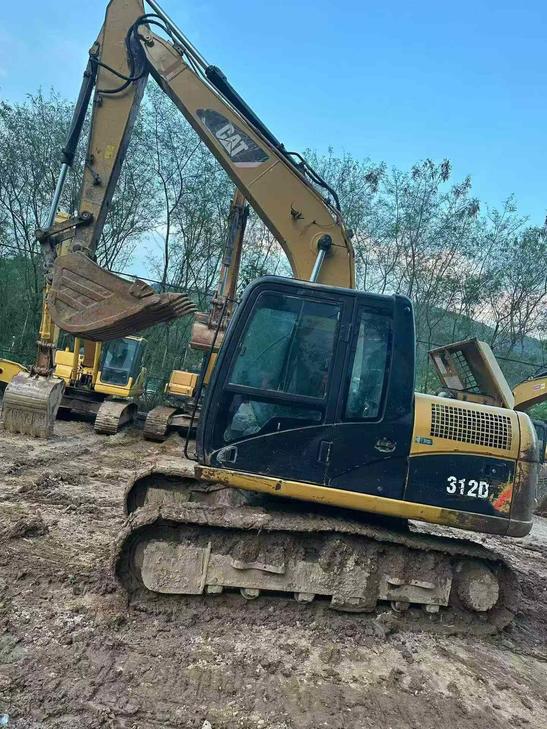

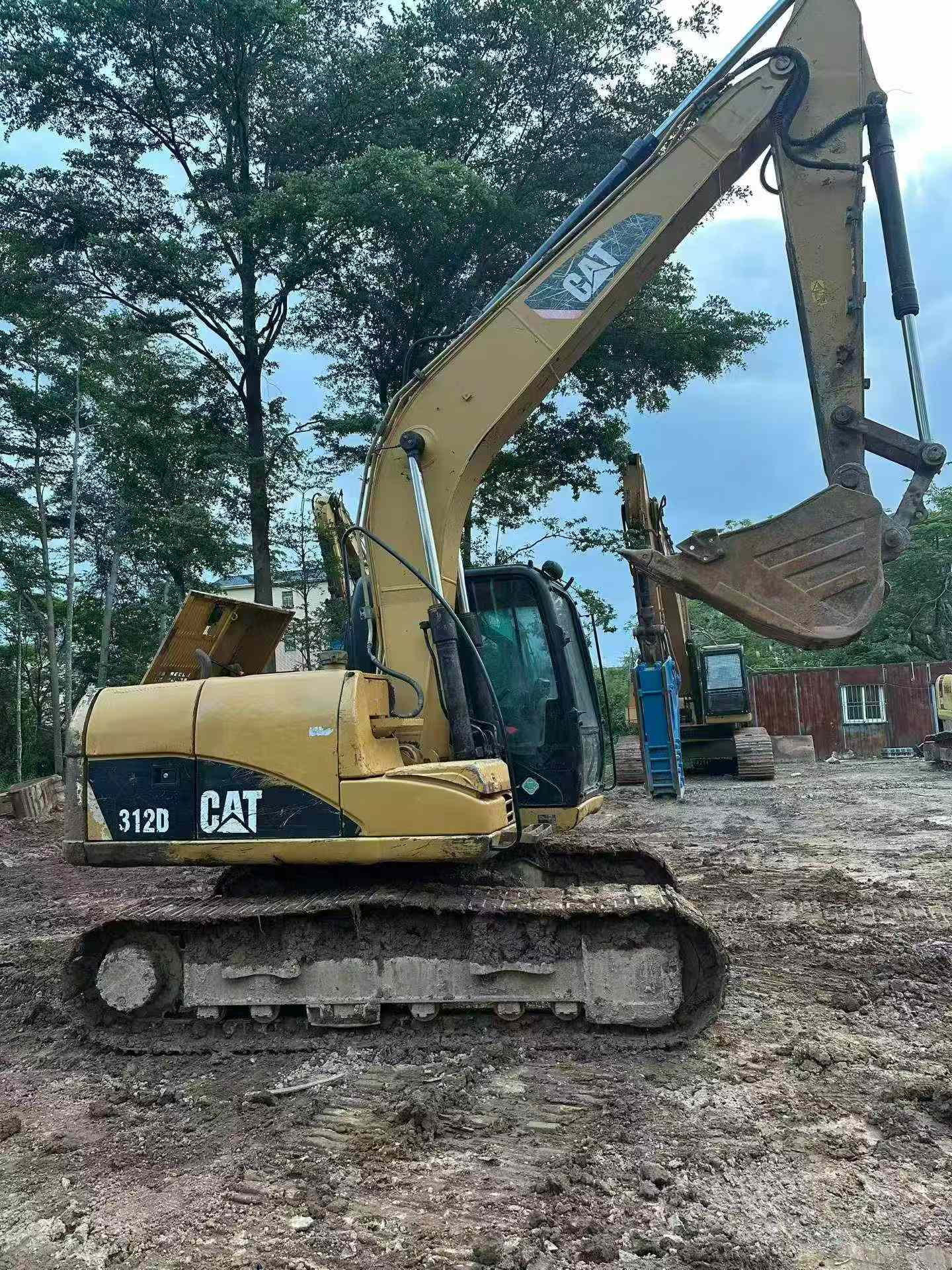

2020 Caterpillar 312D
Product Description
This 2020 Caterpillar 312D hydraulic excavator is a proven workhorse currently located in Guangdong, China. The 312D series is recognized for its reliable performance in construction, demolition, and earthmoving applications. This unit has been actively used in field operations, demonstrating its durability under real working conditions.
Key features of the Caterpillar 312D include:
- Robust hydraulic system designed for consistent digging and lifting performance
- Comfortable operator cab with improved visibility for enhanced jobsite safety
- Fuel-efficient engine meeting emission standards
- Versatile attachment compatibility for various applications
- Caterpillar's established parts and service network support
This excavator offers solid value for contractors seeking reliable mid-size equipment. Available for inspection in Guangdong province. Contact us for detailed specifications, service records, and competitive export pricing.
| Specifications | Value |
|---|---|
| No. | 1121251 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12920 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 2800 |
| Rod length (mm) | 3000 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C4.2ACERT |
| Rated power (kw/rpm) | 72/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 4.25 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 96 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.3 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.05 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162(including fuel tank) |
| Total transport length (mm) | 7590 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2970 |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 2780 |
| Maximum digging depth (mm) | 5840 |
| Maximum excavation height (mm) | 8580 |
| Maximum unloading height (mm) | 6210 |
| Maximum vertical digging depth (mm) | 5160 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8430 |
| Maximum effective digging depth (mm) | 5640 |
see more
Overview
No.1121251
Brand Name：
CaterpillarModel Number：
312DYear：
2020
Location：
Guangdong China
