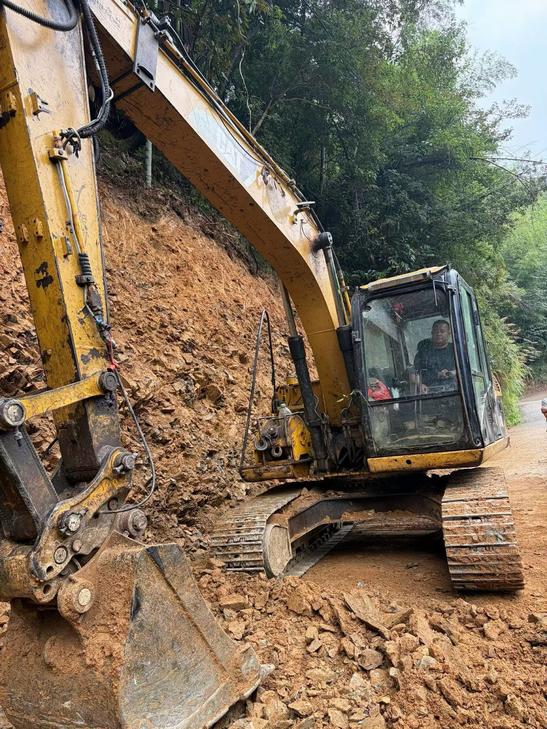

2020 Caterpillar 312D
Product Description
This 2020 Caterpillar 312D excavator is available from Guangdong, China, offering reliable performance in a proven mid-size platform. The machine comes equipped with a winch system, extending its utility for material handling and specialized lifting operations beyond standard excavation work.
Key features include:
- Caterpillar 312D hydraulic excavator
- Integrated winch for enhanced operational flexibility
- Performance verified and ready for deployment
- Comprehensive documentation including detailed photos and video available
- Located in Guangdong Province for convenient inspection and logistics
The 312D delivers dependable power and efficiency for construction, infrastructure, and material handling applications. This unit has been maintained to operational standards and is prepared for immediate integration into your fleet. Contact us for complete technical documentation, recent service records, and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1136424 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12920 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 2800 |
| Rod length (mm) | 3000 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C4.2ACERT |
| Rated power (kw/rpm) | 72/2200 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 4.25 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 96 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.3 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.05 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162(including fuel tank) |
| Total transport length (mm) | 7590 |
| Total transport width (mm) | 2590 |
| Total transport height (mm) | 2970 |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2590 |
| Track ground length (mm) | 2780 |
| Maximum digging depth (mm) | 5840 |
| Maximum excavation height (mm) | 8580 |
| Maximum unloading height (mm) | 6210 |
| Maximum vertical digging depth (mm) | 5160 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 8430 |
| Maximum effective digging depth (mm) | 5640 |
