Product Description

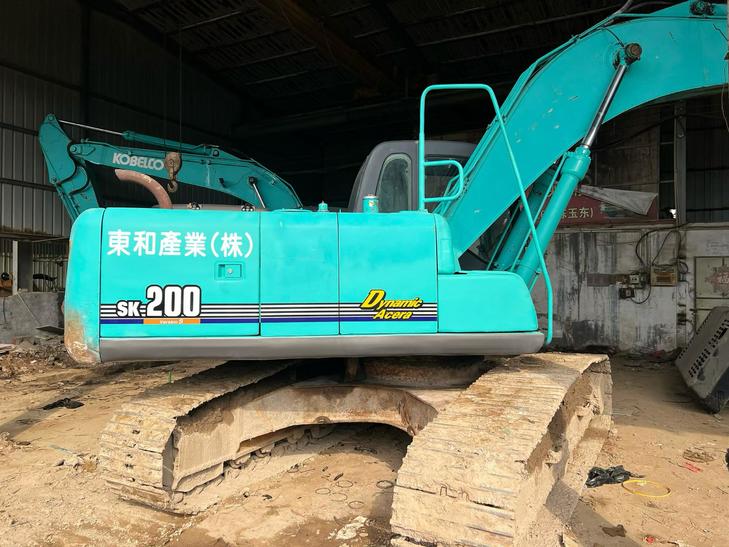

Engineered for precision and durability, the Kobelco SK200-10 represents the refined output of joint-venture manufacturing expertise. Powered by a 118 kW engine at 2,000 RPM, this 20-ton excavator delivers a bucket digging force of 143 kN and rod digging force of 102 kN — figures that reflect serious hydraulic engineering rather than marketing estimates.
Built for demanding excavation cycles, the SK200-10 carries a 0.8 m³ backhoe bucket and operates at a working weight of 21,300 kg. Its geometry is optimized for versatile site performance:
- Maximum digging depth: 6,700 mm
- Maximum digging radius: 9,900 mm
- Maximum excavation height: 9,720 mm
- Maximum unloading height: 6,910 mm
Sourced from Fujian, China, this 2020 model sits within Kobelco's tenth-generation SK200 series — a lineage recognized for tight hydraulic response, structural rigidity, and low operating costs. For contractors prioritizing reliability and proven performance over novelty, the SK200-10 is a technically sound acquisition.
| Specifications | Value |
|---|---|
| No. | 1060993 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21300 |
| Bucket capacity (m³) | 0.8 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Rated power (kw/rpm) | 118/2000 |
| Bucket digging force (kN) | 143 |
| Rod digging force (kN) | 102 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6700 |
| Maximum excavation height (mm) | 9720 |
| Maximum unloading height (mm) | 6910 |
