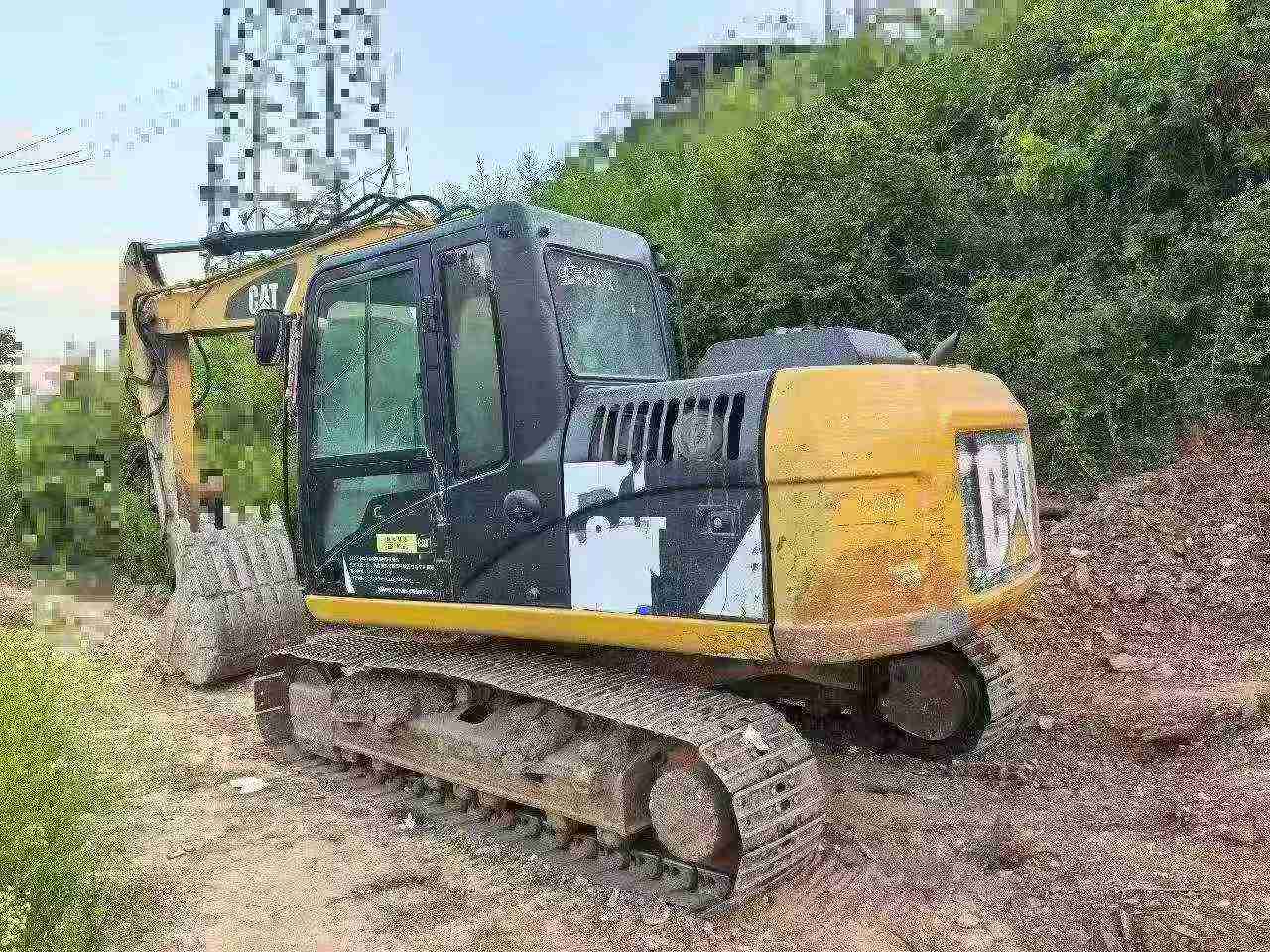

2012 Caterpillar 312D2GC
Product Description
This 2012 Caterpillar 312D2GC hydraulic excavator represents a reliable mid-size solution for construction and earthmoving operations. As a single-owner machine sourced locally in Zhejiang, China, this unit offers transparent ownership history and documented maintenance records.
The 312D2GC is engineered for fuel efficiency and productivity in demanding applications. Key features include:

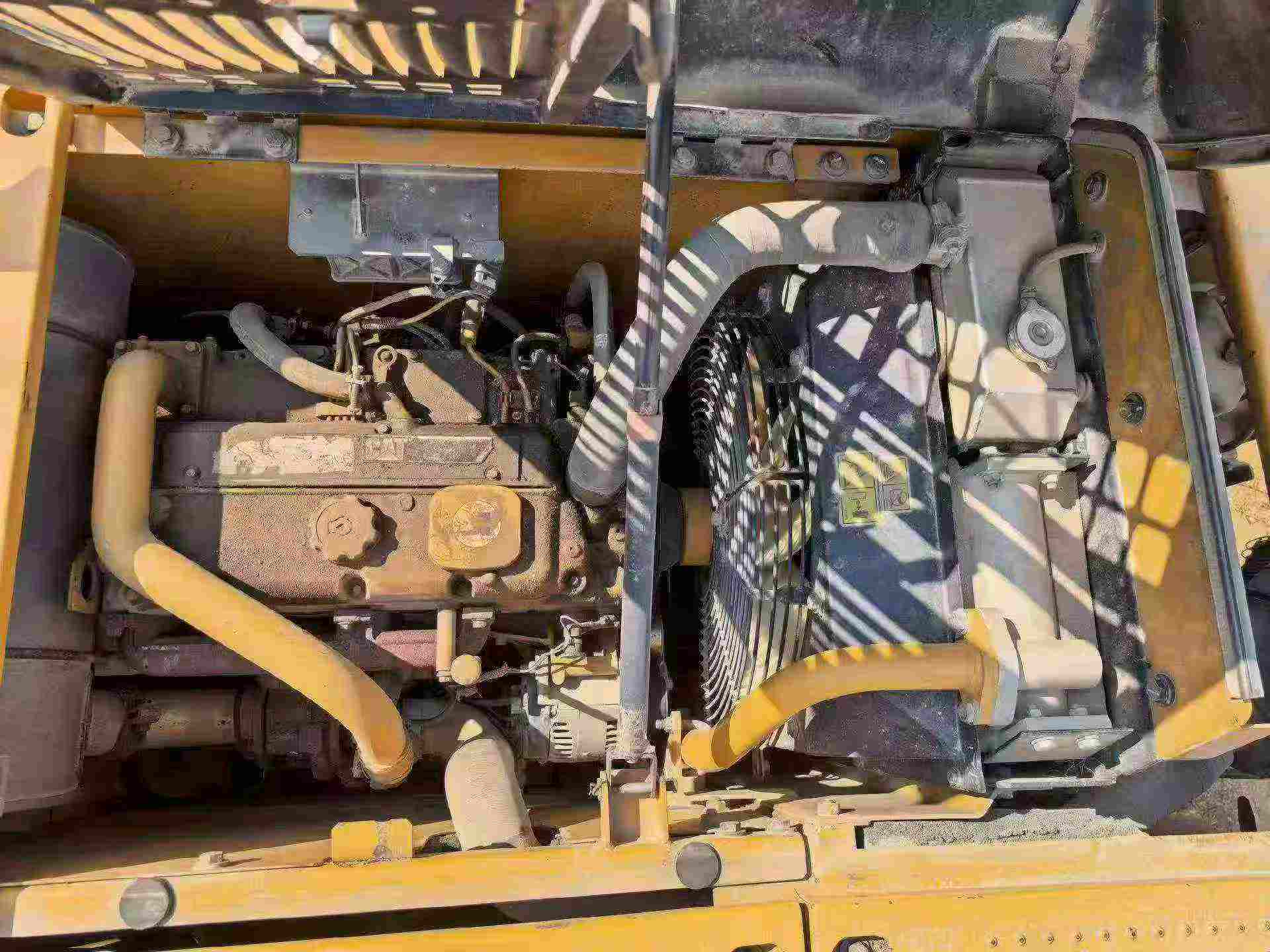

- Caterpillar C4.4 ACERT engine delivering dependable performance
- Operating weight optimized for versatility across job sites
- Hydraulic system designed for precise control and cycle times

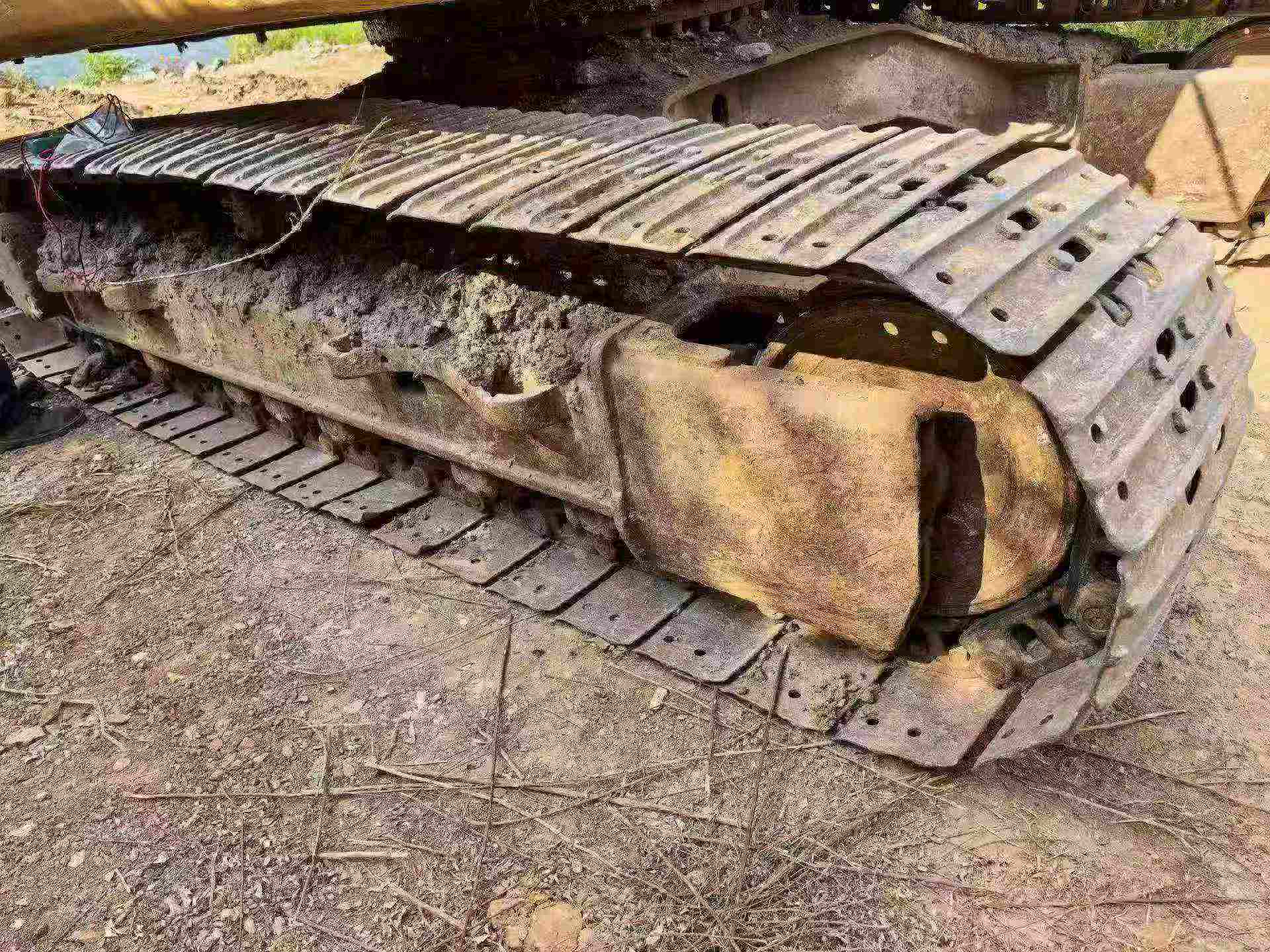

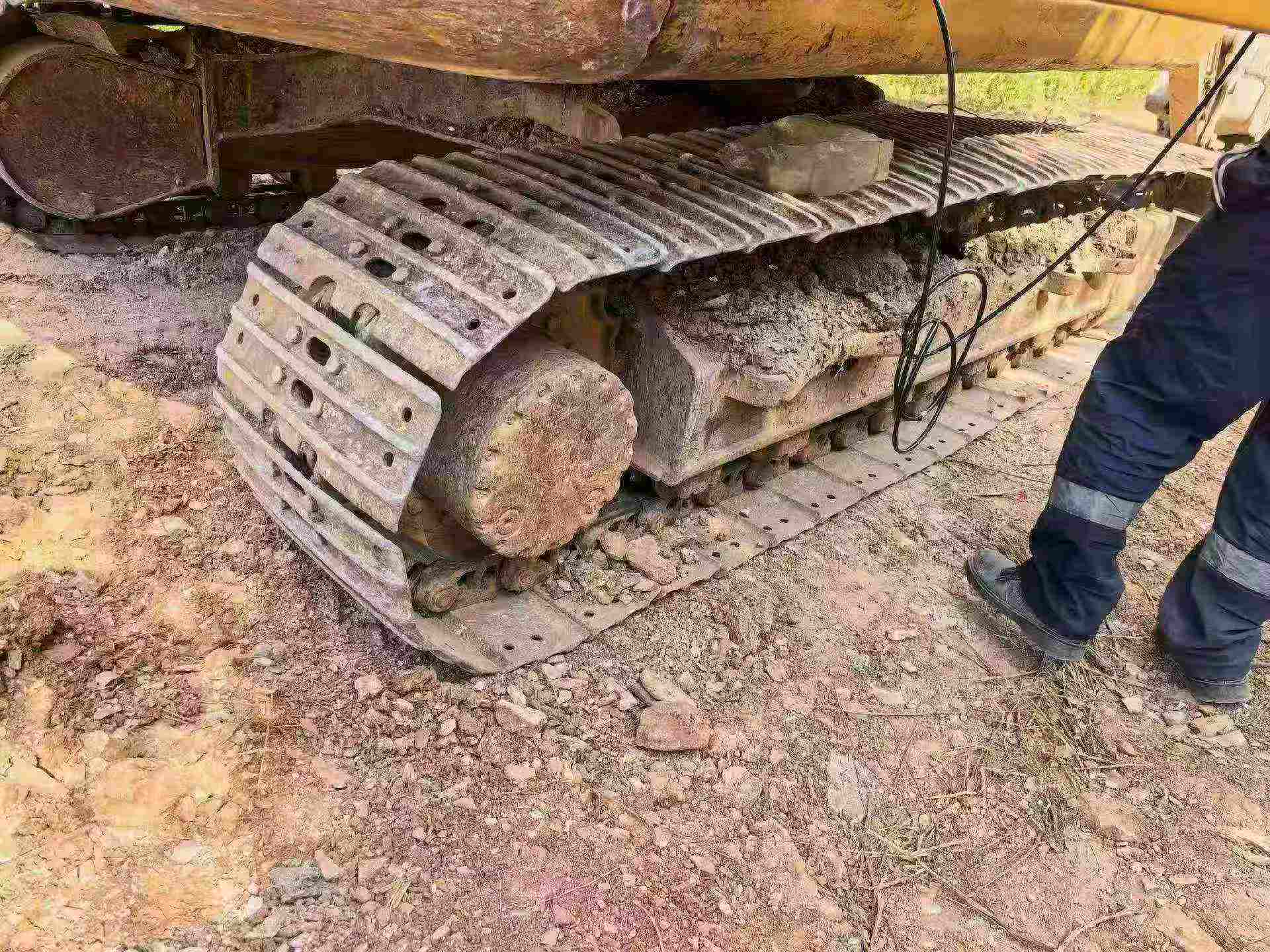

- Robust undercarriage for extended service life
- Spacious operator station with ergonomic controls
This excavator is well-suited for general excavation, trenching, loading, and material handling. Available for inspection in Zhejiang province. Contact us for detailed specifications, current condition assessment, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1138643 |
| Tonnage (tons) | 12 |
| Working weight (kg) | 12500 |
| Bucket capacity (m³) | 0.53 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3054C |
| Rated power (kw/rpm) | 59 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 127 |
| Displacement (L) | 4.4 |
| Ground specific pressure (Kpa) | 40.4 |
| Rotation speed (rpm) | 11.2 |
| Bucket digging force (kN) | 95 |
| Rod digging force (kN) | 65 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.1 |
| Turning torque (Nm) | 30.9 |

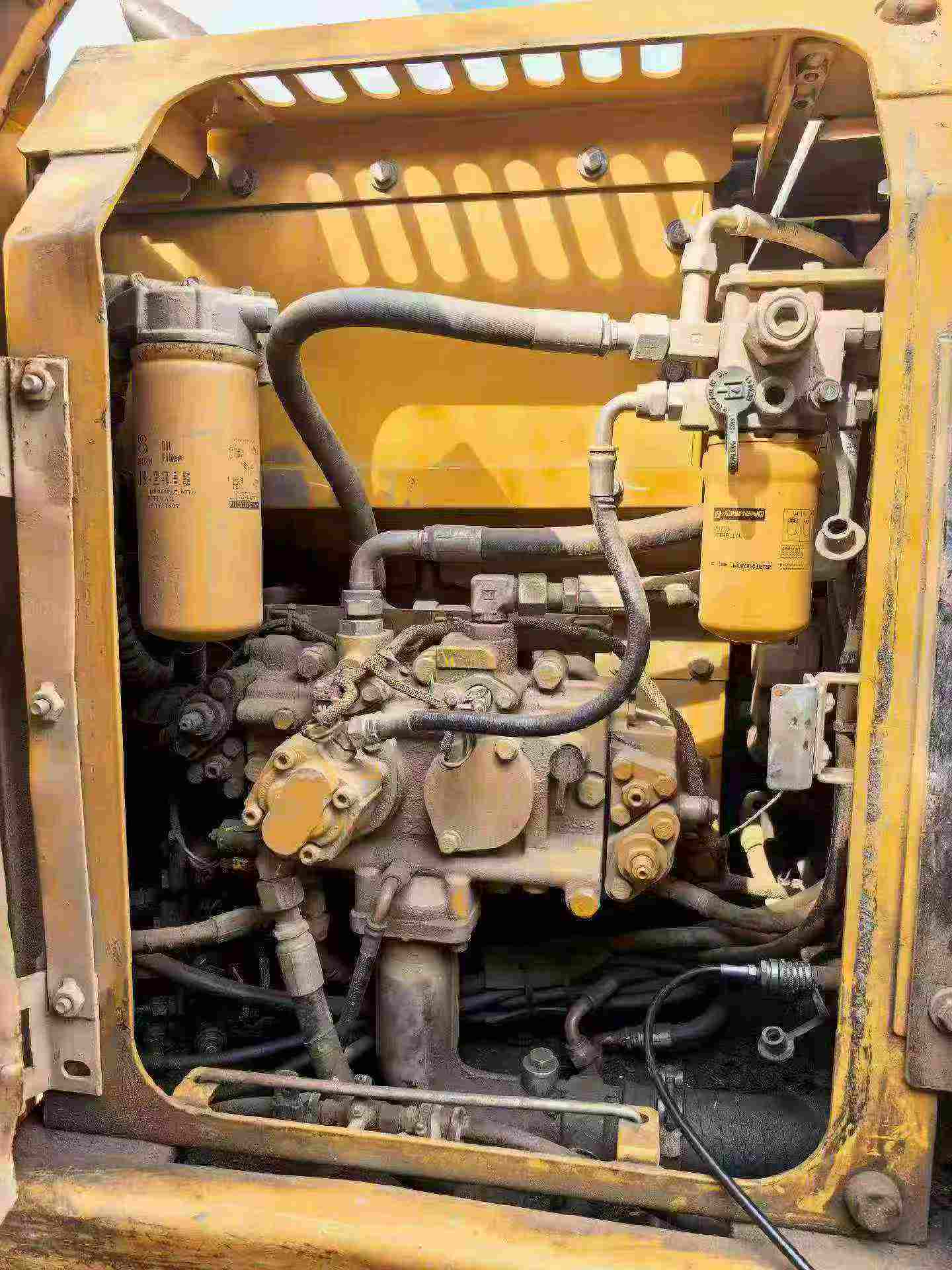

| Maximum flow of main pump (l/min) | 232 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Working Hydraulic Circuit (Mpa) | 30.5 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 91 |
| Engine Oil changes (L) | 16 |
| Coolant (L) | 18 |
| Hydraulic System (L) | 104 |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 |
| Full cab height (mm) | 2670 |
| Counterweight ground clearance (mm) | 900 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8490 |
| Maximum unloading height (mm) | 6100 |
| Maximum vertical digging depth (mm) | 4910 |
| Maximum excavation radius of stop surface (mm) | 8180 |
| Maximum effective digging depth (mm) | 5340 |
see more
Overview
No.1138643
Brand Name：
CaterpillarModel Number：
312D2GCYear：
2012
Location：
Zhejiang China
