2018 Caterpillar 313D
Product Description

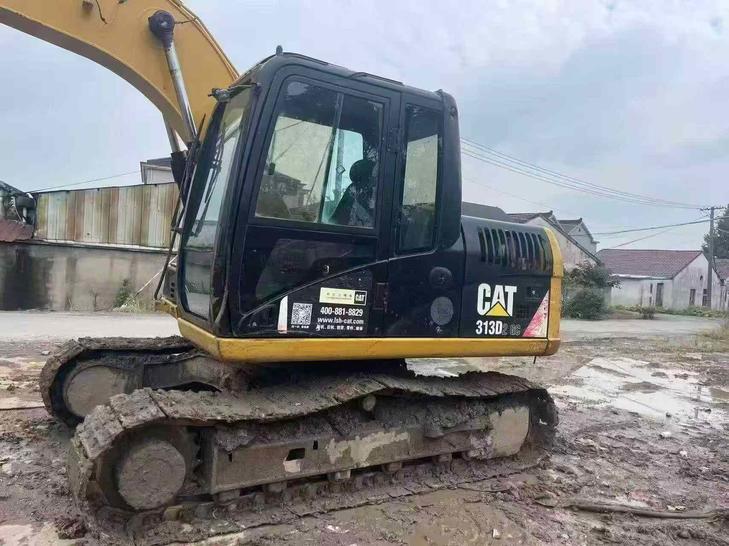

This 2018 Caterpillar 313D hydraulic excavator offers proven performance for mid-sized construction and excavation projects. The 313D series is recognized for its reliable Caterpillar engine, efficient hydraulic system, and operator comfort in demanding work environments. Currently located in Sichuan, China, this machine is available for buyers seeking dependable used equipment at competitive market pricing.
- Year: 2018
- Make: Caterpillar
- Model: 313D
- Location: Sichuan Province, China
- Operating weight class: approximately 13 metric tons
- Suitable for general earthmoving, trenching, and site preparation
The Caterpillar 313D combines productivity with fuel efficiency, making it a practical choice for contractors and fleet operators. Inspection recommended prior to purchase. Contact us for availability, detailed specifications, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1167679 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
