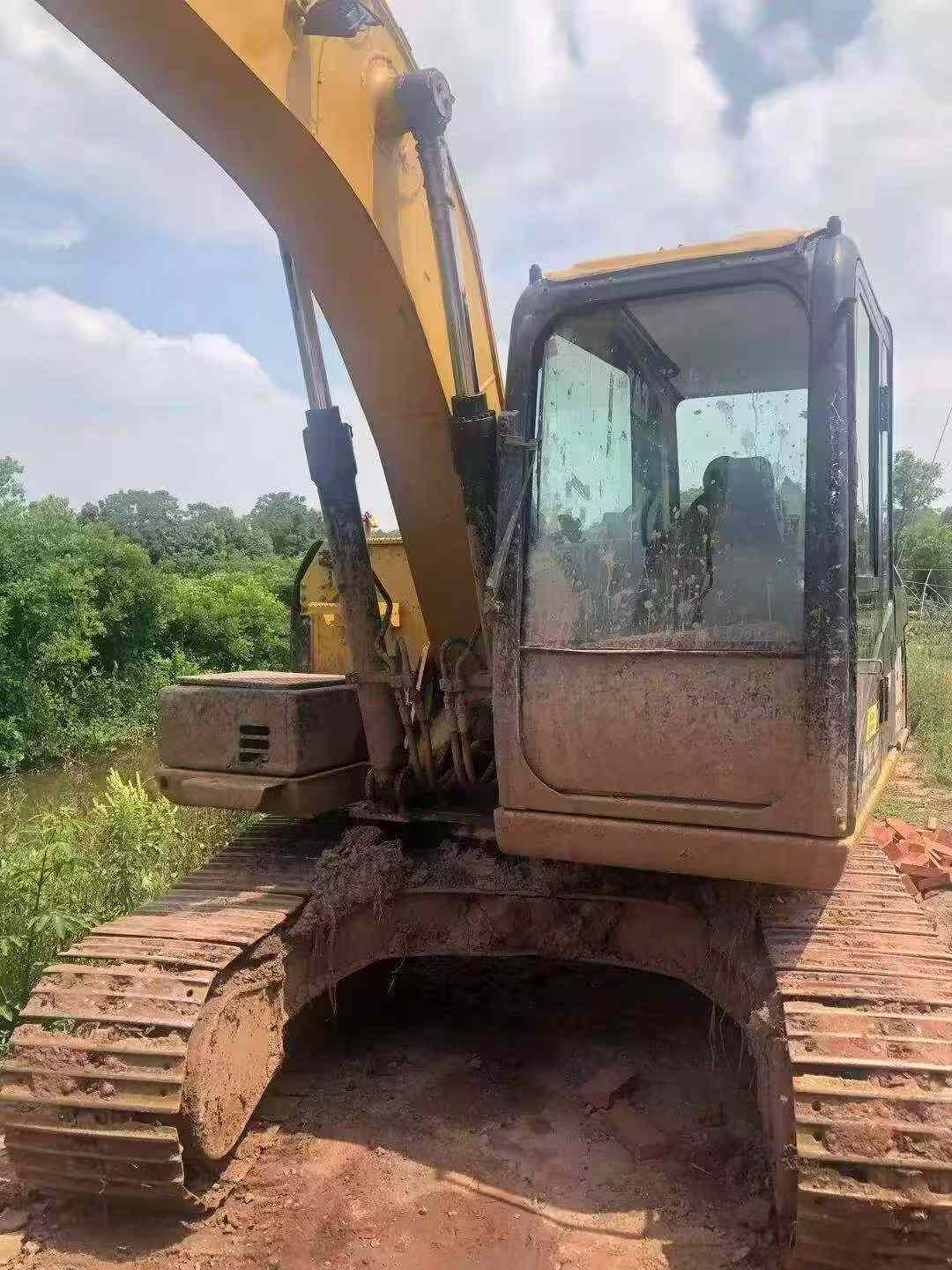

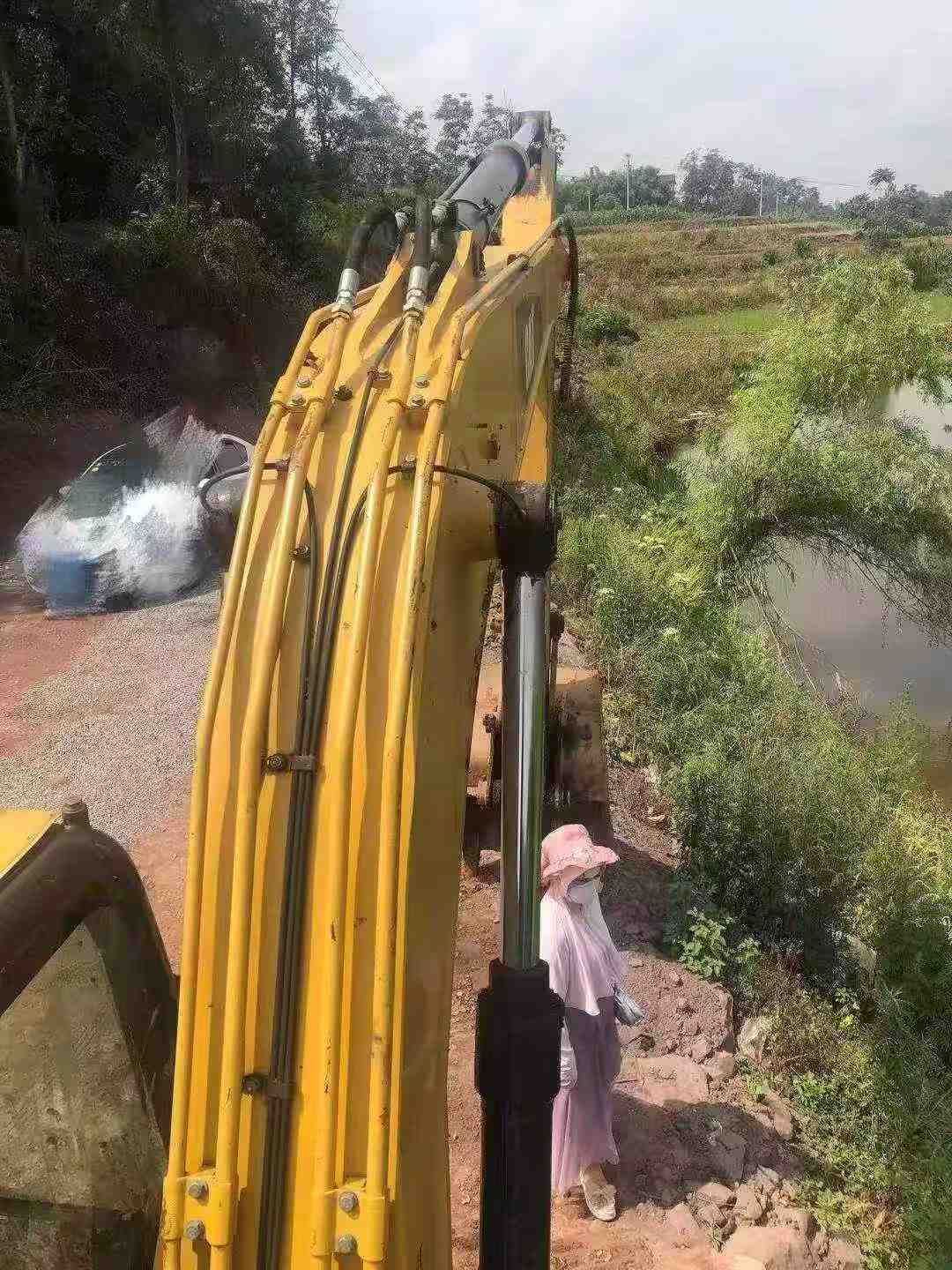

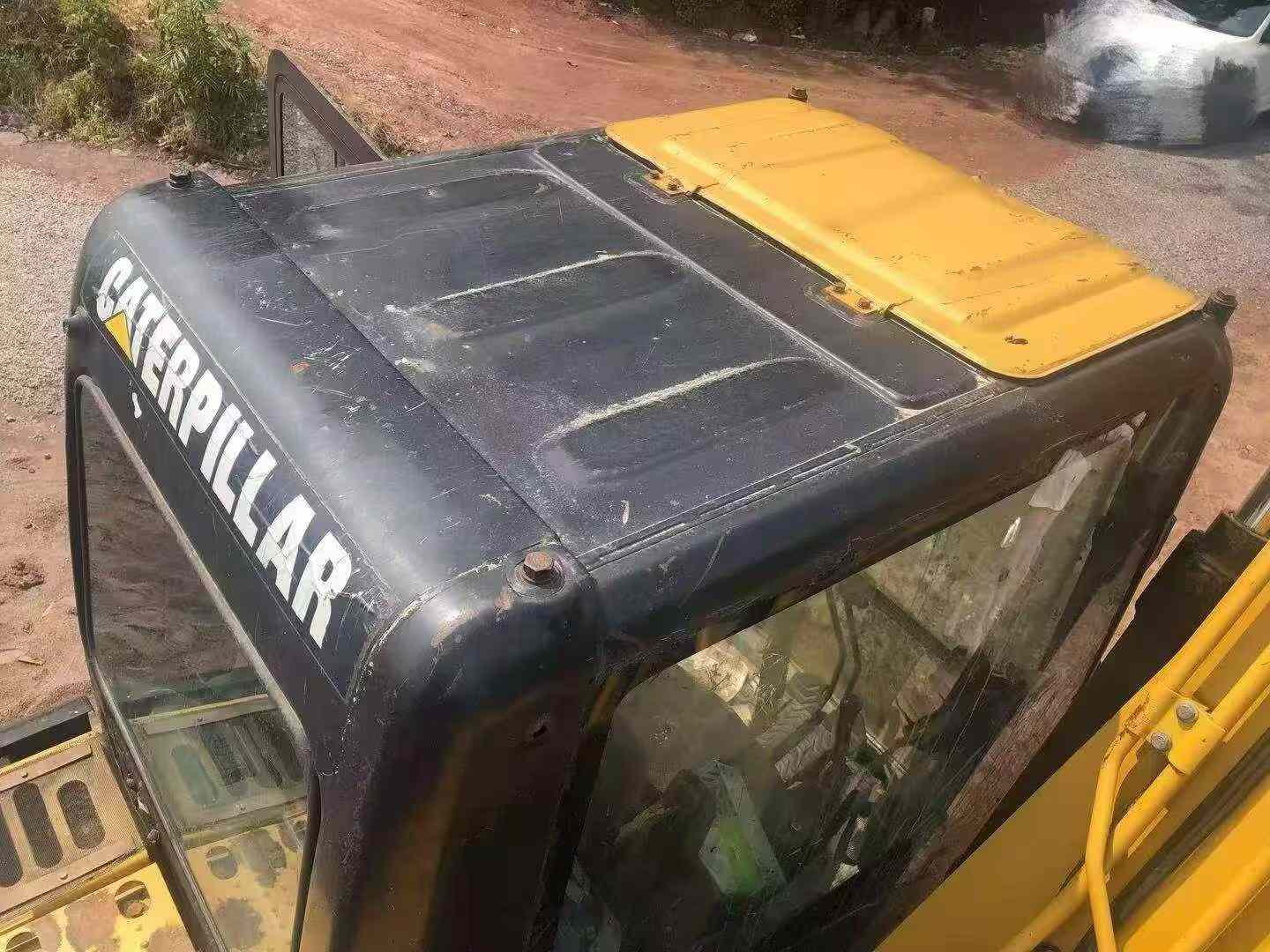

2019 Caterpillar 313D
Product Description
Engineered with Caterpillar's renowned C4.2 ACERT engine delivering 67 kW of net power, this 2019 313D excavator combines proven hydraulic efficiency with robust construction-grade performance. Operating at 13 tons with a 13,430 kg working weight, the machine features a sophisticated hydraulic system generating 127 L/min maximum main pump flow at 30.5 MPa, ensuring consistent digging force across demanding applications.
Built at Caterpillar's Xuzhou facility in Jiangsu, this joint-venture manufactured unit meets US EPA Tier 3 and European IIIA emission standards while maintaining exceptional productivity. The 4.65-meter boom and 2.5-meter stick configuration provides 5,580 mm maximum digging depth and 8,220 mm excavation radius, supported by 82 kN bucket digging force and 63 kN stick digging force.
Key technical specifications include:
- Water-cooled 4-cylinder diesel engine with 4.25L displacement
- 0.52 m³ standard bucket capacity for versatile earthmoving
- 12.4 rpm rotation speed with dedicated 23 MPa slew circuit
- 500mm track plates delivering 41.8 kPa ground pressure
- 250L fuel tank and 162L total hydraulic capacity
Currently located in Luzhou, Sichuan, th
| Specifications | Value |
|---|---|
| No. | 1024460 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1024460
Brand Name：
CaterpillarModel Number：
313DYear：
2019
Location：
Sichuan China
Pub Date：
