2019 Caterpillar 313D
Product Description

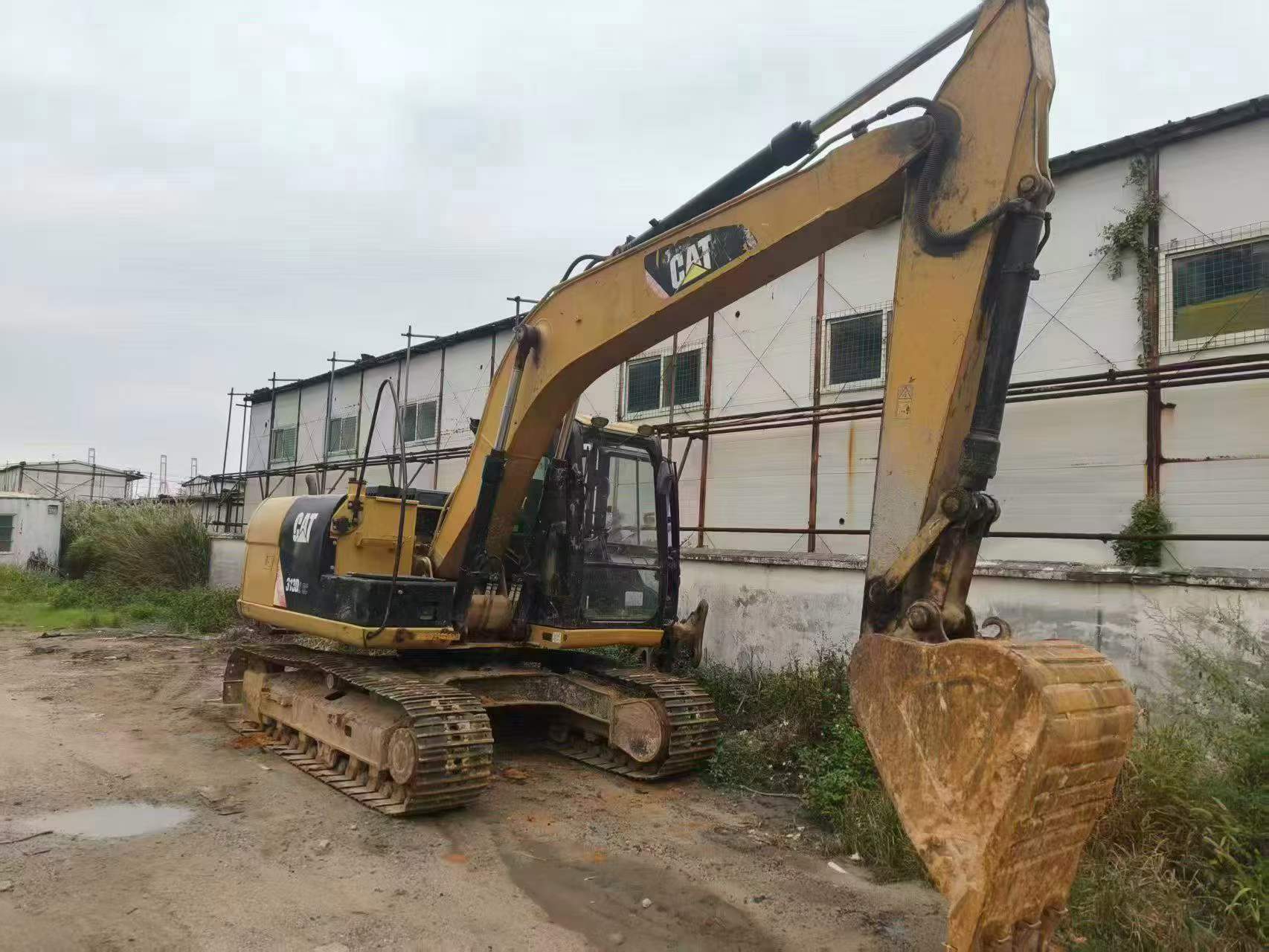

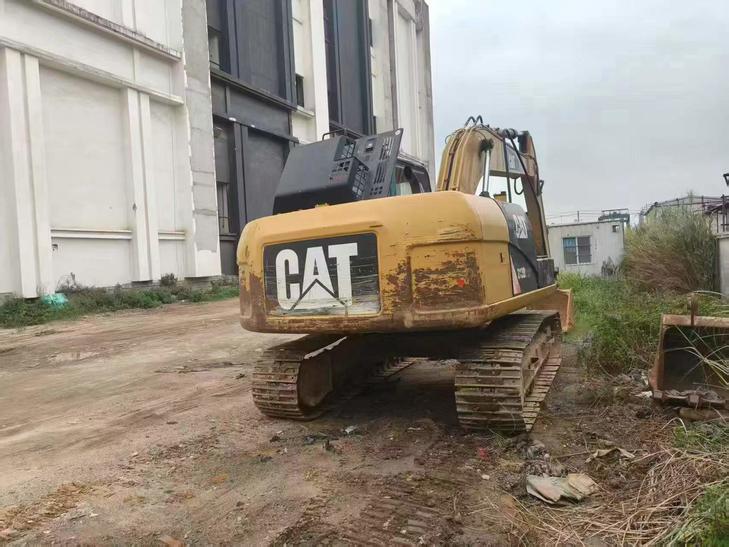

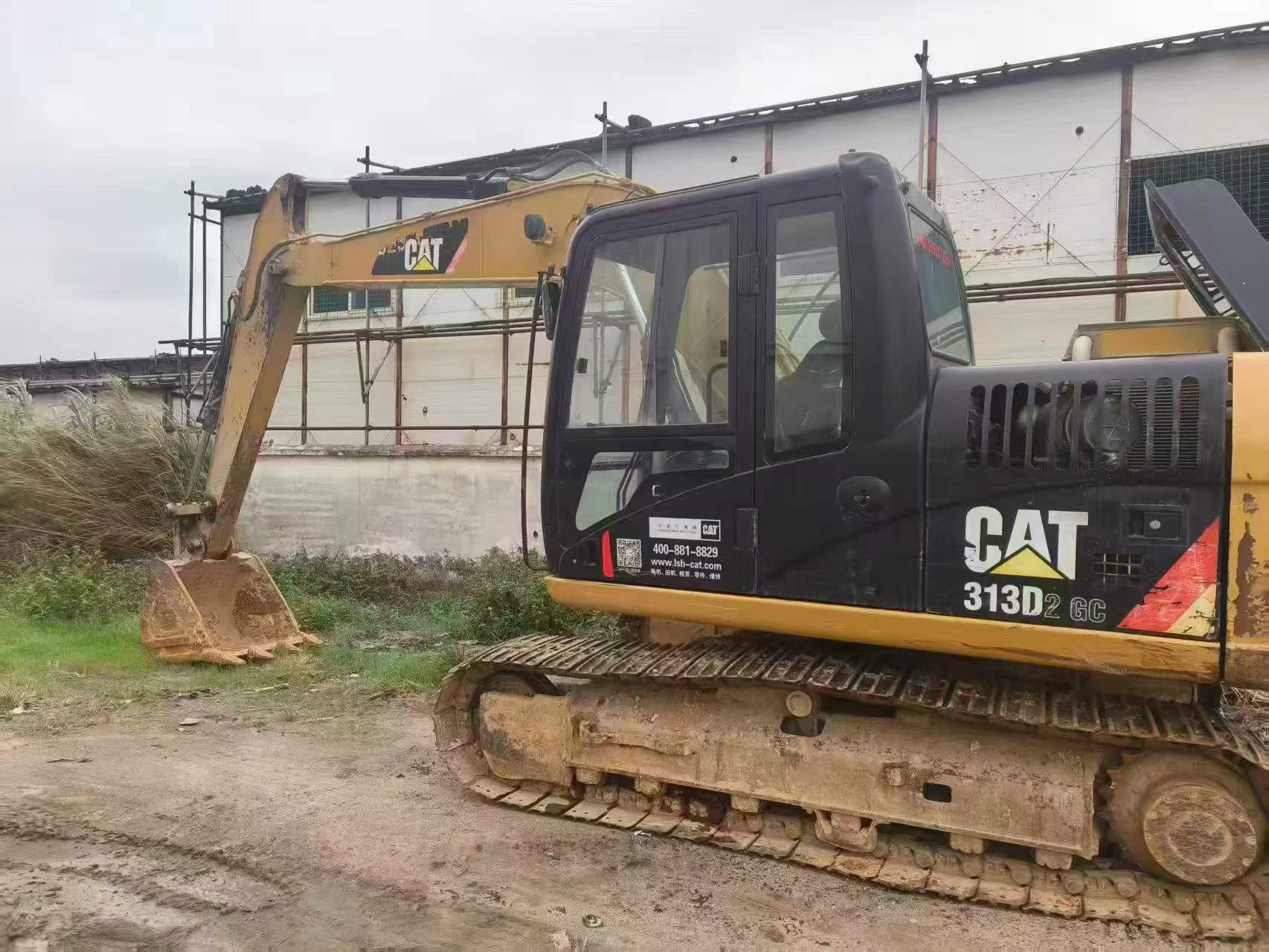

Now available from our yard in Zhejiang, China: a used 2019 Caterpillar 313D hydraulic excavator. The 313D sits in the compact mid-size class, a configuration that works well for utility trenching, site preparation, foundation digging and general earthmoving where a larger machine would be awkward to move and operate. Caterpillar's Chinese-market units are known among contractors for simple daily service points and easy access to filters, hoses and wear parts through the local dealer network.
Listing details:
- Year: 2019
- Brand: Caterpillar
- Model: 313D
- Location: Zhejiang, China
- Condition: used, sold as inspected
- Configuration: standard excavator arrangement; buyers should confirm final specifications during inspection
Machine hours, undercarriage wear and attachment condition are documented for serious buyers rather than estimated here. Walkaround photos and an inspection report are available on request. We can coordinate third-party inspection before shipment, loading, and inland transport to the port. Contact our team for current pricing, availability and shipping terms.
| Specifications | Value |
|---|---|
| No. | 1157120 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

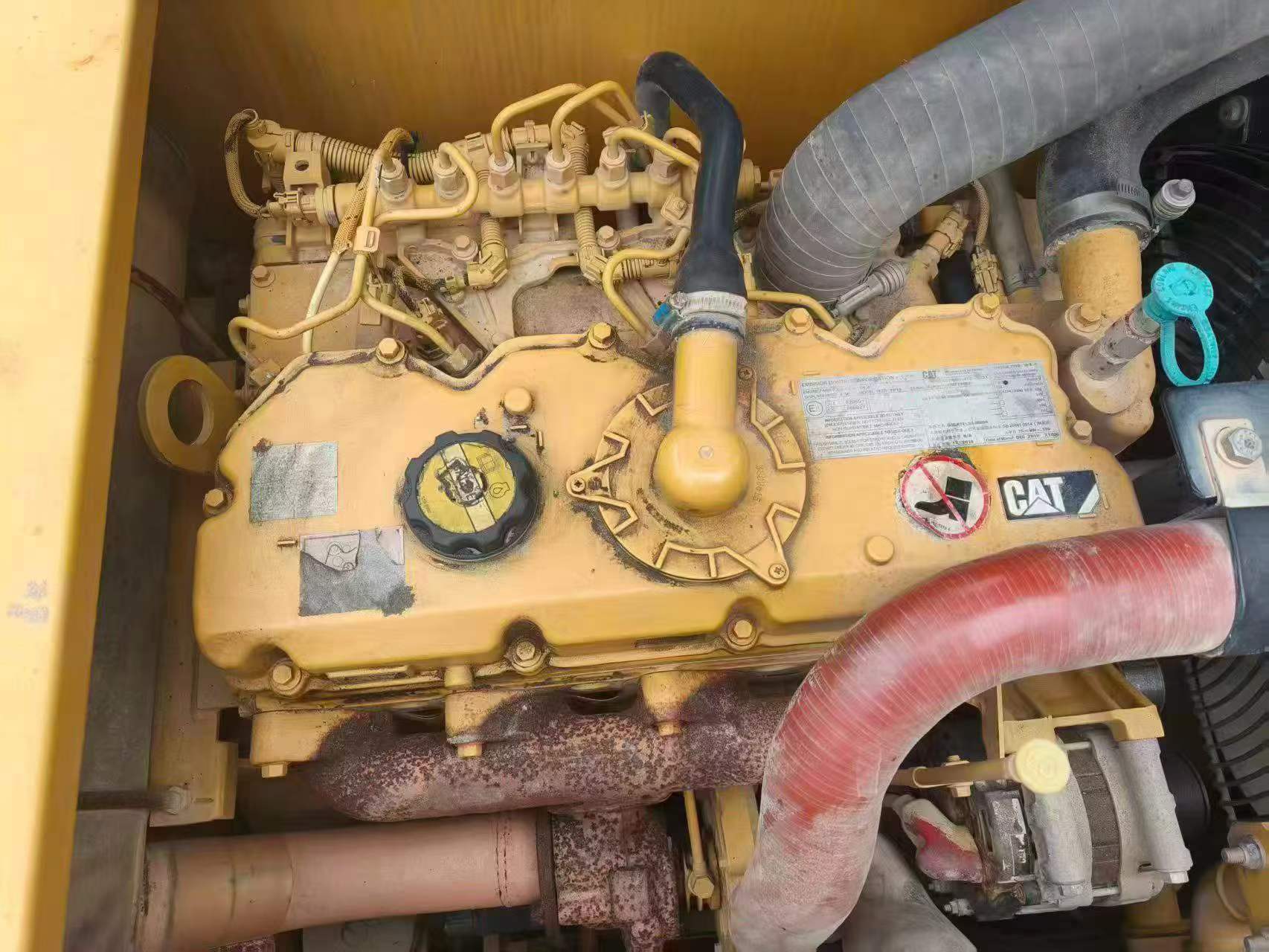

| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
