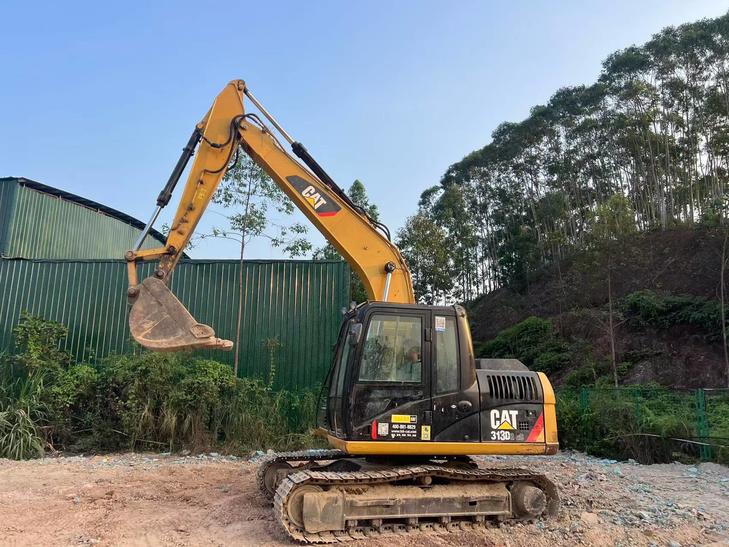

2020 Caterpillar 313D
Product Description
This 2020 Caterpillar 313D2 GC excavator offers reliable performance for immediate deployment on your next project. Located in Guangdong, China, this machine features original factory wiring and electrical systems, ensuring operational integrity from day one. The unit has been maintained to professional standards and is ready for site work without requiring additional inspection or major service intervals.
- Year: 2020
- Model: Caterpillar 313D2 GC
- Location: Guangdong, China
- Condition: Operational, original electrical system
- Status: Ready for immediate site deployment
The 313D2 GC combines proven hydraulic efficiency with fuel economy, making it suitable for general construction, utility work, and site development applications. This unit represents an opportunity to acquire late-model Caterpillar reliability at competitive pricing for the Asian market.
| Specifications | Value |
|---|---|
| No. | 1164343 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
