2023 Caterpillar 313D
Product Description

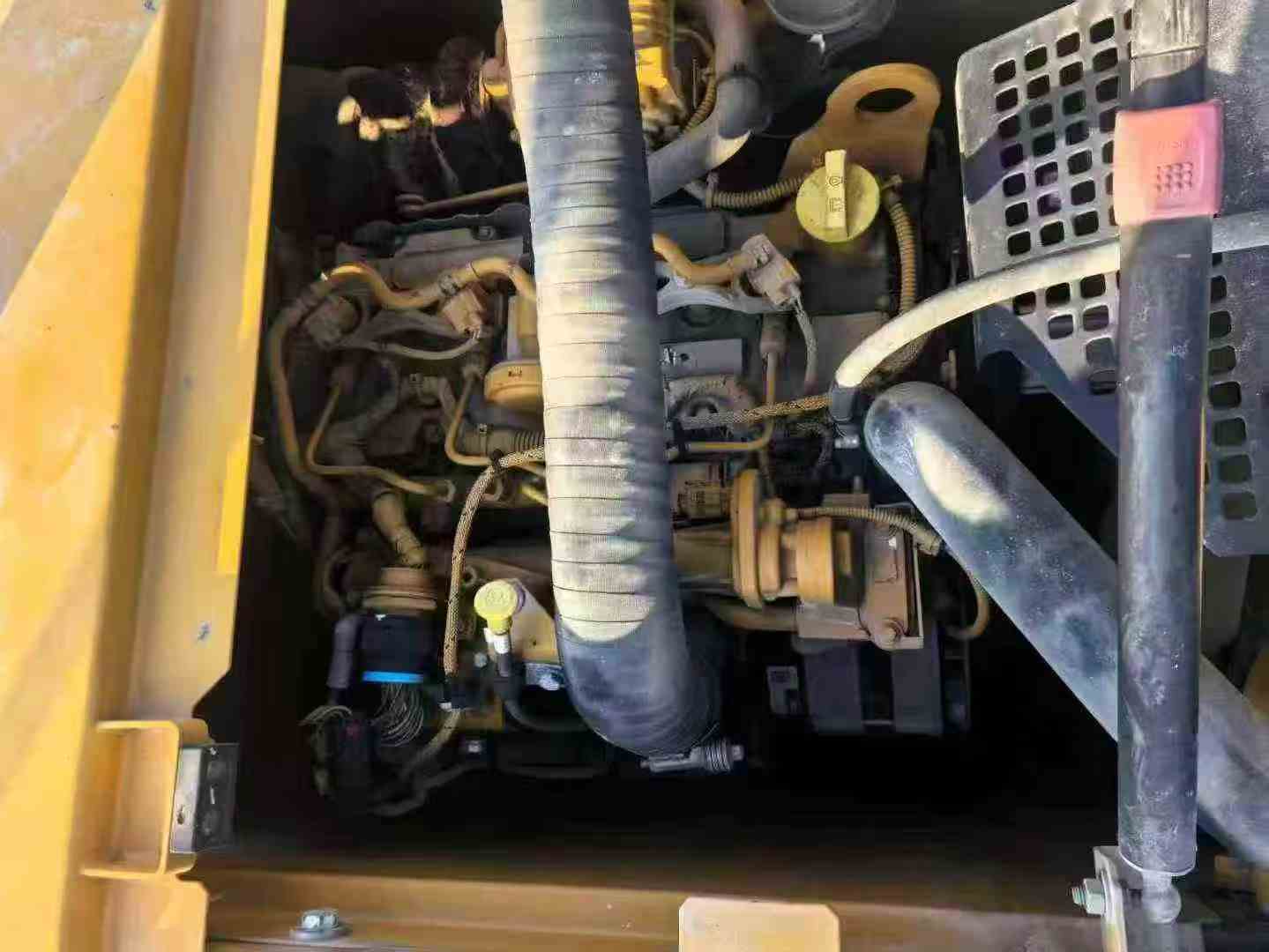

Engineered with Caterpillar's proven Cat C4.2 ACERT engine delivering 67 kW of net power, this 2023 313D excavator combines robust hydraulics with precision control for demanding jobsites. The water-cooled 4.25L displacement engine meets US EPA Tier 3 and European IIIA emissions standards while maintaining exceptional fuel efficiency from its 250L tank capacity.
Hydraulic performance defines this 13-ton machine's capabilities:
- Maximum main pump flow of 127 L/min ensures responsive operation
- 82 kN bucket digging force and 63 kN rod digging force tackle tough materials
- 30.5 MPa main overflow pressure provides consistent power delivery
- 8,220 mm maximum excavation radius covers extensive work areas
- 5,580 mm maximum digging depth handles deep foundation work
Built at Xuzhou, Jiangsu under joint venture manufacturing standards, this 313D features a 4,650 mm boom and 2,500 mm rod configuration optimized for versatility. With 13,430 kg operating weight, 500 mm standard track plates, and 41.8 kPa ground pressure, this excavator balances stability with minimal surface disruption. Currently located in Wenzhou, Zhejiang, ready for immediate deployment.
| Specifications | Value |
|---|---|
| No. | 1031622 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1031622
Brand Name：
CaterpillarModel Number：
313DYear：
2023
Location：
Zhejiang China
Pub Date：
