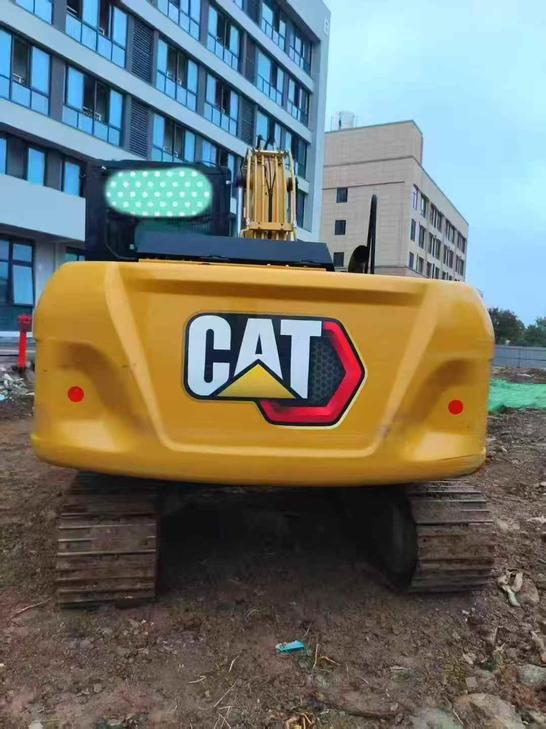

2024 Caterpillar 313D
Product Description
Powered by the reliable Cat C4.2 ACERT engine delivering 67kW, this 2024 Caterpillar 313D excavator combines proven performance with smart economics. Operating at 13 tons with a 0.52m³ bucket capacity, it handles demanding excavation tasks while maintaining a competitive edge over new equipment pricing. Maximum digging depth reaches 5,580mm with an impressive 8,220mm reach at ground level, supported by 82kN bucket digging force.
Built to US EPA Tier 3 and European IIIA emission standards, the machine features a water-cooled 4-cylinder engine with 4.25L displacement. The hydraulic system operates at 30.5MPa with 127L/min main pump flow, ensuring responsive control across all functions. Track configuration includes 500mm plates with 1,990mm gauge for stable operation on varied terrain.
Currently located in Guizhou, this joint venture-manufactured unit offers:
- 13,430kg working weight with 41.8kPa ground pressure
- 250L fuel capacity for extended operation
- 12.4rpm rotation speed with 5.5km/h travel capability
- Compact transport dimensions: 7,610mm length × 2,490mm width
Acquire near-new capability without the premium price tag. Smart buyers recognize value in recent-yea
| Specifications | Value |
|---|---|
| No. | 1021072 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 13430 |
| Bucket capacity (m³) | 0.52 |
| Boom length (mm) | 4650 |
| Rod length (mm) | 2500 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar Cat C4.2 ACERT |
| Rated power (kw/rpm) | 67 (Net power) |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 4.25 |
| Working form | Meets the emission requirements of US EPA Tier 3 and European IIIA Directive 97/68/EC. |
| Ground specific pressure (Kpa) | 41.8 (with 500mm track plate) |
| Rotation speed (rpm) | 12.4 |
| Bucket digging force (kN) | 82 |
| Rod digging force (kN) | 63 |
| Maximum tractive force (kN) | 114 |
| Travel speed (km/h) | 5.5 |
| Main overflow set pressure (Mpa) | 30.5 |
| Maximum flow of main pump (l/min) | 127 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Pilot Oil Circuit (MPa) | 41.2 |
| Pilot pump flow (L/min) | 21.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 100 x 939 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 120 x 1197 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 110 x 1015 |
| Fuel Tank (L) | 250 |
| Hydraulic Tank (L) | 150 |
| Engine Oil changes (L) | 19.5 |
| Coolant (L) | 17.9 |
| Hydraulic System (L) | 162 (including fuel tank) |
| Total transport length (mm) | 7610 |
| Total transport width (mm) | 2490 |
| Total transport height (mm) | 2830 (to top of boom) |
| Full cab height (mm) | 2760 |
| Counterweight ground clearance (mm) | 915 |
| Minimum ground clearance (mm) | 430 |
| Back end turning radius (mm) | 2140 |
| Total track length (mm) | 3490 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 (standard) |
| Total track width (mm) | 2490 |
| Maximum digging depth (mm) | 5580 |
| Maximum unloading height (mm) | 6060 |
| Maximum vertical digging depth (mm) | 5040 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 8220 |
| Boom turning Angle (left/right °) | There is no |
| Maximum effective digging depth (mm) | 5380 |
Overview
No.1021072
Brand Name：
CaterpillarModel Number：
313DYear：
2024
Location：
Guizhou China
Pub Date：
