2020 Caterpillar 320B
Product Description
Discover the reliability and performance of this 2020 Caterpillar 320B, available in Fujian, China. This excavator has undergone a thorough engine overhaul, ensuring it is ready for your most demanding projects. Known for its durability and efficiency, the 320B is a preferred choice for construction, mining, and infrastructure development. Equipped with advanced features that enhance productivity and reduce operating costs, this machine is an excellent addition to any fleet. Trust in the robust design and proven technology of Caterpillar to deliver consistent results on your worksite.
- Year: 2020
- Brand: Caterpillar
- Model: 320B
- Location: Fujian, China

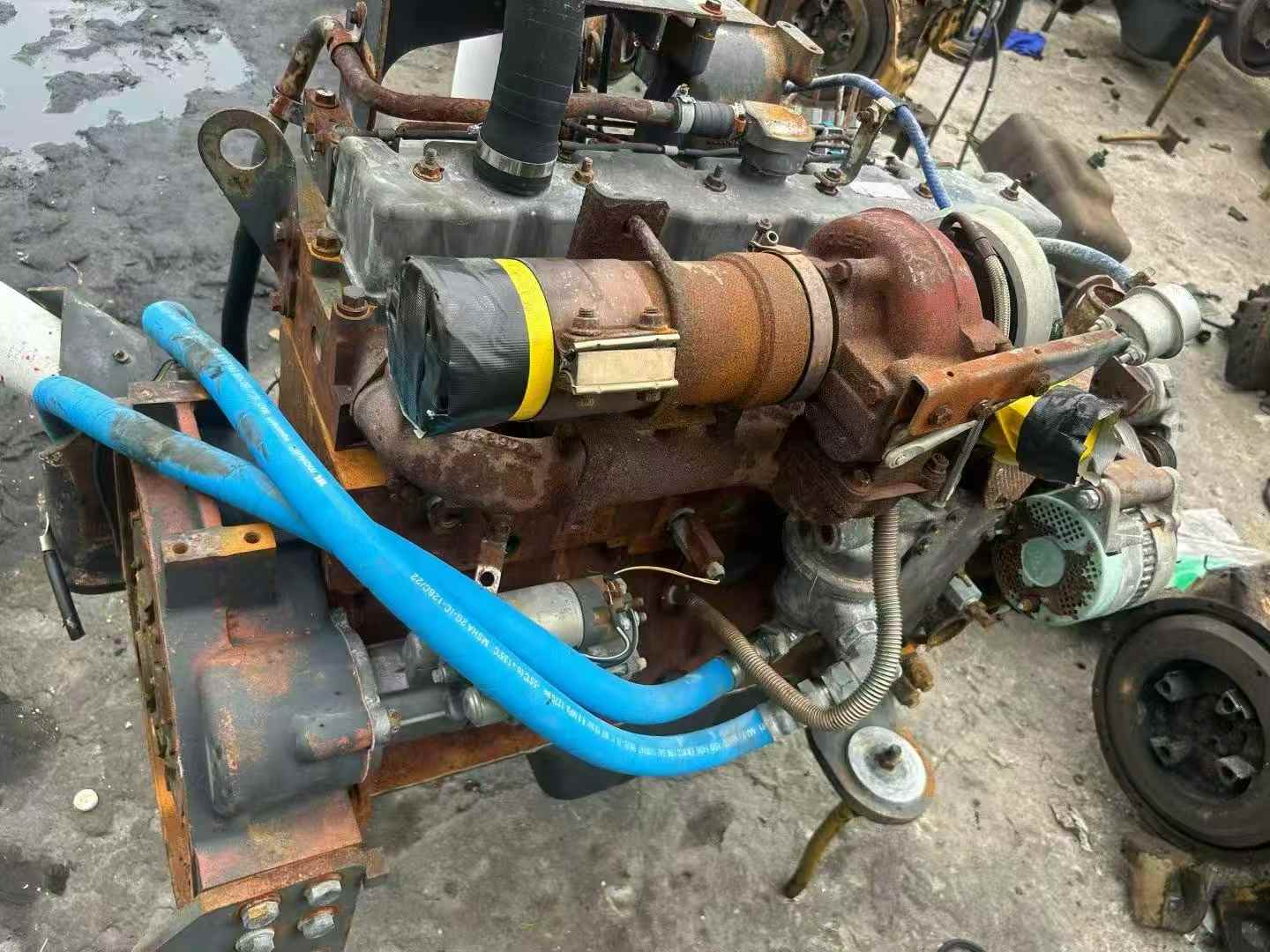

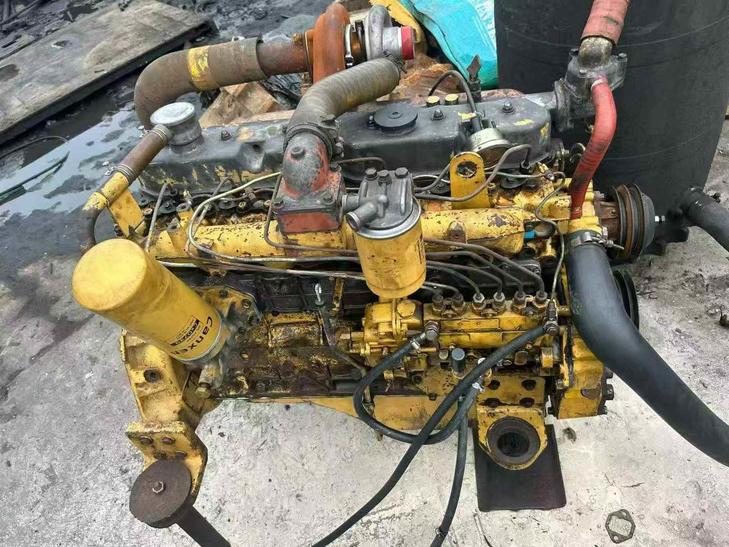

- Engine Overhauled: Yes
| Specifications | Value |
|---|---|
| No. | 1114508 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19400 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066T |
| Rated power (kw/rpm) | 99.9/1800 |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 10.7 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 185 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 20.5 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 220 |
| Total transport length (mm) | 9440 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2940 |
| Full cab height (mm) | 2940 |
| Minimum ground clearance (mm) | 475 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3265 |
| Maximum digging depth (mm) | 6640 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6570 |
| Maximum vertical digging depth (mm) | 6040 |
| Maximum excavation radius of stop surface (mm) | 9780 |
see more
Overview
No.1114508
Brand Name：
CaterpillarModel Number：
320BYear：
2020
Location：
Fujian China
Pub Date：
