2020 Caterpillar 320B
Product Description

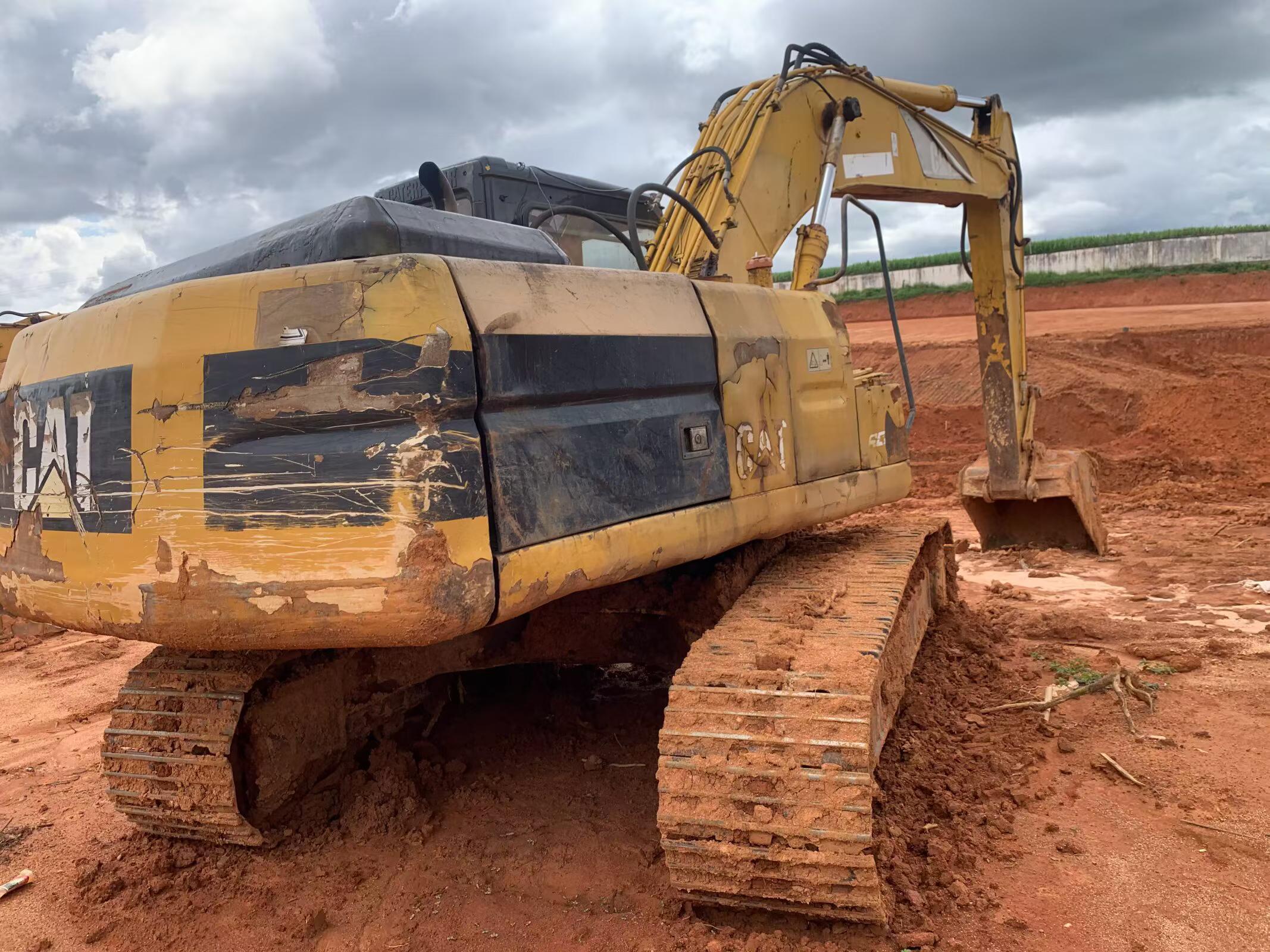

FairTradeMachinery is listing a used Caterpillar 320B hydraulic excavator situated in Yunnan, China. Built in 2020 and offered by a motivated seller, the machine is documented with both still photos and running video, allowing overseas and domestic buyers to review its condition before committing to freight. The unit is priced for an urgent sale at RMB 42,000, which reflects a fast as-is transaction rather than a fully reconditioned retail machine.
- Brand and model: Caterpillar 320B
- Year of manufacture: 2020
- Class: standard excavator, 20-tonne segment
- Location: Yunnan Province, China; inspection by appointment
- Media available: photo set and operating video
- Sale status: urgent sale, RMB 42,000, sold as-is
Buyers should confirm machine hours, undercarriage wear, hydraulic pump output and engine condition during inspection or through the supplied footage. Loading, inland transport from Yunnan and export documentation can be arranged on request. Contact FairTradeMachinery for current availability, additional media and shipping quotations.
| Specifications | Value |
|---|---|
| No. | 1144057 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19400 |
| Bucket capacity (m³) | 0.92 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066T |
| Rated power (kw/rpm) | 99.9/1800 |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Rotation speed (rpm) | 10.7 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 185 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 130 |
| Engine Oil changes (L) | 20.5 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 220 |
| Total transport length (mm) | 9440 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2940 |
| Full cab height (mm) | 2940 |
| Minimum ground clearance (mm) | 475 |
| Back end turning radius (mm) | 2750 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3265 |
| Maximum digging depth (mm) | 6640 |
| Maximum excavation height (mm) | 9470 |
| Maximum unloading height (mm) | 6570 |
| Maximum vertical digging depth (mm) | 6040 |
| Maximum excavation radius of stop surface (mm) | 9780 |
