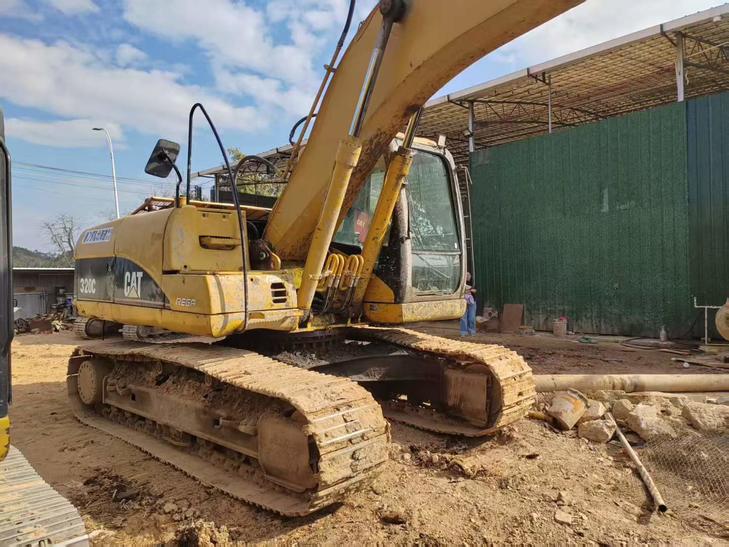

2016 Caterpillar 320C
Product Description
Maximize your equipment budget with this 2016 Caterpillar 320C excavator, delivering proven 20-ton performance at a fraction of new equipment costs. Powered by the reliable CAT 3066 ATAAC engine producing 110kW at 1800 rpm, this machine offers exceptional value without compromising capability. Currently located in Dongguan, Guangdong, it combines joint venture quality with cost-effective ownership.
Performance specifications include:
- Operating weight: 21,115 kg with 0.8 m³ bucket capacity
- Maximum digging depth of 6,550 mm and reach of 9,710 mm
- Powerful digging forces: 132 kN bucket, 99 kN stick
- Efficient hydraulics: 205 L/min main pump flow, 34.3 MPa working pressure
- Water-cooled 6.4L displacement engine for sustained operation
Smart contractors recognize that purchasing quality used equipment significantly reduces capital expenditure while maintaining productivity. This 320C represents intelligent investment—proven Caterpillar engineering, comprehensive specifications, and immediate deployment capability at substantially lower cost than new alternatives.
| Specifications | Value |
|---|---|
| No. | 1019647 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Overview
No.1019647
Brand Name：
CaterpillarModel Number：
320CYear：
2016
Location：
Guangdong China
