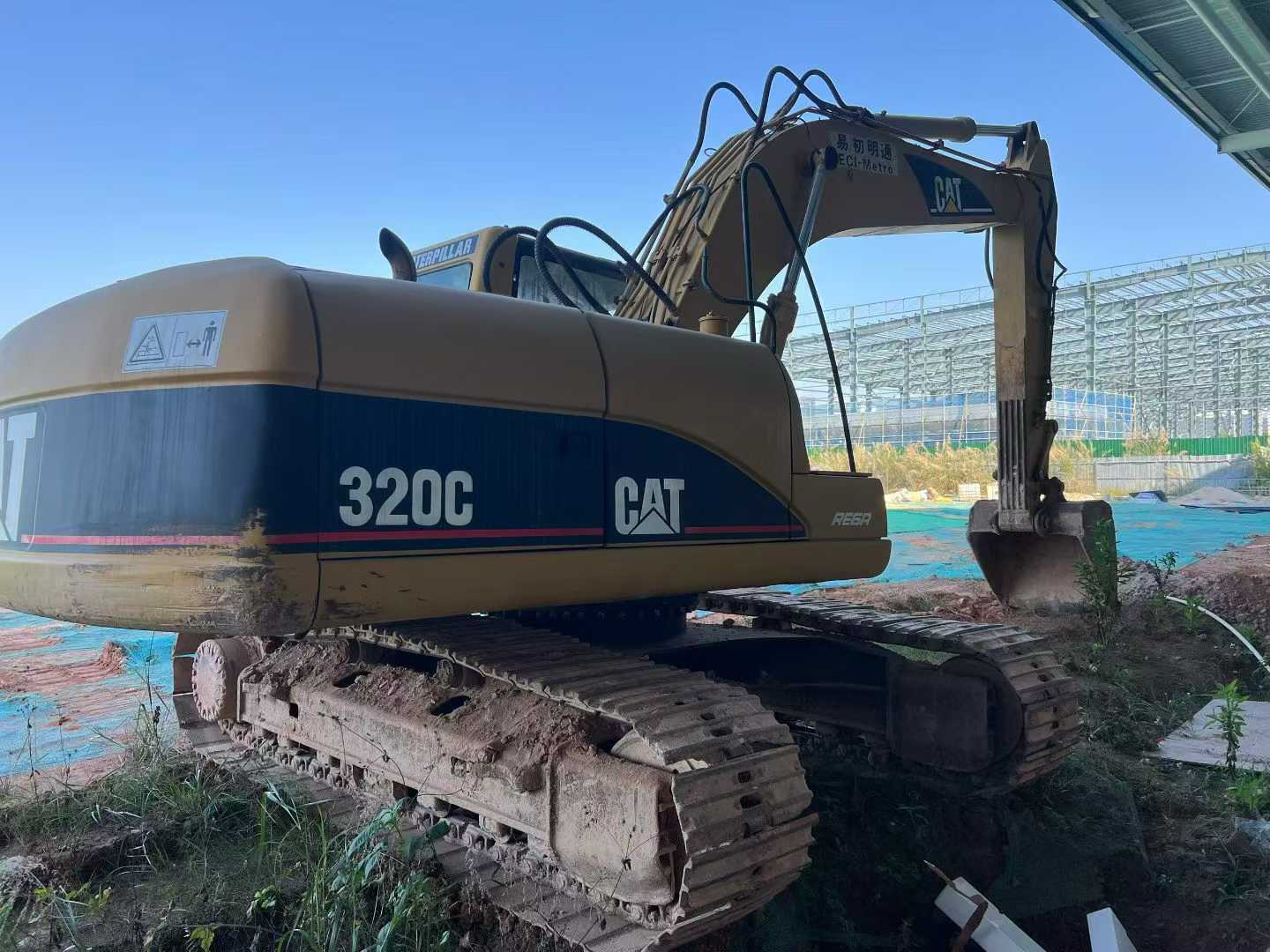

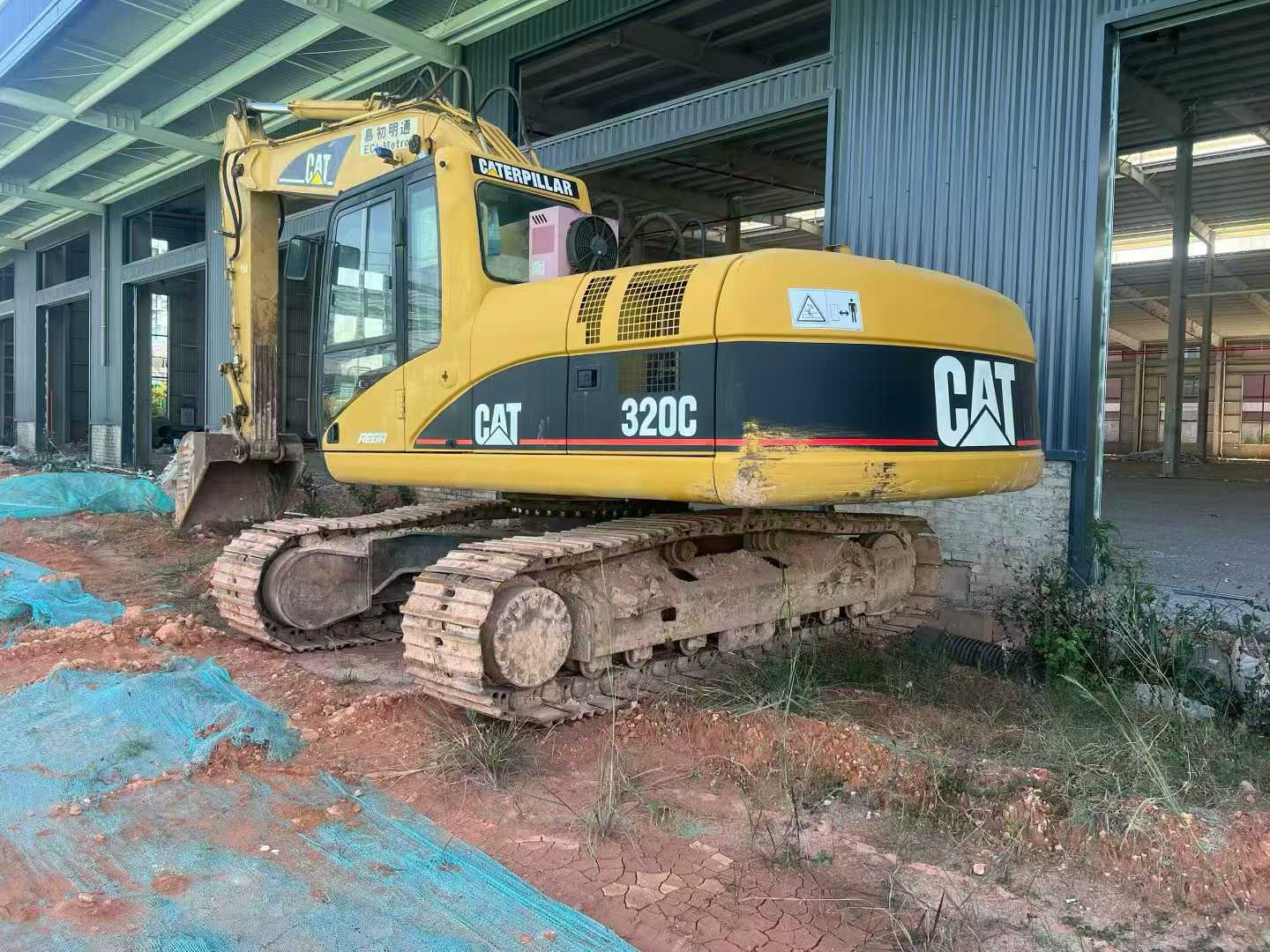

2016 Caterpillar 320C
Product Description
Powered by the proven Caterpillar CAT 3066 ATAAC engine delivering 110kW at 1800 rpm, this 2016 Caterpillar 320C excavator represents reliable performance backed by global parts support. Operating at 21,115 kg working weight with a 0.8 m³ bucket capacity, this 20-ton machine handles demanding excavation projects with 132 kN bucket digging force and 99 kN arm digging force. Caterpillar's engineering ensures maximum uptime—critical when equipment downtime costs you money.
- Proven Reach: 9,710 mm maximum excavation radius, 6,550 mm digging depth

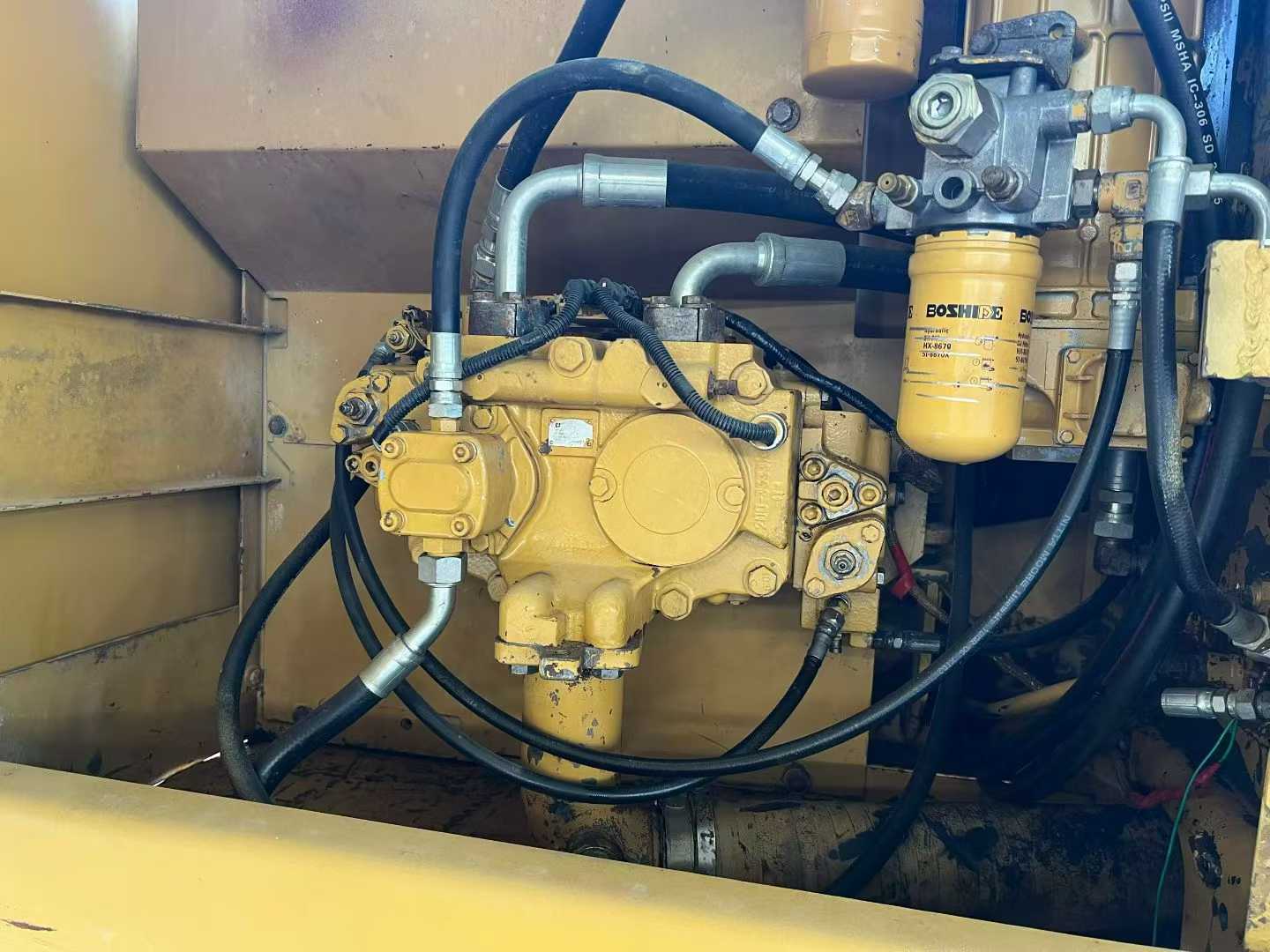

- Hydraulic Efficiency: 205 L/min main pump flow with water-cooled system
- Compact Transport: 9,390 mm length × 2,800 mm width for easy relocation
- Global Parts Network: Caterpillar dealer support ensures fast maintenance turnaround
- Strong Resale Value: CAT equipment maintains market demand long-term
Currently located in Zhangzhou, Fujian, this joint venture/import unit combines OEM quality with practical specifications for construction, demolition, and earthmoving operations. Invest in equipment that holds its value—Caterpillar's reputation protects y
| Specifications | Value |
|---|---|
| No. | 1048774 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

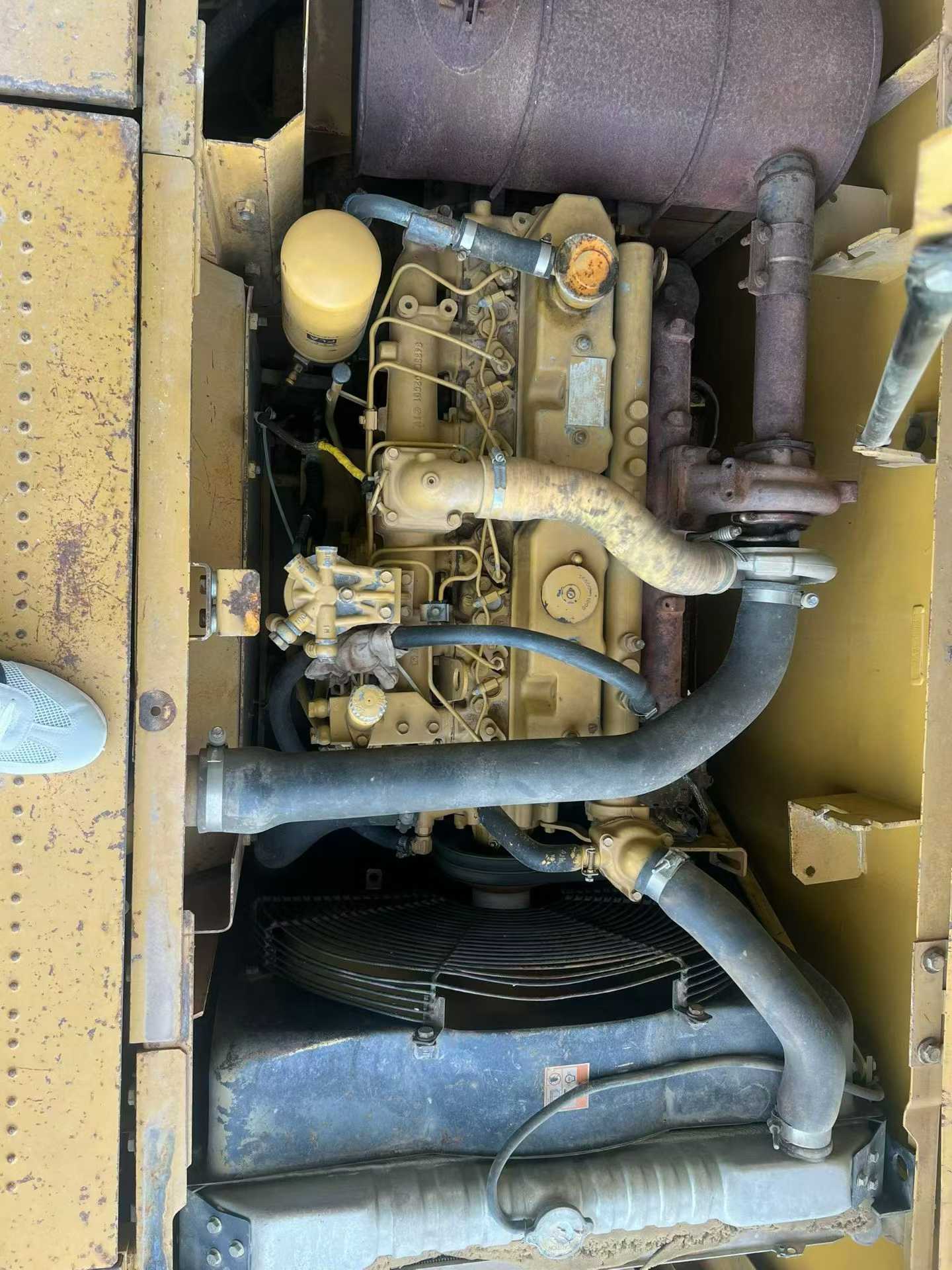

| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |

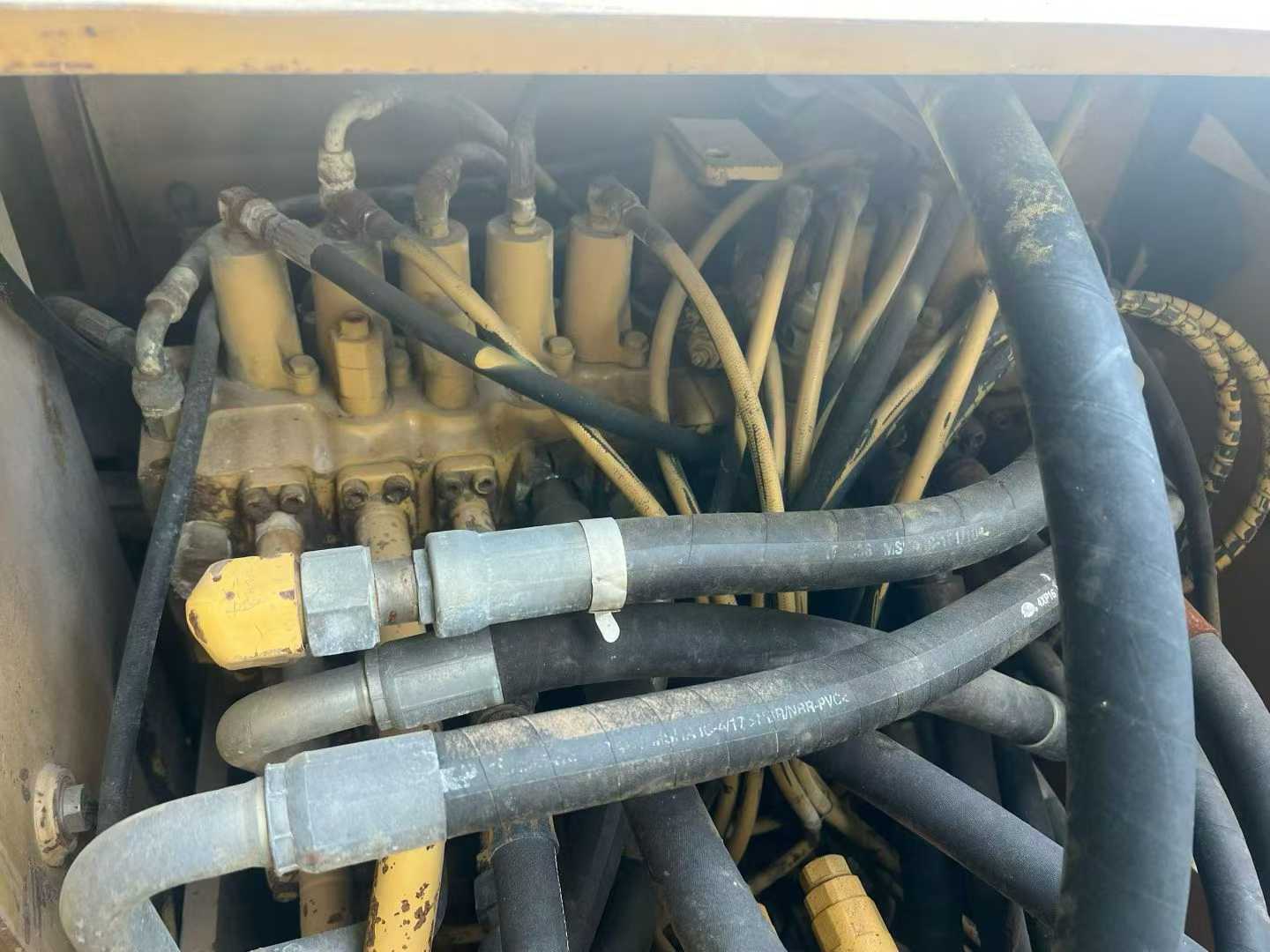

| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |

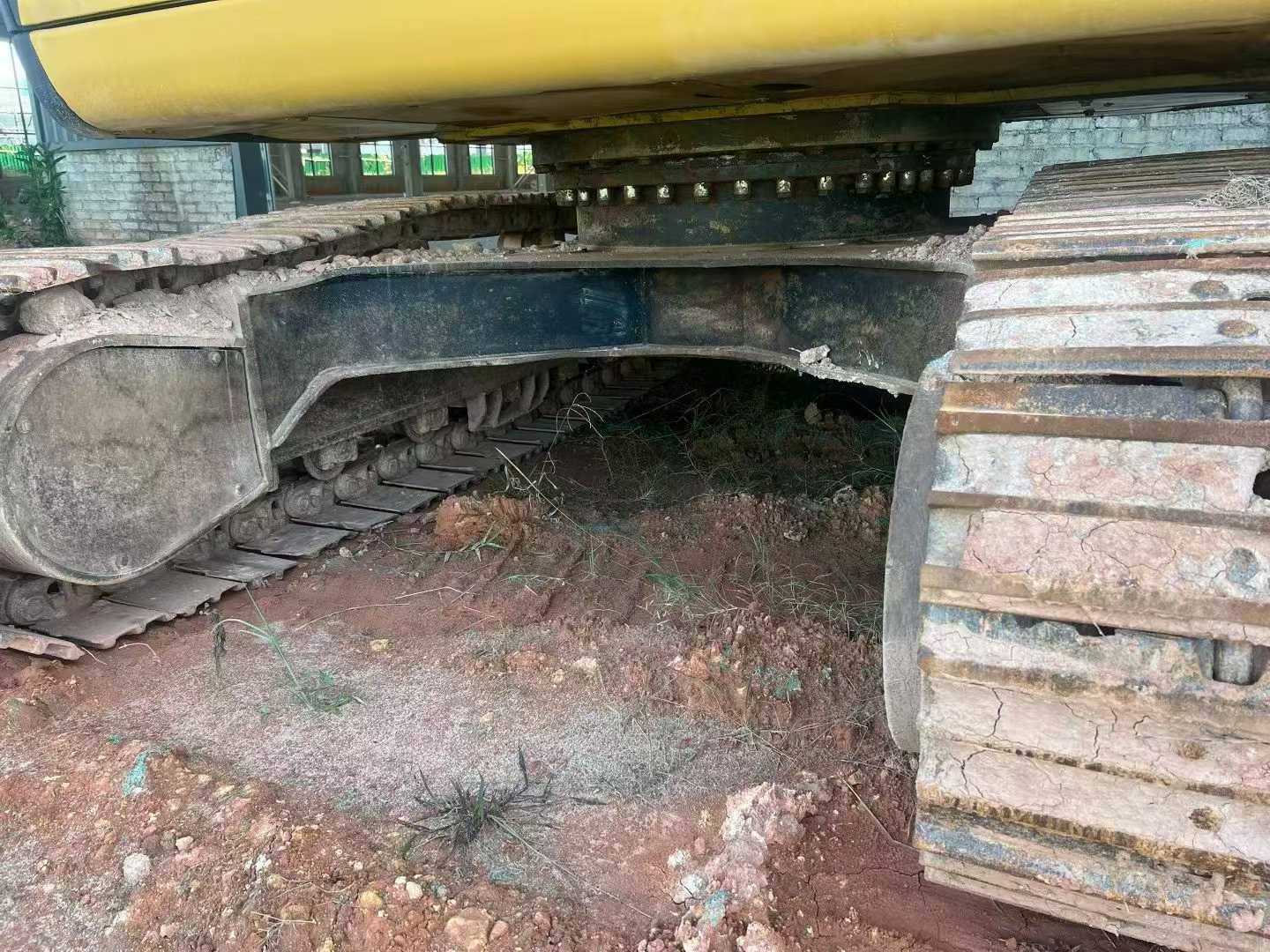

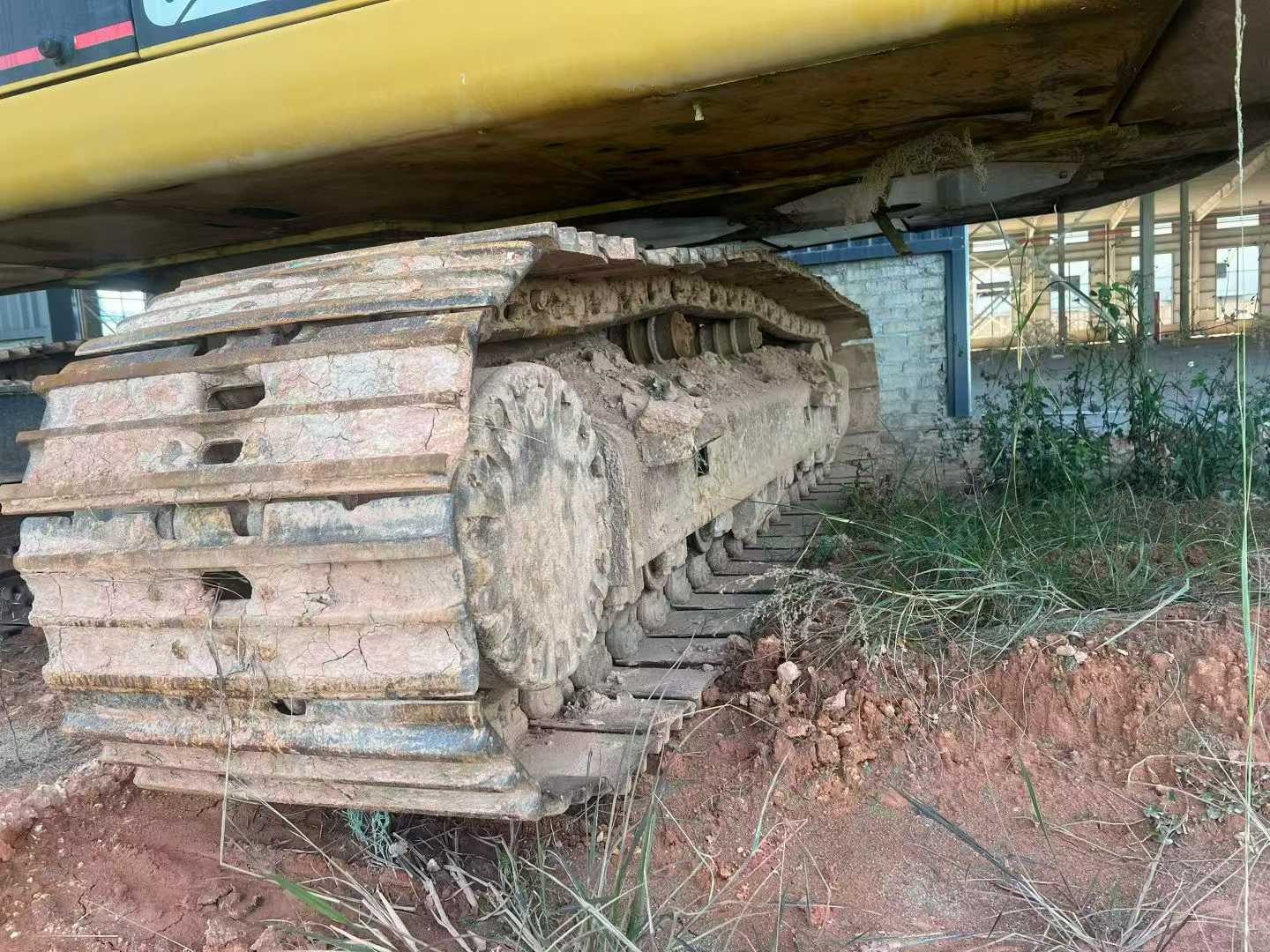

| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Overview
No.1048774
Brand Name：
CaterpillarModel Number：
320CYear：
2016
Location：
Fujian China
Pub Date：
