2020 Caterpillar 320C
Product Description

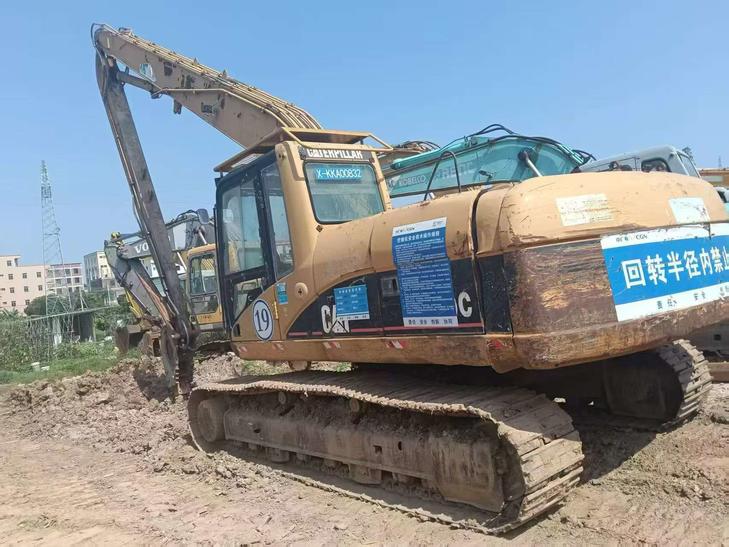

This 2020 Caterpillar 320C demolition excavator is currently located in Guangdong, China. Specifically configured for high-reach demolition applications, this machine represents a proven solution for structural dismantling projects requiring precision and reliability.
The Cat 320C demolition variant features reinforced structural components and enhanced safety systems designed for building demolition work. Its hydraulic system delivers consistent performance for demanding demolition attachments, while the operator station provides excellent visibility for safe operation at elevated working heights.
Key attributes include:
- Purpose-built for demolition and structural dismantling
- Caterpillar's proven hydraulic technology
- Reinforced boom and arm configuration
- Comprehensive operator protection systems
- Available for inspection in Guangdong, China
This used demolition excavator offers reliable performance for contractors seeking cost-effective solutions for building demolition, industrial dismantling, and urban redevelopment projects.
| Specifications | Value |
|---|---|
| No. | 1076946 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Overview
No.1076946
Brand Name：
CaterpillarModel Number：
320CYear：
2020
Location：
Guangdong China
Pub Date：
