2020 Caterpillar 320C
Product Description

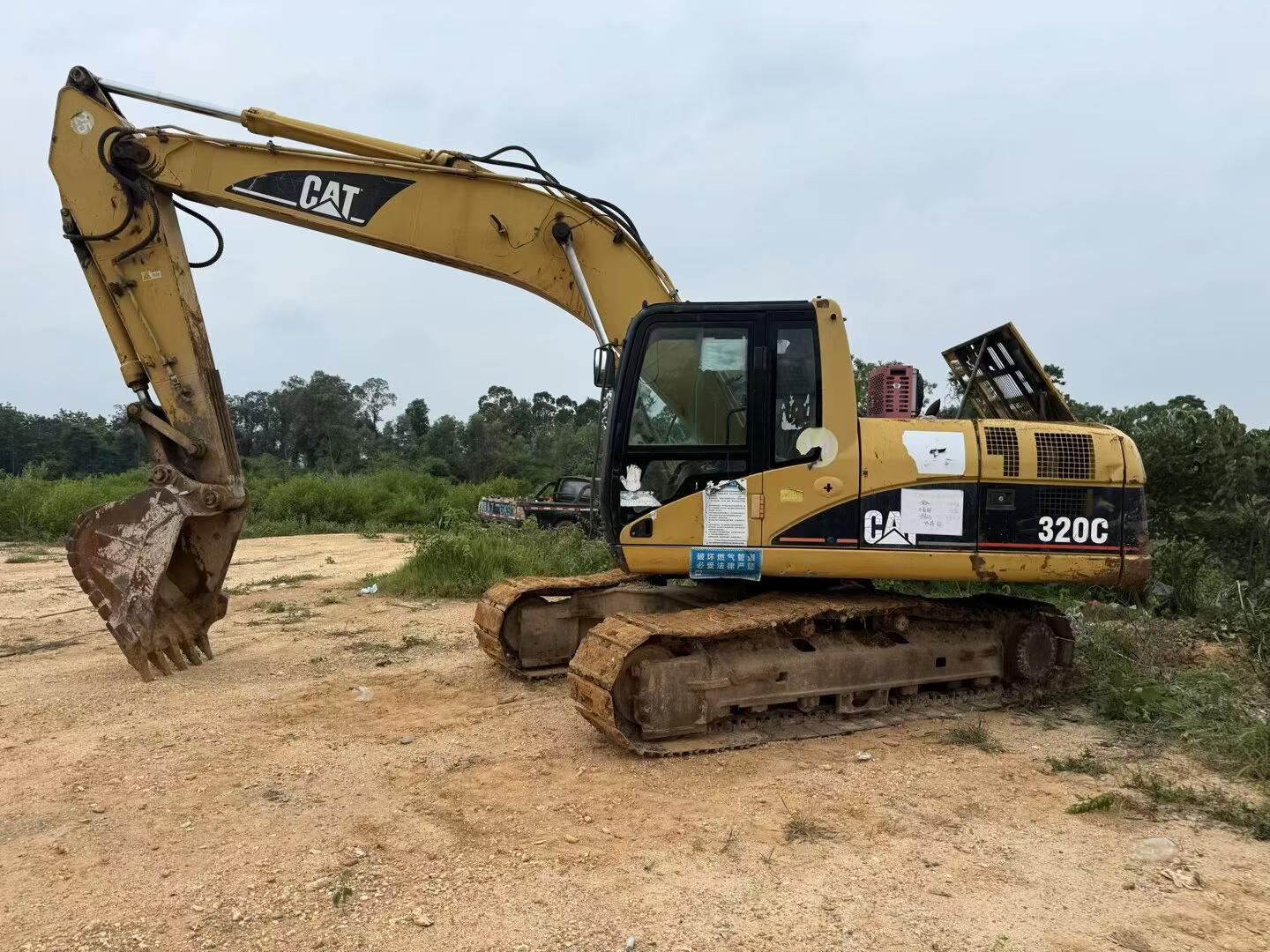

This 2020 Caterpillar 320C hydraulic excavator is available from our Guangdong, China facility. The 320C is a proven mid-size excavator known for reliable performance in construction, earthmoving, and general contracting applications. This unit features an intercooler system for improved engine efficiency and cooling performance in demanding work environments.
Key features:
- Caterpillar 320C excavator platform

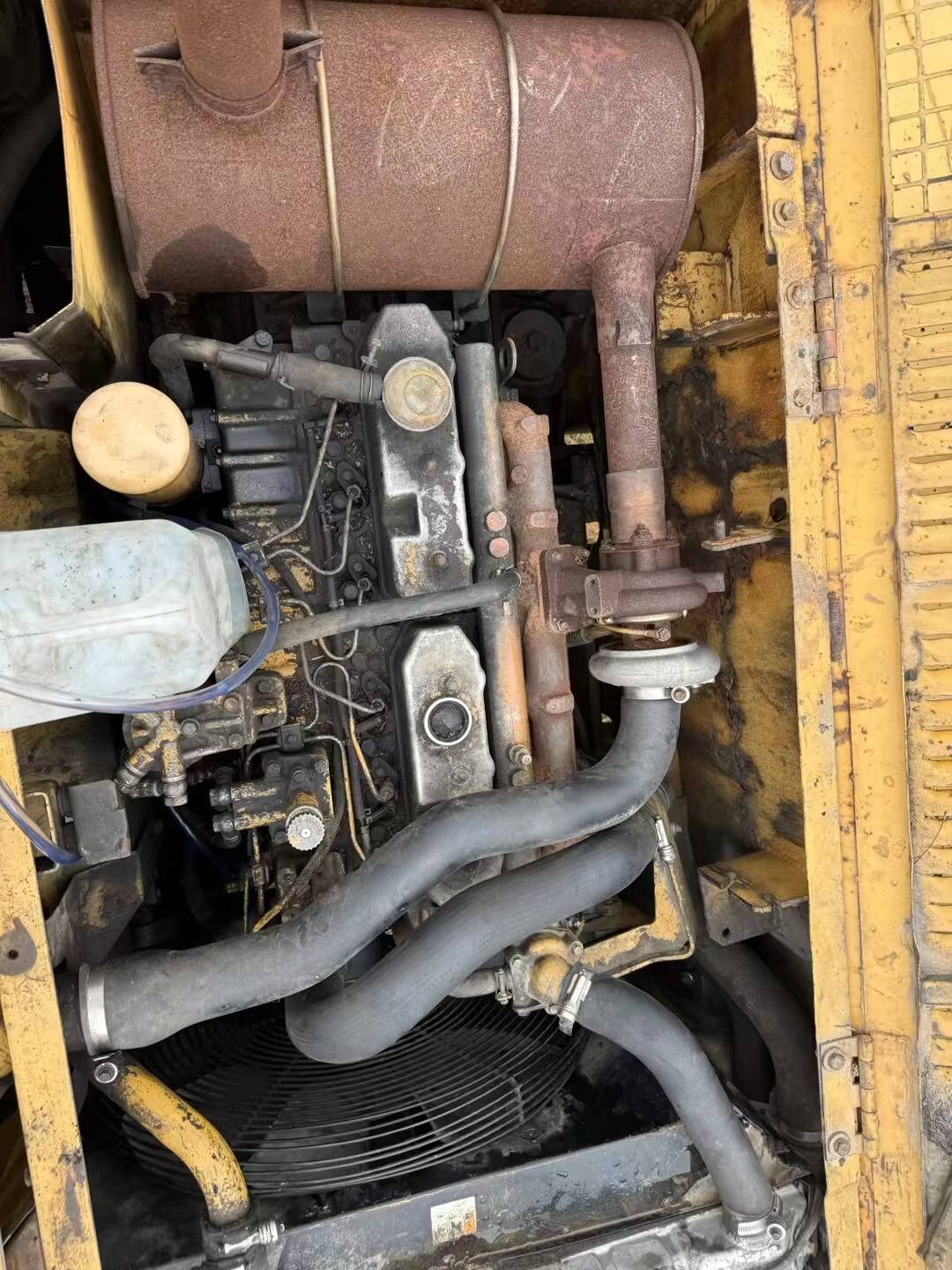

- Intercooler-equipped engine for thermal management
- Mid-size class suitable for diverse jobsite requirements
- 2020 model year
- Currently located in Guangdong, China
This machine is competitively priced for the current market. The 320C series is widely supported with parts availability and service expertise worldwide. Ideal for contractors seeking dependable used equipment with established performance records. Contact us for detailed specifications, inspection reports, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1143176 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
