2020 Caterpillar 320C
Product Description
This used 2020 Caterpillar 320C hydraulic excavator is offered from our Guangdong, China yard, exactly as sourced — a working 20-ton class machine fitted with the large-capacity water tank noted in its original intake record (卡特320C大水箱). That cooling configuration suits contractors running long shifts in hot, humid or dust-heavy conditions, where standard-capacity cooling tends to run warm by mid-afternoon.
- Model year: 2020, Caterpillar 320C hydraulic excavator
- Location: Guangdong, China — inspection welcome before purchase
- Cooling: large-capacity water tank and radiator fitted
- Condition: used, sold as-is; current photos and video on request
- Export: loading, documentation and shipping coordination supported
Machine details are quoted against the unit itself rather than catalogue figures, so every enquiry is answered from verified condition, hour readings and parts status. Contact us with your intended application and destination port, and we will confirm availability, current pricing and loading schedule.
| Specifications | Value |
|---|---|
| No. | 1156997 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

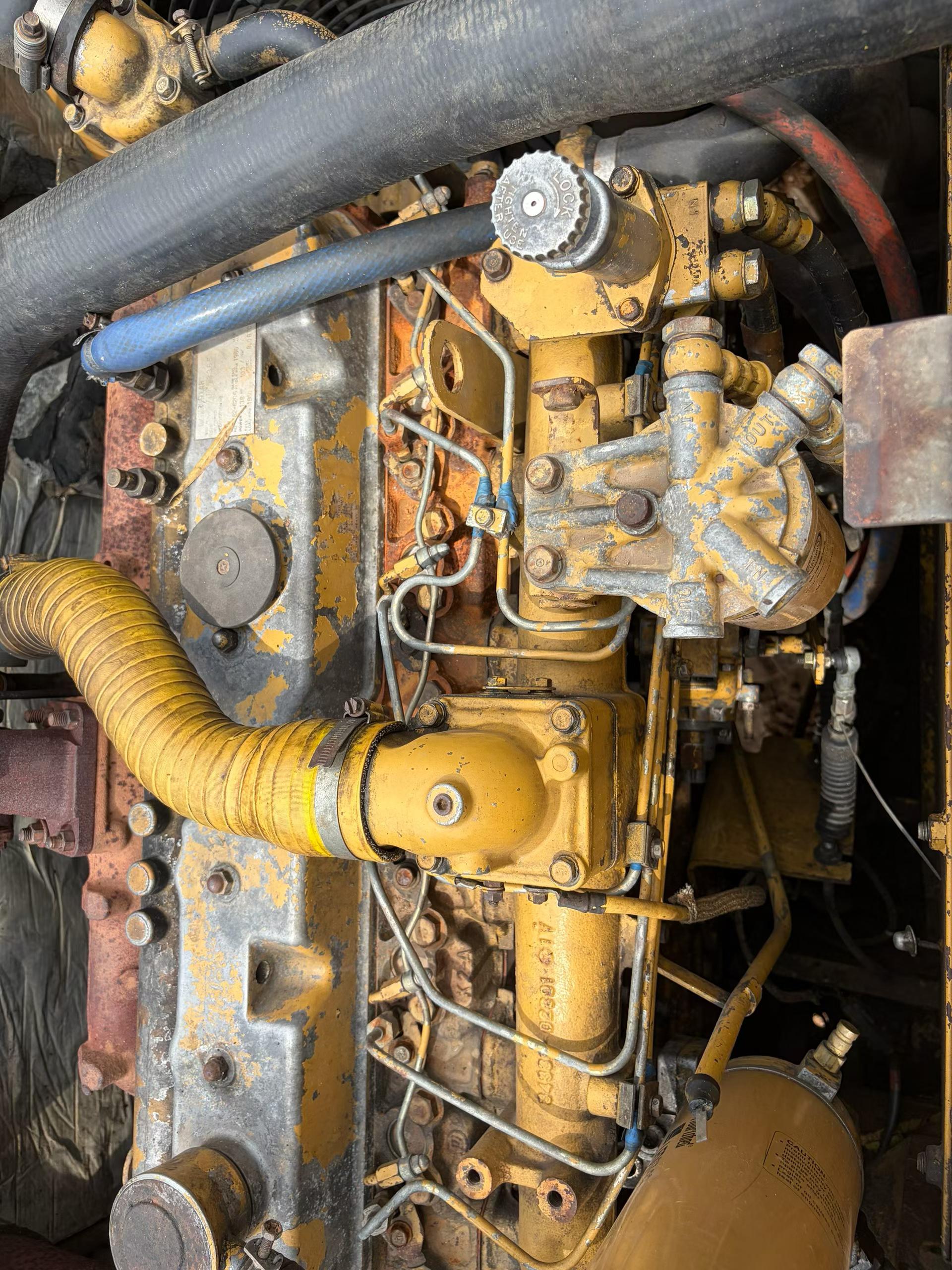

| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
Overview
No.1156997
Brand Name：
CaterpillarModel Number：
320CYear：
2020
Location：
Guangdong China
