2020 Caterpillar 320C









Product Description

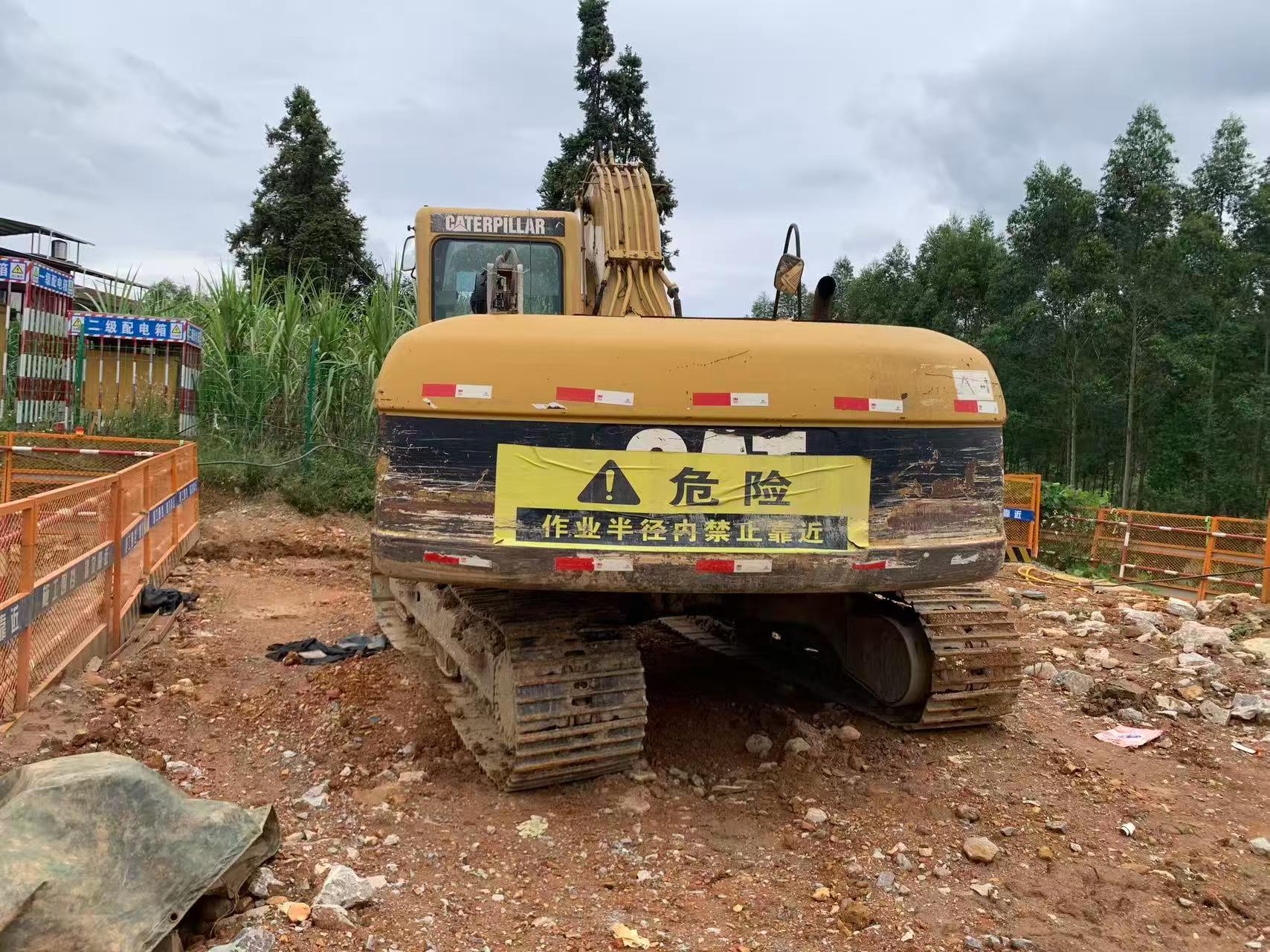

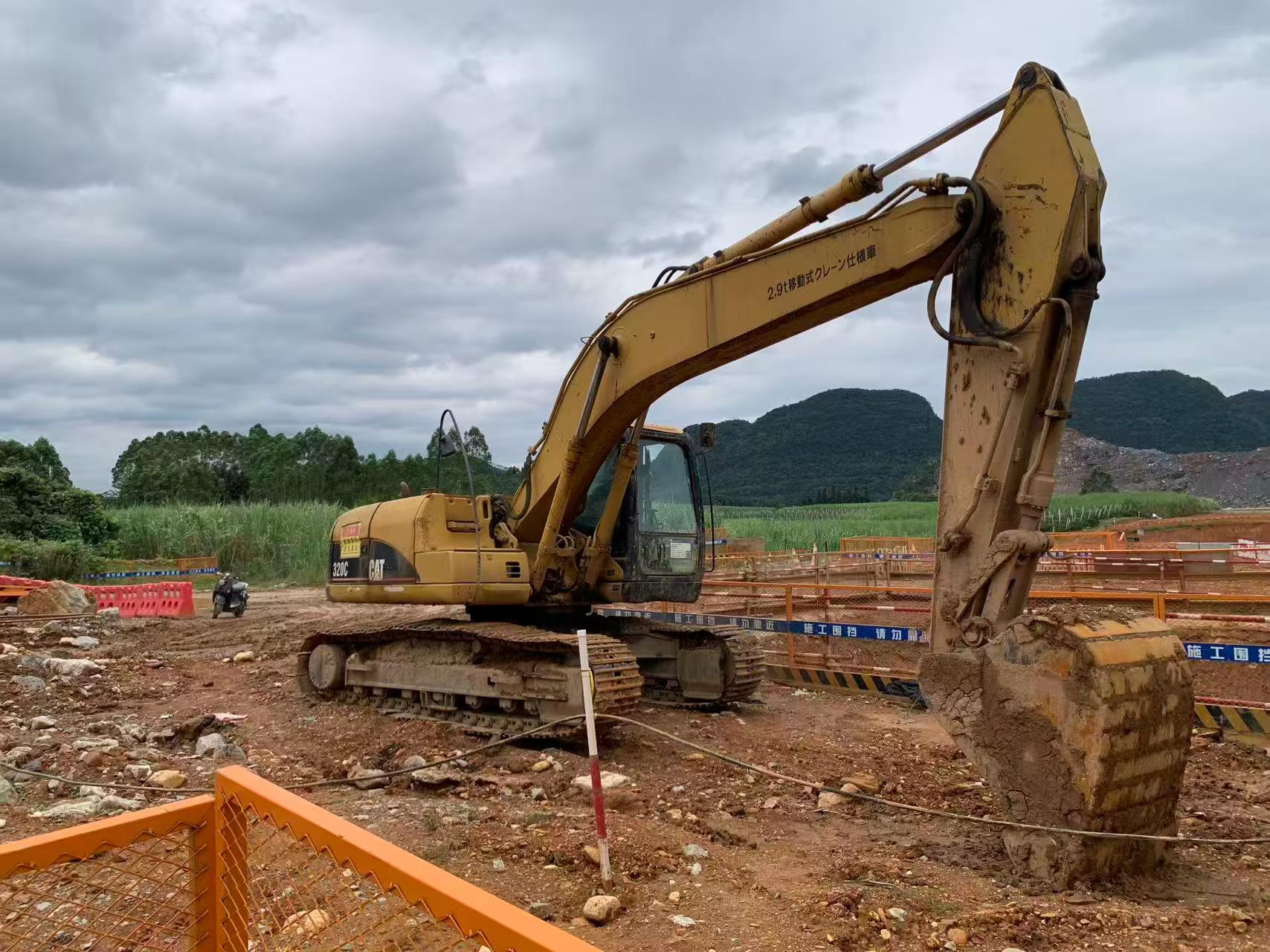

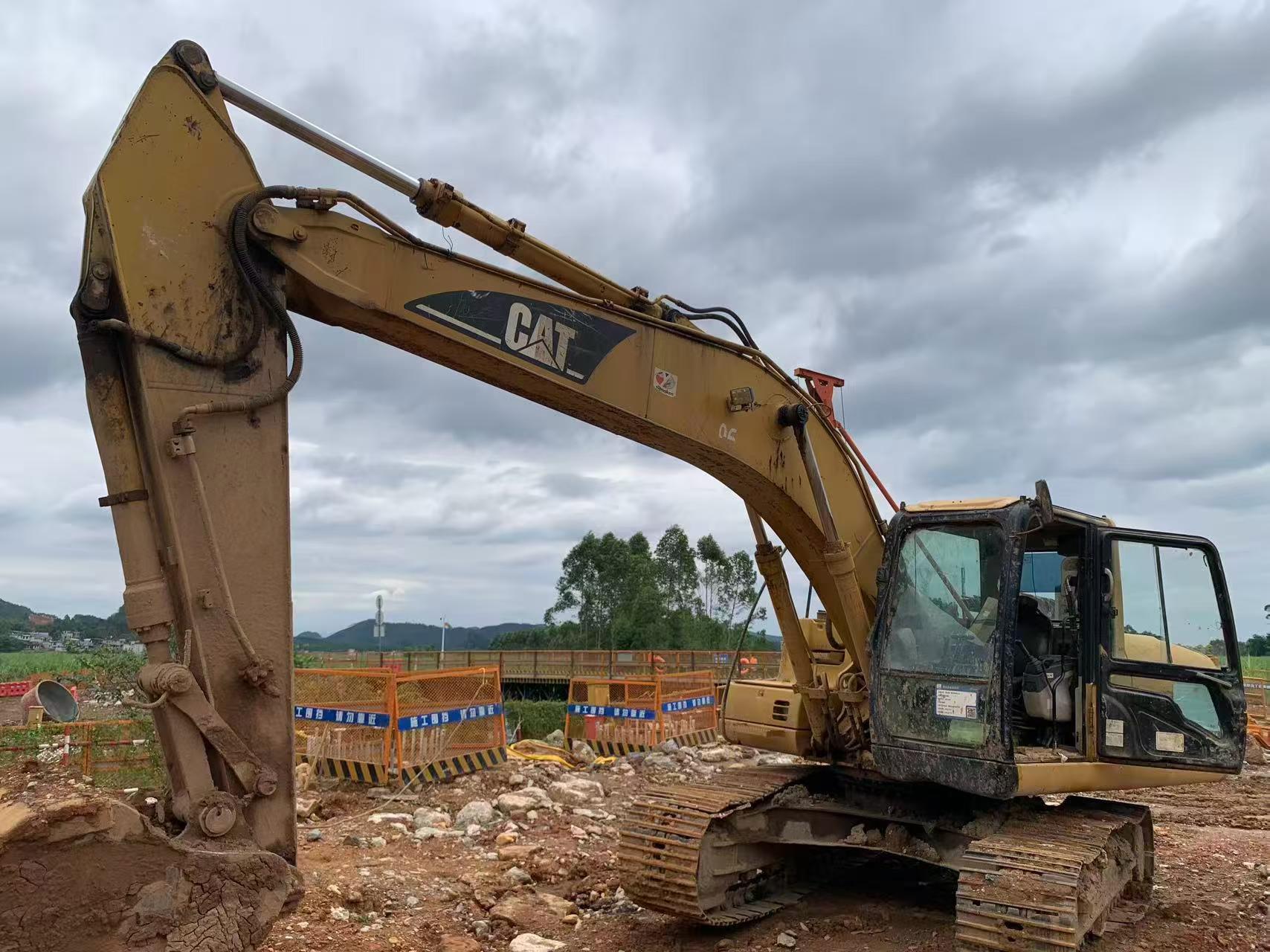

Offered from stock in Guangxi, China: a used Caterpillar 320C hydraulic excavator, listed as a 2020 unit and presented as a premium import. This machine is aimed at contractors, dealers and fleet buyers looking for a proven mid-size excavator platform rather than a new-machine price tag.
The 320C remains one of the most widely deployed Cat excavator platforms across Asia, and its main commercial argument is parts and service depth. OEM and aftermarket components are easy to source, and most regional technicians already have hands-on experience with the model — which generally means shorter downtime and more predictable running costs.
- Condition: imported unit, available for inspection in Guangxi
- Applications: general earthmoving, trenching, foundation and utility work
- Support: broad parts availability and an established service network
- Logistics: positioned for road transport and export via southern China ports
- Documentation: serial details and paperwork supplied on request
Independent third-party inspection is welcomed before purchase.
One thing worth checking before this goes live: the 320C was an earlier-generation model, and by 2020 Caterpillar's current 320 was a different machine. If the listing year is accurate, confirm it against the machine's ID plate and paperwork so the ad doesn't invite disputes.| Specifications | Value |
|---|---|
| No. | 1157057 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21115 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

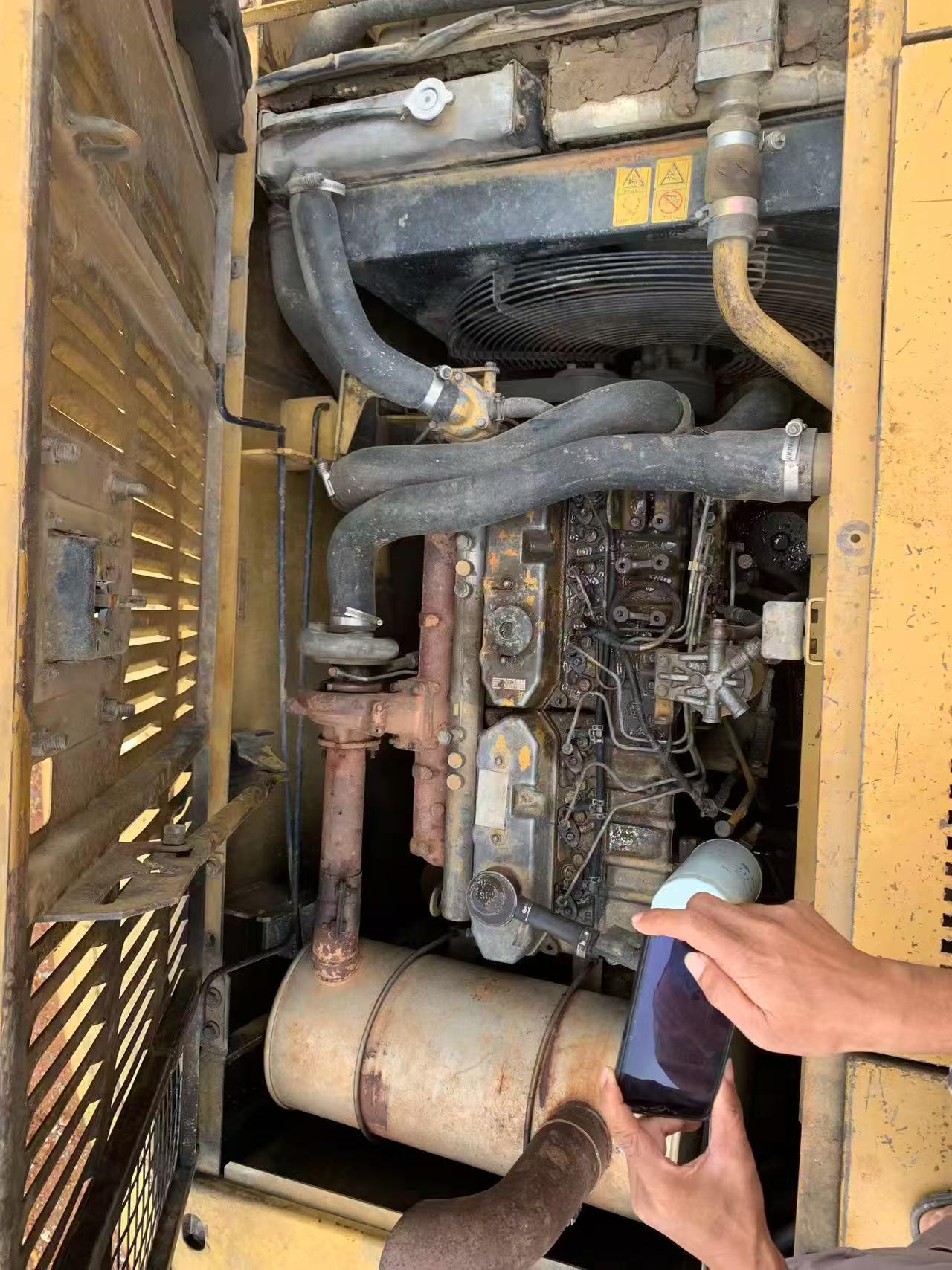

| Engine type | Caterpillar CAT 3066 ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 48.02 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.4 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3260 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6770 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
