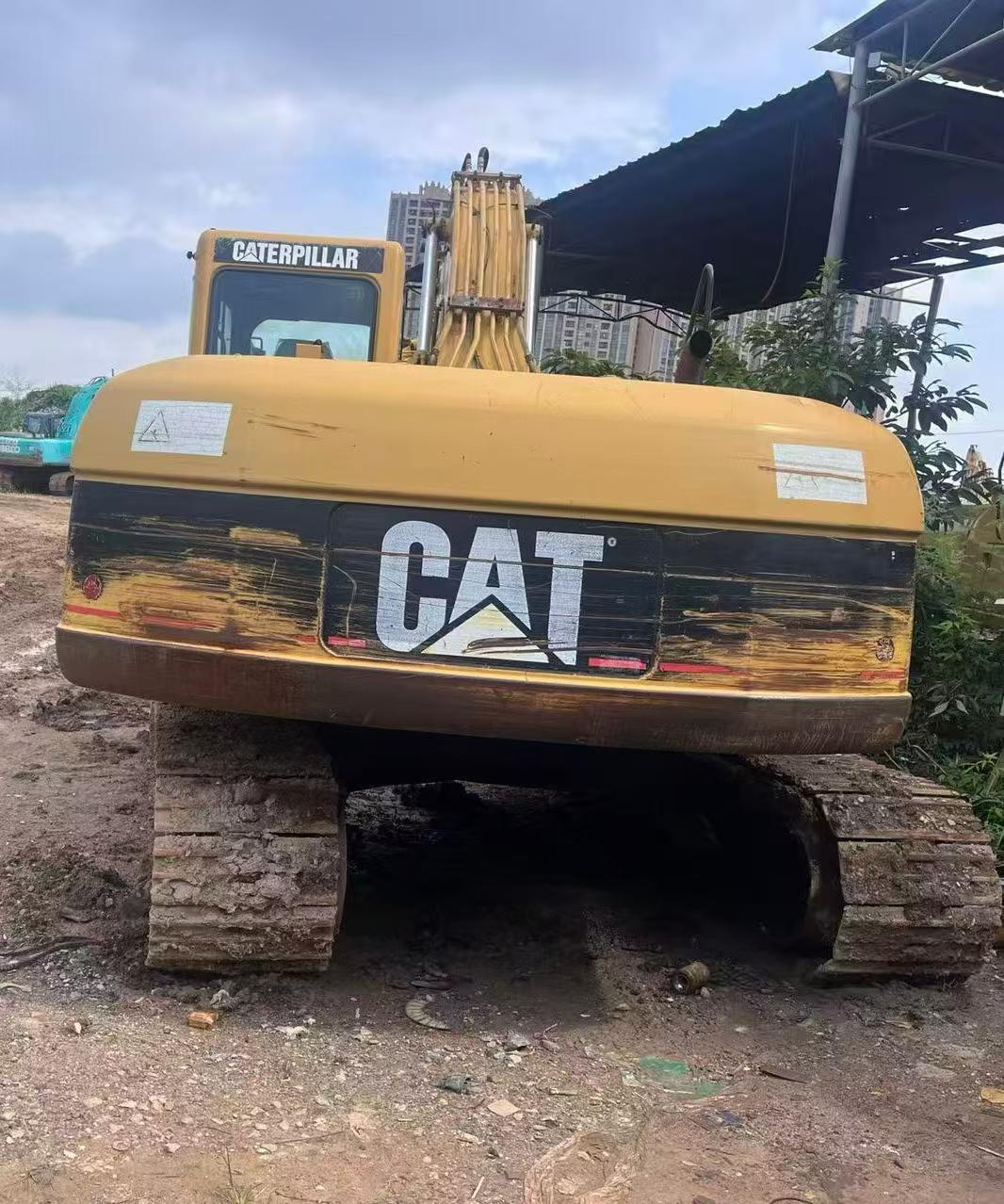

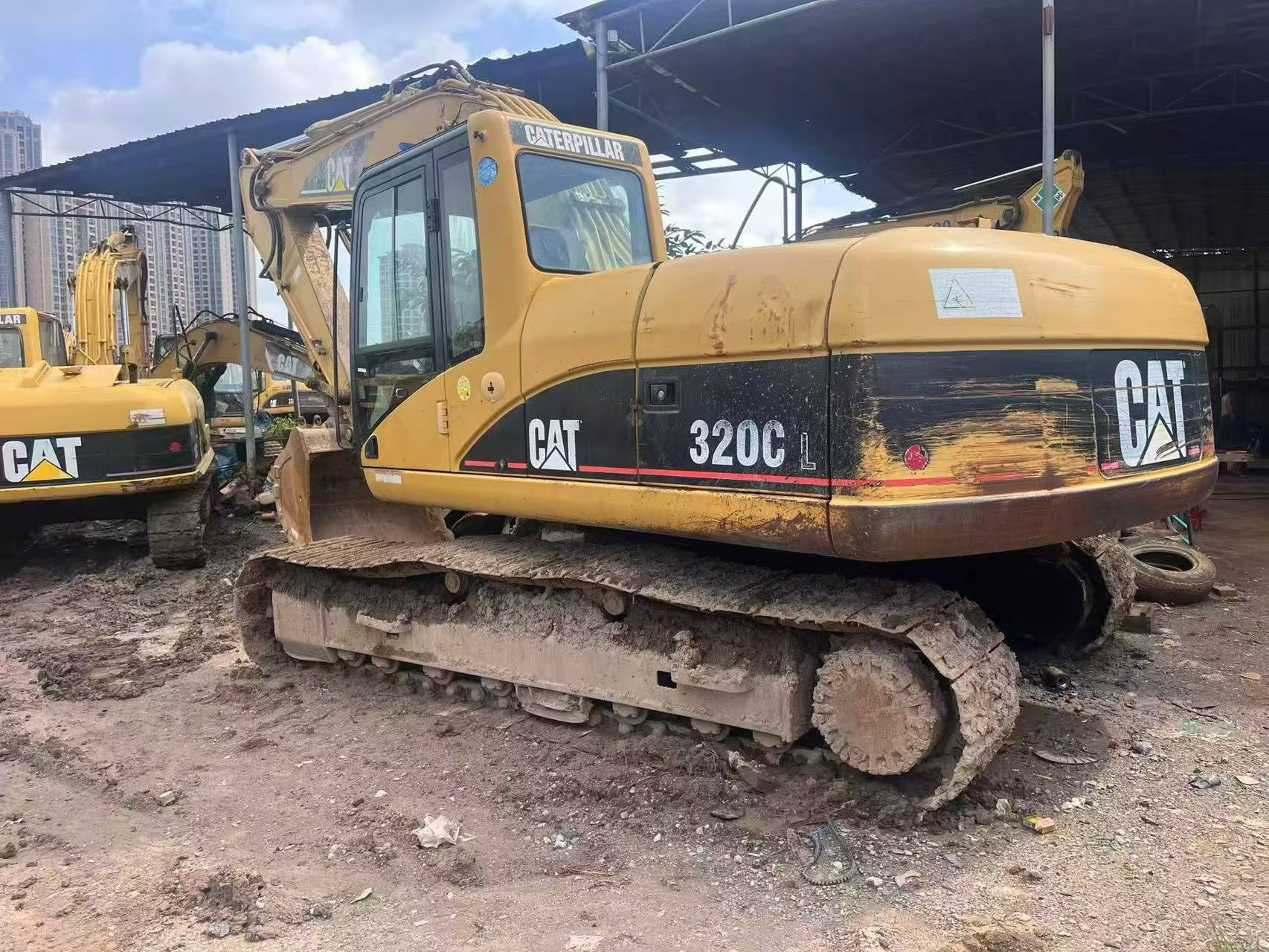

2020 Caterpillar 320CL
Product Description
Discover the reliability and performance of a 2020 Caterpillar 320CL, available now in Guangdong, China. This machine is in excellent condition, boasting its original paint, which is a testament to its well-maintained history. With just over 90,000 hours of operation, this excavator remains robust and ready for your next project. The 320CL is known for its efficiency, durability, and ease of maintenance, making it a preferred choice for construction and excavation tasks. Ideal for businesses looking to enhance their fleet with a high-quality, used machine that delivers consistent performance.
- Year: 2020
- Brand: Caterpillar
- Model: 320CL
- Location: Guangdong, China
- Operating Hours: Over 90,000
- Condition: Excellent, with original paint
| Specifications | Value |
|---|---|
| No. | 1135290 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21415 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| Country of origin | Xuzhou/Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

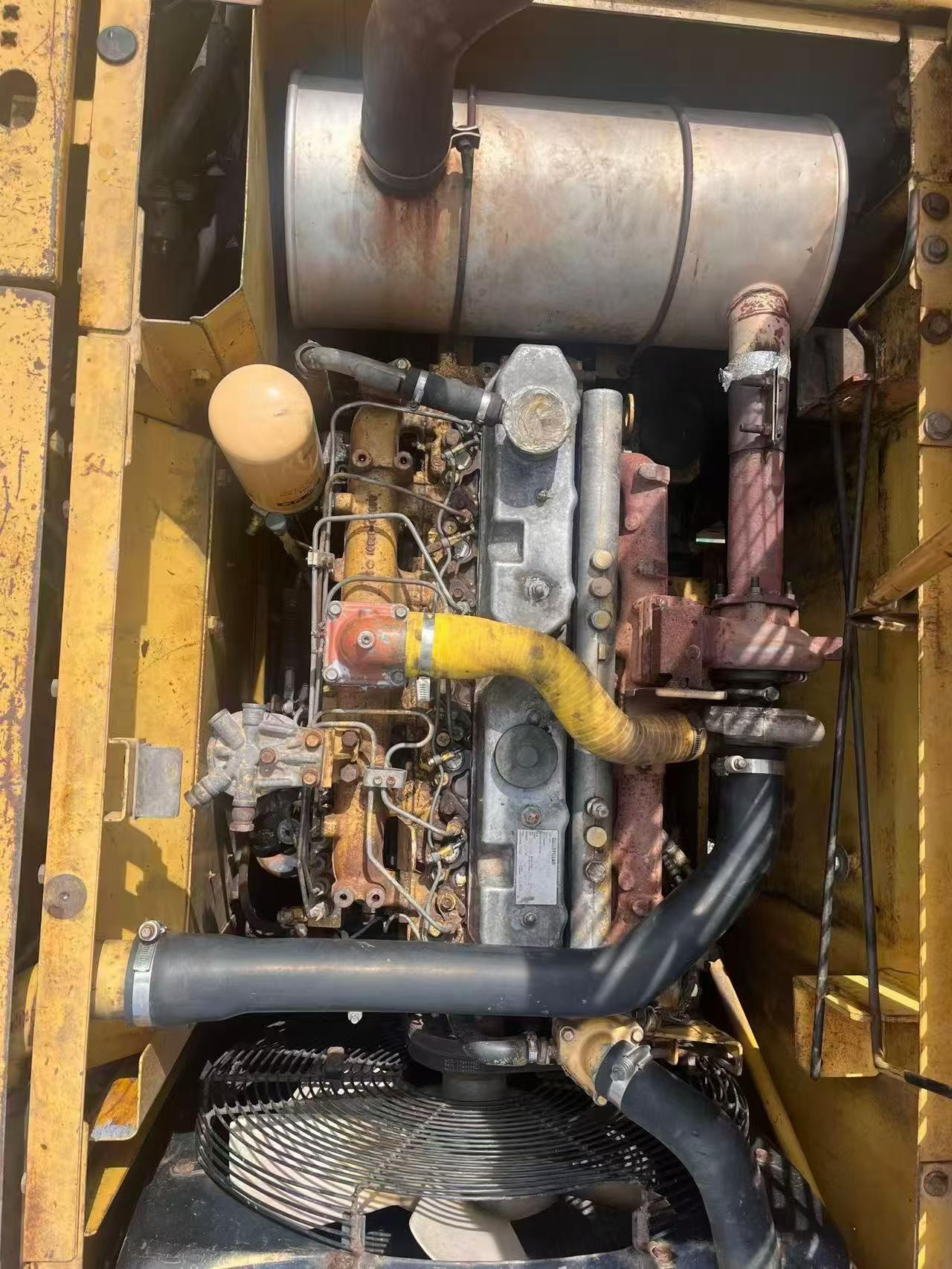

| Engine type | Caterpillar CAT 3066ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4450 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6670 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
| Maximum effective digging depth (mm) | 6370 |
