2020 Caterpillar 320CL











Product Description
This 2020 Caterpillar 320CL excavator is currently located in Yunnan, China and available for inspection. The machine comes with documentation including photos and video footage, allowing prospective buyers to evaluate its condition remotely. With over 60,000 operating hours logged, this unit has proven its durability in demanding applications.
The Caterpillar 320CL is a mid-sized hydraulic excavator known for reliable performance in construction, mining, and earthmoving operations. Key features include:
- Proven Cat engine delivering consistent power and fuel efficiency
- Robust hydraulic system for demanding excavation work
- Spacious operator cabin with good visibility
- Durable undercarriage designed for extended service life
- Versatile platform suitable for various attachments
This unit represents an opportunity to acquire established Caterpillar quality at used equipment pricing. Inspection and verification of machine condition are recommended prior to purchase.
| Specifications | Value |
|---|---|
| No. | 1172180 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21415 |
| Bucket capacity (m³) | 0.8 |
| Boom length (mm) | 5680 |
| Rod length (mm) | 2900 |
| Country of origin | Xuzhou/Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

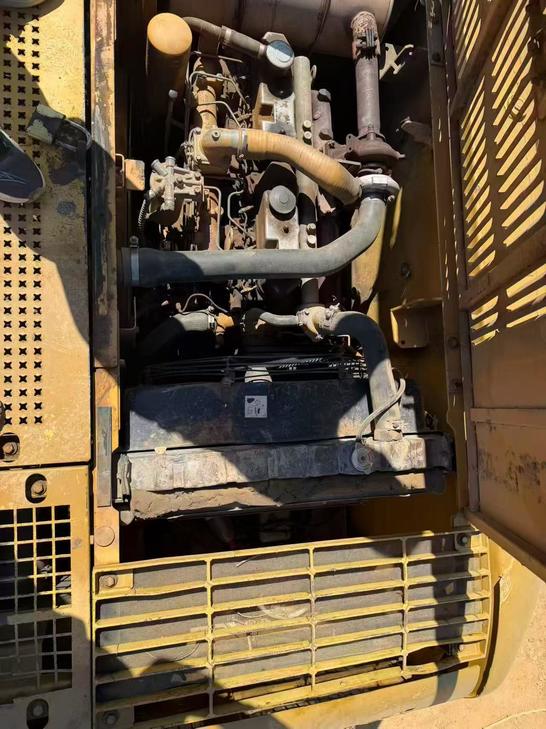

| Engine type | Caterpillar CAT 3066ATAAC |
| Rated power (kw/rpm) | 110/1800 |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Displacement (L) | 6.4 |
| Ground specific pressure (Kpa) | 44.1 |
| Rotation speed (rpm) | 11.5 |
| Bucket digging force (kN) | 132 |
| Rod digging force (kN) | 99 |
| Travel speed (km/h) | 3.4/5.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 26 |
| Working Hydraulic Circuit (Mpa) | 34.3 |
| Pilot Oil Circuit (MPa) | 4.12 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1030 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1430 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 320 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 24 |
| Hydraulic System (L) | 200 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 3050 |
| Minimum ground clearance (mm) | 460 |
| Back end turning radius (mm) | 2770 |
| Total track length (mm) | 4450 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6550 |
| Maximum excavation height (mm) | 9440 |
| Maximum unloading height (mm) | 6670 |
| Maximum vertical digging depth (mm) | 5440 |
| Maximum excavation radius of stop surface (mm) | 9710 |
| Maximum effective digging depth (mm) | 6370 |
