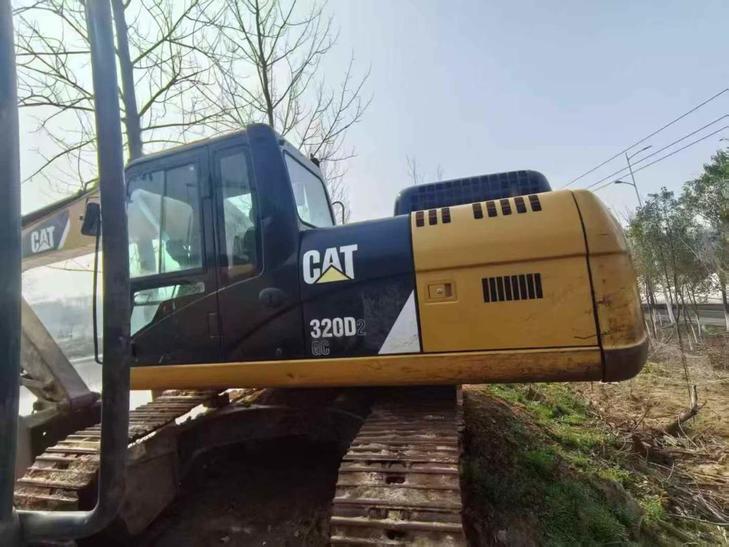

2014 Caterpillar 320D2GC
Product Description
Secure proven performance without the premium price tag. This 2014 Caterpillar 320D2GC hydraulic excavator delivers 20-ton class productivity with the reliability Caterpillar is known for—at a fraction of new equipment costs. Powered by the robust Cat C7.1 engine generating 93 kW, this machine combines efficient fuel consumption with serious digging power: 148 kN bucket force and 108 kN arm force handle demanding excavation, loading, and trenching applications with ease.
Currently located in Xuzhou, Jiangsu, this joint venture model features a 0.9 m³ bucket capacity and reaches 6,720 mm maximum digging depth. With 428 L/min hydraulic flow and 11.9 rpm rotation speed, operators benefit from smooth, responsive controls and impressive cycle times. The 410-liter fuel tank extends operating hours between refills, maximizing jobsite productivity.
Key specifications:
- Operating weight: 20,100–20,800 kg
- Cat C7.1 engine, 7.01 L displacement
- Maximum reach height: 6,570 mm
- Transport dimensions: 9,460 × 2,800 × 3,030 mm
- Travel speed: 5.8 km/h
Smart buyers recognize value: get Caterpillar engineering and durability while preserving capital for other i
| Specifications | Value |
|---|---|
| No. | 1030157 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20100.0-20800.0 |
| Bucket capacity (m³) | 0.9 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat C7.1 |
| Rated power (kw/rpm) | 93.0 |
| Cylinder diameter × stroke (mm) | 105 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 11.9 |
| Bucket digging force (kN) | 148 |
| Rod digging force (kN) | 108 |
| Maximum tractive force (kN) | 206 |
| Travel speed (km/h) | 5.8 |
| Maximum flow of main pump (l/min) | 428.0 |
| Rotary Hydraulic Circuit (Mpa) | 25.0 |
| Pilot pump flow (L/min) | 23.1 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138.0 |
| Engine Oil changes (L) | 16 |
| Coolant (L) | 25 |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4080 |
| Track ground length (mm) | 3270 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 6570 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 6010 |
Overview
No.1030157
Brand Name：
CaterpillarModel Number：
320D2GCYear：
2014
Location：
Jiangsu China
Pub Date：
