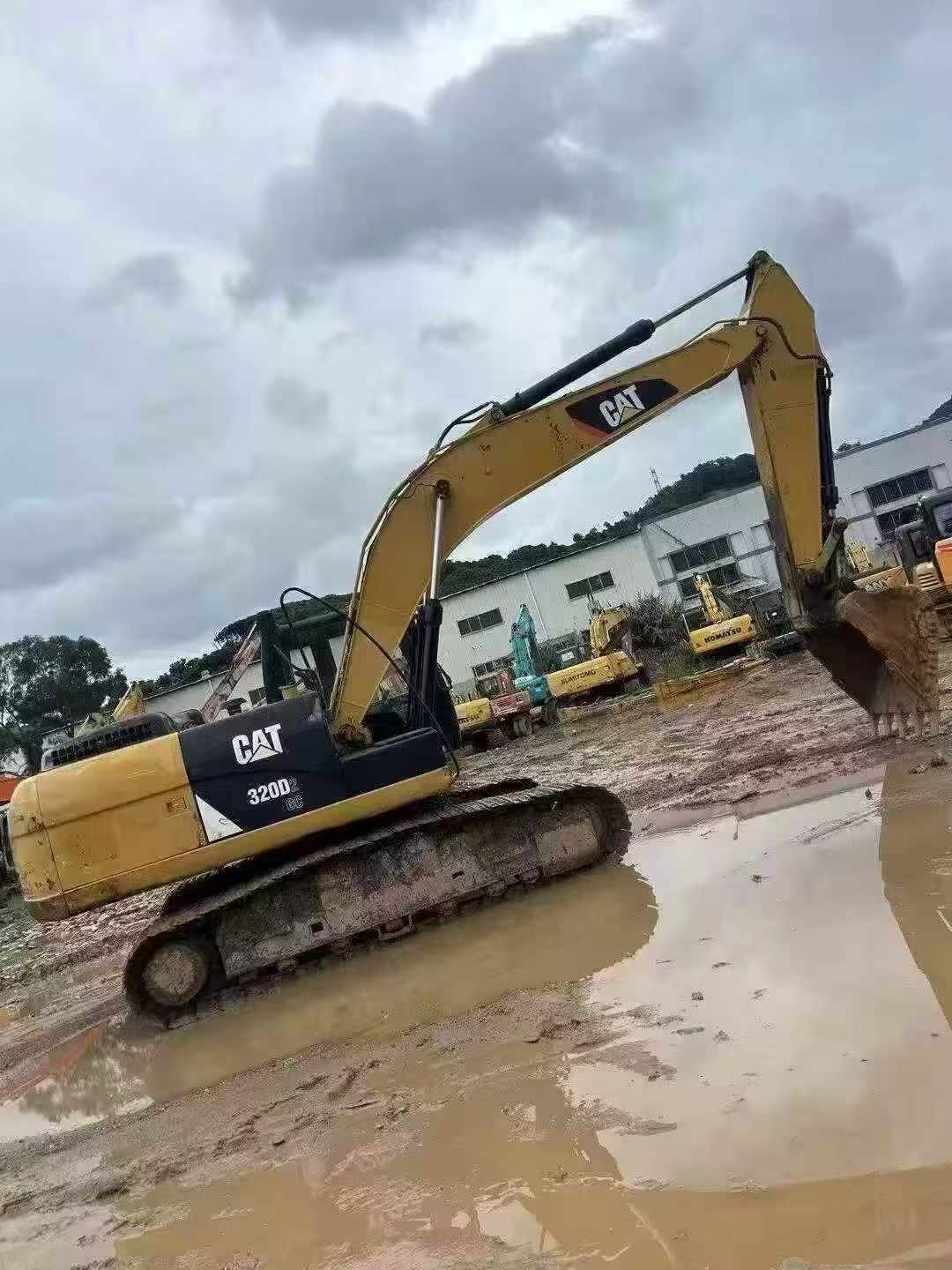

2016 Caterpillar 320D2GC
Product Description
Built for demanding jobsites and backed by one of the most trusted names in heavy equipment, this 2016 Caterpillar 320D2GC delivers proven performance with the long-term reliability that serious operators depend on. Caterpillar's global parts network and widespread dealer support make this machine a smart acquisition in the used market — downtime stays minimal, and resale value holds firm compared to lesser-known brands.

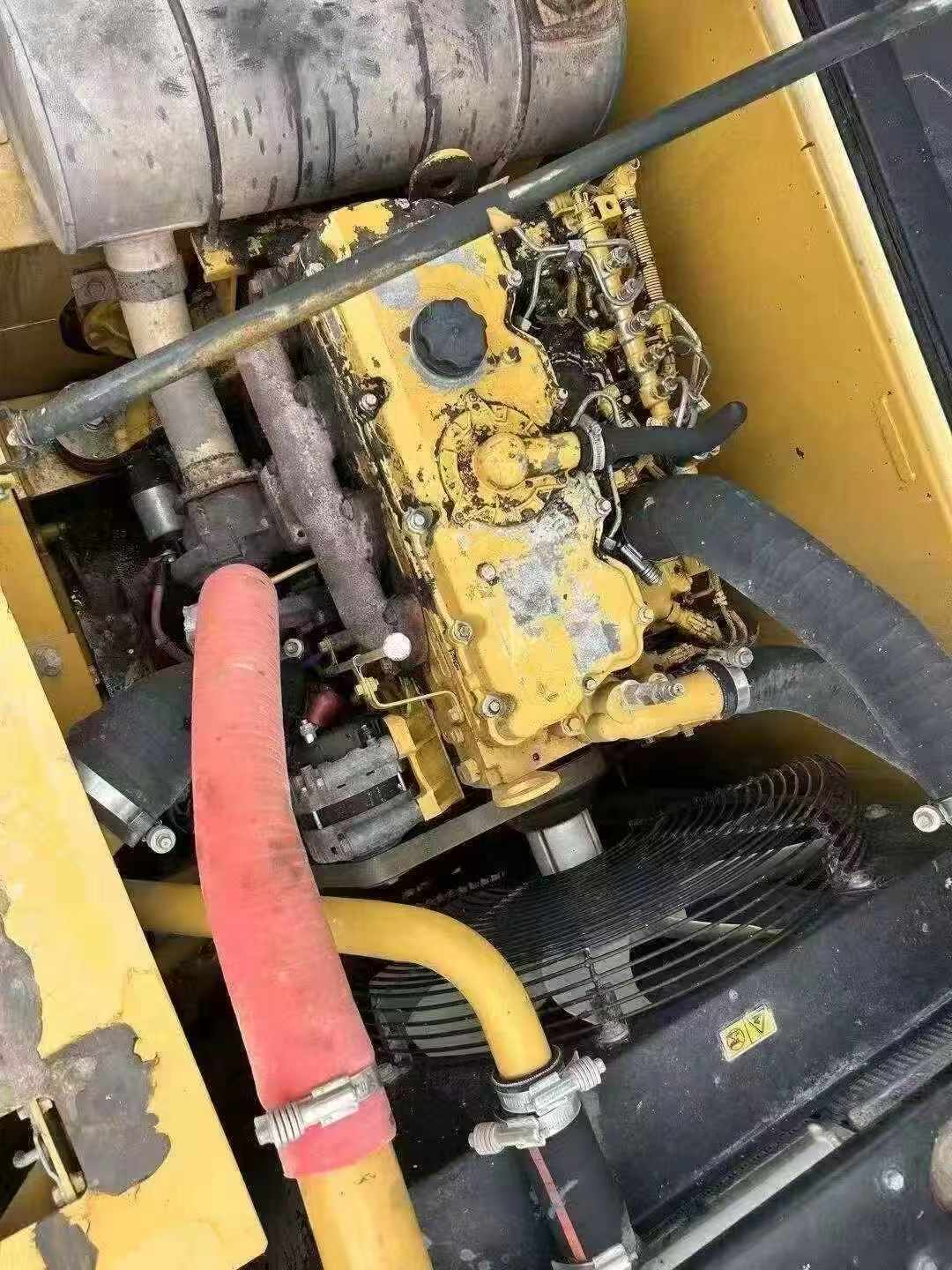

Powered by the Cat C7.1 engine producing 93 kW, this 20-ton class excavator handles a wide range of earthmoving applications with a 0.9 m³ backhoe bucket, 148 kN bucket digging force, and a maximum digging depth of 6,720 mm. The dual-pump hydraulic system delivers up to 428 L/min of main pump flow, ensuring responsive, consistent performance under load.
- Engine: Cat C7.1 | 93 kW | 7.01 L Displacement
- Operating Weight: 20,100 – 20,800 kg
- Bucket Capacity: 0.9 m³ | Digging Force: 148 kN
- Max Digging Depth: 6,720 mm | Max Reach Height: 6,570 mm
- Travel Speed: 5.8 km/h | Max Tractive Force: 206 kN
- Fuel Tank: 410 L | Hydraulic Tank: 138 L
- Transport Dimensions: 9,460 mm (L) × 2,800 mm (W) × 3,030 mm (H)
- Location: Guangdong, China | Available for global export
| Specifications | Value |
|---|---|
| No. | 1113543 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20100.0-20800.0 |
| Bucket capacity (m³) | 0.9 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat C7.1 |
| Rated power (kw/rpm) | 93.0 |
| Cylinder diameter × stroke (mm) | 105 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 11.9 |
| Bucket digging force (kN) | 148 |
| Rod digging force (kN) | 108 |
| Maximum tractive force (kN) | 206 |
| Travel speed (km/h) | 5.8 |

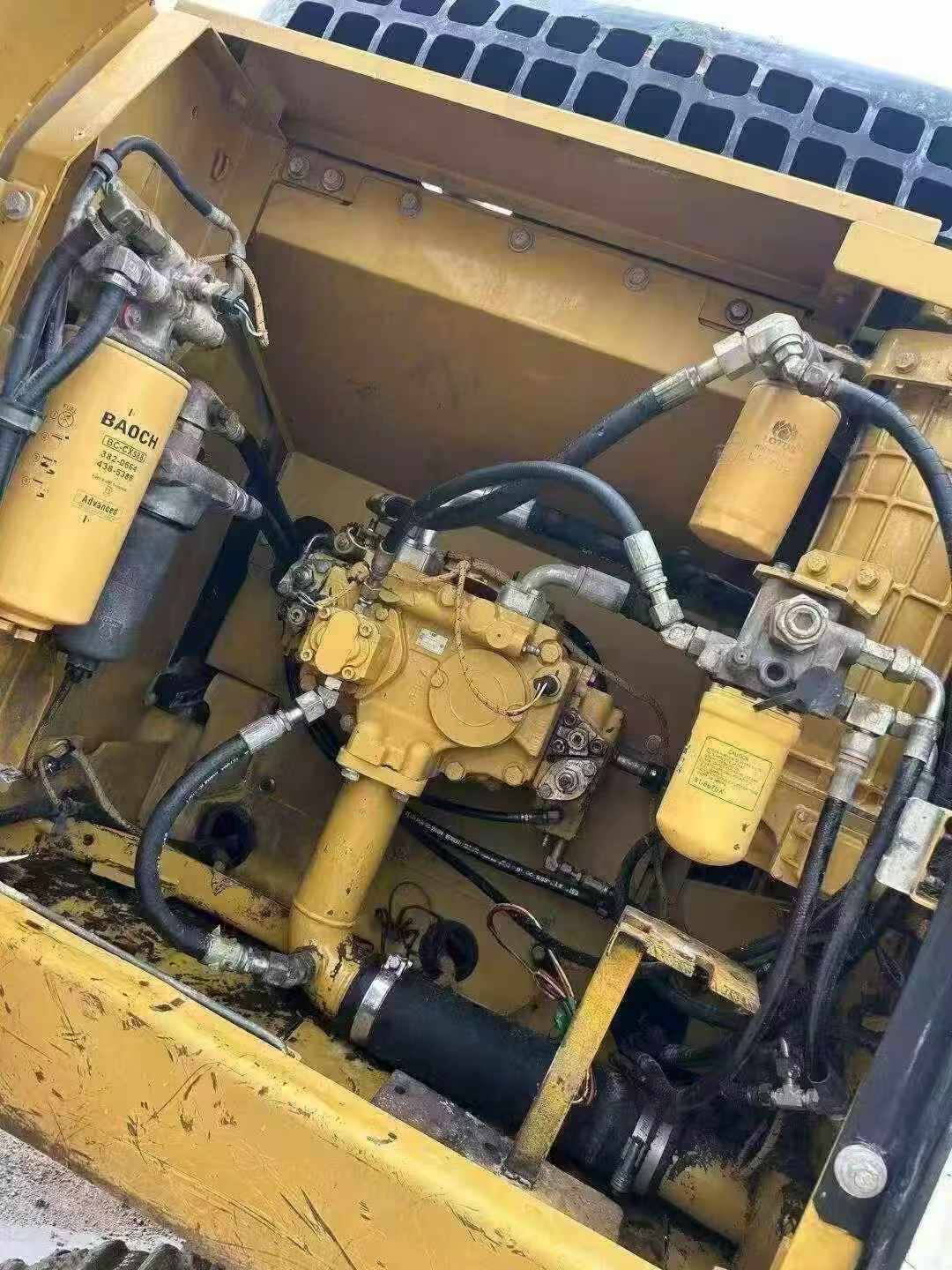

| Maximum flow of main pump (l/min) | 428.0 |
| Rotary Hydraulic Circuit (Mpa) | 25.0 |
| Pilot pump flow (L/min) | 23.1 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138.0 |
| Engine Oil changes (L) | 16 |
| Coolant (L) | 25 |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4080 |
| Track ground length (mm) | 3270 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 6570 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 6010 |
Overview
No.1113543
Brand Name：
CaterpillarModel Number：
320D2GCYear：
2016
Location：
Guangdong China
Pub Date：
