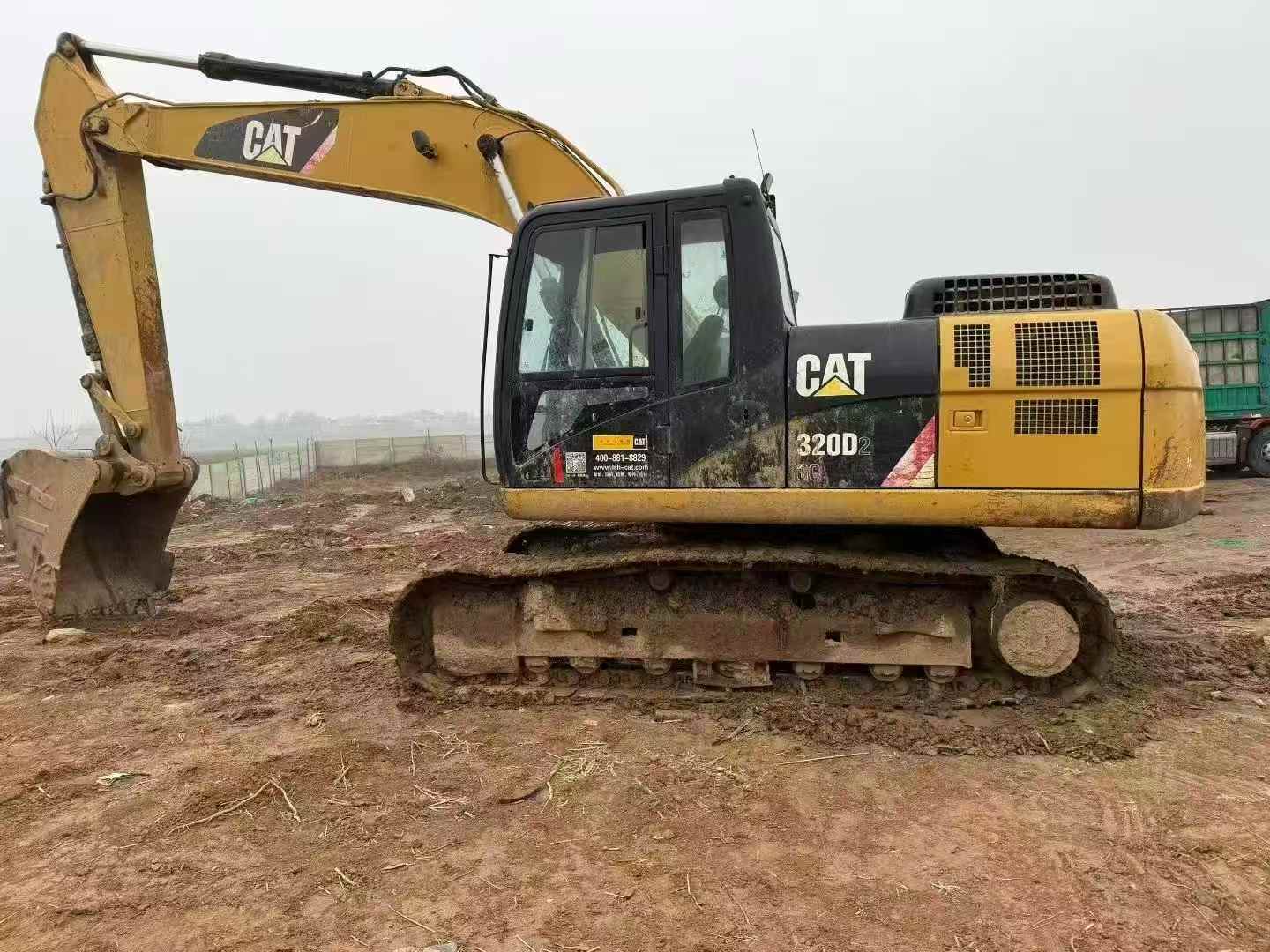

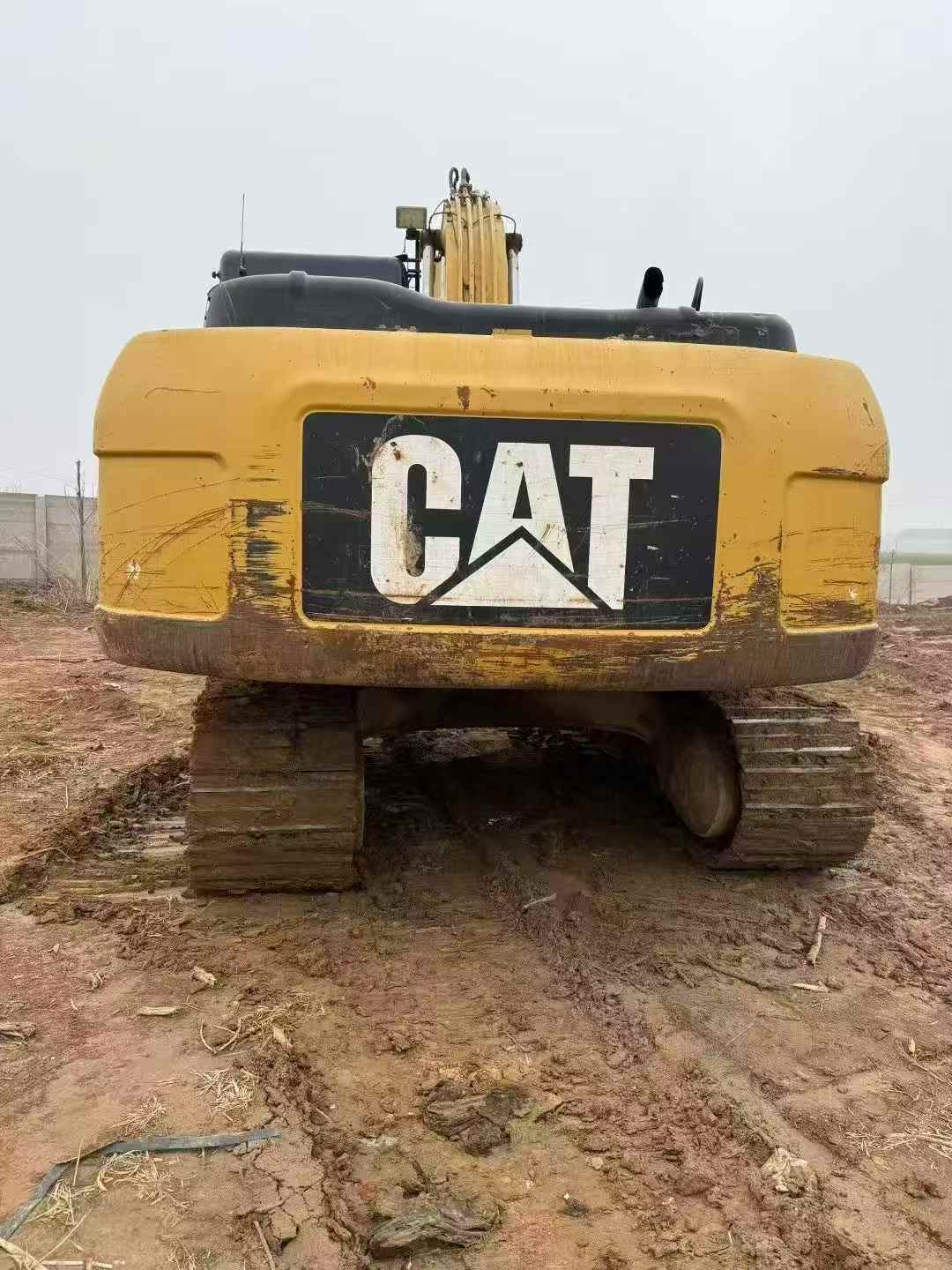

2017 Caterpillar 320D2GC
Product Description
Available now in Jiangsu, this 2017 Caterpillar 320D2GC hydraulic excavator eliminates factory lead times and delivers immediate productivity to your jobsite. Powered by a robust Cat C7.1 engine producing 93 kW, this 20-ton workhorse combines proven performance with rapid deployment capability. Skip months of waiting—this machine is ready for fast transport to your operation.
- Operating Weight: 20,100–20,800 kg with 0.9 m³ bucket capacity
- Digging Performance: 6,720 mm maximum depth, 148 kN bucket force, 108 kN stick force

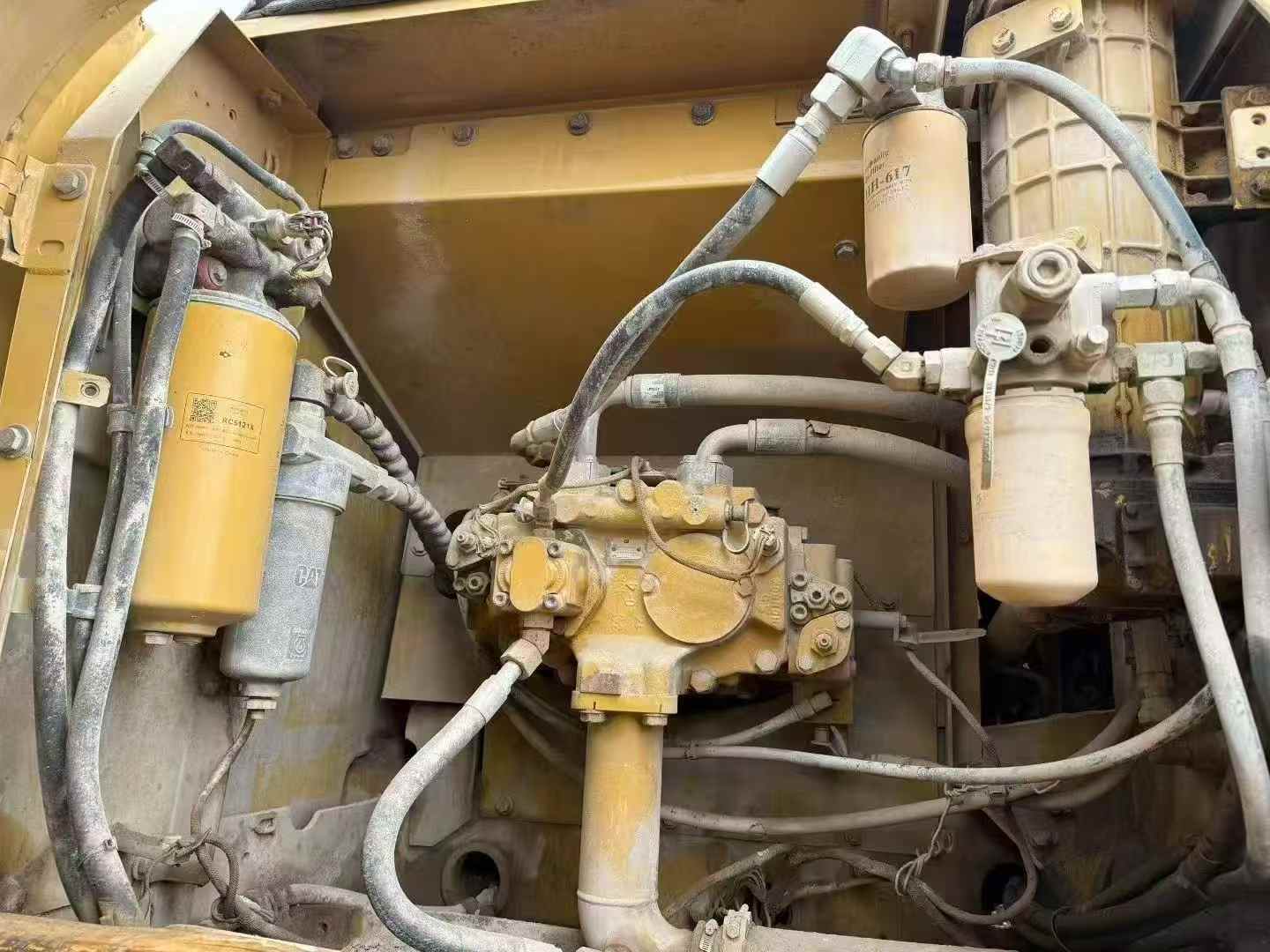

- Hydraulic System: 428 L/min main pump flow for responsive cycle times
- Engine: Cat C7.1, 7.01 L displacement, 410 L fuel capacity for extended shifts
- Mobility: 5.8 km/h travel speed, 2,750 mm tail swing radius for confined spaces
- Transport Dimensions: 9,460 mm (L) × 2,800 mm (W) × 3,030 mm (H)
Positioned in Jiangsu for quick logistics coordination throughout China and international shipping. Contact us today for immediate availability and fast delivery terms.
| Specifications | Value |
|---|---|
| No. | 1026351 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20100.0-20800.0 |
| Bucket capacity (m³) | 0.9 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat C7.1 |
| Rated power (kw/rpm) | 93.0 |
| Cylinder diameter × stroke (mm) | 105 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 11.9 |
| Bucket digging force (kN) | 148 |
| Rod digging force (kN) | 108 |
| Maximum tractive force (kN) | 206 |
| Travel speed (km/h) | 5.8 |
| Maximum flow of main pump (l/min) | 428.0 |
| Rotary Hydraulic Circuit (Mpa) | 25.0 |
| Pilot pump flow (L/min) | 23.1 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138.0 |
| Engine Oil changes (L) | 16 |
| Coolant (L) | 25 |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4080 |
| Track ground length (mm) | 3270 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 6570 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 6010 |
see more
Overview
No.1026351
Brand Name：
CaterpillarModel Number：
320D2GCYear：
2017
Location：
Jiangsu China
Pub Date：
