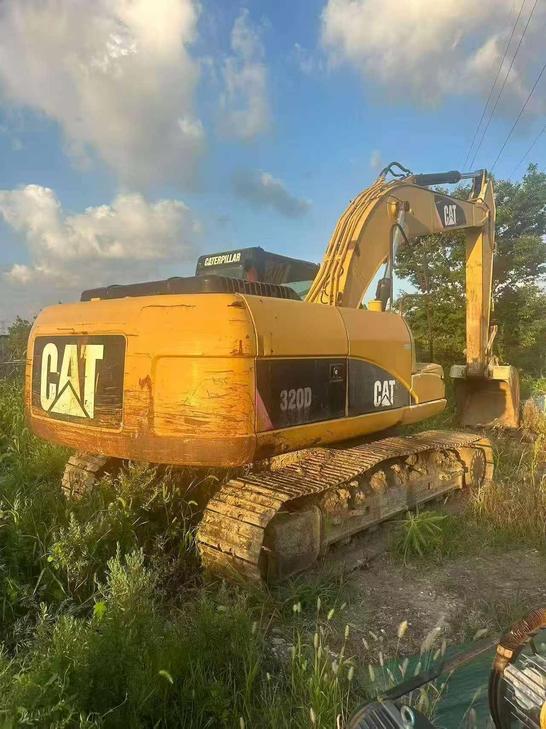

2020 Caterpillar 320DGC
Product Description
This 2020 Caterpillar 320DGC hydraulic excavator offers proven mid-size performance for contractors and operators seeking reliable productivity. Currently located in Zhejiang, China, this used machine represents Caterpillar's durable GC series design, engineered for cost-effective operation without sacrificing essential performance capabilities.
The 320DGC delivers solid digging force and reach for general construction, site development, and utility work. Its operating weight and engine output balance fuel efficiency with the power needed for demanding applications. Caterpillar's established dealer network ensures parts availability and service support across global markets.
Key attributes include:
- Mid-size excavator class suitable for diverse applications
- GC series value-oriented design
- Hydraulic system engineered for responsive control
- Established aftermarket support infrastructure
Inspection recommended prior to purchase. Contact us for detailed specifications, current machine hours, and availability for your operation.
| Specifications | Value |
|---|---|
| No. | 1136388 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 20400 |
| Bucket capacity (m³) | 0.9 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C6.4ACERT |
| Rated power (kw/rpm) | 92.3/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.37 |
| Ground specific pressure (Kpa) | 6 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140.1 |
| Rod digging force (kN) | 106.4 |
| Travel speed (km/h) | 3.5/5.7 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 205 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 3050 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4075 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3265 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9840 |
| Maximum unloading height (mm) | 6500 |
| Maximum vertical digging depth (mm) | 6180 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9850 |
| Maximum effective digging depth (mm) | 6540 |
Overview
No.1136388
Brand Name：
CaterpillarModel Number：
320DGCYear：
2020
Location：
Zhejiang China
Pub Date：
