2016 Caterpillar 320EL
Product Description
Proven performance meets global support with this 2016 Caterpillar 320EL hydraulic excavator, currently located in Guizhou. Operating in the reliable 20-ton class with a working weight of 21,500-24,730 kg, this machine delivers consistent productivity backed by Caterpillar's unmatched parts network and service infrastructure across six continents.

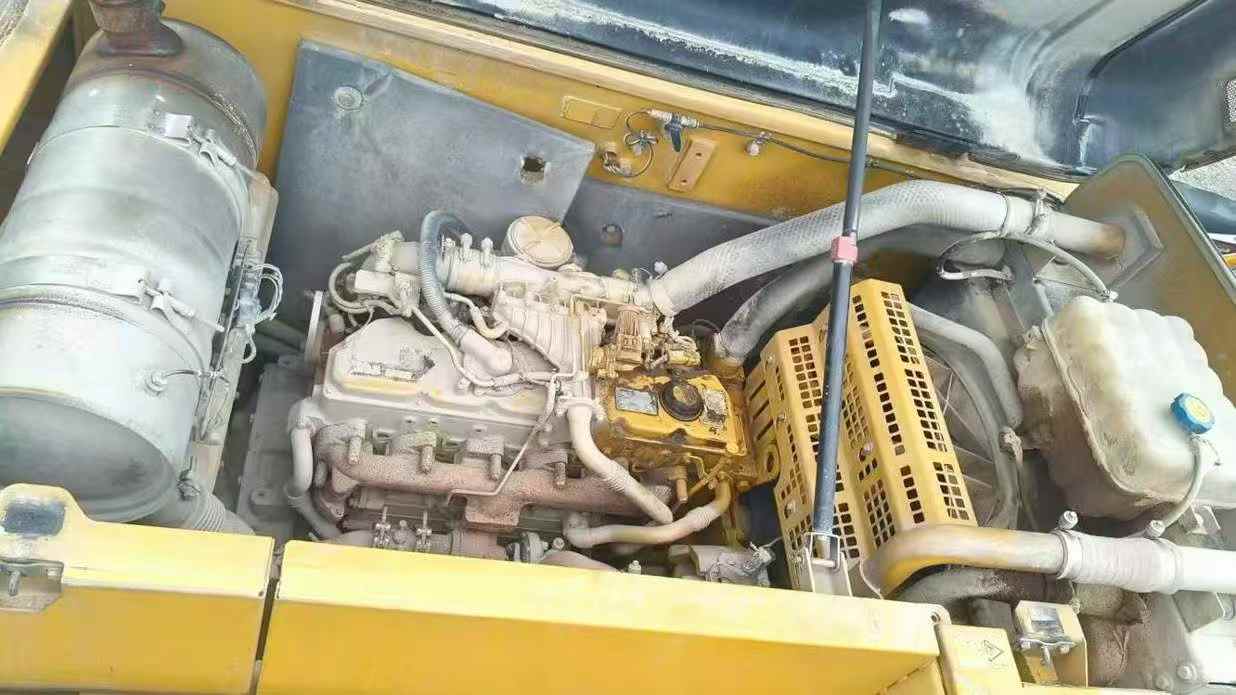

Powered by the robust C6.6 ACERT engine generating 114 kW, this excavator combines a 1.19 m³ bucket capacity with impressive digging forces—140.5 kN bucket force and 89.7 kN arm force—to handle demanding excavation tasks efficiently. With a maximum digging depth of 7,580 mm and reach of 10,680 mm, it tackles a wide range of applications from foundation work to trenching operations.
- Caterpillar C6.6 ACERT engine: 114 kW rated power with proven durability

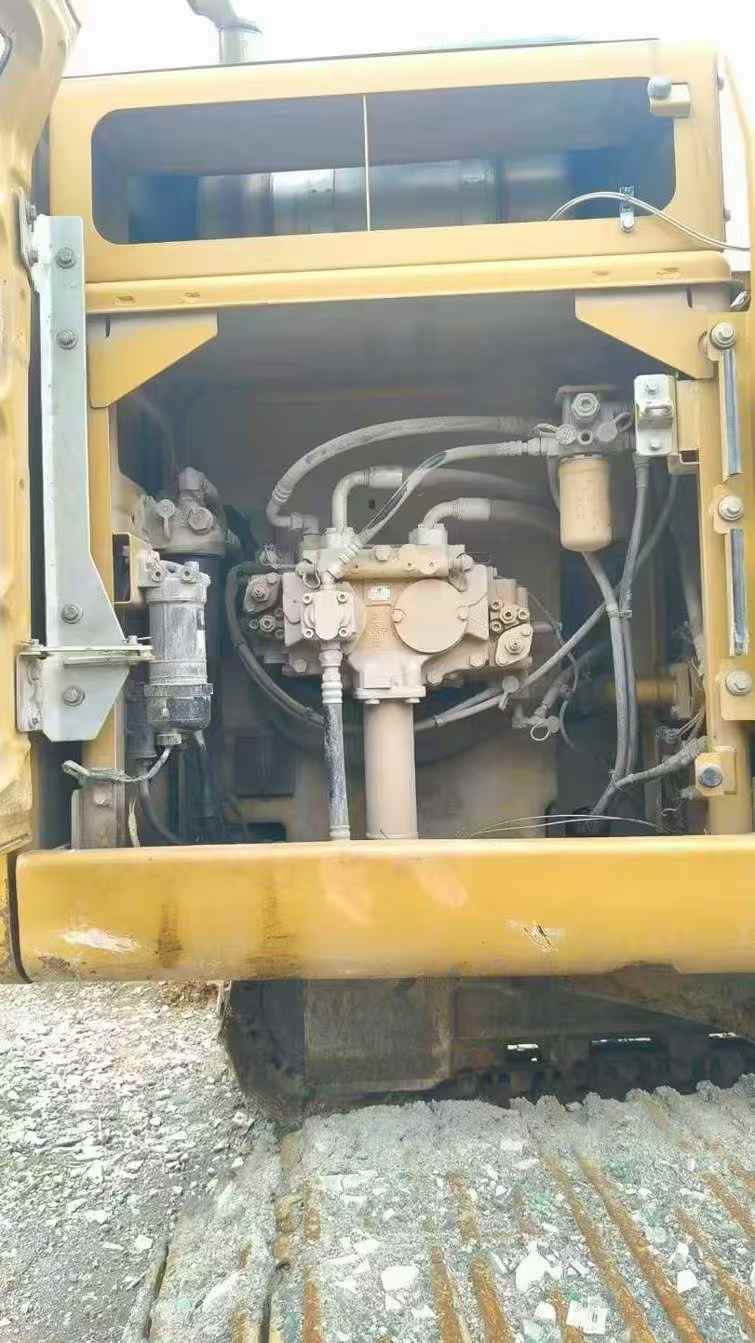

- Superior hydraulics: 428 L/min main pump flow for responsive control
- Compact transport dimensions: 9,340 mm length, ideal for site mobility
- Global parts availability ensures minimal downtime and strong resale value
- Water-cooled system with 6-cylinder configuration for extended service life
Investing in Caterpillar means investing in long-term value—worldwide dealer sup
| Specifications | Value |
|---|---|
| No. | 1026074 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 21500-24730 |
| Bucket capacity (m³) | 1.19 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C6.6 ACERT |
| Rated power (kw/rpm) | 114 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 105 x 127 |
| Number of cylinders (PCS) | 6 |
| Working form | Air to air cold; EPA Tier 4 emission standards |
| Ground specific pressure (Kpa) | 35 |
| Rotation speed (rpm) | 11.2 |
| Bucket digging force (kN) | 140.5 |
| Rod digging force (kN) | 89.7 |
| Maximum tractive force (kN) | 205 |
| Travel speed (km/h) | 5.6 |
| Turning torque (Nm) | 61.8 |
| Maximum flow of main pump (l/min) | 428 |
| Pilot Oil Circuit (MPa) | 3.92 |
| Pilot pump flow (L/min) | 24.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 143 |
| Engine Oil changes (L) | 23 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 260 |
| Total transport length (mm) | 9340 |
| Total transport width (mm) | 2980/3170 |
| Total transport height (mm) | 3740 |
| Full cab height (mm) | 2960 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2830 |
| Total track length (mm) | 4460 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600/700 |
| Total track width (mm) | 2980/3170 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 7580 |
| Maximum excavation height (mm) | 9890 |
| Maximum unloading height (mm) | 7030 |
| Maximum vertical digging depth (mm) | 6910 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10680 |
| Boom turning Angle (left/right °) | There is no |
| Boom offset (left/right °) | There is no |
| Maximum effective digging depth (mm) | 7440 |
Overview
No.1026074
Brand Name：
CaterpillarModel Number：
320ELYear：
2016
Location：
Guizhou China
Pub Date：
