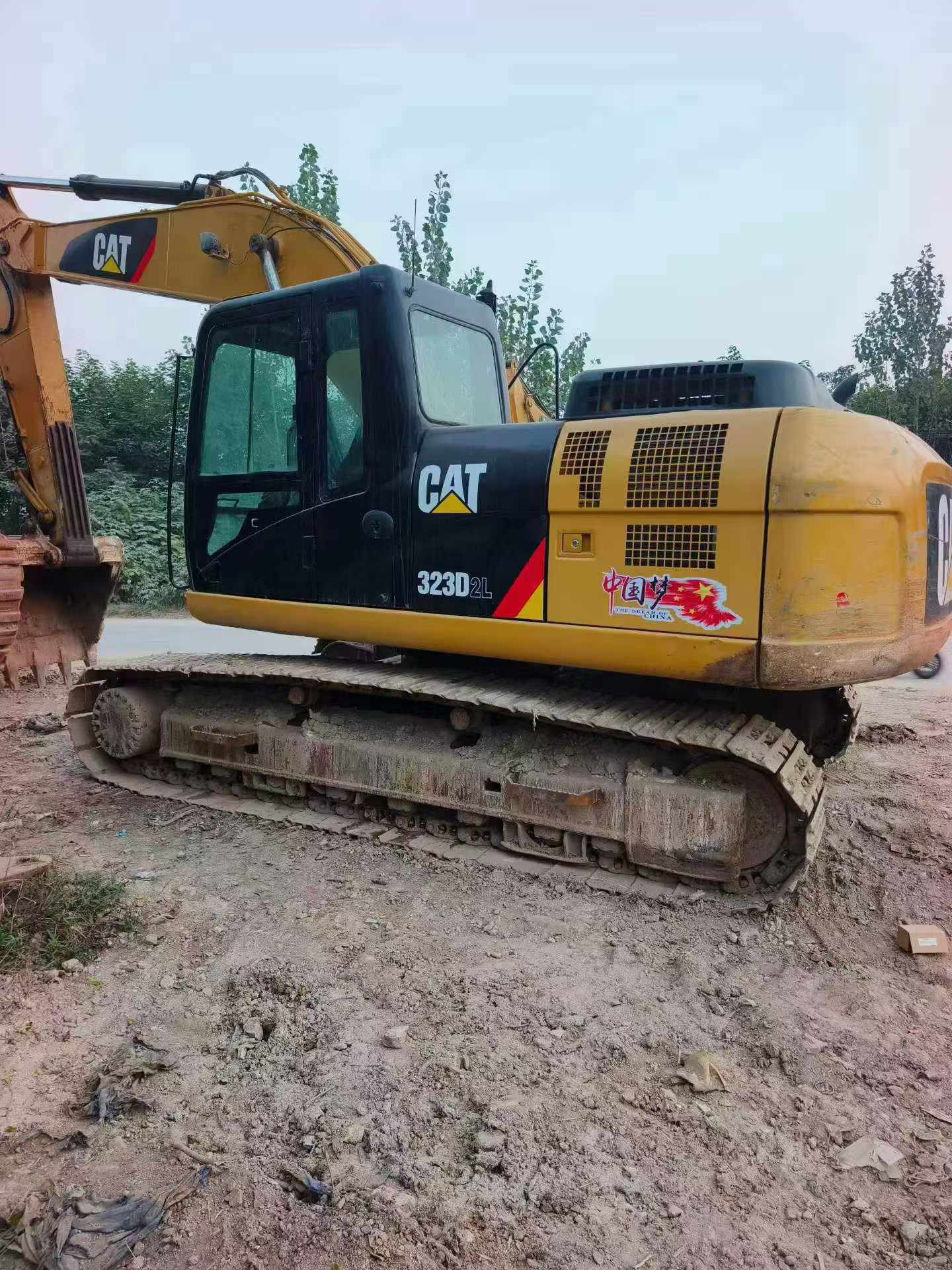

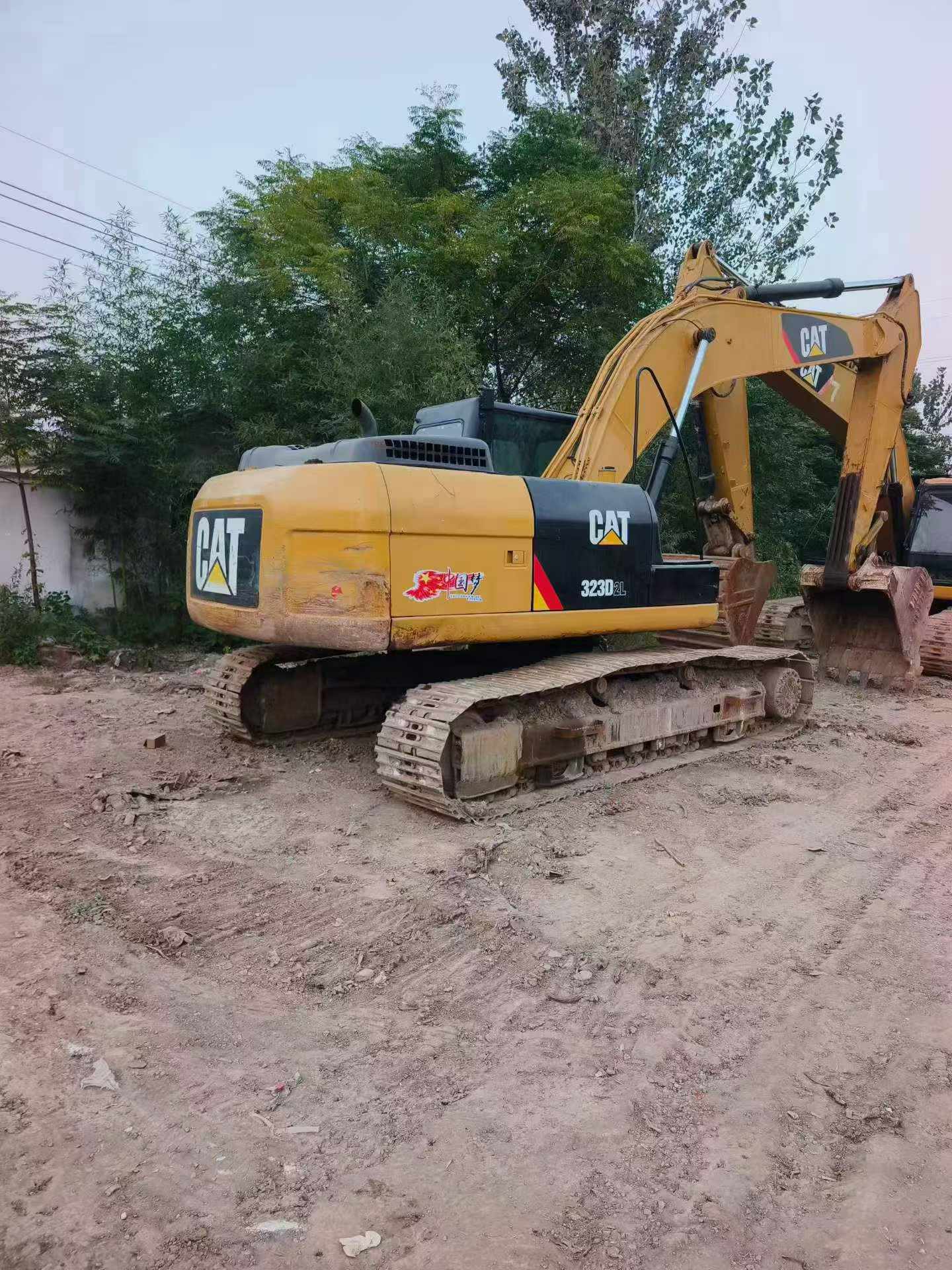

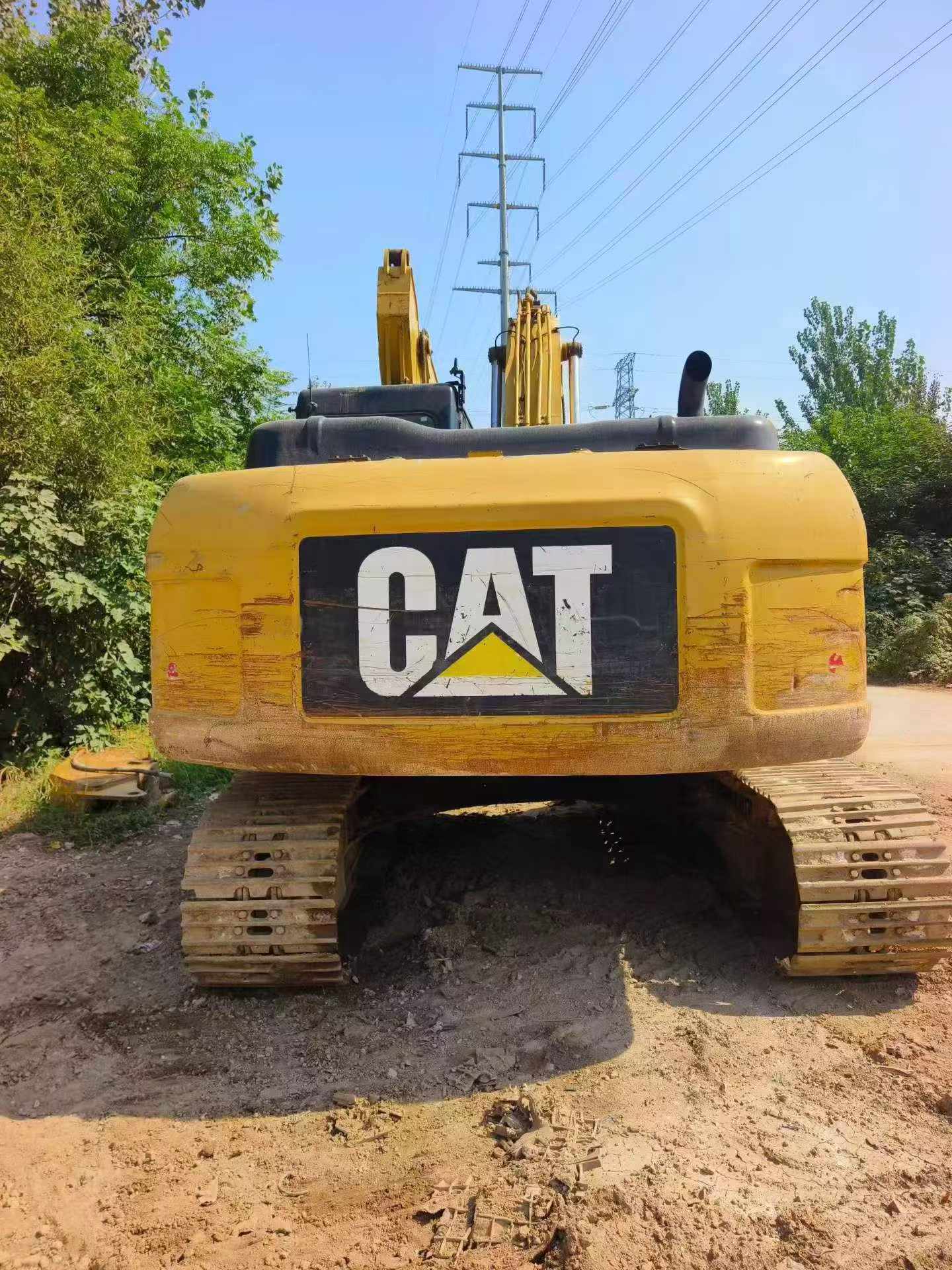

2014 Caterpillar 323D2L
Product Description
This 2014 Caterpillar 323D2L hydraulic excavator offers reliable performance for demanding earthmoving applications. Sourced from Jiangsu, China, this machine features Cat's proven D2 Series design with enhanced fuel efficiency and operator comfort. The 323D2L delivers approximately 168 horsepower and an operating weight of around 23 metric tons, making it suitable for construction, mining, and demolition projects.
Key features include:

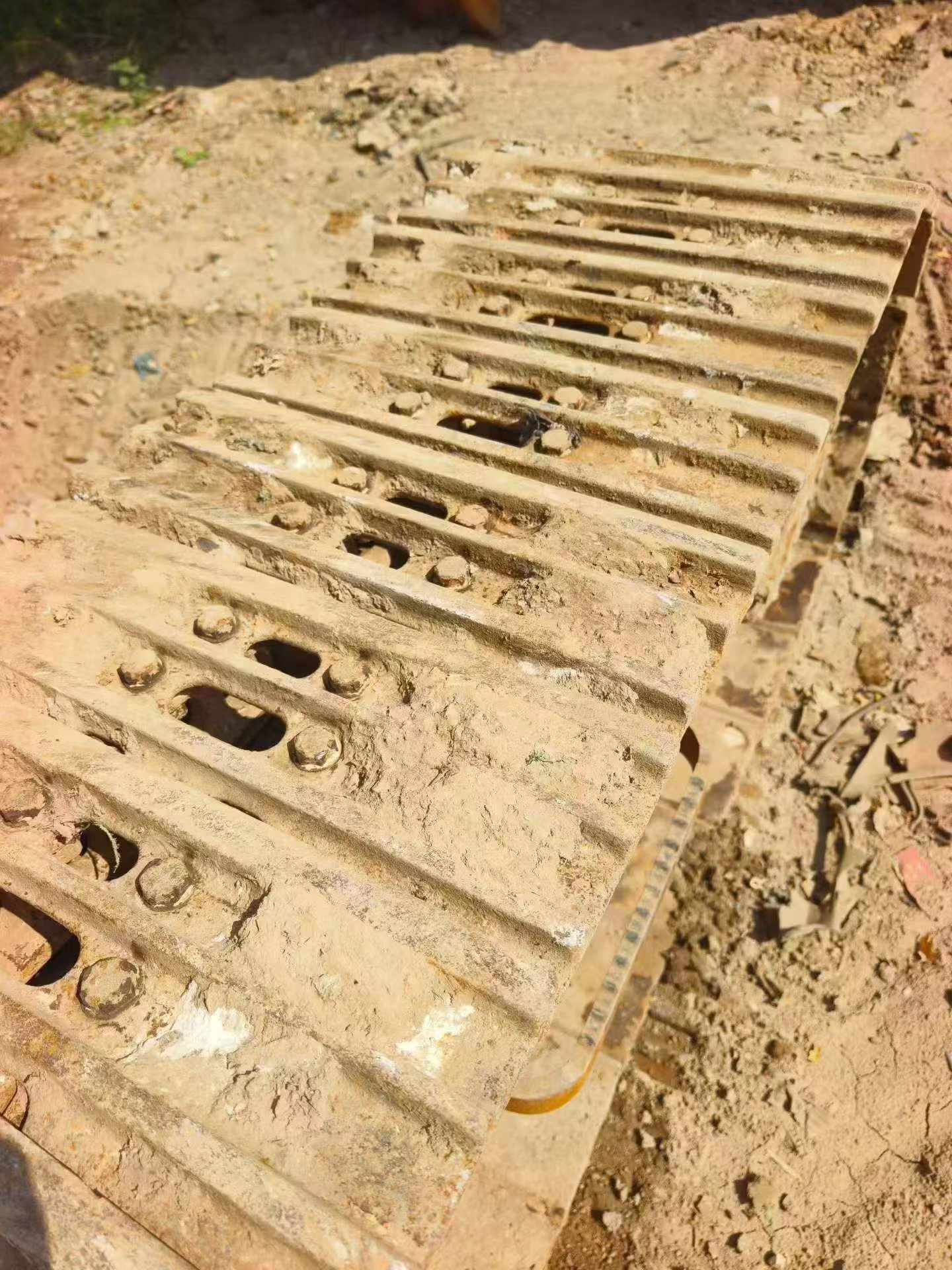

- Durable undercarriage designed for extended service life

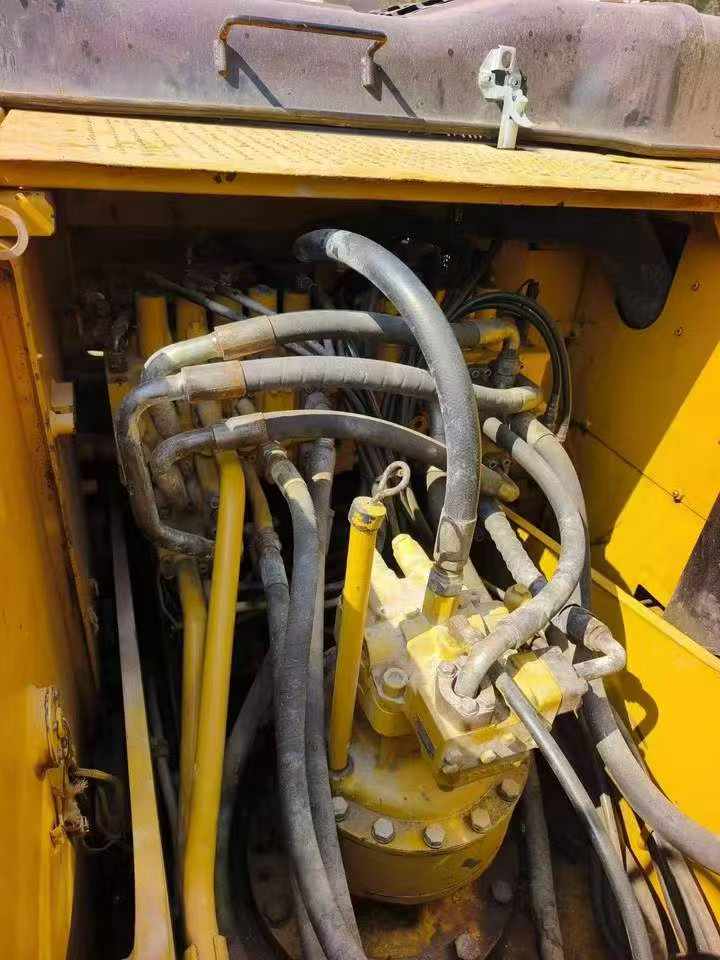

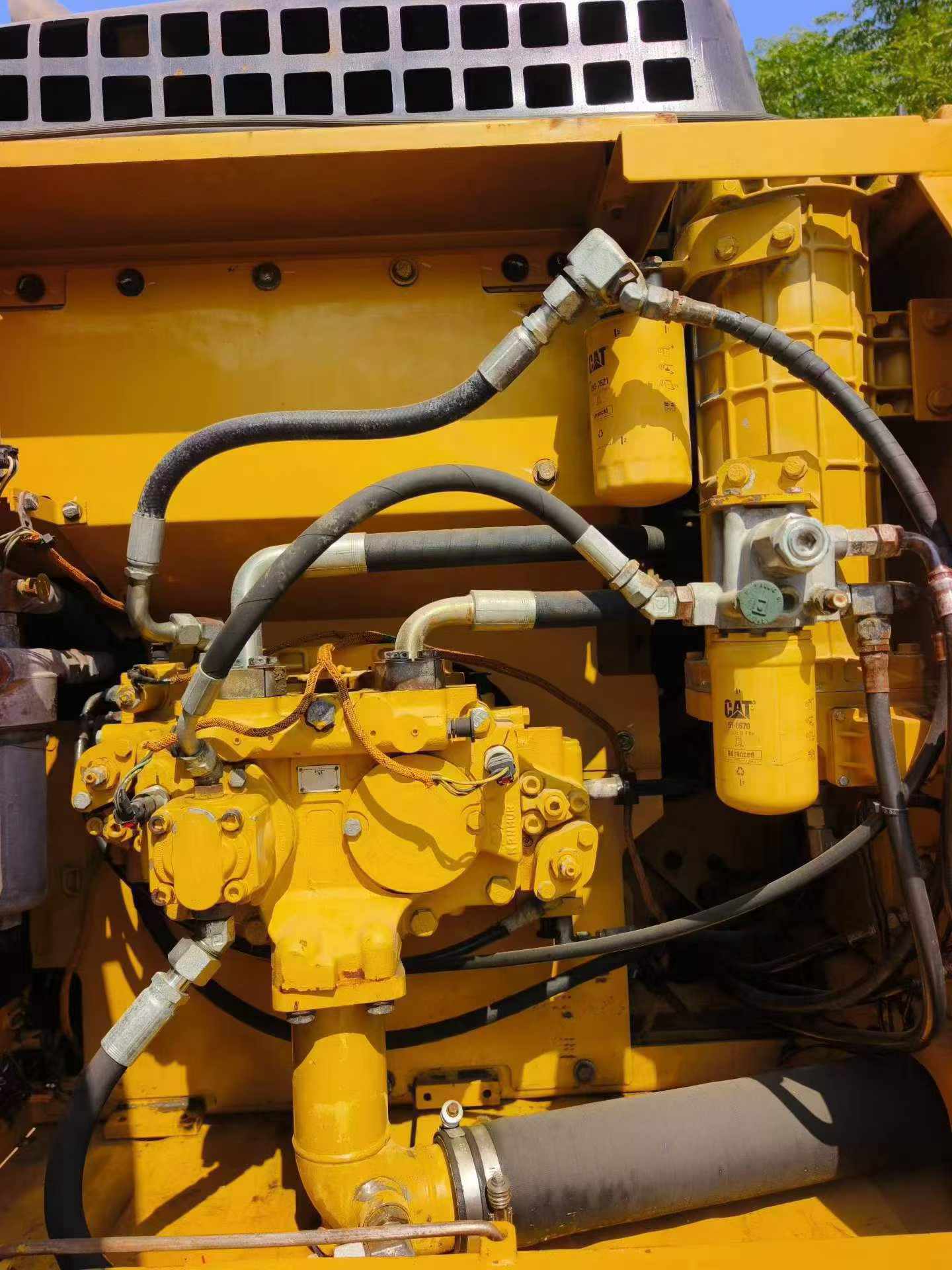

- Hydraulic system optimized for precise control and productivity

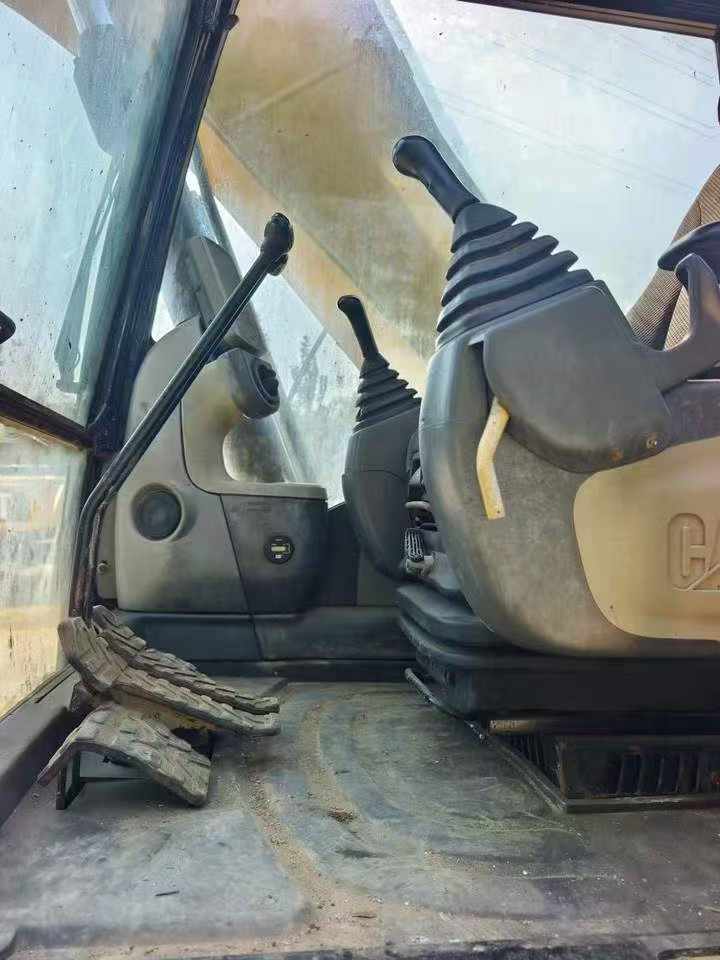

- Spacious ROPS/FOPS certified cab with excellent visibility
- Well-maintained condition with solid structural integrity
- Competitively priced for immediate deployment
This unit represents practical value for contractors seeking proven Caterpillar quality in the mid-size excavator class. Available for inspection in Jiangsu. Contact us for detailed specifications, service records, and export documentation.
| Specifications | Value |
|---|---|
| No. | 1172767 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.19 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

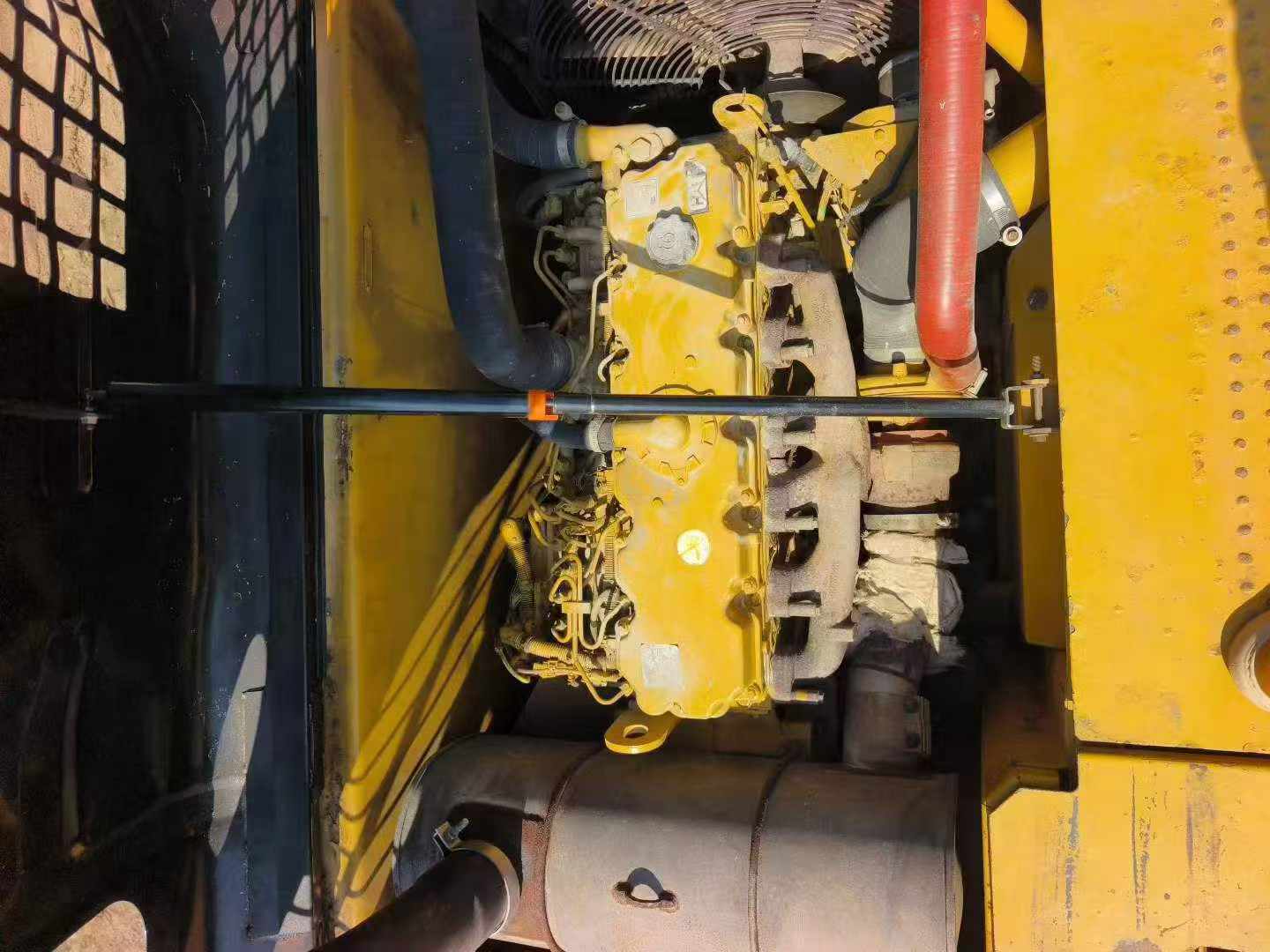

| Engine type | Cat C7.1 ACERT |
| Rated power (kw/rpm) | 118/1100 |
| Cylinder diameter × stroke (mm) | 105 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 205 |
| Travel speed (km/h) | Low: 3.5 / High: 5.6 |
| Turning torque (Nm) | 61.8 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 214 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.92 |
| Pilot pump flow (L/min) | 23.1 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 9490 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5690 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9860 |
| Maximum effective digging depth (mm) | 6380 |
Overview
No.1172767
Brand Name：
CaterpillarModel Number：
323D2LYear：
2014
Location：
Jiangsu China
Pub Date：
