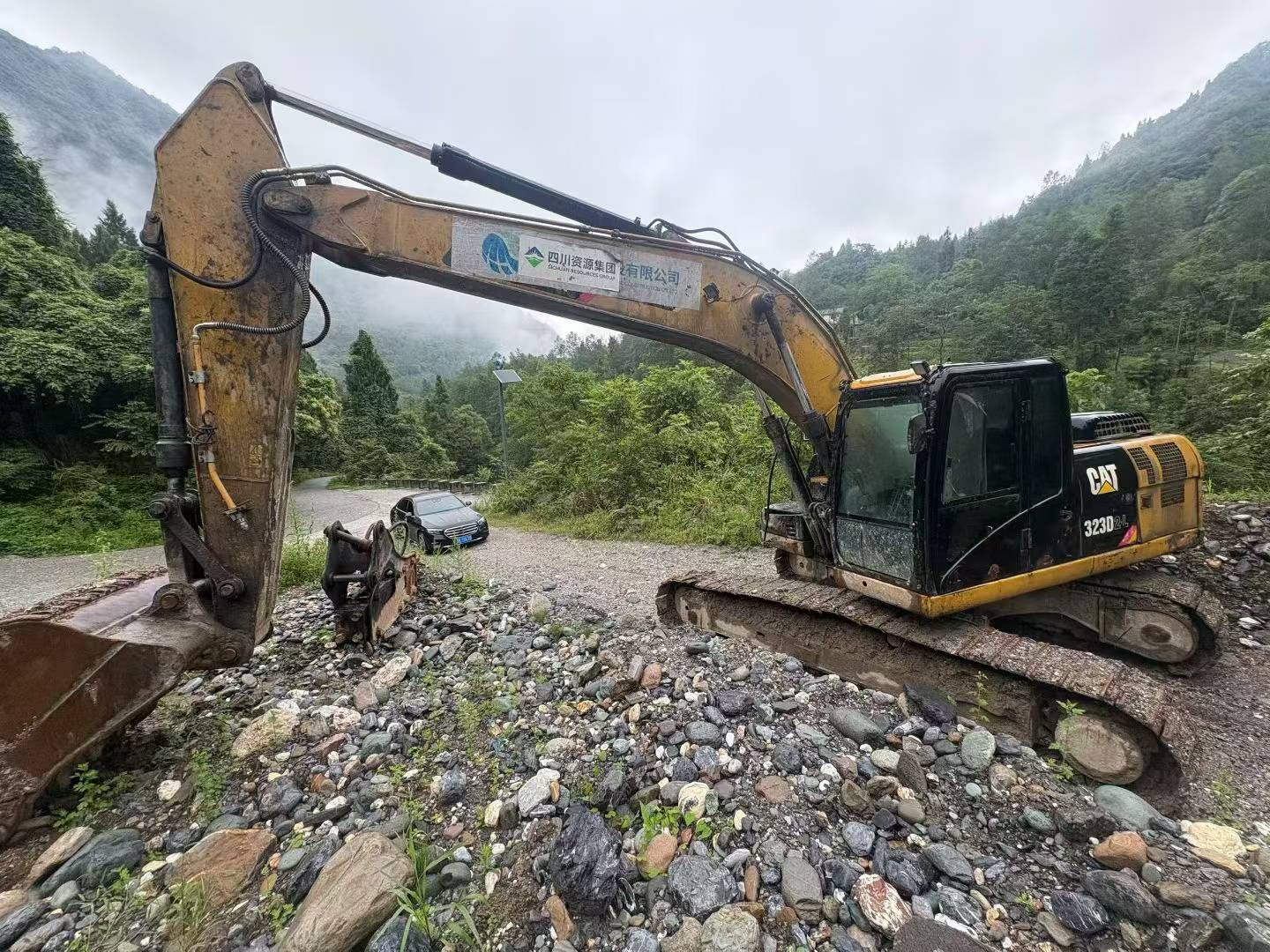

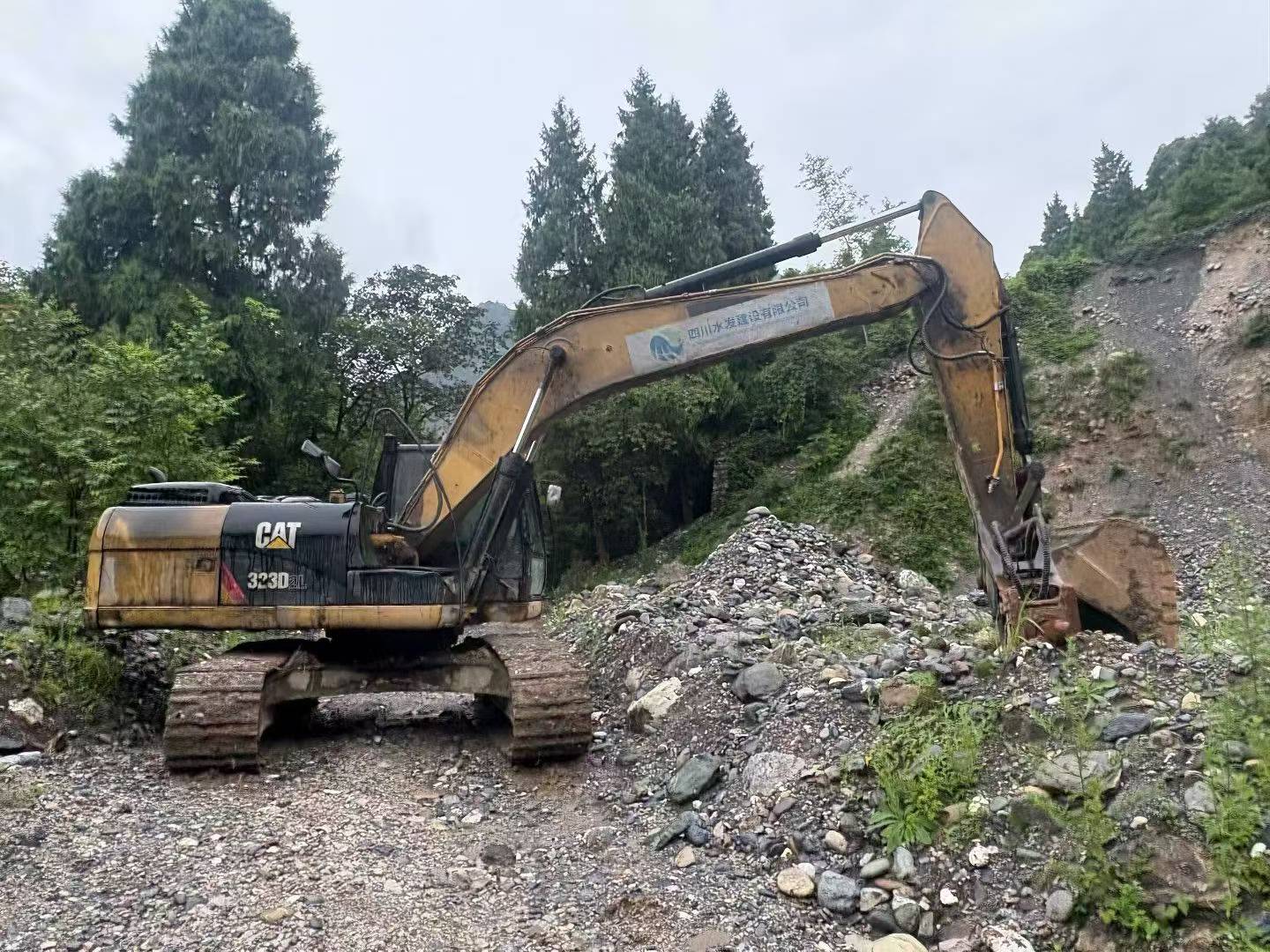

2017 Caterpillar 323D2L
Product Description
Discover the reliability and performance of the 2017 Caterpillar 323D2L, a robust excavator available for inspection in Yunnan, China. With over 160,000 hours on the clock, this machine has proven its durability and efficiency in various construction and excavation tasks. The 323D2L model is known for its powerful digging force, excellent fuel efficiency, and ease of maintenance, making it a preferred choice for demanding job sites. Ideal for businesses looking to enhance their fleet with a trusted, high-performing excavator that offers a strong return on investment.
- Year: 2017
- Brand: Caterpillar
- Model: 323D2L
- Location: Yunnan, China
- Operating Hours: Over 160,000
| Specifications | Value |
|---|---|
| No. | 1135368 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.19 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

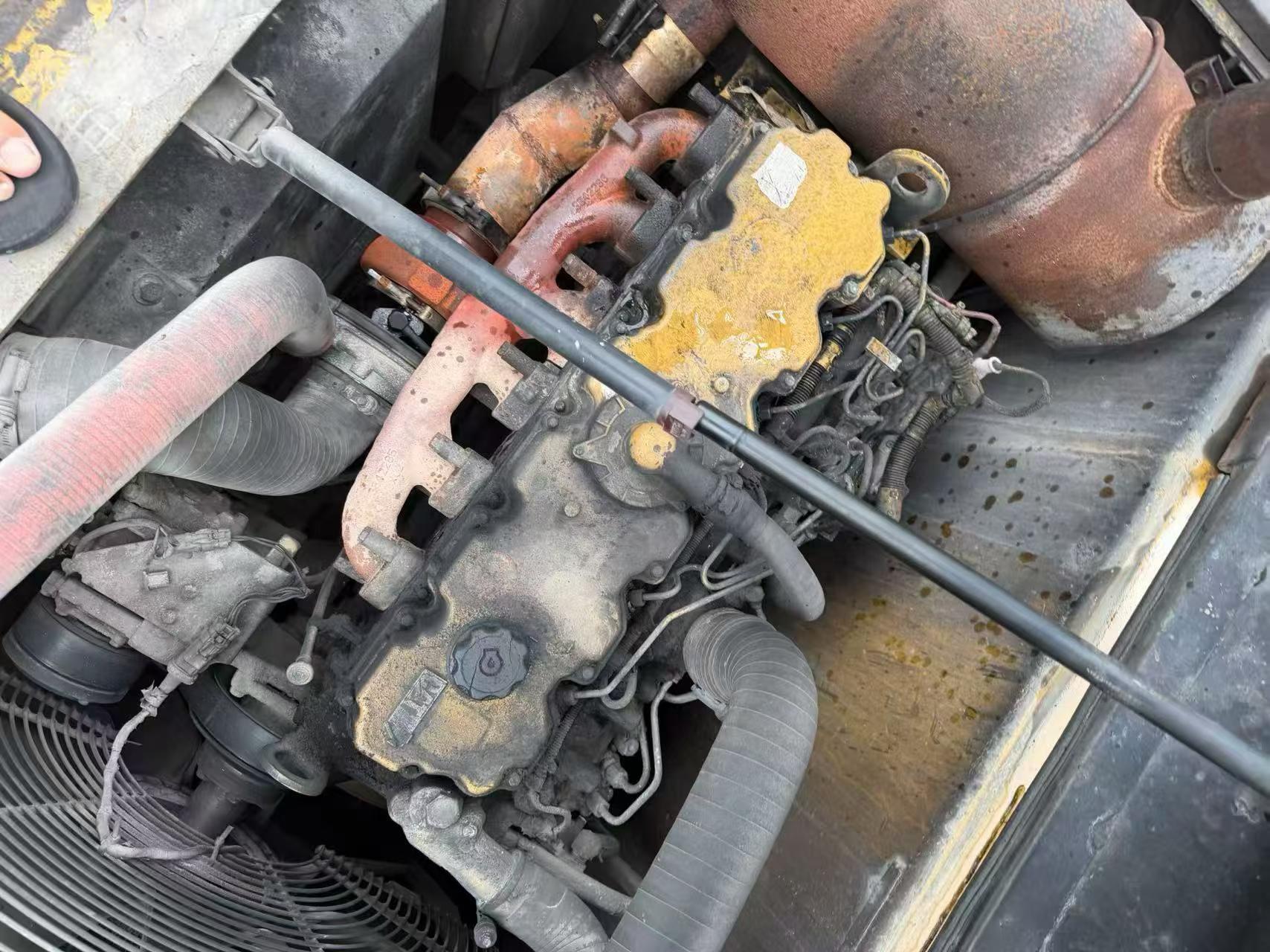

| Engine type | Cat C7.1 ACERT |
| Rated power (kw/rpm) | 118/1100 |
| Cylinder diameter × stroke (mm) | 105 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 205 |
| Travel speed (km/h) | Low: 3.5 / High: 5.6 |
| Turning torque (Nm) | 61.8 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 214 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.92 |
| Pilot pump flow (L/min) | 23.1 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 9490 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5690 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9860 |
| Maximum effective digging depth (mm) | 6380 |
