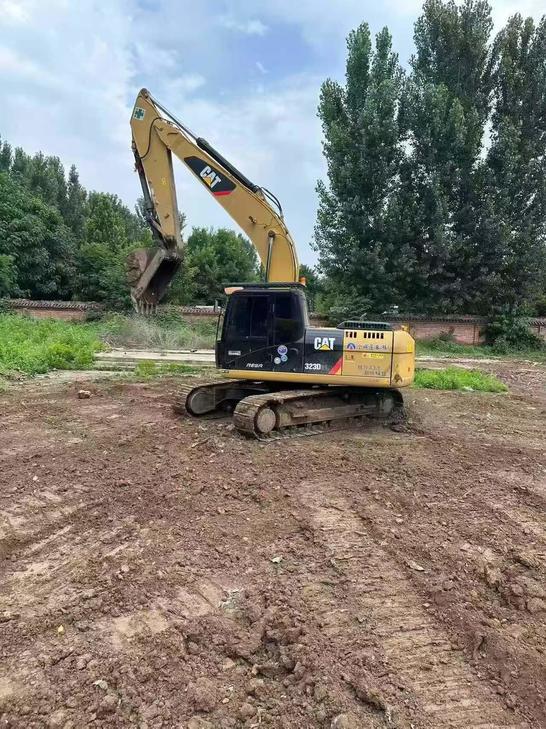

2020 Caterpillar 323D2L
Product Description
Built for demanding excavation work, the 2020 Caterpillar 323D2L delivers proven performance in a 23-ton platform. Powered by the Cat C7.1 ACERT six-cylinder engine producing 118 kW, this machine offers operators a reliable, fuel-efficient powertrain with 7.01L displacement and a rated speed of 1,100 rpm. Sourced from Japan and available now in Hebei, China, this unit is inspection-ready for serious buyers.
From the operator's seat, the 323D2L is engineered for productivity and control. The spacious cab provides excellent sight lines across the work area, while intuitive hydraulic controls translate directly into precise bucket and boom response. With a maximum digging depth of 6,720 mm and a bucket digging force of 140 kN, operators can tackle deep trenching and heavy material handling with confidence and reduced fatigue.
- Engine: Cat C7.1 ACERT | 118 kW @ 1,100 rpm | 6-cylinder | 7.01L displacement
- Operating Weight: 23,300 kg | Bucket Capacity: 1.19 m³
- Bucket Digging Force: 140 kN | Rod Digging Force: 107 kN
- Maximum Digging Depth: 6,720 mm | Maximum Digging Radius: 9,860 mm
- Maximum Excavation Height: 9,490 mm | Unloading Height: 6,490 mm
- Travel Speed: Low 3.5 km/h / High 5.6 km/h | Max Tractive Force: 205 kN
- Climbing Ability: 70% / 35° | Track Width: 600 mm
- Hydraulic System Pressure: 35 MPa | Main Pump Flow: 214 × 2 L/min
- Fuel Tank: 410 L | Hydraulic Tank: 138 L
- Location: Hebei, China | Country of Origin: Japan
| Specifications | Value |
|---|---|
| No. | 1089472 |
| Tonnage (tons) | 23 |
| Working weight (kg) | 23300 |
| Bucket capacity (m³) | 1.19 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat C7.1 ACERT |
| Rated power (kw/rpm) | 118/1100 |
| Cylinder diameter × stroke (mm) | 105 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.01 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 140 |
| Rod digging force (kN) | 107 |
| Maximum tractive force (kN) | 205 |
| Travel speed (km/h) | Low: 3.5 / High: 5.6 |
| Turning torque (Nm) | 61.8 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 214 x 2 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 25 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.92 |
| Pilot pump flow (L/min) | 23.1 |
| Bucket cylinders - Number × diameter × stroke (mm) | 120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1504 |
| Boom cylinders - Number × diameter × stroke (mm) | 120 x 1260 |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 138 |
| Engine Oil changes (L) | 22 |
| Coolant (L) | 25 |
| Hydraulic System (L) | 260(including fuel tank) |
| Total transport length (mm) | 9460 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3030 |
| Full cab height (mm) | 2950 |
| Counterweight ground clearance (mm) | 1020 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2740 |
| Total track length (mm) | 4455 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3180 |
| Track ground length (mm) | 3650 |
| Maximum digging depth (mm) | 6720 |
| Maximum excavation height (mm) | 9490 |
| Maximum unloading height (mm) | 6490 |
| Maximum vertical digging depth (mm) | 5690 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9860 |
| Maximum effective digging depth (mm) | 6380 |
Overview
No.1089472
Brand Name：
CaterpillarModel Number：
323D2LYear：
2020
Location：
Hebei China
Pub Date：
