2014 Caterpillar 324D
Product Description

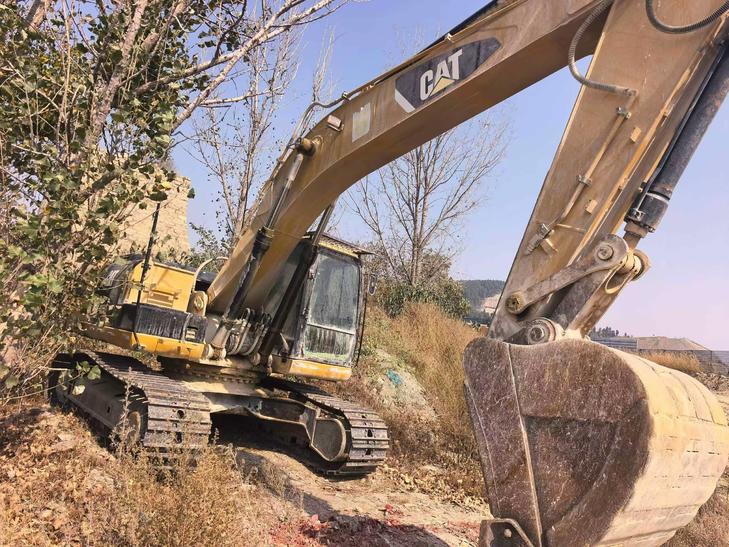

This 2014 Caterpillar 324D hydraulic excavator offers reliable performance for demanding excavation and earthmoving applications. Currently located in Zhejiang, China, this machine represents excellent value in the used equipment market.
The CAT 324D is built on Caterpillar's proven medium excavator platform, featuring a robust operating weight class suitable for construction, mining, and infrastructure projects. Known for durability and fuel efficiency, the 324D delivers consistent productivity with lower operating costs compared to newer models.
- Year of Manufacture: 2014
- Manufacturer: Caterpillar
- Model: 324D
- Location: Zhejiang Province, China
- Competitive pricing available
Ideal for contractors and operators seeking dependable excavation equipment with established parts availability and service support across global markets. Contact us for detailed specifications, inspection reports, and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1164524 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 24240 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5900 |
| Rod length (mm) | 2950 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7 ACERT |
| Rated power (kw/rpm) | 140/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 130 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.5 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 24.5 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 35 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-120 x 1104 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300(including fuel tank) |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4250 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3450 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
