Name: Used Excavators 2020 Caterpillar 324D
Brand: Caterpillar
SKU: USED-1084155
Availability: InStock
Rating: 4.5 (51 reviews)

Sany

Caterpillar

XCMG

Komatsu

Hitachi

Doosan

Kobelco

Hyundai

Sumitomo

Volvo

Kato

Case

JohnDeere

Yanmar

Liebherr

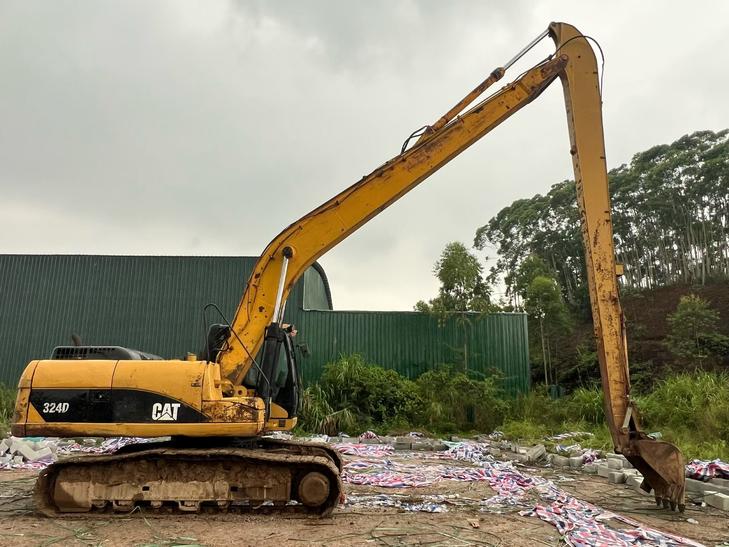

This 2020 Caterpillar 324D excavator with extended reach boom is now available from our Guangdong, China location. This well-maintained unit represents an excellent opportunity for contractors requiring enhanced digging depth and horizontal reach capabilities.

The CAT 324D is renowned for its reliable performance in demanding applications including deep foundation work, slope grading, and riverbank maintenance. The extended arm configuration expands operational versatility while maintaining the model's characteristic fuel efficiency and durability.

Key highlights:
<ul>
<li>Extended reach boom for increased working range</li>
<li>Caterpillar proven hydraulic system</li>
<li>Well-preserved overall condition</li>
<li>Ready for immediate deployment</li>
<li>Competitively priced for export</li>
</ul>

This machine has been inspected and is available for viewing in Guangdong. Contact our sales team for detailed specifications, shipping quotes, and pricing information.

Built in Japan and powered by the proven Komatsu S6D102E six-cylinder engine (99 kW / 2,200 rpm, 5.9 L displacement), this 2016 PC200-6 represents one of the most dependable 20-ton excavators in the used equipment market. Komatsu's global parts network means downtime stays short and maintenance costs stay predictable — a critical advantage when sourcing a machine this age.

Currently located in Guangdong, China, this unit is positioned for efficient export across Southeast Asia and beyond. With a working weight of 19,180 kg, 0.8 m³ backhoe bucket, and a maximum excavation height of 8,895 mm, it handles mid-scale earthmoving, trenching, and loading with consistent output. The 34.818 MPa hydraulic system and 412 L/min main pump flow deliver responsive, high-cycle performance across demanding job sites.

<ul>
 <li>Engine: Komatsu S6D102E — 6 cylinders, 5.9 L, 99 kW @ 2,200 rpm</li>
 <li>Operating weight: 19,180 kg | Bucket capacity: 0.8 m³ (backhoe)</li>
 <li>Max excavation height: 8,895 mm | Max digging depth: 4,965 mm</li>
 <li>Travel speed: 5.5 km/h | Climbing ability: 70% / 35°</li>
 <li>Fuel tank: 340 L | Hydraulic system: 166 L</li>
 <li>Transport dimensions: 9,510 × 2,800 × 2,985 mm</li>
 <li>Track plate width: 600 mm | Track gauge: 2,200 mm</li>
 <li>Origin: Japan | Location: Guangdong, China</li>
</ul>

Komatsu's PC200 series holds strong resale value precisely because parts are stocked worldwide and technicians are familiar with the platform. Buying a PC200-6 is a low-risk entry into a machine with a long service life ahead.

Komatsu PC200-6

Discover the 2021 Sany SY215C, a robust and reliable excavator currently available in Hubei, China. This machine is well-maintained and ready to meet the demands of your construction projects. Comprehensive details including detailed images and video footage are available for your review, ensuring you have all the information needed to make an informed decision. Ideal for contractors and construction firms, the SY215C offers a blend of power, efficiency, and durability, making it a valuable addition to any fleet.
<ul>
<li>Year: 2021</li>
<li>Brand: Sany</li>
<li>Model: SY215C</li>
<li>Location: Hubei, China</li>
<li>Detailed images and video available</li>
</ul>

Sany SY215C

Discover the reliability and efficiency of the 2015 Kobelco SK380D, a robust excavator designed for heavy-duty applications. Located in Hubei, China, this used machine is in excellent condition and ready to meet your project needs. With first-hand information and detailed imagery available, you can be confident in its performance and maintenance history.
<ul>
<li>Year: 2015</li>
<li>Brand: Kobelco</li>
<li>Model: SK380D</li>
<li>Location: Hubei, China</li>
<li>Detailed images and videos provided for thorough inspection</li>
</ul>

Kobelco SK380D

This 2020 XCMG XE270DK hydraulic excavator represents a proven solution for earthmoving and material handling operations. As part of XCMG's mid-sized excavator range, the XE270DK delivers reliable performance for construction, mining, and infrastructure projects requiring efficient excavation and loading capabilities.

Currently located in Zhejiang, China, this machine has been maintained to operational standards and is available for immediate deployment. The XE270DK combines XCMG's engineering heritage with practical features suited for high-volume earthwork applications.

<ul>
<li>Year of Manufacture: 2020</li>
<li>Operating Class: 27-ton excavator</li>
<li>Applications: Earthmoving, loading, and general excavation</li>
<li>Location: Zhejiang Province, China</li>
<li>Condition: Used, operational</li>
</ul>

Suitable for contractors and operators seeking dependable mid-range excavation equipment. Inspection welcomed prior to purchase.

XCMG XE270DK

This 2020 Caterpillar 336DL hydraulic excavator offers proven performance for demanding earthmoving and construction applications. Located in Guangdong, China, this mid-sized crawler excavator combines Cat's reliable C9 engine technology with robust hydraulic systems designed for productivity in quarrying, site development, and heavy excavation work.

The 336DL features:
<ul>
<li>Operating weight approximately 36 tonnes for stable digging performance</li>
<li>Hydraulic system optimized for simultaneous multi-function operation</li>
<li>Spacious ROPS/FOPS certified cab with ergonomic controls</li>
<li>Durable undercarriage built for extended service life</li>
<li>Cat monitoring systems for operational diagnostics</li>
</ul>

This machine represents a cost-effective solution for contractors seeking reliable excavation capacity. Inspection welcomed. Contact us for detailed specifications, service records, and current machine condition assessment.

Caterpillar 336DL

This 2017 Caterpillar 320A excavator represents a valuable addition to any construction or earthmoving fleet. Currently located in Hubei, China, this machine comes from the original owner with complete documentation including invoice and certificate of conformity. The Cat 320A series is renowned for its robust hydraulic system, fuel efficiency, and versatility across diverse job sites.

Key features include:
<ul>
<li>Year of Manufacture: 2017</li>
<li>First-hand ownership with verifiable documentation</li>
<li>Complete invoice and certificate of conformity available</li>
<li>Currently operational and available for on-site inspection in Hubei, China</li>
<li>Caterpillar's proven 320 series platform with reliable performance</li>
</ul>

This excavator is ideal for contractors seeking dependable equipment with transparent ownership history. Direct inspection is welcomed to verify machine condition and operational status.

Caterpillar 320A

This 2020 Komatsu PC360-7 excavator is currently located in Hubei, China, and available for immediate inspection. As a well-documented single-owner unit, this machine comes with comprehensive on-site records and detailed visual documentation including video footage. The PC360-7 represents Komatsu's proven hydraulic excavator platform, designed for demanding earthmoving and construction applications.

Key features of this unit include:
<ul>
<li>Komatsu SAA6D114E-3 engine delivering reliable performance</li>
<li>Operating weight approximately 36 metric tons</li>
<li>Hydraulic system optimized for fuel efficiency and productivity</li>
<li>Complete service history and first-hand documentation available</li>
<li>Currently situated in Hubei Province for convenient inspection</li>
</ul>

This PC360-7 offers buyers transparency with full photographic and video records. Suitable for mining, quarrying, and heavy construction operations requiring a mid-size excavator with proven durability.

Komatsu PC360-7

This 2020 Volvo EC480DL excavator is ready for immediate deployment. Recently removed from an active worksite in Beijing, China, this machine demonstrates reliable performance with coordinated hydraulic movements and no major component leaks. The unit retains its original earthmoving bucket and features a fully functional air conditioning system.

Key highlights:
<ul>
<li>2020 model year with verifiable service history</li>
<li>Hydraulic systems operating smoothly with no oil leaks from major components</li>
<li>Original equipment earthmoving bucket included</li>
<li>Operational HVAC system</li>
<li>Available for on-site demonstration and testing</li>
<li>Located in Beijing, China</li>
</ul>

This Volvo EC480DL is suitable for contractors seeking a proven excavator for earthmoving and general construction applications. The machine is work-ready and available for inspection at the current location.

Volvo EC480DL

2020 Komatsu PC360-7 hydraulic excavator available from Fujian, China. This machine retains its original factory paint and has been maintained to field-ready standards. The PC360-7 offers reliable performance for earthmoving, site preparation, and general construction applications.

Key features:
<ul>
<li>Operating weight: approximately 36 metric tons</li>
<li>Komatsu SAA6D114E engine with proven durability</li>
<li>Standard bucket capacity suitable for mid-range excavation work</li>
<li>Original paint indicates careful ownership and minimal refurbishment</li>
<li>Performance-tested and ready for immediate deployment</li>
</ul>

This excavator is suited for contractors and operators requiring a dependable mid-size machine with established service support. Inspection welcomed. Contact us for detailed specifications, service records, and shipping arrangements to your location.

2012 Komatsu PC200-8 hydraulic excavator available in Zhejiang, China. This versatile 20-ton class machine comes equipped with multiple attachments including bucket, hydraulic breaker, and grapple, making it suitable for diverse applications from excavation to demolition work. The PC200-8 features Komatsu's proven hydraulic system and fuel-efficient engine design.

Reported operating hours exceed 60,000, reflecting continuous use in demanding conditions. While high-hour machines require thorough inspection, the PC200-8 series is known for durability when properly maintained. Complete attachment package adds immediate operational flexibility for contractors handling varied jobsite requirements.

<ul>
<li>Year: 2012</li>
<li>Model: Komatsu PC200-8</li>
<li>Operating Hours: 60,000+</li>
<li>Included: Standard bucket, hydraulic breaker, grapple attachment</li>
<li>Location: Zhejiang Province, China</li>
</ul>

Komatsu PC200-8

2016 Volvo EC480D hydraulic excavator available from Zhejiang, China. This machine represents Volvo's proven D-series platform with original configuration maintained throughout its service life. Operating hours approximately 200,000+ reflect consistent utilization in demanding applications.

<ul>
<li>Operating weight class: 48 metric tons</li>
<li>Volvo D13 turbocharged diesel engine</li>
<li>Standard boom and arm configuration</li>
<li>Hydraulic quick coupler compatible</li>
<li>Cab with climate control and improved visibility</li>
<li>Suitable for quarry, infrastructure, and earthmoving projects</li>
</ul>

The EC480D offers robust performance for heavy-duty excavation work. Machine shows expected wear consistent with documented hours. Ideal for contractors seeking reliable capacity at accessible pricing. Inspection welcomed. Export documentation and loading assistance can be arranged through our Zhejiang facility.

Volvo EC480D

This 2020 Komatsu PC60-8 midi excavator offers reliable performance for contractors seeking proven hydraulic technology. Currently located in Guangdong, China, this machine represents an accessible entry point into Komatsu's established 6-ton class platform.

The PC60-8 delivers dependable digging force and fuel efficiency in a compact footprint suitable for urban construction, utility work, and site development. This unit has been maintained to operational standards with performance verified through inspection.

<ul>
<li>Year: 2020</li>
<li>Model: Komatsu PC60-8</li>
<li>Location: Guangdong, China</li>
<li>Condition: Performance verified</li>
<li>Documentation: Detailed photos and video available</li>
</ul>

Competitively priced in the tens of thousands range. Contact us for complete inspection reports, operating hour records, and shipping arrangements to your worksite.

Komatsu PC60-8

Well-maintained 2021 Sany SY60 excavator available in Guangdong, China. This compact 6-ton class machine has been dedicated exclusively to earthmoving applications since purchase, demonstrating consistent performance throughout its operational life. The unit comes with complete documentation including original purchase invoice and all required paperwork for seamless ownership transfer.

<ul>
<li>Year of Manufacture: 2021</li>
<li>Make: Sany</li>
<li>Model: SY60</li>
<li>Primary Application: Earthmoving operations</li>
<li>Mechanical Condition: Excellent, inspection-ready</li>
<li>Documentation: Complete with original invoice</li>
<li>Current Location: Guangdong Province, China</li>
</ul>

This excavator represents a reliable solution for contractors seeking a proven earthmoving machine with verified service history. The SY60's compact footprint and proven hydraulic system make it suitable for urban construction, utility installation, and general excavation work. Available for immediate inspection and purchase.

Sany SY60

This 2020 Kobelco SK200-8 hydraulic excavator is currently located in Guangdong, China and available at a competitive price point. The SK200-8 represents Kobelco's reliable 20-ton class excavator platform, designed for general construction, earthmoving, and site development applications.

Key features of the SK200-8 series include:
<ul>
<li>Operating weight approximately 20 tonnes</li>
<li>Proven Hino diesel engine with efficient fuel consumption</li>
<li>Kobelco's proprietary hydraulic system for smooth operation</li>
<li>Spacious operator cabin with ergonomic controls</li>
<li>Suitable for foundation work, trenching, and material handling</li>
</ul>

This unit offers an accessible entry point for contractors seeking dependable excavation equipment from a respected Japanese manufacturer. Inspection recommended prior to purchase. Machine sold as-is in current operating condition.

Kobelco SK200-8

Available for immediate inspection: 2018 Hitachi EX360-5 hydraulic excavator currently located in Hubei, China. This medium-to-large class excavator from Hitachi's proven Dash-5 generation offers reliable performance for demanding earthmoving and construction applications.

Key highlights:
<ul>
<li>Single owner operation with direct access to service history</li>
<li>Hitachi HIOS III hydraulic system for efficient fuel consumption</li>
<li>Spacious ROPS/FOPS certified cabin with climate control</li>
<li>Operating weight class approximately 36 tonnes</li>
<li>Suitable for quarry, infrastructure, and heavy civil projects</li>
</ul>

Machine is available for on-site inspection in Hubei province. Original documentation and maintenance records accessible. Ideal for buyers seeking a mid-generation Hitachi excavator with transparent ownership background. Competitive pricing for export or domestic resale. Contact for detailed specifications and viewing arrangements.

Hitachi EX360-5

This 2020 Caterpillar 349E hydraulic excavator is available from Guangdong, China. Equipped with bucket and hydraulic breaker attachment, this machine offers versatility for demolition, rock breaking, and heavy excavation applications. The 349E delivers robust performance in the 50-ton class with proven fuel efficiency and operator comfort.

Key specifications:
<ul>
<li>Operating weight: approximately 49,500 kg</li>
<li>Engine: Cat C13 ACERT, rated at 287 kW (385 hp)</li>
<li>Bucket capacity: standard range 1.9 - 3.2 m³</li>
<li>Maximum digging depth: 7,870 mm</li>
<li>Includes hydraulic breaker attachment for enhanced utility</li>
</ul>

The Cat 349E is recognized for durability in demanding environments including mining, quarrying, and infrastructure projects. This unit represents a practical solution for contractors seeking reliable performance in a proven excavator platform.

Specifications	Value
No.	1084155
Tonnage (tons)	24
Working weight (kg)	24240
Bucket capacity (m³)	1
Boom length (mm)	5900
Rod length (mm)	2950
Country of origin	Japan
power	Traditional power
manufacturer	Joint venture/Import
bucket	backhoe
Engine type	C7 ACERT
Rated power (kw/rpm)	140/2000
Cooling mode	water-cooling
Cylinder diameter × stroke (mm)	102 x 130
Number of cylinders (PCS)	6
Displacement (L)	7.2
Rotation speed (rpm)	9.6
Climbing ability (%)	70/35 °
Travel speed (km/h)	3.5/5.5
Main overflow set pressure (Mpa)	35
Maximum flow of main pump (l/min)	235
Traveling Hydraulic Circuit (Mpa)	35
Rotary Hydraulic Circuit (Mpa)	24.5
Hydraulic crushing pipeline is standard	no
Working Hydraulic Circuit (Mpa)	35
Pilot Oil Circuit (MPa)	3.9
Bucket cylinders - Number × diameter × stroke (mm)	1-120 x 1104
Bucket rod cylinders - Number × diameter × stroke (mm)	1-140 x 1660
Boom cylinders - Number × diameter × stroke (mm)	2-135 x 1305
Fuel Tank (L)	520
Hydraulic Tank (L)	145
Engine Oil changes (L)	30
Coolant (L)	30
Hydraulic System (L)	300(including fuel tank)
Total transport length (mm)	10060
Total transport width (mm)	2990
Total transport height (mm)	3170
Full cab height (mm)	2980
Counterweight ground clearance (mm)	1060
Minimum ground clearance (mm)	470
Back end turning radius (mm)	2940
Total track length (mm)	4250
Track gauge (mm)	2380
Track plate width (mm)	600
Total track width (mm)	2990
Track ground length (mm)	3450
Maximum digging depth (mm)	6740
Maximum excavation height (mm)	9660
Maximum unloading height (mm)	6700
Maximum vertical digging depth (mm)	5830
Bulldozer lift or depth (mm)	No bulldozer
Dodging plate width × height (mm)	No bulldozer
Maximum excavation radius of stop surface (mm)	10030
Maximum effective digging depth (mm)	6560

2020 Caterpillar 324D
