Product Description

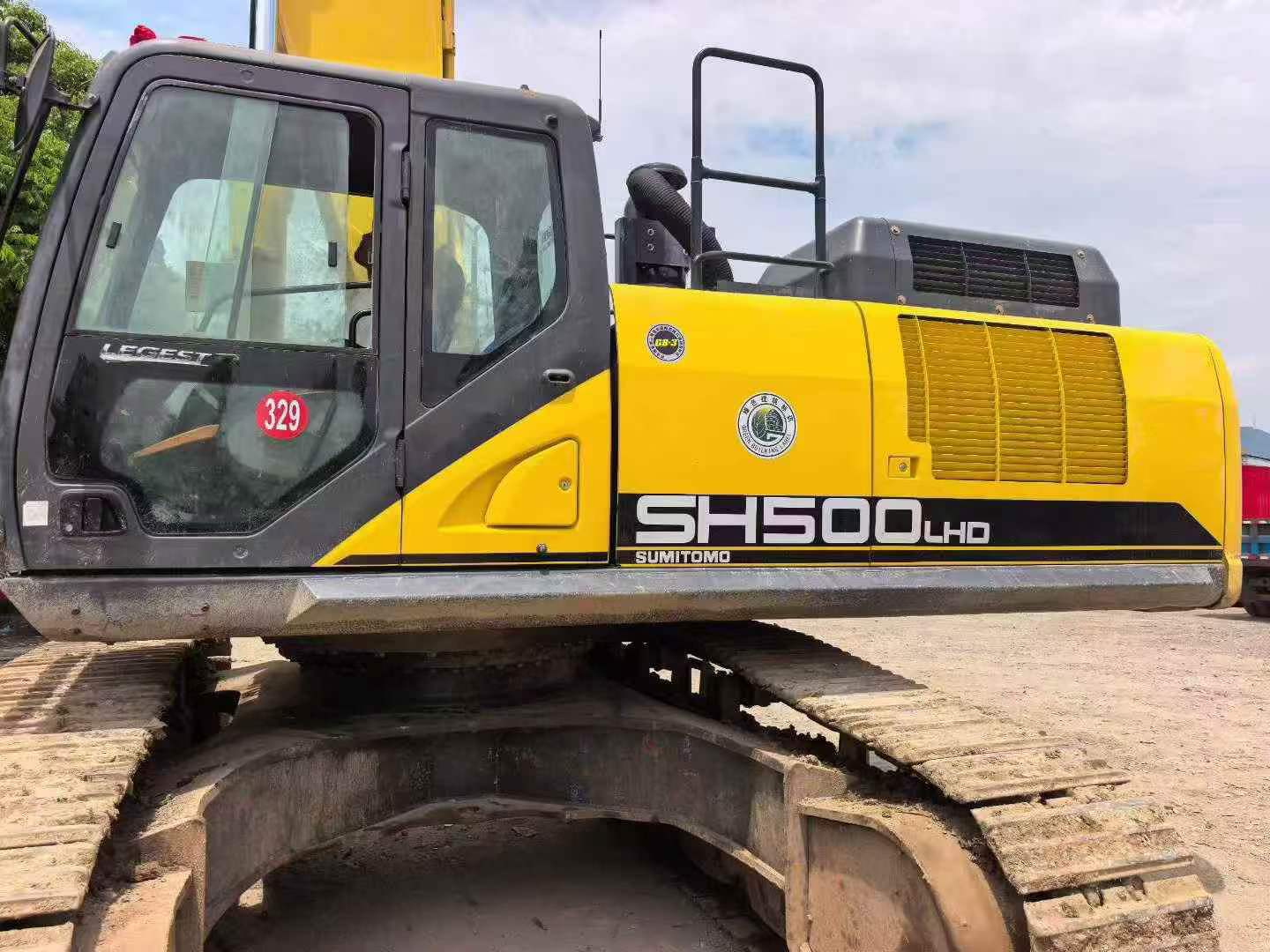

This 2022 Sumitomo SH500LHD-6 hydraulic excavator represents a recent addition to the heavy equipment market, offering reliable performance for large-scale earthmoving and construction operations. The SH500 series is engineered for demanding applications requiring substantial digging force and reach capabilities.
Currently located in Zhejiang, China, this machine features Sumitomo's proven hydraulic system design and robust undercarriage construction. The LHD configuration provides extended reach for specialized applications including deep excavation, slope work, and material handling at elevation.
- Year of Manufacture: 2022
- Model: SH500LHD-6 (Long-reach configuration)
- Operating Class: 50-ton excavator
- Location: Zhejiang Province, China
- Suitable for: Mining, quarrying, large civil works
Inspection and verification of machine hours, maintenance records, and operational condition are recommended prior to purchase. Export documentation and logistics support available upon request.
| Specifications | Value |
|---|---|
| No. | 1073477 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 50000 |
| Bucket capacity (m³) | 2.8-3.0 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |

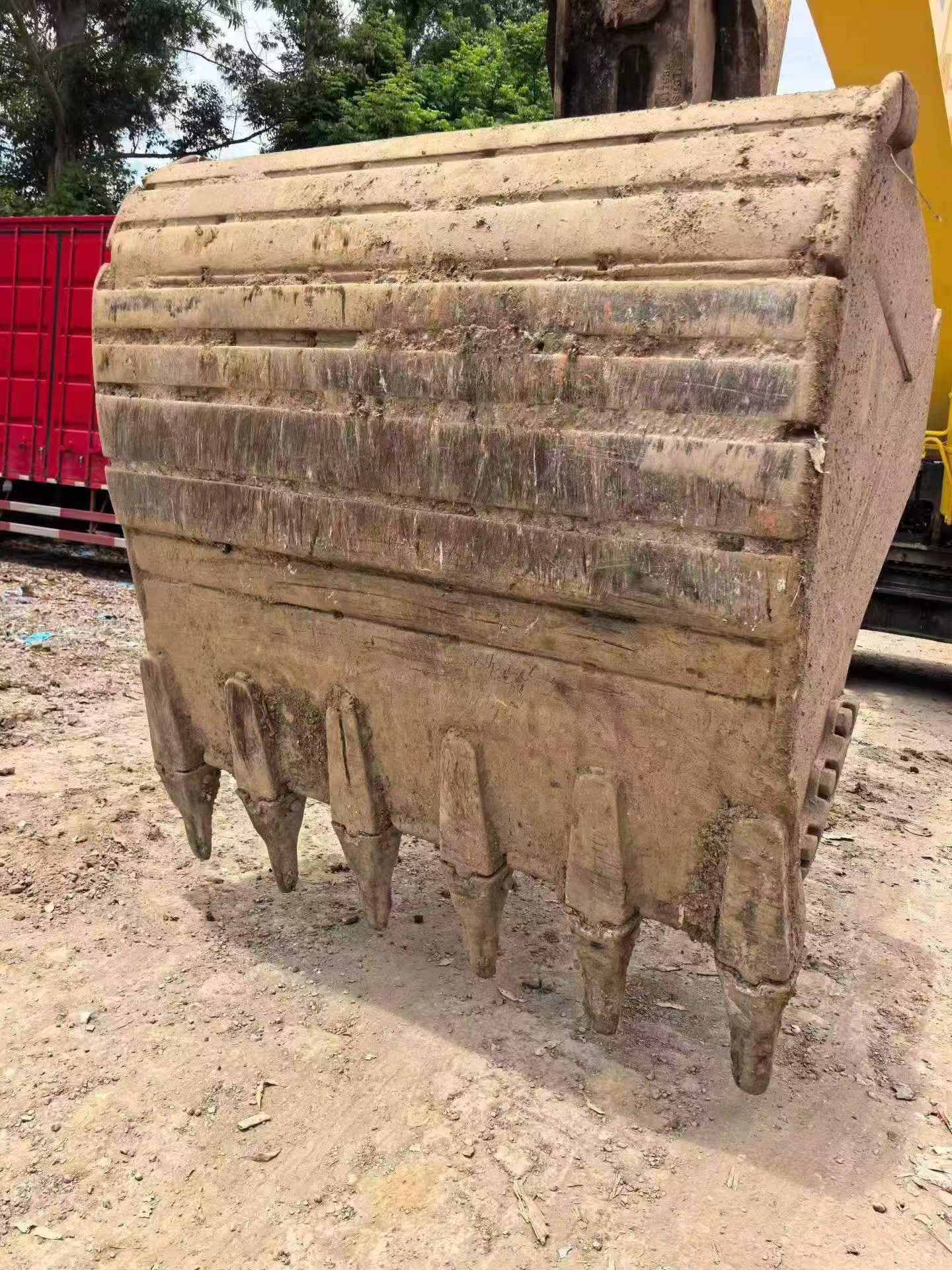

| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 270.0/2000 |
| Displacement (L) | 9.839 |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.0 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 274 |
| Rod digging force (kN) | 251 |
| Travel speed (km/h) | 5.3 / 3.2 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 230 |
| Hydraulic System (L) | 460 |
| Total transport length (mm) | 11680 |
| Total transport width (mm) | 3350 |
| Total transport height (mm) | 3770 |
| Counterweight ground clearance (mm) | 1330 |
| Minimum ground clearance (mm) | 535 |
| Minimum turning radius of front working device (mm) | 4800 |
| Back end turning radius (mm) | 3730 |
| Total track length (mm) | 5450 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3350 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 6600 |
| Maximum excavation height (mm) | 10560 |
| Maximum unloading height (mm) | 7080 |
| Maximum vertical digging depth (mm) | 4030 |
Overview
No.1073477
Brand Name:
SumitomoModel Number:
SH500LHD-6Year:
2022
Location:
Zhejiang China
Pub Date:
