2016 Caterpillar 325B
Product Description
Built for heavy excavation and grading operations, this 2016 Caterpillar 325B delivers 125.3kW of reliable power through its proven Caterpillar 3116TA turbocharged, water-cooled engine. With a 25-ton operating weight and 1.1m³ bucket capacity, this machine handles demanding earthmoving tasks across construction sites, quarries, and infrastructure projects with consistent performance.
Key specifications include:
- Maximum digging depth of 7,090mm and excavation radius of 10,520mm for extensive reach
- Rexroth main pump delivering 416 L/min at 34.3 MPa for responsive hydraulic performance
- 6,150mm boom and 3,200mm arm configuration optimized for versatile digging and loading
- 215kN maximum tractive force ensures stability on uneven terrain
- 600mm track plates provide solid ground contact and mobility
Currently located in Jiangsu, this excavator arrives site-ready with full hydraulic systems, 420L fuel capacity, and proven drivetrain components. Ideal for contractors requiring immediate deployment on foundation work, trenching, demolition, or material handling operations.
| Specifications | Value |
|---|---|
| No. | 1023786 |
| Tonnage (tons) | 25 |
| Working weight (kg) | 25900 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| Country of origin | USA/Belgium/China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

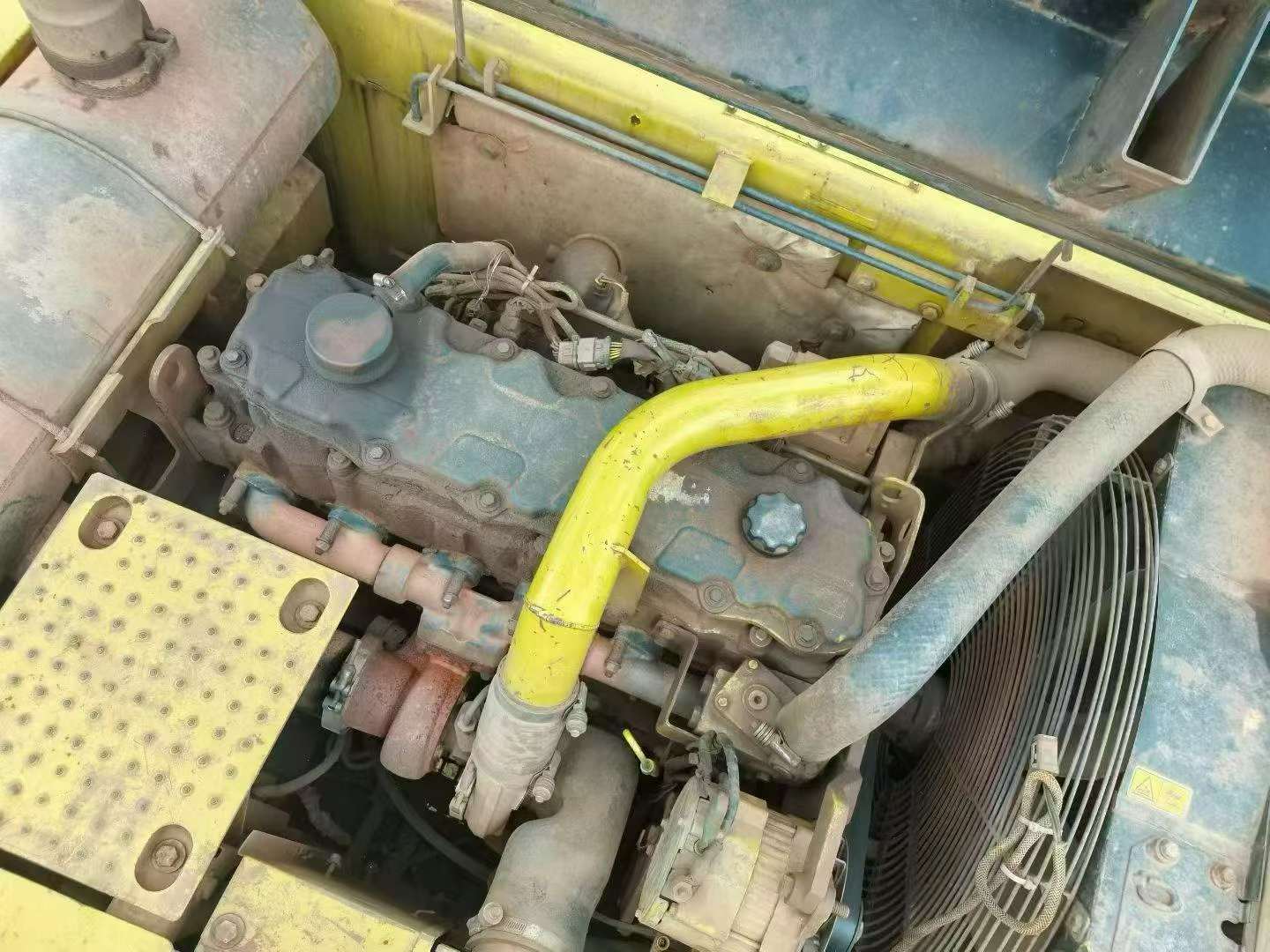

| Engine type | Caterpillar 3116TA |
| Rated power (kw/rpm) | 125.3/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.6 |
| Working form | Turbocharging; after-cooling |
| Maximum tractive force (kN) | 215 |
| Travel speed (km/h) | 5.0 (High Speed) |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 416 |
| Main pump type | Rexroth |
| Fuel Tank (L) | 420 |
| Engine Oil changes (L) | 20 |
| Coolant (L) | 31.5 |
| Hydraulic System (L) | 310 |
| Total transport length (mm) | 10290 |
| Total transport width (mm) | 2990 |
| Total transport height (mm) | 3270 (to top of big arm) |
| Full cab height (mm) | 3090 |
| Counterweight ground clearance (mm) | 1140 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3050 |
| Track gauge (mm) | 2390 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2990 |
| Track ground length (mm) | 3490 |
| Maximum digging depth (mm) | 7090 |
| Maximum excavation height (mm) | 9960 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6380 |
| Maximum excavation radius of stop surface (mm) | 10520 |
Overview
No.1023786
Brand Name：
CaterpillarModel Number：
325BYear：
2016
Location：
Jiangsu China
