2017 Caterpillar 326DL
Product Description

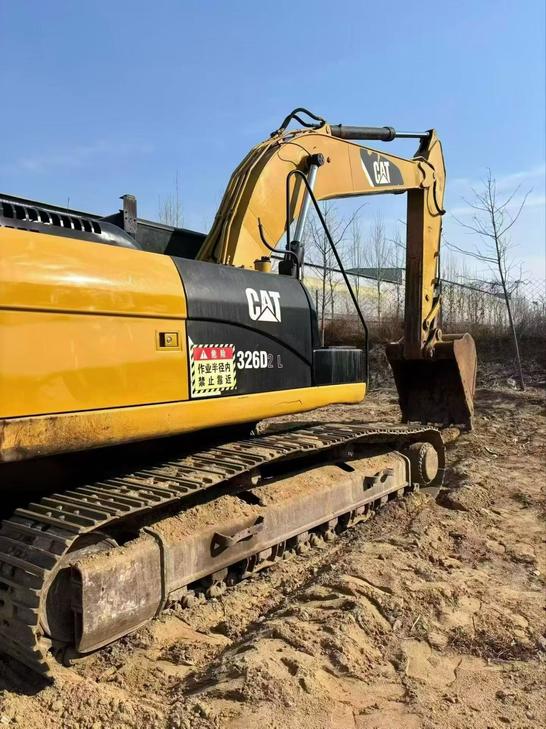

This 2017 Caterpillar 326DL excavator offers exceptional value for operations requiring reliable mid-sized earthmoving equipment. Originally deployed in steel mill operations in Guangdong, China, this machine has accumulated approximately 9,000 operating hours with verified meter readings. The unit has been maintained to performance standards and is available at a competitive price point in the low-to-mid range for its class.
Key features include:
- Caterpillar 326DL model with proven hydraulic systems
- Low operating hours for model year
- Steel mill application history demonstrating durability
- Performance-verified condition
- Currently located in Guangdong, China
- Immediate availability for inspection and purchase
This excavator represents a cost-effective solution for contractors and industrial operators seeking dependable Caterpillar performance. Interested buyers are welcome to arrange inspection and discuss logistics.
| Specifications | Value |
|---|---|
| No. | 1166686 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |
| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
