2020 Caterpillar 326DL
Product Description
This 2020 Caterpillar 326DL excavator offers reliable performance for demanding earthmoving operations. With approximately 10,000 operating hours, this machine represents a cost-effective solution for contractors and construction companies seeking proven Caterpillar quality. The 326DL features a robust hydraulic system, efficient fuel consumption, and the durability expected from Caterpillar's D-series excavators. Currently located in Shanghai, China, this unit is well-suited for excavation, trenching, material handling, and site development projects.
- Year of Manufacture: 2020

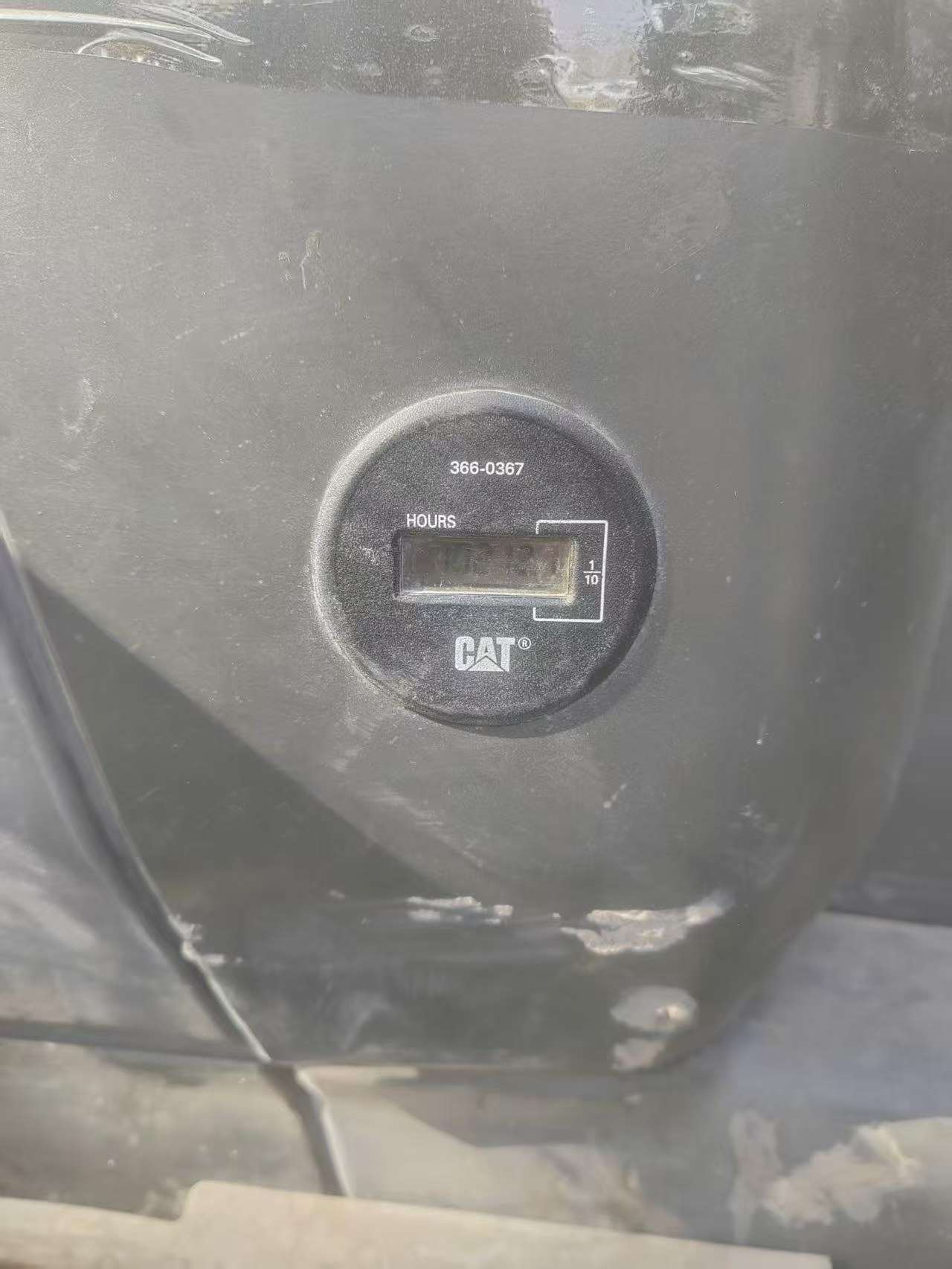

- Operating Hours: Approximately 10,000
- Location: Shanghai, China
- Condition: Used, operational
- Suitable for: Excavation, construction, and earthmoving applications
Contact us for detailed specifications, inspection arrangements, and competitive pricing on this Caterpillar 326DL excavator.
| Specifications | Value |
|---|---|
| No. | 1166664 |
| Tonnage (tons) | 26 |
| Working weight (kg) | 25560 |
| Bucket capacity (m³) | 1.35/1.57 |
| Boom length (mm) | 5300/5900 |
| Rod length (mm) | 2000/2500/2950 |
| Country of origin | Xuzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

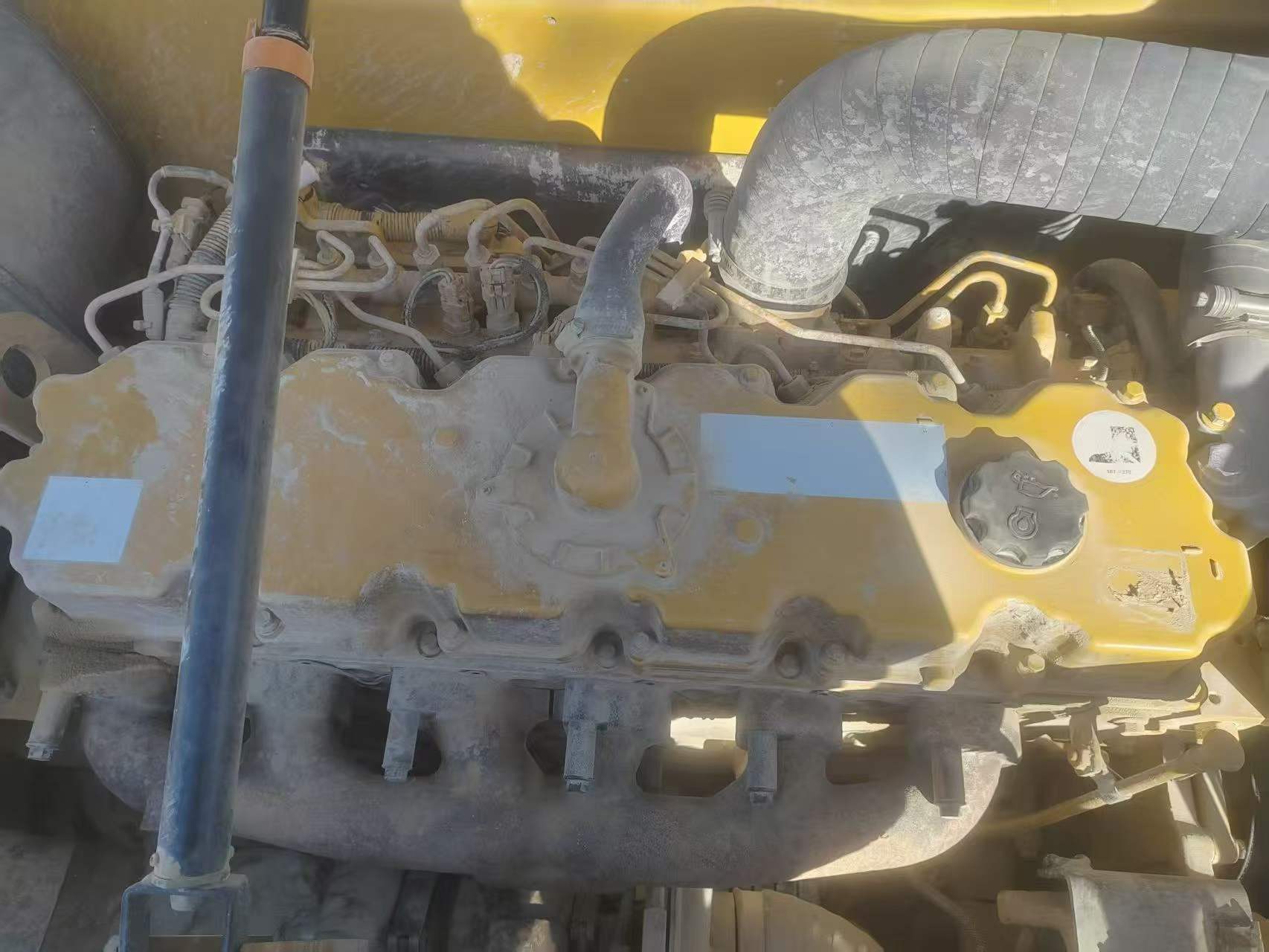

| Engine type | Caterpillar C7 ACERT |
| Rated power (kw/rpm) | 140 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 9.6 |
| Bucket digging force (kN) | 174 |
| Rod digging force (kN) | 122 |
| Maximum tractive force (kN) | 227 |
| Travel speed (km/h) | 5.5 |
| Turning torque (Nm) | 73.4 |
| Main overflow set pressure (Mpa) | 35 |
| Rotary hydraulic motor type | 24.5 |
| Type of walking hydraulic motor | 35 |

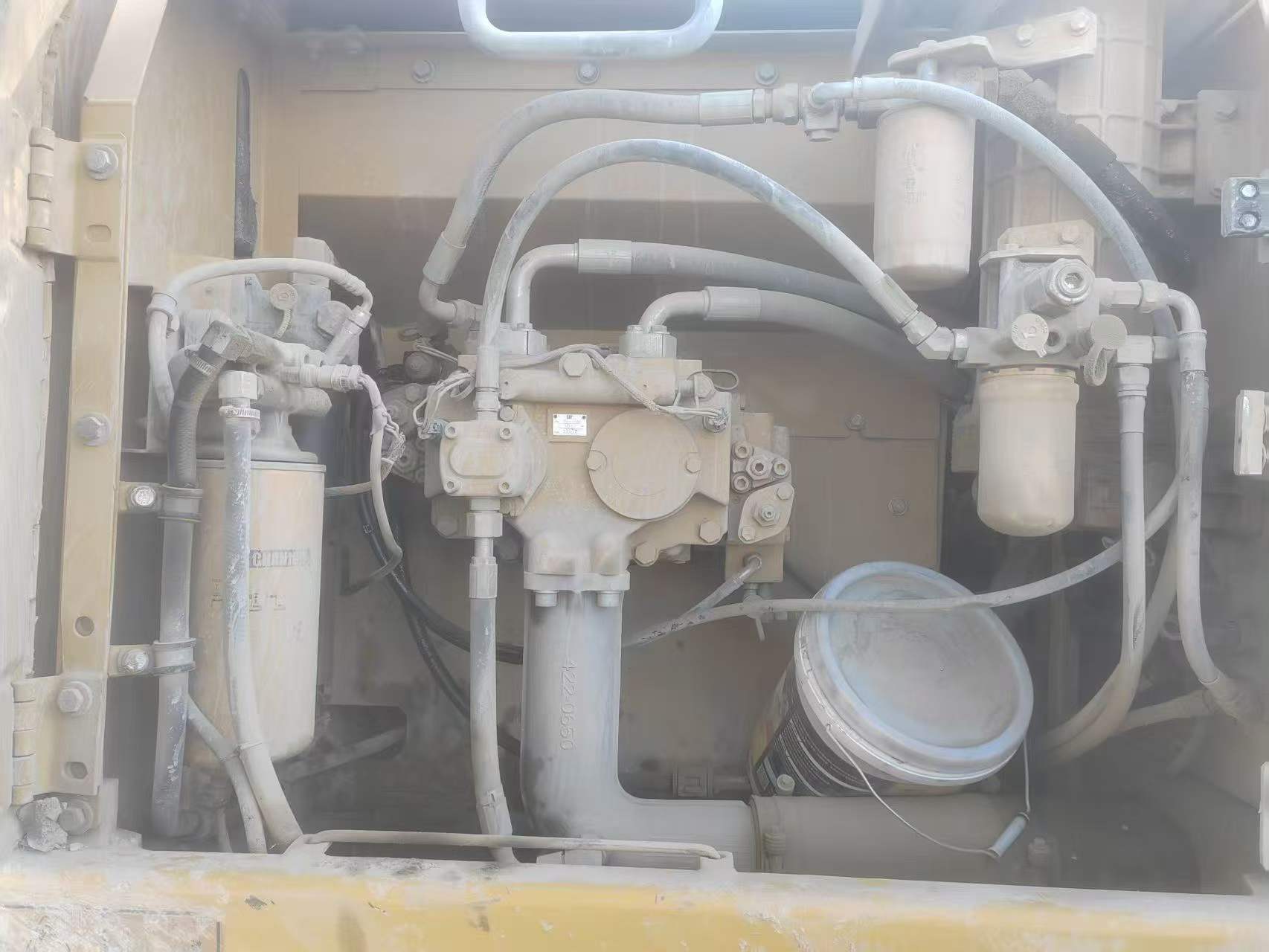

| Maximum flow of main pump (l/min) | 235 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1 x 150 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 140 x 1660 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 135 x 1305 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 300 |
| Total transport length (mm) | 10060 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3170 |
| Full cab height (mm) | 2980 |
| Counterweight ground clearance (mm) | 1060 |
| Minimum ground clearance (mm) | 470 |
| Back end turning radius (mm) | 2940 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3390 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 9660 |
| Maximum unloading height (mm) | 6700 |
| Maximum vertical digging depth (mm) | 5830 |
| Maximum excavation radius of stop surface (mm) | 10030 |
| Maximum effective digging depth (mm) | 6560 |
