2013 Caterpillar 329DL

1/9

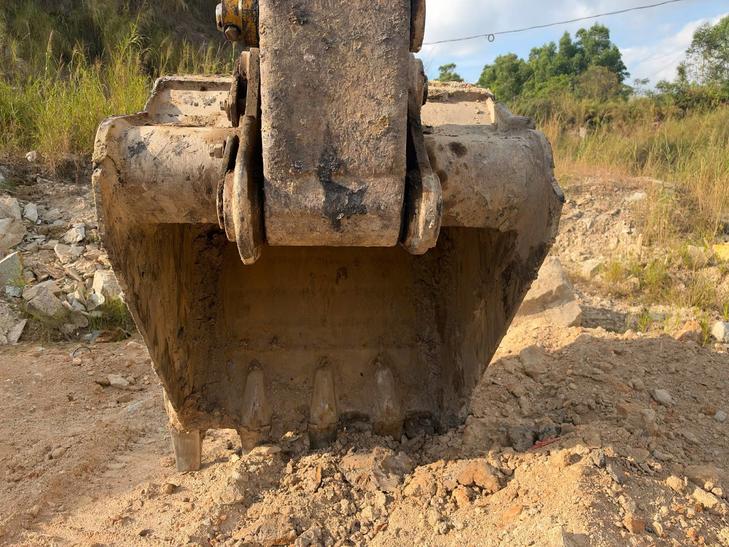

Buy Caterpillar 329DL Used Excavator / 1
Buy Caterpillar 329DL Used Excavator / 2
Buy Caterpillar 329DL Used Excavator / 3
Buy Caterpillar 329DL Used Excavator / 4
Buy Caterpillar 329DL Used Excavator / 5
Buy Caterpillar 329DL Used Excavator / 6
Buy Caterpillar 329DL Used Excavator / 7
Buy Caterpillar 329DL Used Excavator / 8
Buy Caterpillar 329DL Used Excavator / 9

Product Description

This 2013 Caterpillar 329DL hydraulic excavator offers reliable performance for demanding earthmoving applications. Currently located in Fujian, China, this machine represents an opportunity to acquire proven Caterpillar quality at competitive pricing. The 329DL is built on Cat's established D-series platform, known for fuel efficiency and operator comfort in the 29-ton class.

Key features of the CAT 329DL include:

  • Proven hydraulic system for smooth operation and cycle times
  • Spacious ROPS/FOPS certified cab with excellent visibility
  • Durable undercarriage designed for extended service life
  • Versatile attachment compatibility for various job site requirements

The seller invites serious buyers to schedule a test operation to evaluate the machine's current condition firsthand. This hands-on inspection ensures you can assess performance and verify operational readiness before purchase.

SpecificationsValue
No.1170410
Tonnage (tons)29
Working weight (kg)29240
Bucket capacity (m³)1.1
Boom length (mm)6150
Rod length (mm)3200
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeC7ACERT
Rated power (kw/rpm)152/2000
Cooling modewater-cooling
Cylinder diameter × stroke (mm)110 x 127
Number of cylinders (PCS)6
Displacement (L)7.2
Rotation speed (rpm)10.2
Climbing ability (%)70/35 °
Travel speed (km/h)3.5/5.3
Main overflow set pressure (Mpa)3.5
Maximum flow of main pump (l/min)235
Traveling Hydraulic Circuit (Mpa)3.5
Rotary Hydraulic Circuit (Mpa)2.75
Hydraulic crushing pipeline is standardno
Working Hydraulic Circuit (Mpa)3.5
Pilot Oil Circuit (MPa)3.9
Bucket cylinders - Number × diameter × stroke (mm)135 x 1156
Bucket rod cylinders - Number × diameter × stroke (mm)150 x 1646
Boom cylinders - Number × diameter × stroke (mm)140 x 1407
Fuel Tank (L)520
Hydraulic Tank (L)145
Engine Oil changes (L)30
Coolant (L)30
Hydraulic System (L)310(including fuel tank)
Total transport length (mm)10410
Total transport width (mm)3190
Total transport height (mm)3180
Full cab height (mm)3040
Counterweight ground clearance (mm)1110
Minimum ground clearance (mm)490
Back end turning radius (mm)3080
Total track length (mm)4860
Track gauge (mm)2590
Track plate width (mm)800
Total track width (mm)3190
Track ground length (mm)3990
Maximum digging depth (mm)7170
Maximum excavation height (mm)9990
Maximum unloading height (mm)7020
Maximum vertical digging depth (mm)6510
Bulldozer lift or depth (mm)No bulldozer
Dodging plate width × height (mm)No bulldozer
Maximum excavation radius of stop surface (mm)10600
Maximum effective digging depth (mm)7010
see more

Overview

No.1170410

Brand Name:

Caterpillar

Model Number:

329DL

Year:

2013

Location:

Fujian China

Pub Date:
