2016 Caterpillar 329DL
Product Description

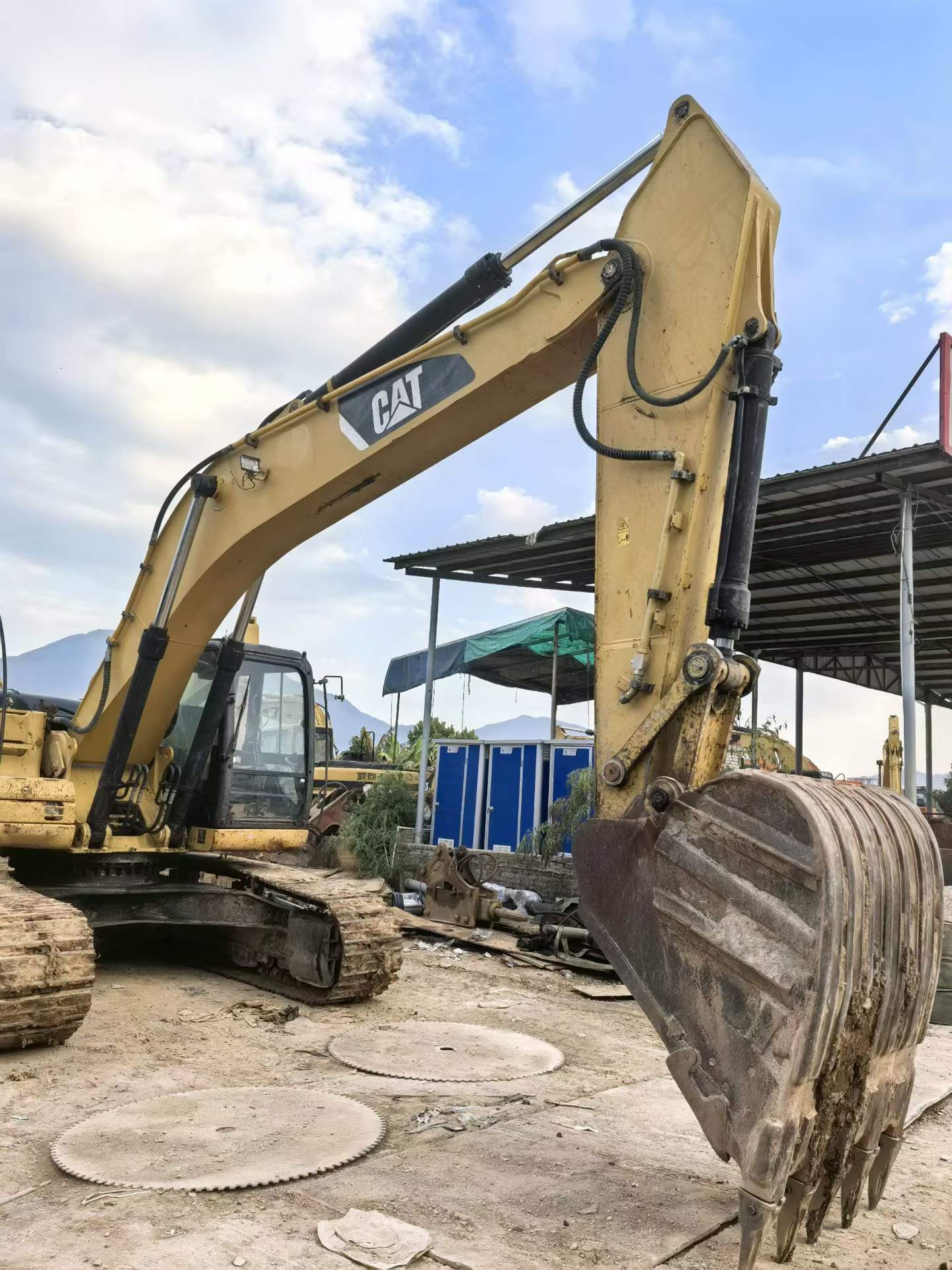

Built for productivity on demanding jobsites, this 2016 Caterpillar 329DL excavator delivers 29 tons of working weight and 152 kW of C7 ACERT power. Equipped with a 1.1 m³ backhoe bucket, 6150 mm boom, and 3200 mm stick, this Japan-origin machine handles deep trenching, foundation work, and mass excavation with precision. Reach up to 10600 mm digging radius and 7170 mm maximum depth—ideal for utility installations, site preparation, and demolition projects.

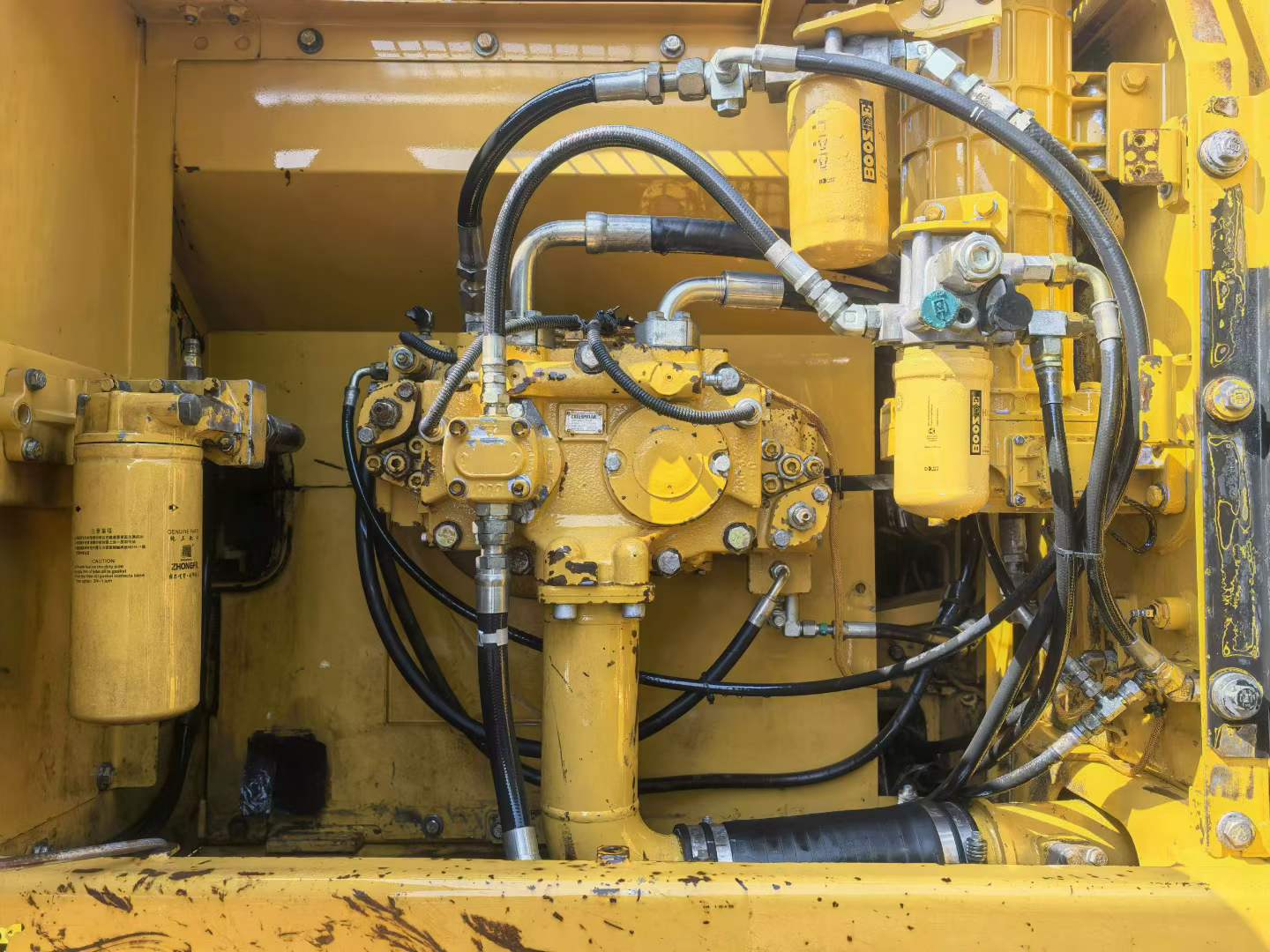

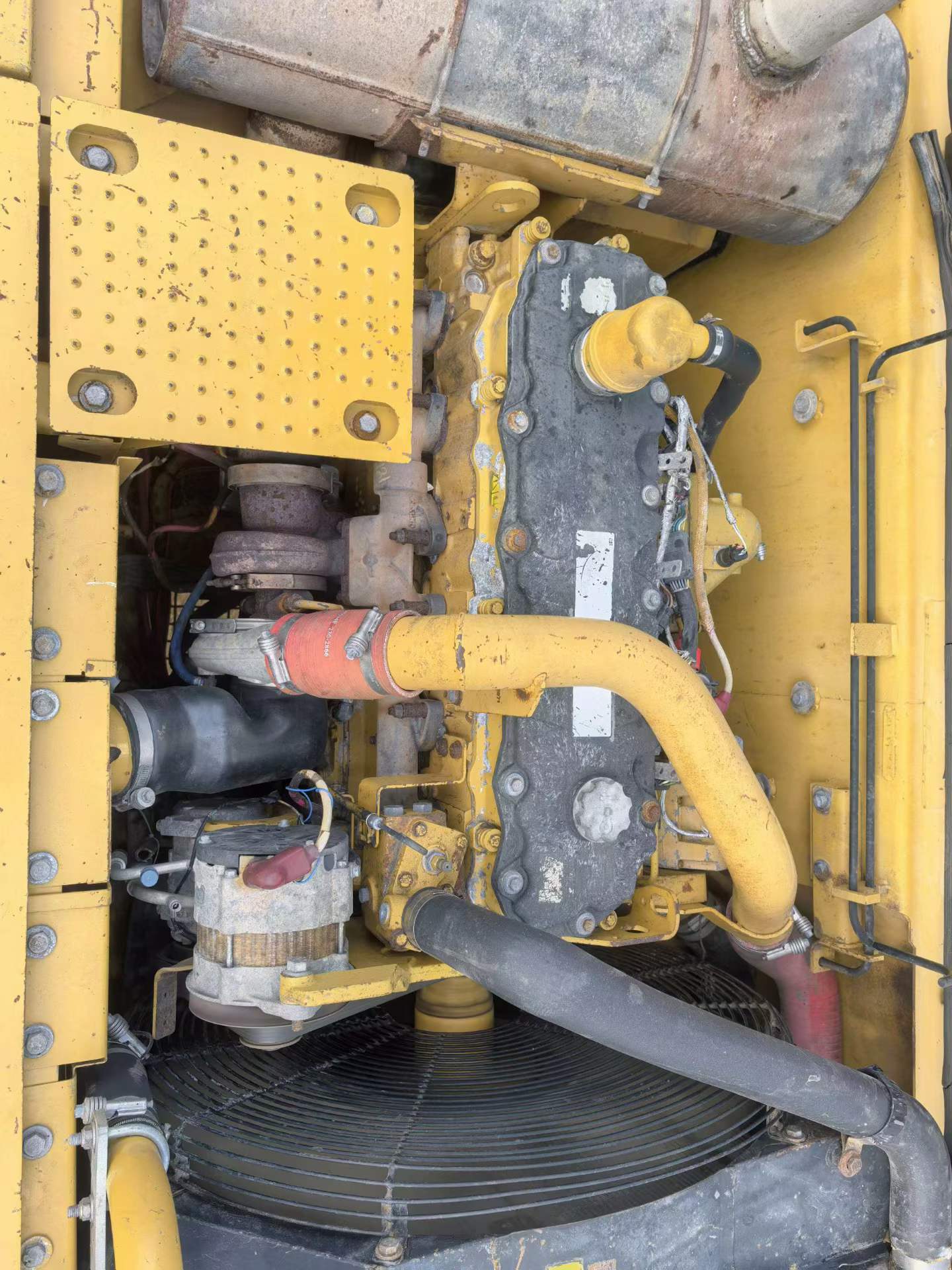

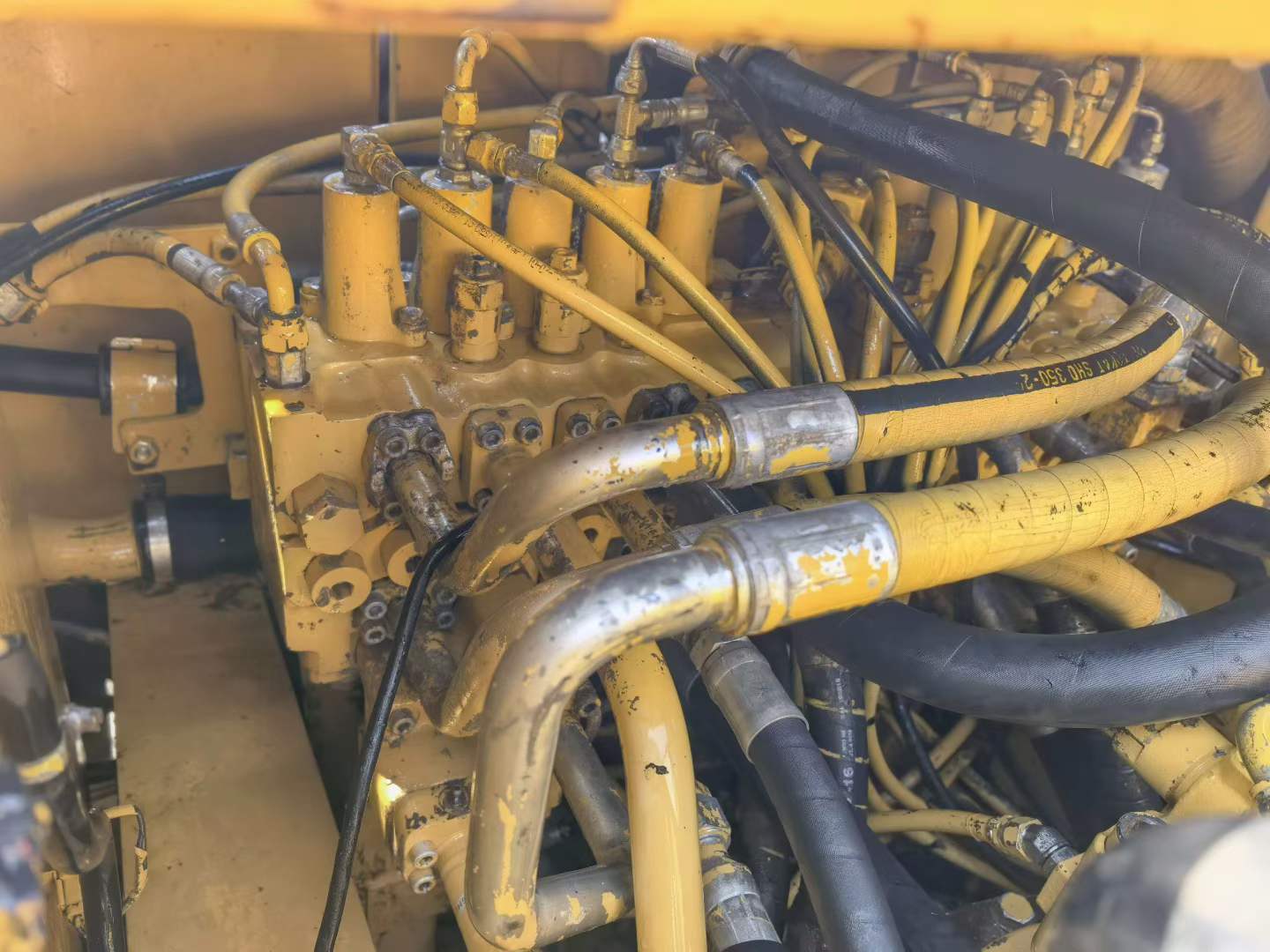

Hydraulic performance meets real-world demands: 235 L/min main pump flow and 35 MPa system pressure ensure responsive digging cycles and smooth operation. Water-cooled 7.2L six-cylinder engine runs reliably in extended shifts. Track configuration provides stability on uneven ground with 800 mm shoes and 2590 mm gauge. Currently located in Zhangzhou, Fujian, this excavator arrives site-ready with verified specifications and operational systems.
- 29-ton operating weight with 1.1 m³ bucket capacity
- 10.6 m working radius, 7.17 m digging depth
- 152 kW C7 ACERT engine with proven durability
- 235 L/min hydraulic flow for efficient cycle times
- Japan-manufactured quality, ready for immediate deployment
| Specifications | Value |
|---|---|
| No. | 1014426 |
| Tonnage (tons) | 29 |
| Working weight (kg) | 29240 |
| Bucket capacity (m³) | 1.1 |
| Boom length (mm) | 6150 |
| Rod length (mm) | 3200 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C7ACERT |
| Rated power (kw/rpm) | 152/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.2 |
| Rotation speed (rpm) | 10.2 |
| Climbing ability (%) | 70/35 ° |
| Travel speed (km/h) | 3.5/5.3 |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 235 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.75 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 135 x 1156 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 x 1646 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 x 1407 |
| Fuel Tank (L) | 520 |
| Hydraulic Tank (L) | 145 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 30 |
| Hydraulic System (L) | 310(including fuel tank) |
| Total transport length (mm) | 10410 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3180 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1110 |
| Minimum ground clearance (mm) | 490 |
| Back end turning radius (mm) | 3080 |
| Total track length (mm) | 4860 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3990 |
| Maximum digging depth (mm) | 7170 |
| Maximum excavation height (mm) | 9990 |
| Maximum unloading height (mm) | 7020 |
| Maximum vertical digging depth (mm) | 6510 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10600 |
| Maximum effective digging depth (mm) | 7010 |
Overview
No.1014426
Brand Name：
CaterpillarModel Number：
329DLYear：
2016
Location：
Fujian China
Pub Date：
