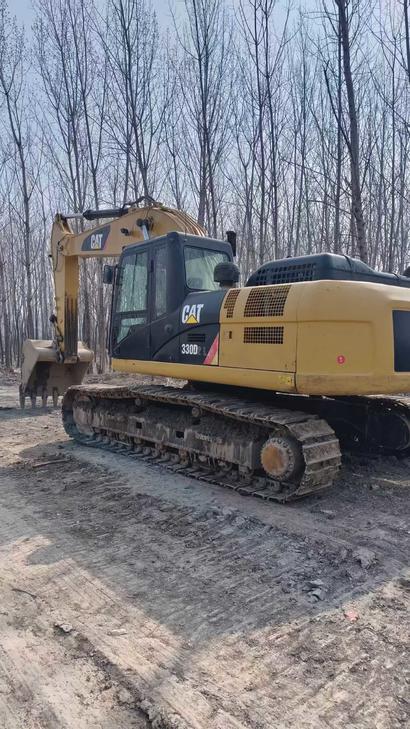

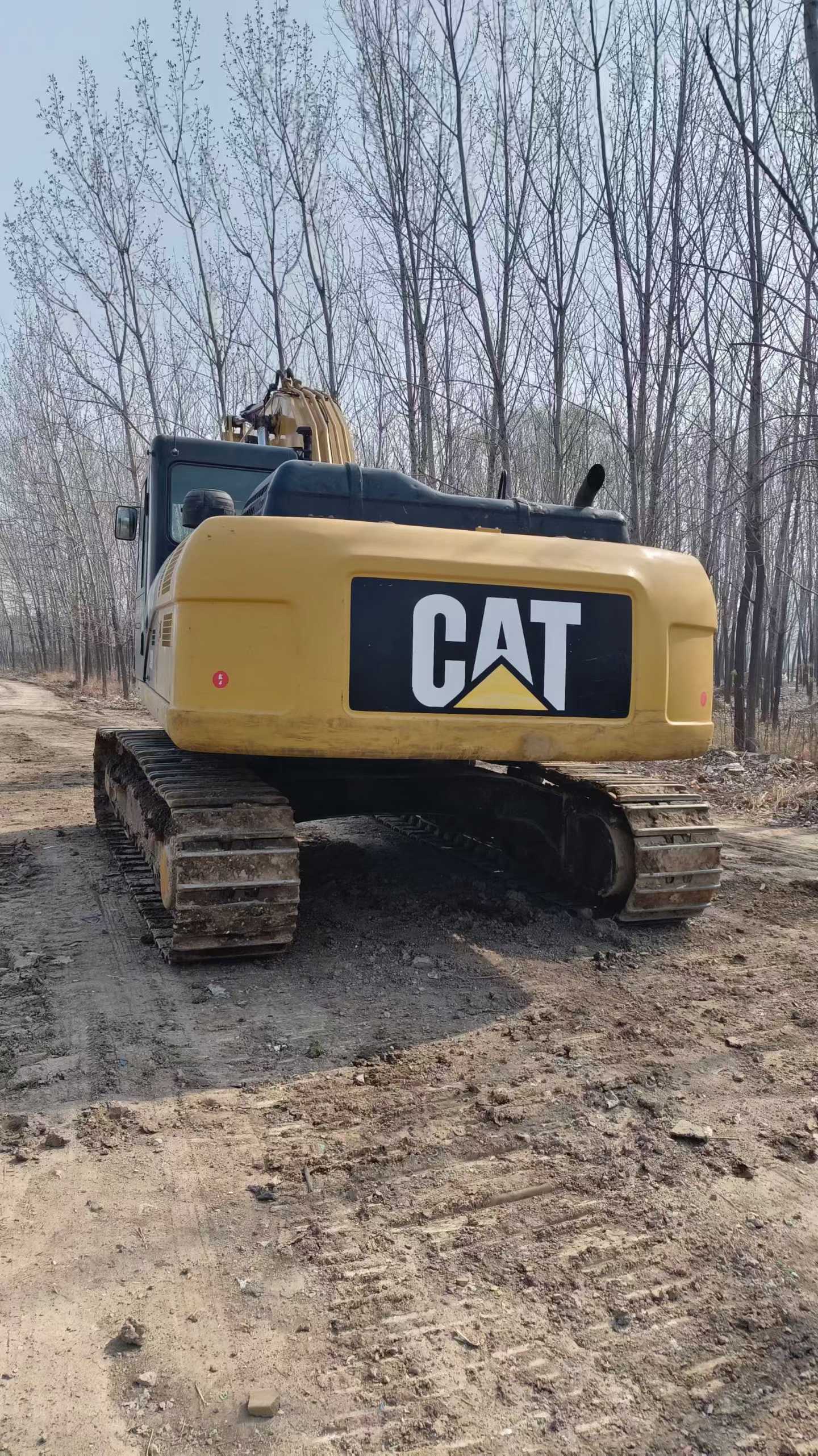

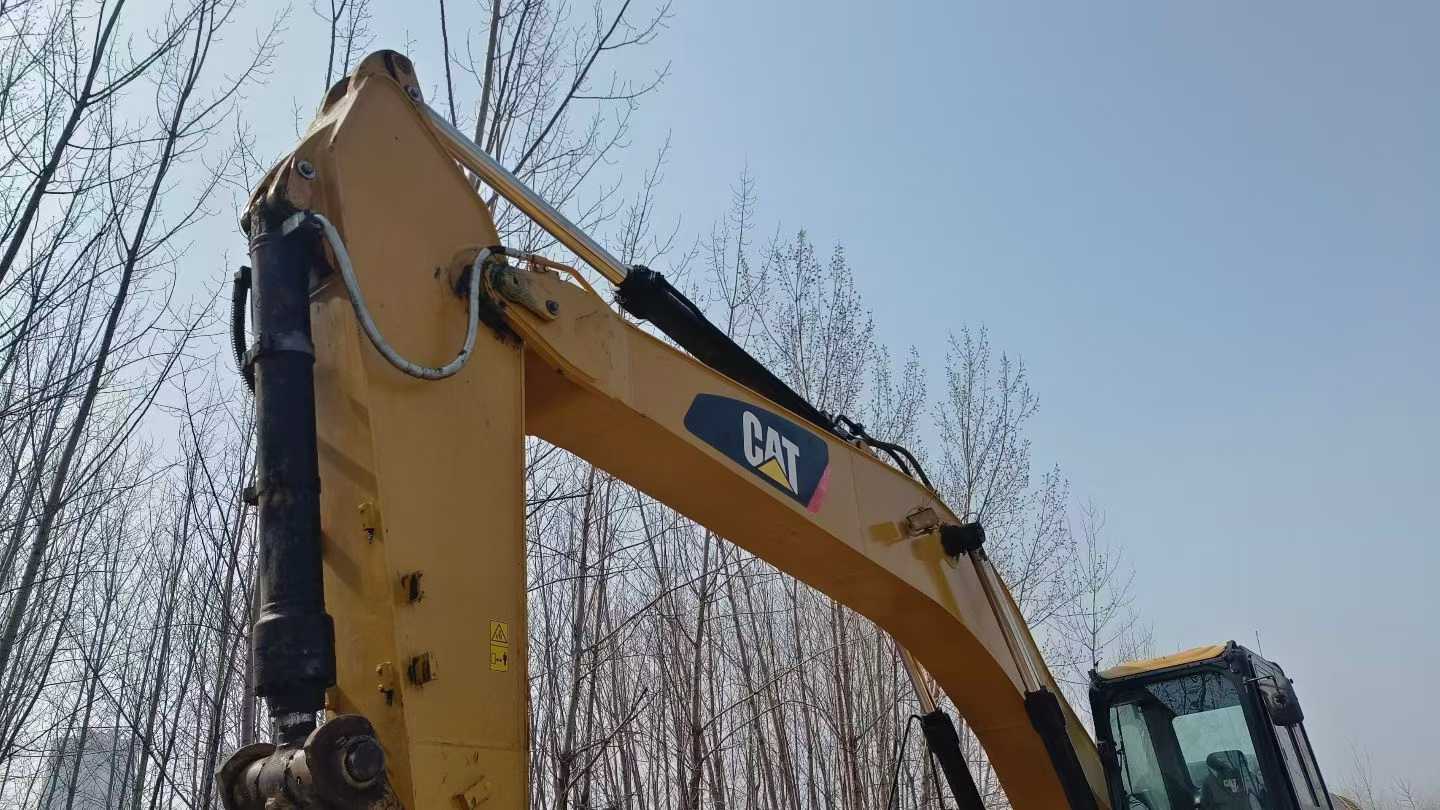

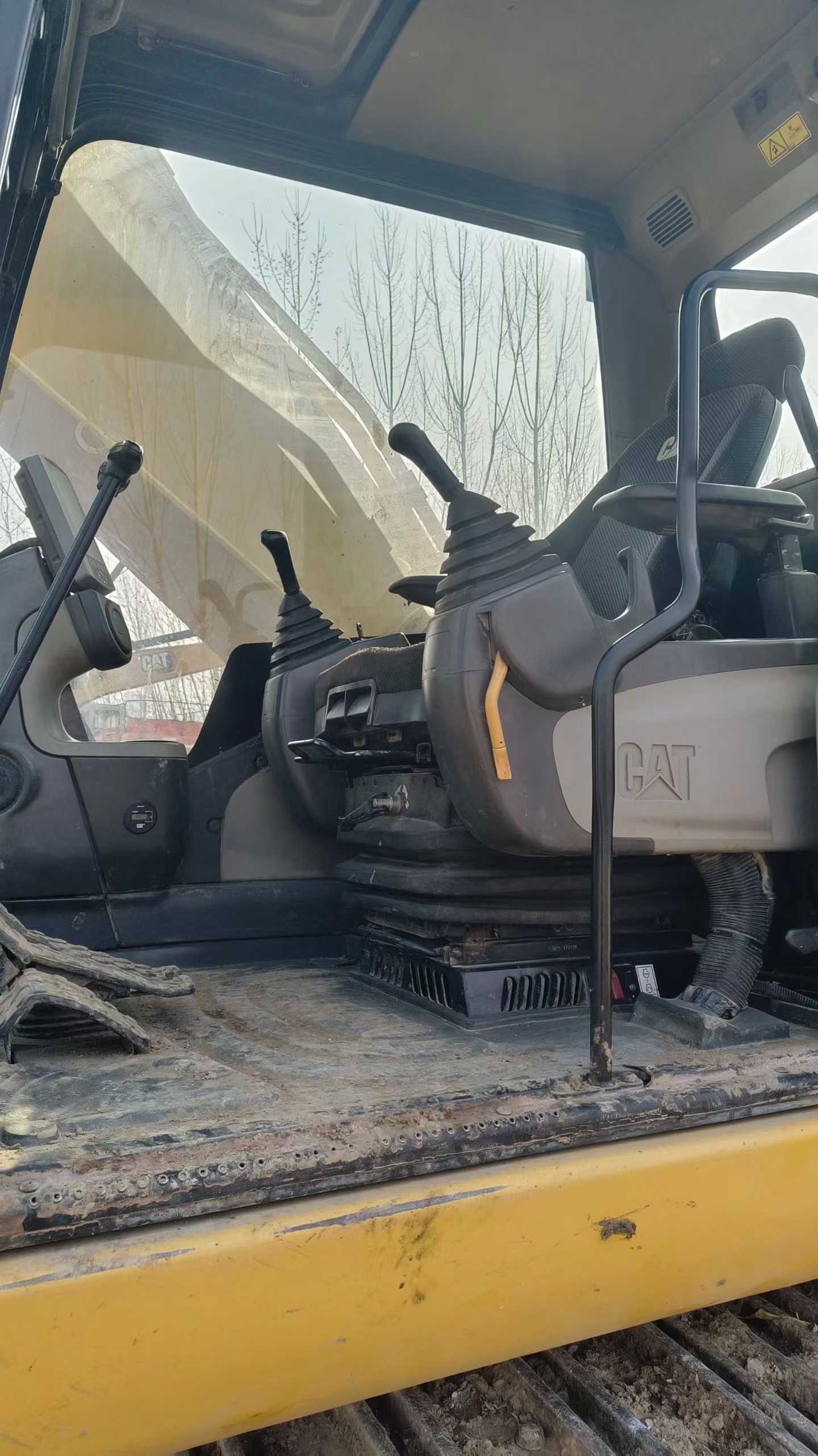

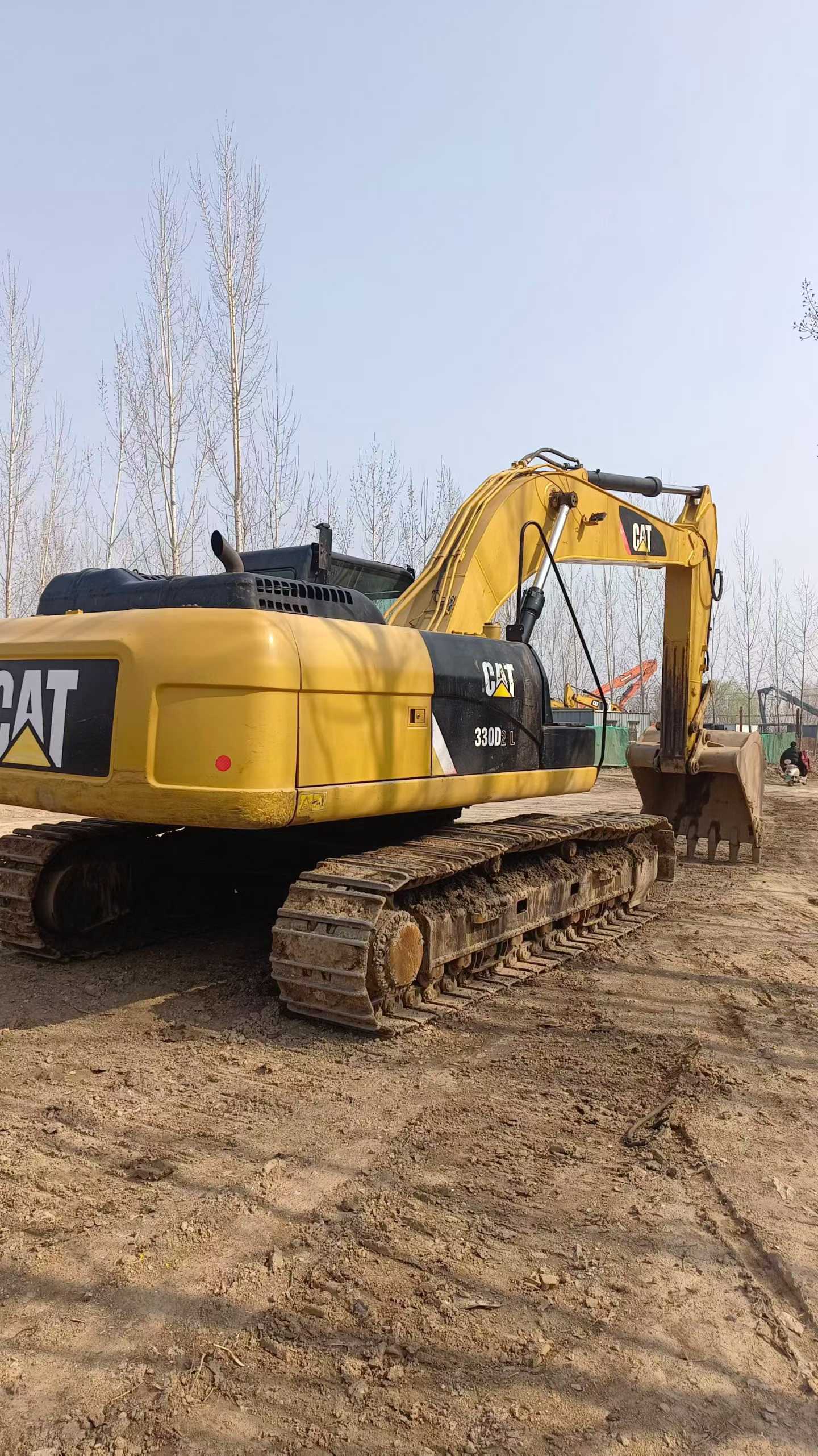

2017 Caterpillar 330B
Product Description
Engineered for high-volume earthmoving operations, this 2017 Caterpillar 330B excavator delivers 165.5 kW of reliable power through its proven 3306TA turbocharged, aftercooled engine. With a 30-ton operating weight and 1.5 m³ bucket capacity, this machine combines substantial digging force with exceptional hydraulic efficiency—featuring a 480 l/min main pump flow and 34.3 Mpa system pressure for consistent performance in demanding applications.
- Maximum Digging Reach: 11,620 mm horizontal, 8,080 mm depth
- Powertrain: Caterpillar 3306TA, 6-cylinder, 10.5L displacement, water-cooled
- Hydraulic Capacity: 400L system with 480 l/min flow rate
- Working Envelope: 10,770 mm max cutting height, 7,600 mm dump height
- Undercarriage: 4,040 mm track length, 600 mm shoe width for superior stability
- Location: Xuzhou, Jiangsu
Built to Caterpillar's joint-venture manufacturing standards, this 330B represents proven mid-size excavator technology with comprehensive service accessibility and durable construction for extended operational life.
| Specifications | Value |
|---|---|
| No. | 1028075 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
