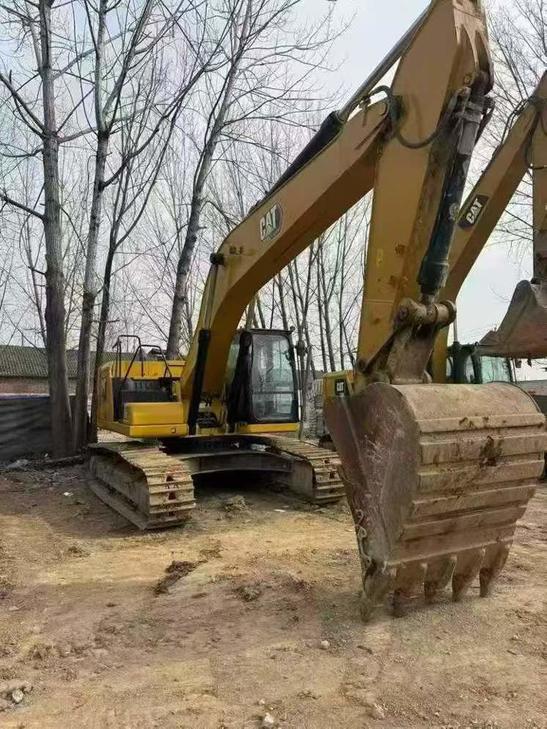

2020 Caterpillar 330B
Product Description
Built in 2020, this Caterpillar 330B excavator delivers proven performance backed by the industry's most trusted name in heavy machinery. Operating at 30 tons with a robust 165.5kW Caterpillar 3306TA engine, this machine combines reliable water-cooled power with a 1.5m³ backhoe bucket for demanding excavation work. Currently located in Xuzhou, Jiangsu, it offers an impressive 8,080mm maximum digging depth and 11,620mm excavation radius—specifications that prove its capability on any jobsite.
Caterpillar's global parts network ensures minimal downtime and maximum productivity throughout the machine's service life. Key advantages include:
- Joint venture/import manufacturing quality with genuine Cat components
- Turbocharged, after-cooled engine delivering consistent 1800rpm performance
- 480L/min hydraulic flow for smooth, responsive operation
- Comprehensive transport dimensions (11,080mm × 3,340mm × 3,610mm) for logistical planning
- Strong resale value retention compared to competing brands
When purchasing used equipment, brand reputation matters. Caterpillar's worldwide service infrastructure and parts availability make this 330B a smart investment that protects your
| Specifications | Value |
|---|---|
| No. | 1019237 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
