2020 Caterpillar 330B











Product Description

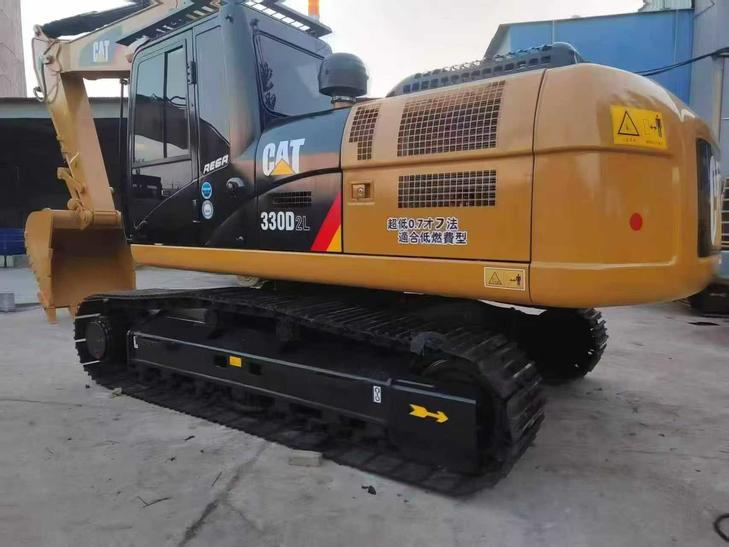

Two Caterpillar 330D2L hydraulic excavators available for immediate shipment from Hebei, China. Both units manufactured in 2020 and fully serviced, ready for deployment to your worksite. The 330D2L offers proven reliability in a medium-size excavator platform, suitable for earthmoving, site development, and general construction applications.
Key features include:
- Caterpillar diesel engine with reliable fuel efficiency
- Hydraulic system designed for smooth, responsive control
- Robust undercarriage built for extended service life
- Spacious operator cabin with standard instrumentation
- Multiple units available—ideal for fleet expansion
These excavators have been inspected and prepared for immediate operation. Both machines are currently located in Hebei Province and can be arranged for shipping upon request. Suitable for contractors requiring dependable mid-range excavation capacity with Caterpillar's established parts and service network.
| Specifications | Value |
|---|---|
| No. | 1145388 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
Overview
No.1145388
Brand Name:
CaterpillarModel Number:
330BYear:
2020
Location:
Hebei China
