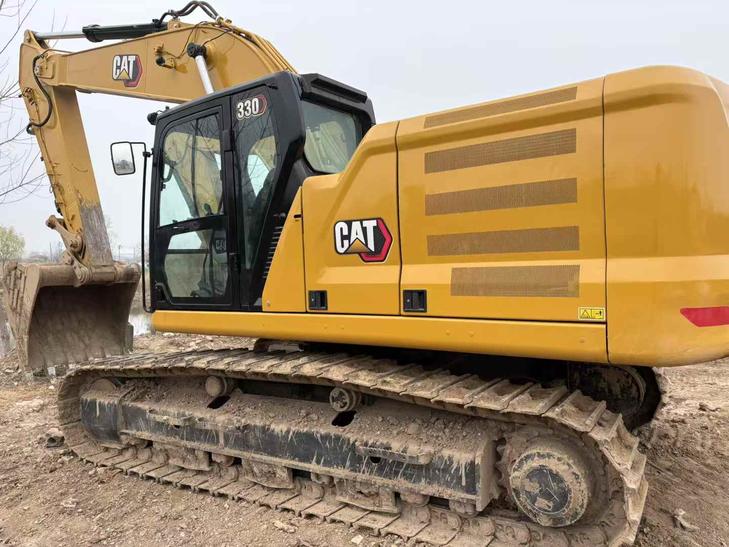

2022 Caterpillar 330B
Product Description
Expand your operational capacity with this robust 2022 Caterpillar 330B excavator, stationed in Xuzhou, Jiangsu. Engineered for contractors requiring dependable fleet reinforcement, this 30-ton machine delivers consistent performance across demanding jobsites. Powered by the proven Caterpillar 3306TA engine producing 165.5 kW at 1800 rpm, it combines turbocharged efficiency with water-cooled reliability across its 6-cylinder, 10.5L displacement configuration.
- Production-Ready Specs: 1.5 m³ bucket capacity, 8080 mm maximum digging depth, 11620 mm excavation radius
- Hydraulic Performance: 480 L/min main pump flow, 34.3 Mpa overflow pressure for responsive cycle times
- Fleet-Friendly Design: 6500 mm boom and 3900 mm stick configuration suits general excavation and loading duties
- Operational Endurance: 560L fuel tank minimizes refueling interruptions during multi-shift operations
- Transport Dimensions: 11080 mm length × 3340 mm width—compliant for standard lowboy hauling
Backed by joint venture manufacturing standards, this unit integrates seamlessly into existing Caterpillar fleets while pro
| Specifications | Value |
|---|---|
| No. | 1032195 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32420 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Caterpillar 3306TA |
| Rated power (kw/rpm) | 165.5/1800 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 10.5 |
| Working form | Turbocharging; after-cooling |
| Main overflow set pressure (Mpa) | 34.3 |
| Maximum flow of main pump (l/min) | 480 |
| Fuel Tank (L) | 560 |
| Engine Oil changes (L) | 30 |
| Coolant (L) | 45 |
| Hydraulic System (L) | 400 |
| Total transport length (mm) | 11080 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3610 |
| Full cab height (mm) | 3150 |
| Counterweight ground clearance (mm) | 1260 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 8080 |
| Maximum excavation height (mm) | 10770 (Cutting) |
| Maximum unloading height (mm) | 7600 |
| Maximum vertical digging depth (mm) | 7230 |
| Maximum excavation radius of stop surface (mm) | 11620 |
| Travel speed (km/h) | 4.6 |
