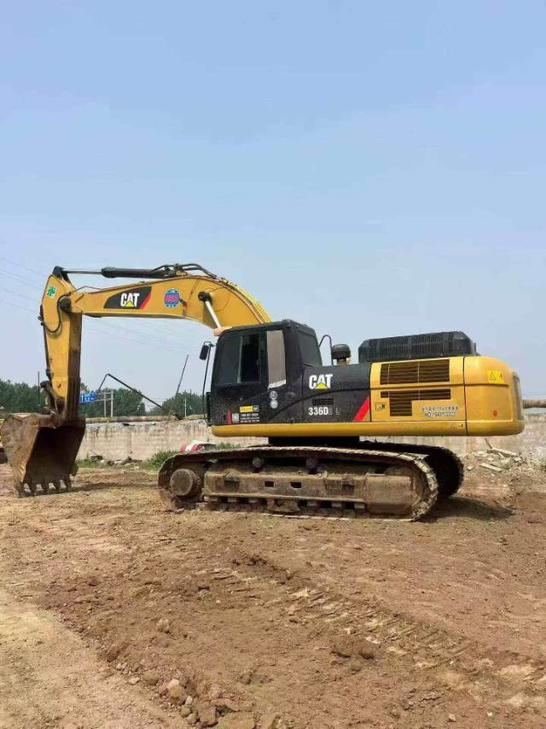

2021 Caterpillar 336D2L











Product Description
Discover the exceptional 2021 Caterpillar 336D2L, a premium used heavy machine available in Peking, China. This excavator is in top condition, featuring a robust and reliable hydraulic system, ensuring optimal performance on any job site. The machine is meticulously maintained, with no leaks, making it an outstanding choice for your construction needs. Ready to be deployed immediately upon purchase, this 336D2L offers excellent value, requiring no additional investment to get started. Ideal for businesses looking for a high-quality, cost-effective solution, this Caterpillar model stands out as a solid investment.
- Year: 2021
- Brand: Caterpillar
- Model: 336D2L
- Location: Peking, China
| Specifications | Value |
|---|---|
| No. | 1122213 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 34600 |
| Bucket capacity (m³) | 2.41 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 8980 |
| Country of origin | 8.98 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Cat® C9 |
| Rated power (kw/rpm) | 208 |
| Cylinder diameter × stroke (mm) | 112 x 149 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 210 |
| Rod digging force (kN) | 167 |
| Maximum tractive force (kN) | 300 |
| Travel speed (km/h) | 4.6 |
| Turning torque (Nm) | 109 |
| Main overflow set pressure (Mpa) | 35 |
| Maximum flow of main pump (l/min) | 281 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 4 |
| Pilot pump flow (L/min) | 40 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 41 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410 |
| Total transport length (mm) | 11200 |
| Total transport width (mm) | 3620 |
| Total transport height (mm) | 3530 |
| Full cab height (mm) | 3360 |
| Counterweight ground clearance (mm) | 1450 |
| Minimum ground clearance (mm) | 742 |
| Back end turning radius (mm) | 3490 |
| Total track length (mm) | 5060 |
| Track gauge (mm) | 2920 |
| Track plate width (mm) | 600 |
| Maximum digging depth (mm) | 7590 |
| Maximum excavation height (mm) | 10250 |
| Maximum unloading height (mm) | 7000 |
| Maximum vertical digging depth (mm) | 5480 |
| Maximum excavation radius of stop surface (mm) | 11130 |
| Maximum effective digging depth (mm) | 6790 |
Overview
No.1122213
Brand Name:
CaterpillarModel Number:
336D2L
Year:
2021
Hour:
6500h
Location:
Peking China
