2020 Sany SY65C

1/9

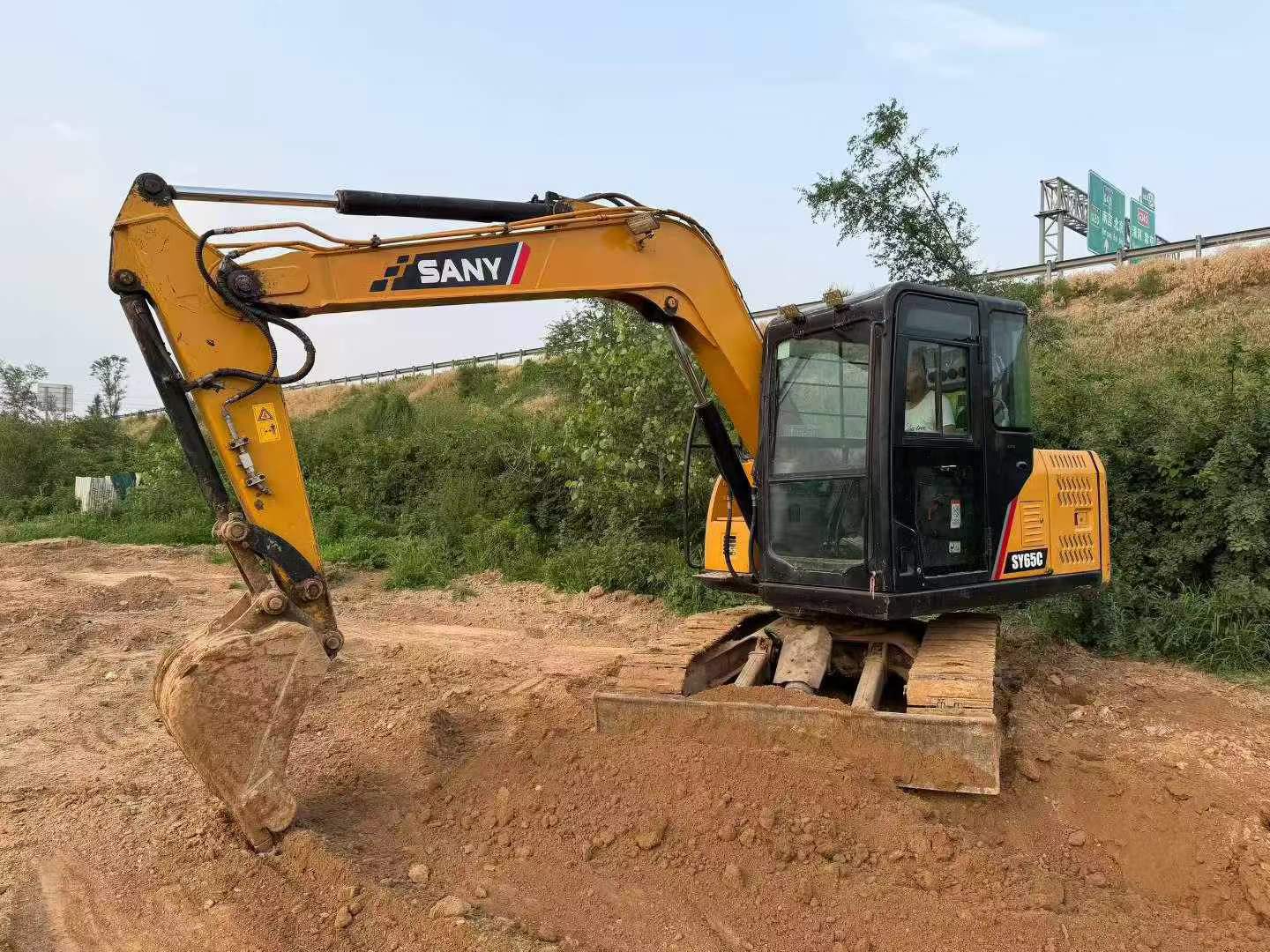

Buy Sany SY65C Used Excavator / 1

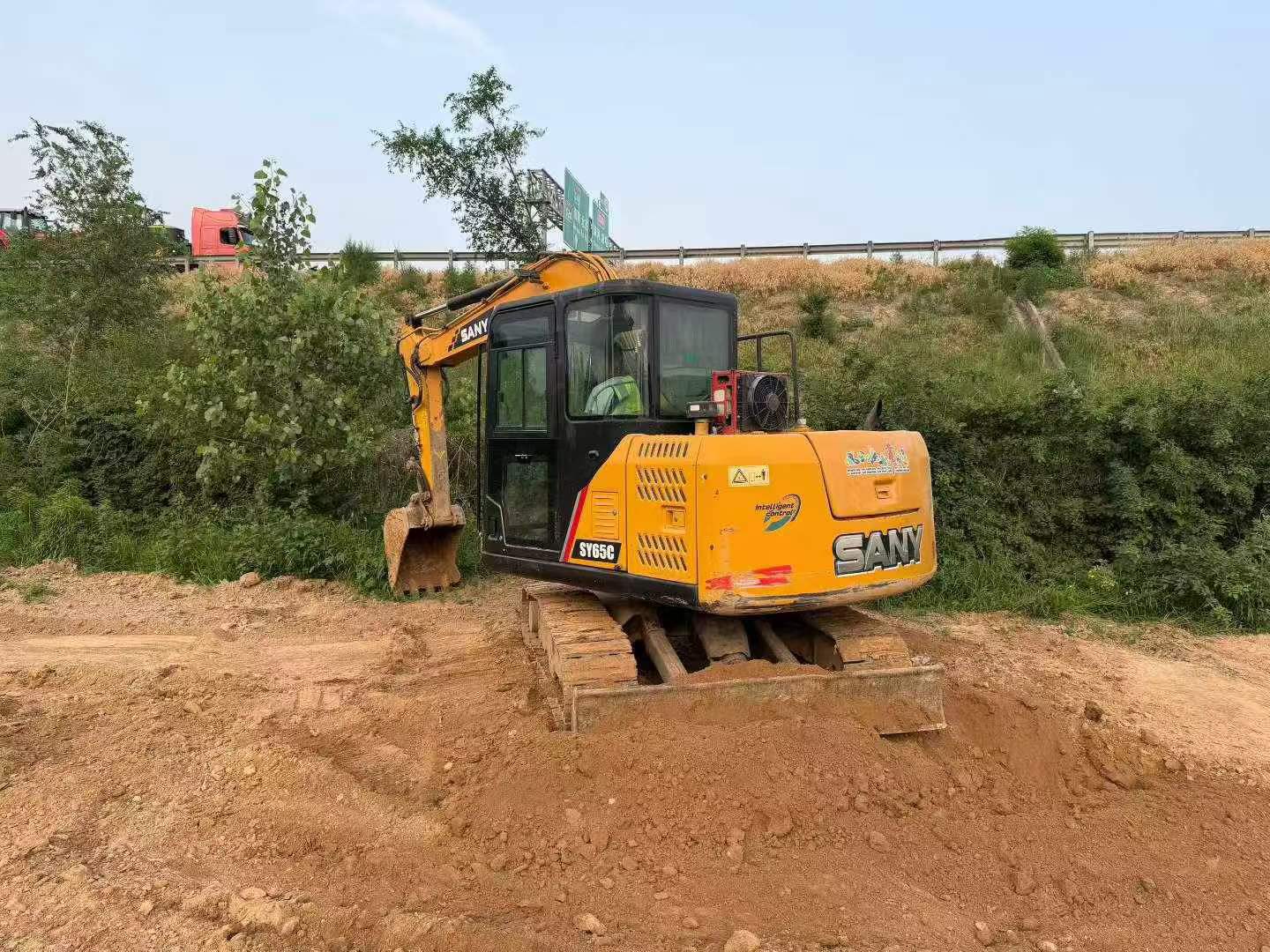

Buy Sany SY65C Used Excavator / 2

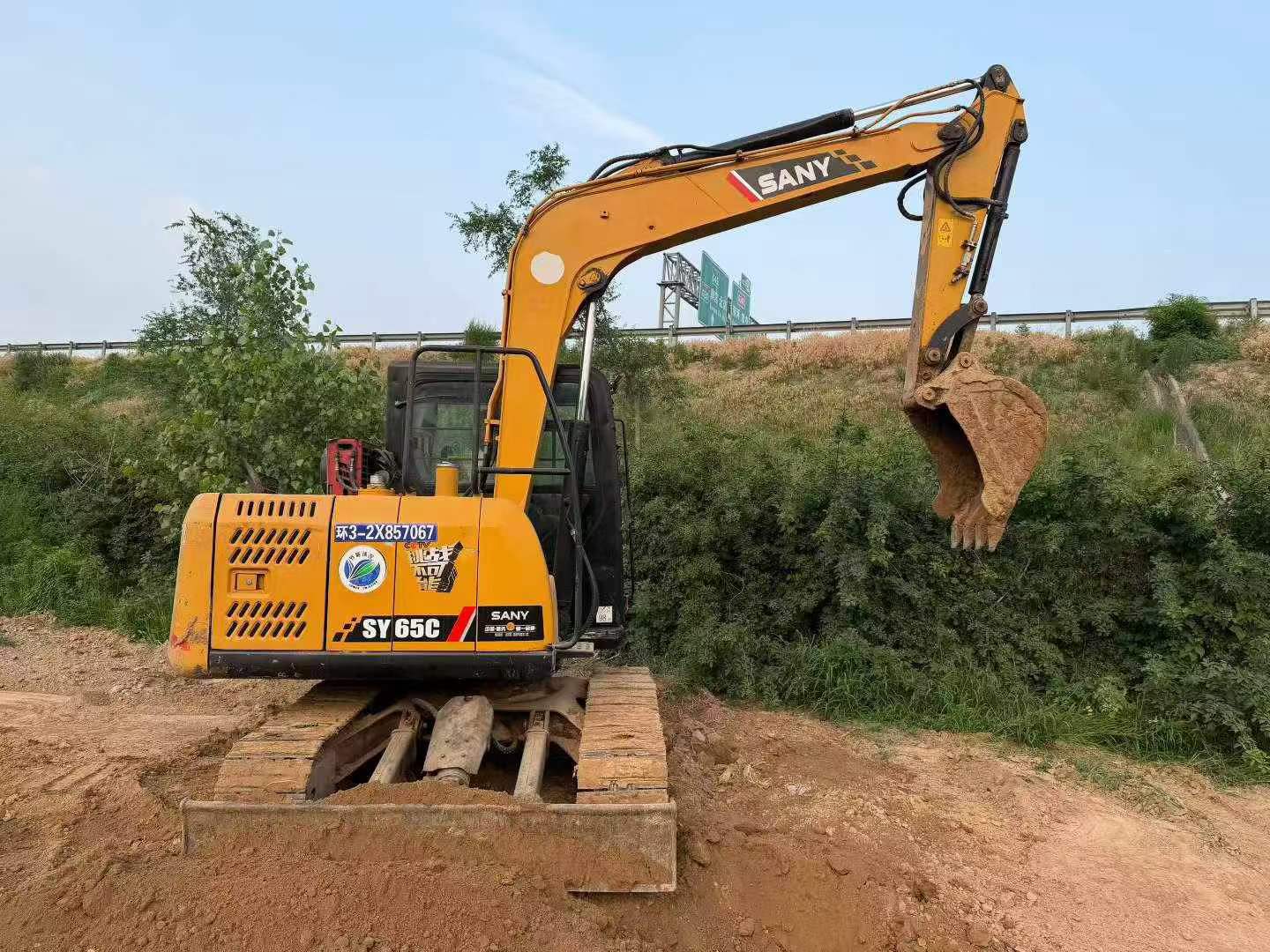

Buy Sany SY65C Used Excavator / 3

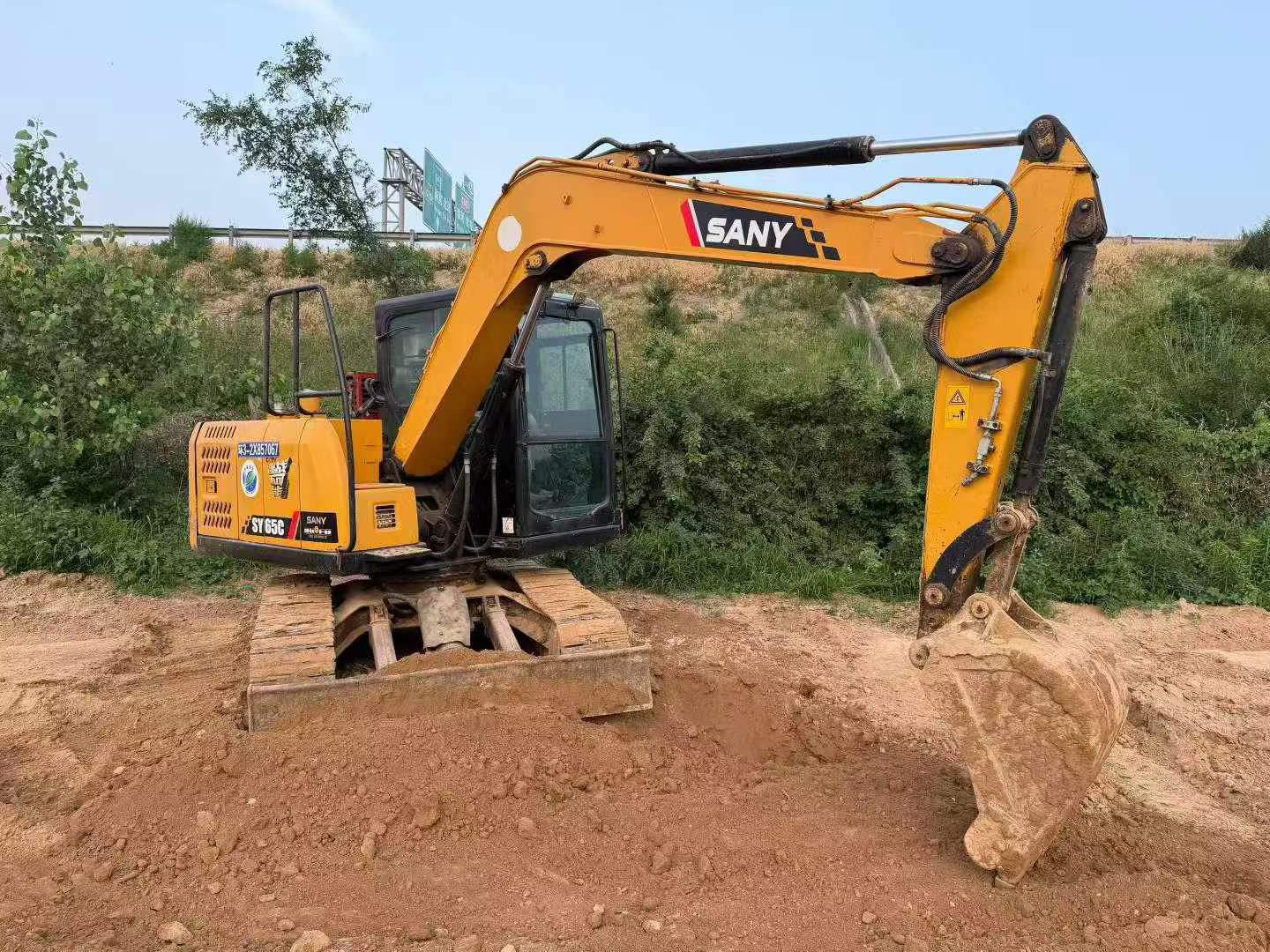

Buy Sany SY65C Used Excavator / 4

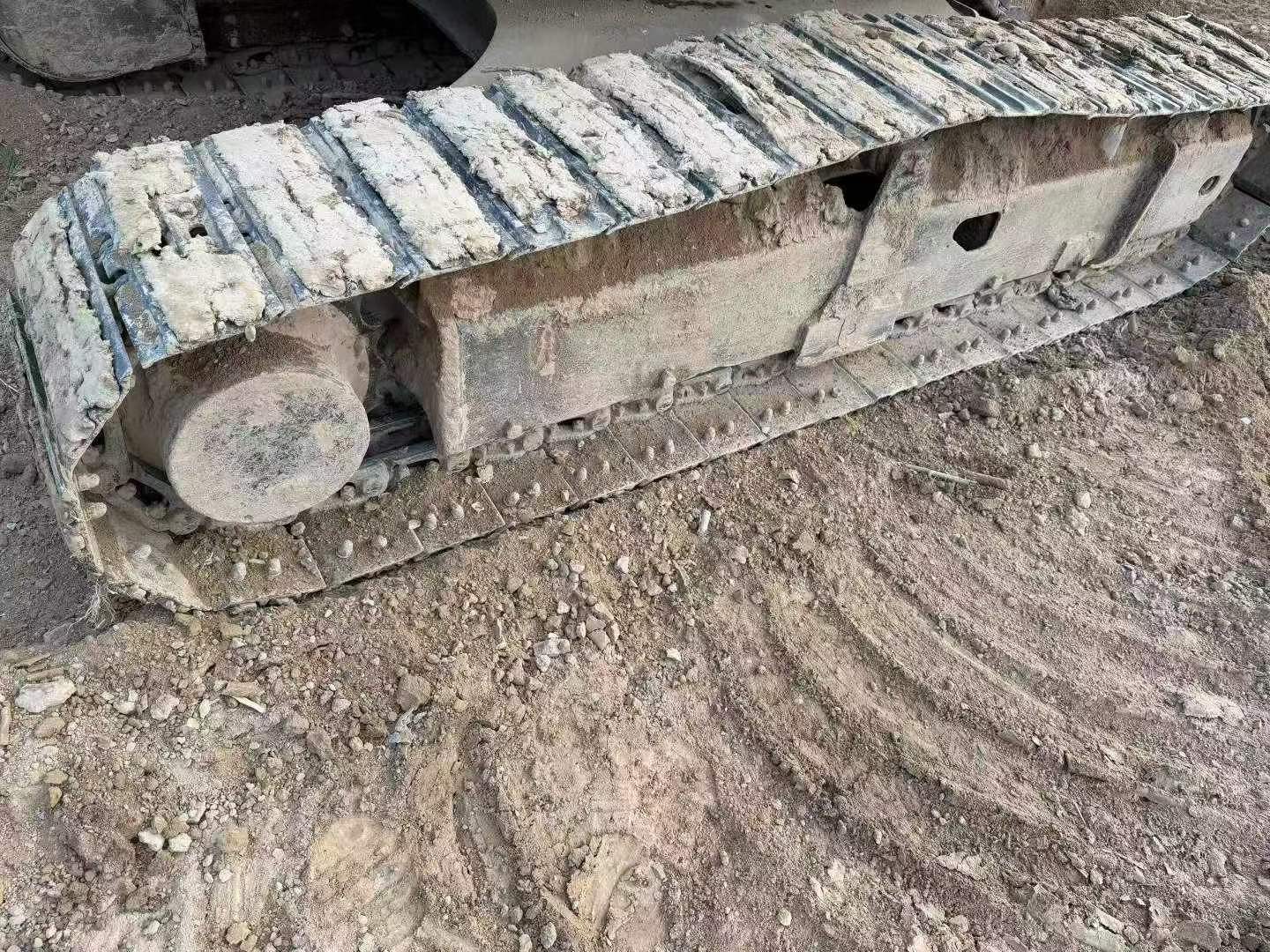

Buy Sany SY65C Used Excavator / 5

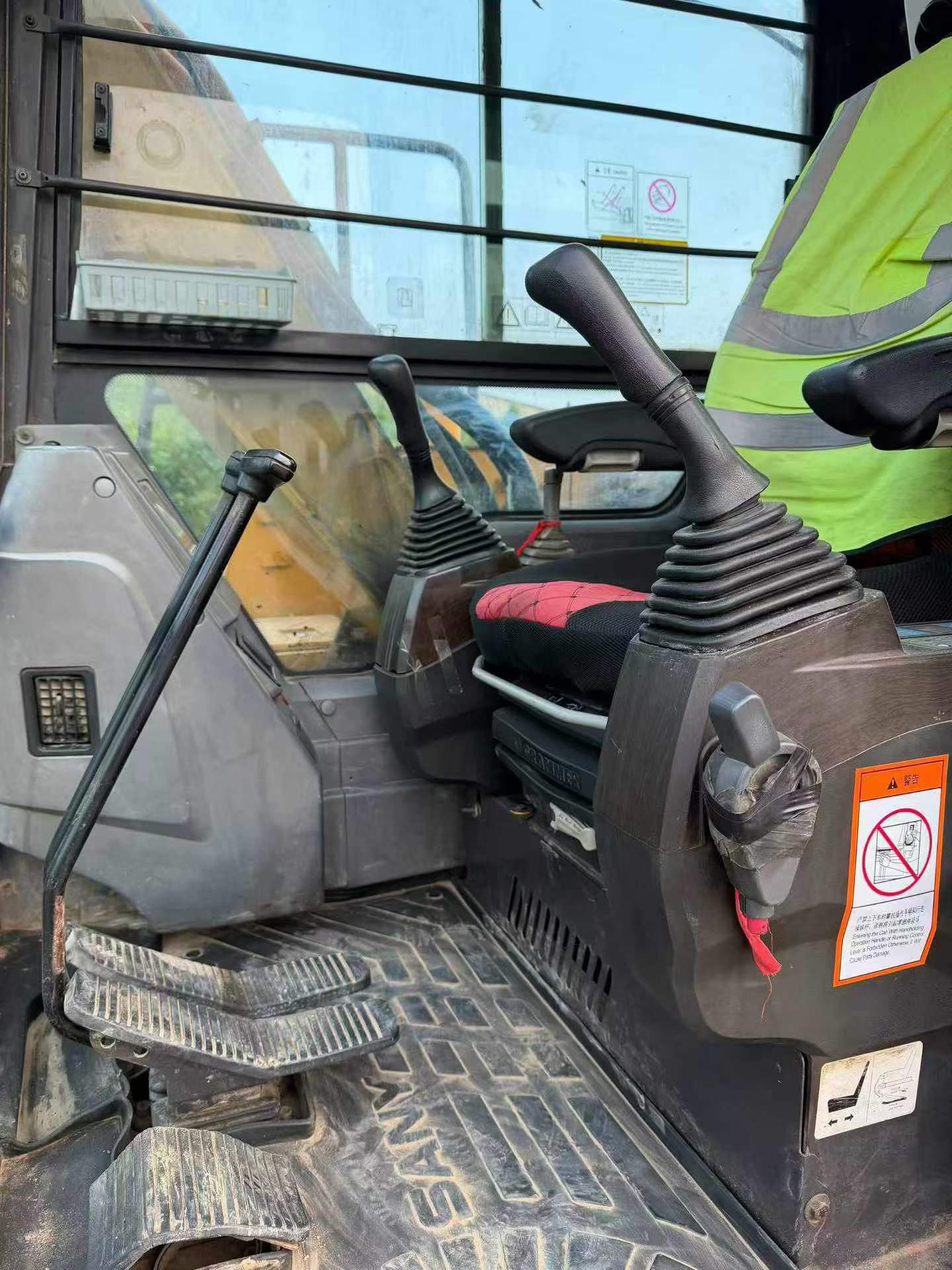

Buy Sany SY65C Used Excavator / 6

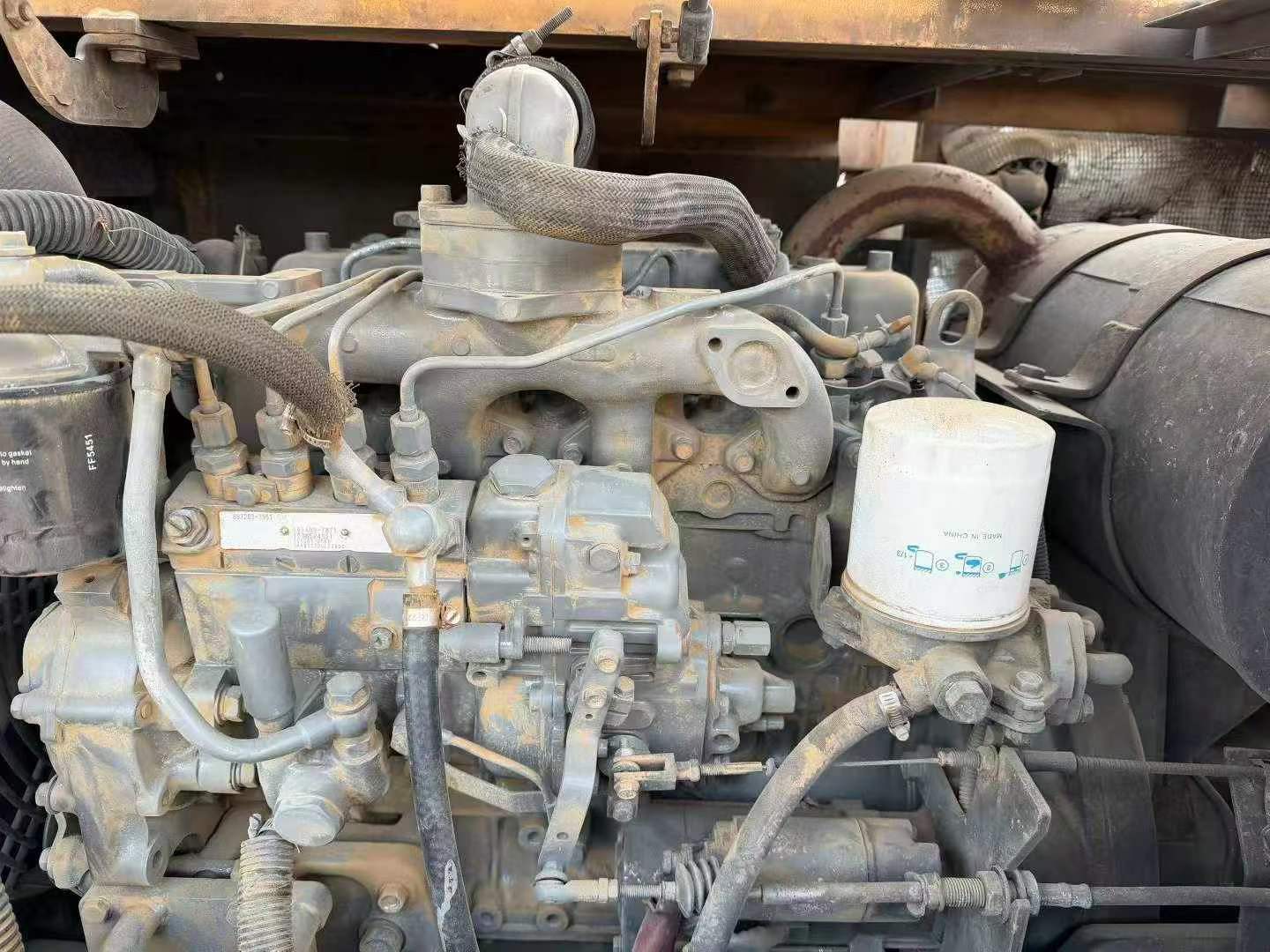

Buy Sany SY65C Used Excavator / 7

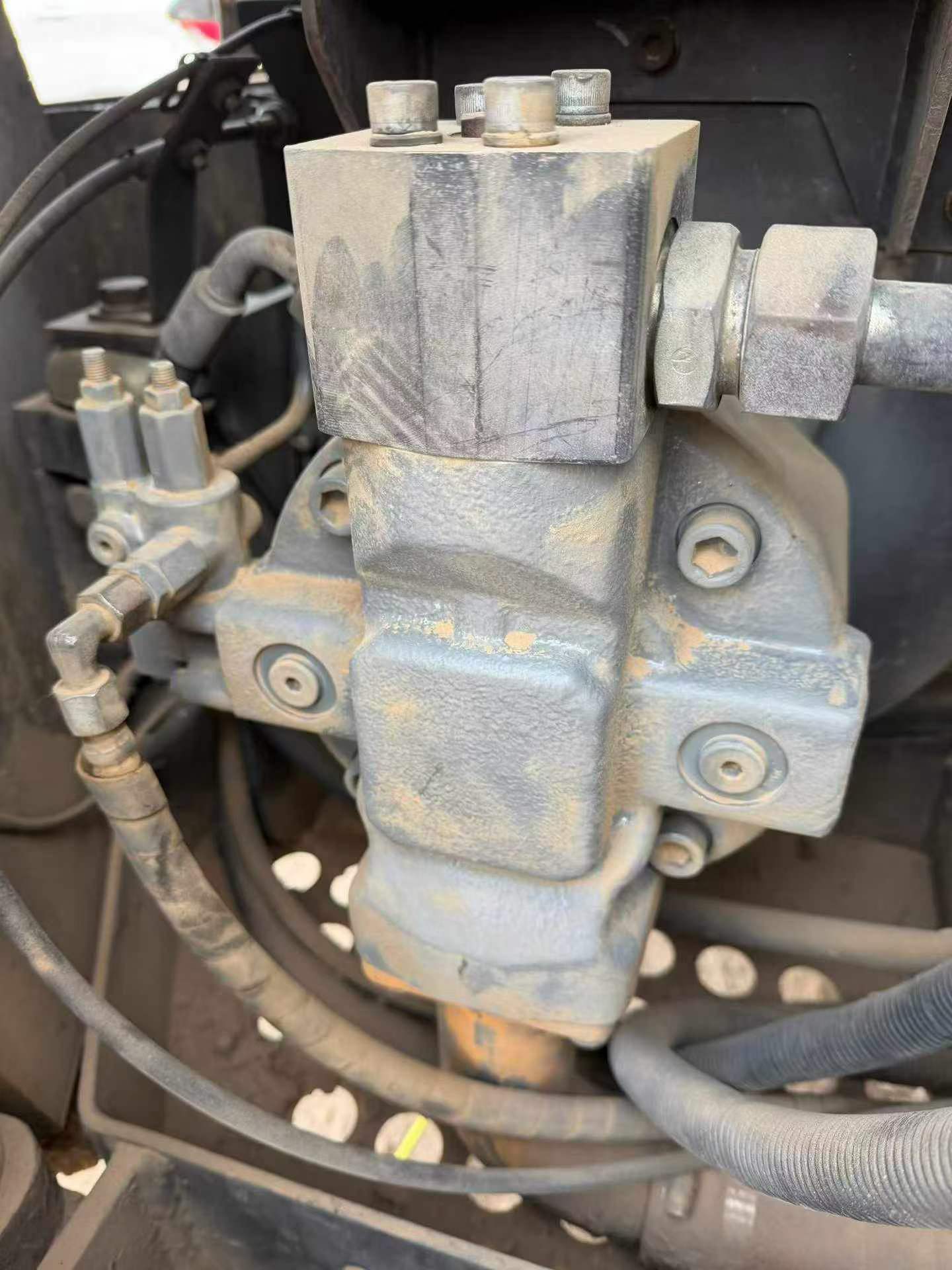

Buy Sany SY65C Used Excavator / 8

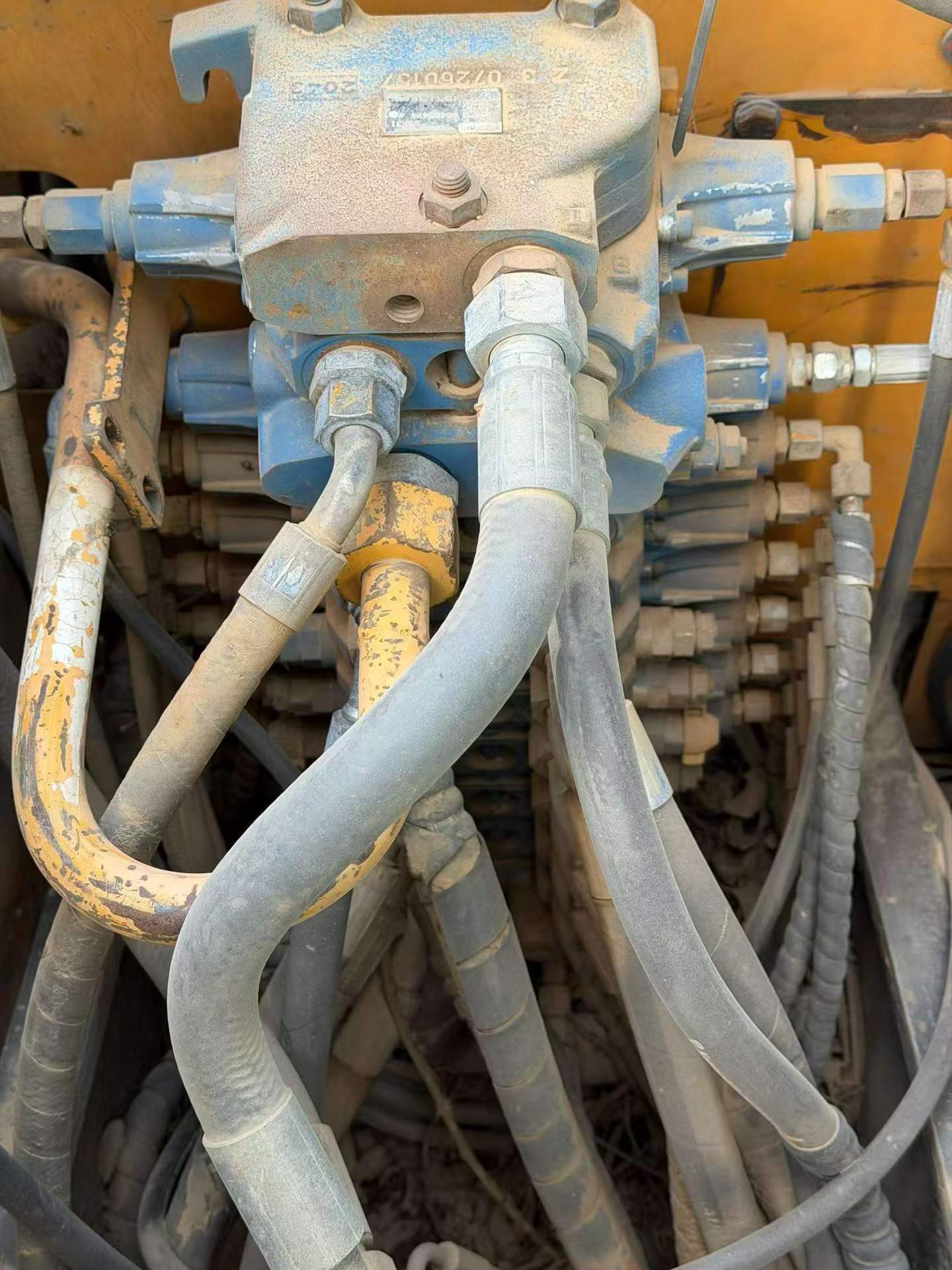

Buy Sany SY65C Used Excavator / 9

Product Description

This 2020 Sany SY65C compact excavator presents an exceptional opportunity for buyers seeking reliable performance in urban applications. Originally deployed in municipal landscaping projects throughout Hebei, China, this machine has been consistently maintained for light-duty green space development work.

The side-swing boom configuration enhances operational versatility in confined spaces, making it ideal for urban construction and utility work. Current condition reflects conscientious use, with functional lighting systems, audible warning horn, and operational air conditioning for operator comfort during extended shifts.

  • Year: 2020
  • Model: Sany SY65C
  • Configuration: Side-swing boom
  • Primary application history: Municipal landscaping
  • Location: Hebei, China
  • Condition: Well-maintained, light-duty service history

Major components show no significant oil leakage, indicating proper maintenance protocols throughout its service life. Available for immediate inspection and export facilitation through FairTradeMachinery.

SpecificationsValue
No.1089494
Tonnage (tons)6
Working weight (kg)6700
Bucket capacity (m³)0.12-0.32
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeSANY D03S3
Rated power (kw/rpm)42/2100
Cooling modewater-cooling
Maximum torque (N.m)1900/1600~2000
Number of cylinders (PCS)4
Displacement (L)2.77
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)56
Rod digging force (kN)35.6
Travel speed (km/h)2.4/4.8
Main overflow set pressure (Mpa)26
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Main pump typeVariable swashplate plunger pump
Bucket cylinders - Number × diameter × stroke (mm)80 x 730
Bucket rod cylinders - Number × diameter × stroke (mm)90 x 900
Boom cylinders - Number × diameter × stroke (mm)110 x 885
Fuel Tank (L)145
Hydraulic Tank (L)120
Engine Oil changes (L)9
Coolant (L)12
Total transport length (mm)6000
Total transport width (mm)2160
Total transport height (mm)2560
Full cab height (mm)2560
Minimum ground clearance (mm)375
Back end turning radius (mm)1720
Total track length (mm)2710
Track gauge (mm)1680
Track plate width (mm)400
Total track width (mm)2160
Track ground length (mm)2180
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)42
Maximum digging radius (mm)6160
Maximum digging depth (mm)3985
Maximum excavation height (mm)6930
Maximum unloading height (mm)5145
Maximum vertical digging depth (mm)3470
Bulldozer lift or depth (mm)200/480
Dodging plate width × height (mm)460(dodging plate height)
see more

Overview

No.1089494

Brand Name:

Sany

Model Number:

SY65C

Year:

2020

Location:

Hebei China

Pub Date
