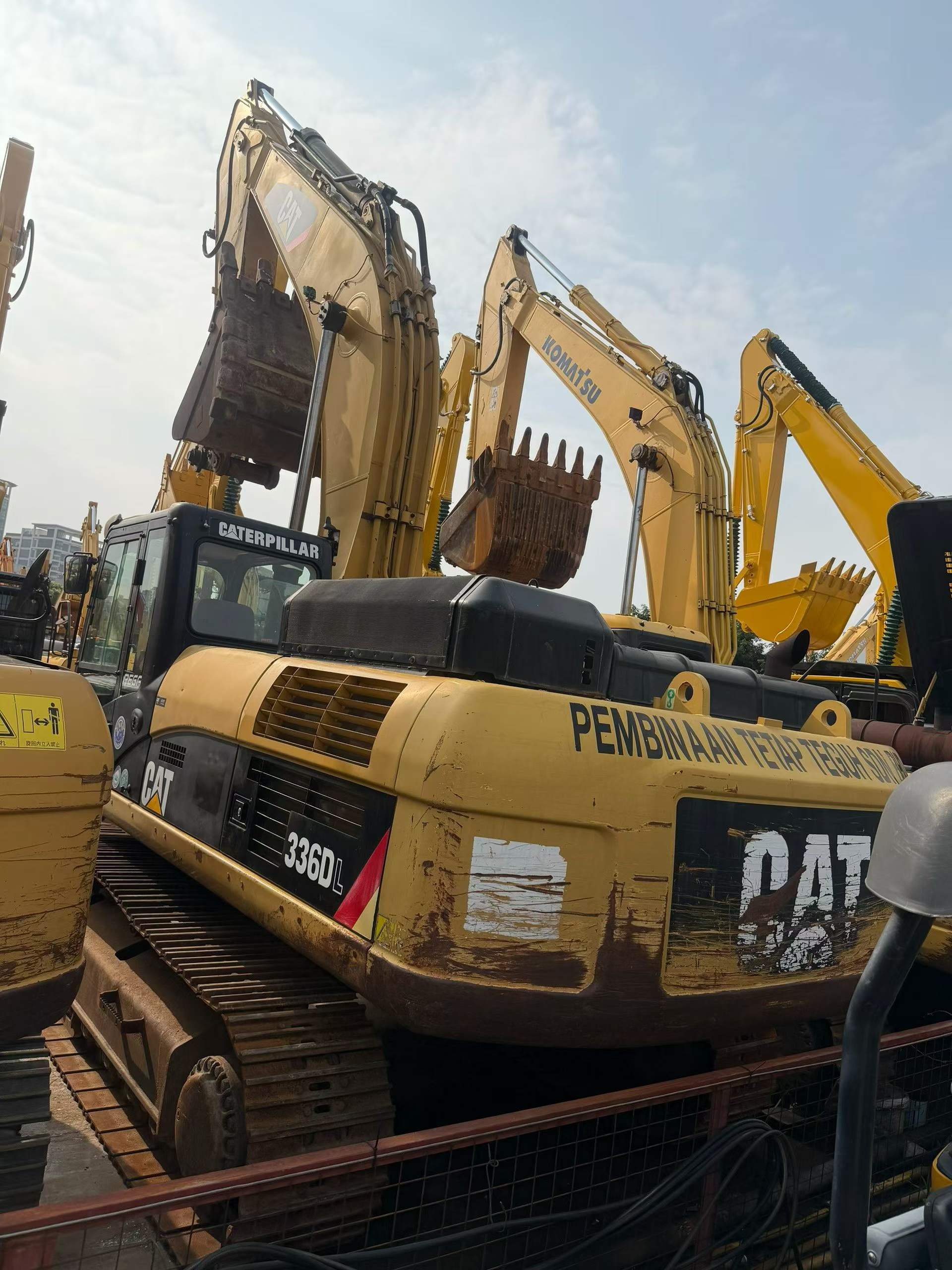

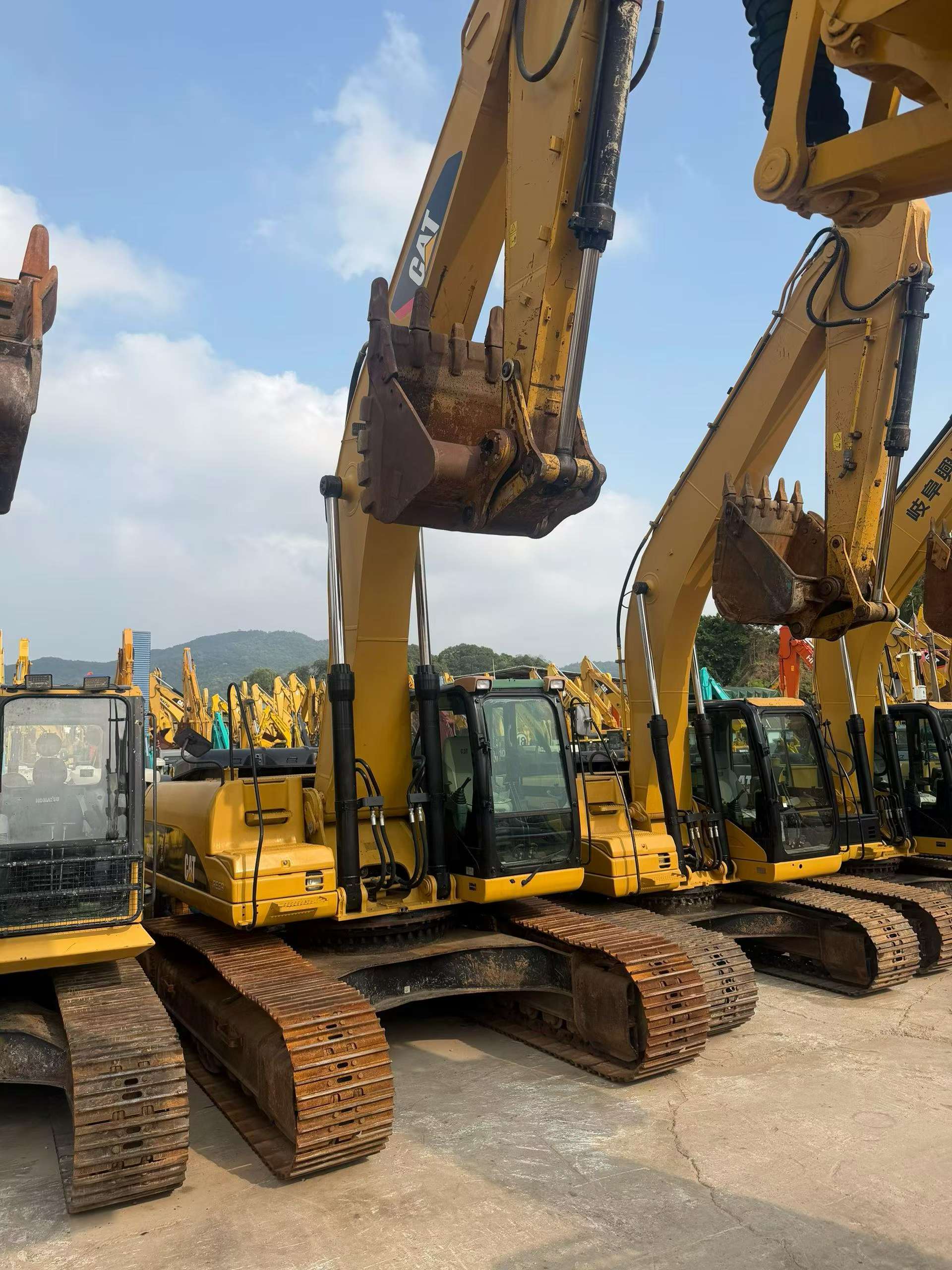

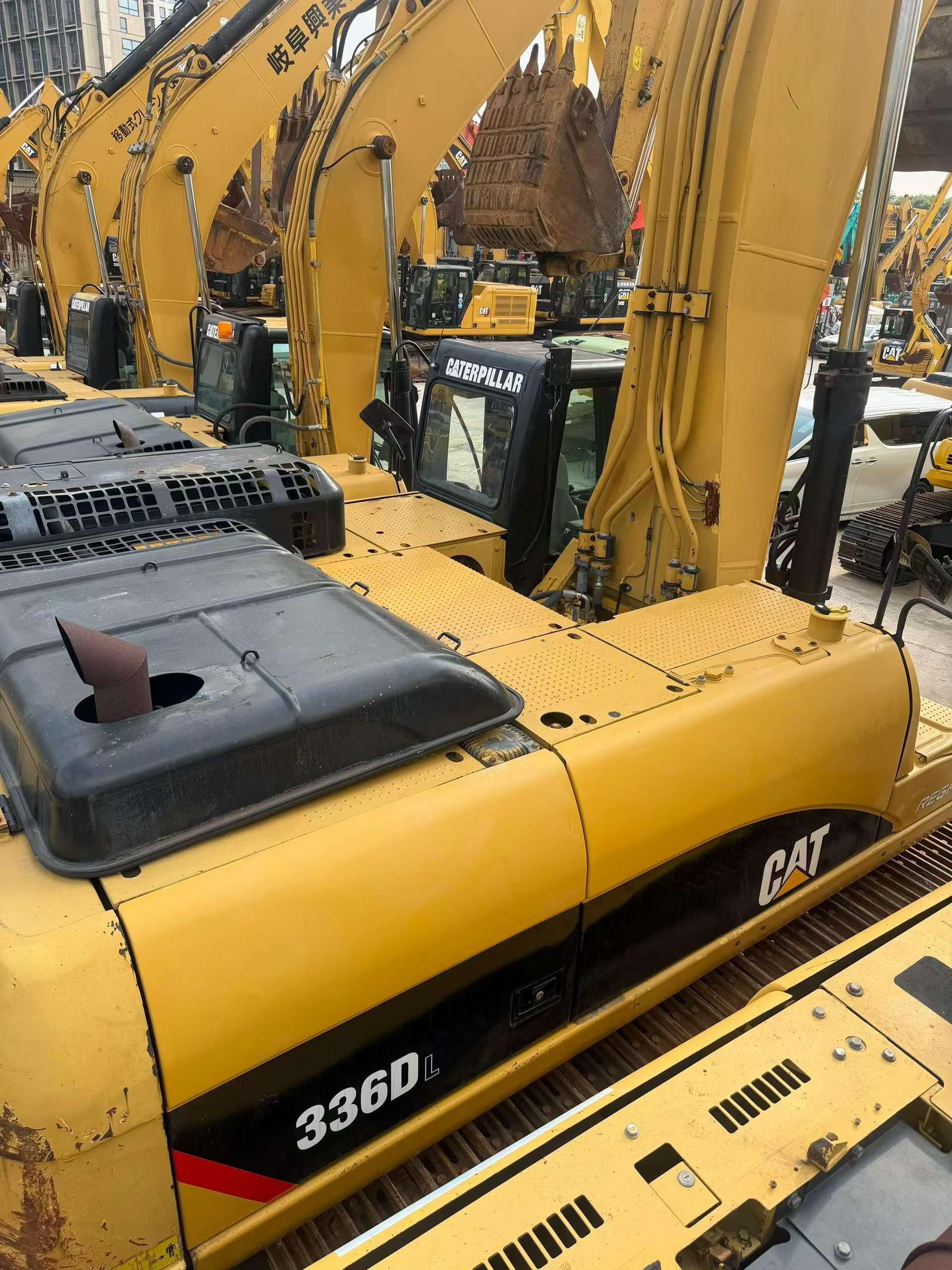

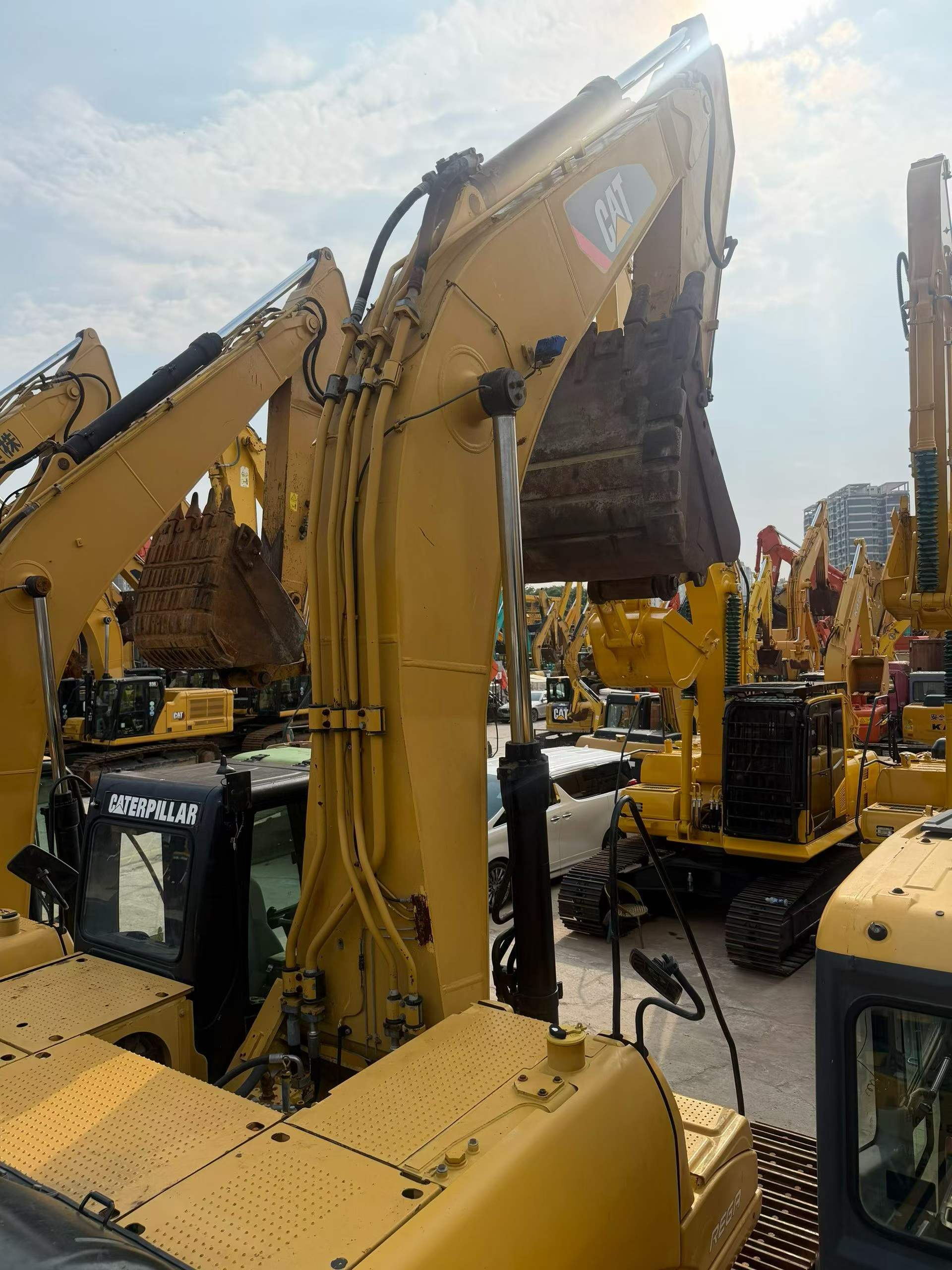

2020 Caterpillar 336DL
Product Description
This 2020 Caterpillar 336DL hydraulic excavator offers proven performance for demanding earthmoving applications. Located in Guangdong, China, this machine combines Cat's renowned durability with efficient fuel consumption and versatile digging capabilities suited to construction, quarrying, and material handling operations.
The 336DL features a robust design engineered for extended service life in challenging job site conditions. Its hydraulic system delivers responsive control and powerful breakout forces, while the spacious operator station promotes productivity during long shifts.
- Year: 2020
- Manufacturer: Caterpillar
- Model: 336DL
- Category: Hydraulic Excavator
- Location: Guangdong Province, China
Ideal for contractors seeking reliable performance in a mid-size excavator class. Inspection reports and additional documentation available upon request.
| Specifications | Value |
|---|---|
| No. | 1076730 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 35020 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3200 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

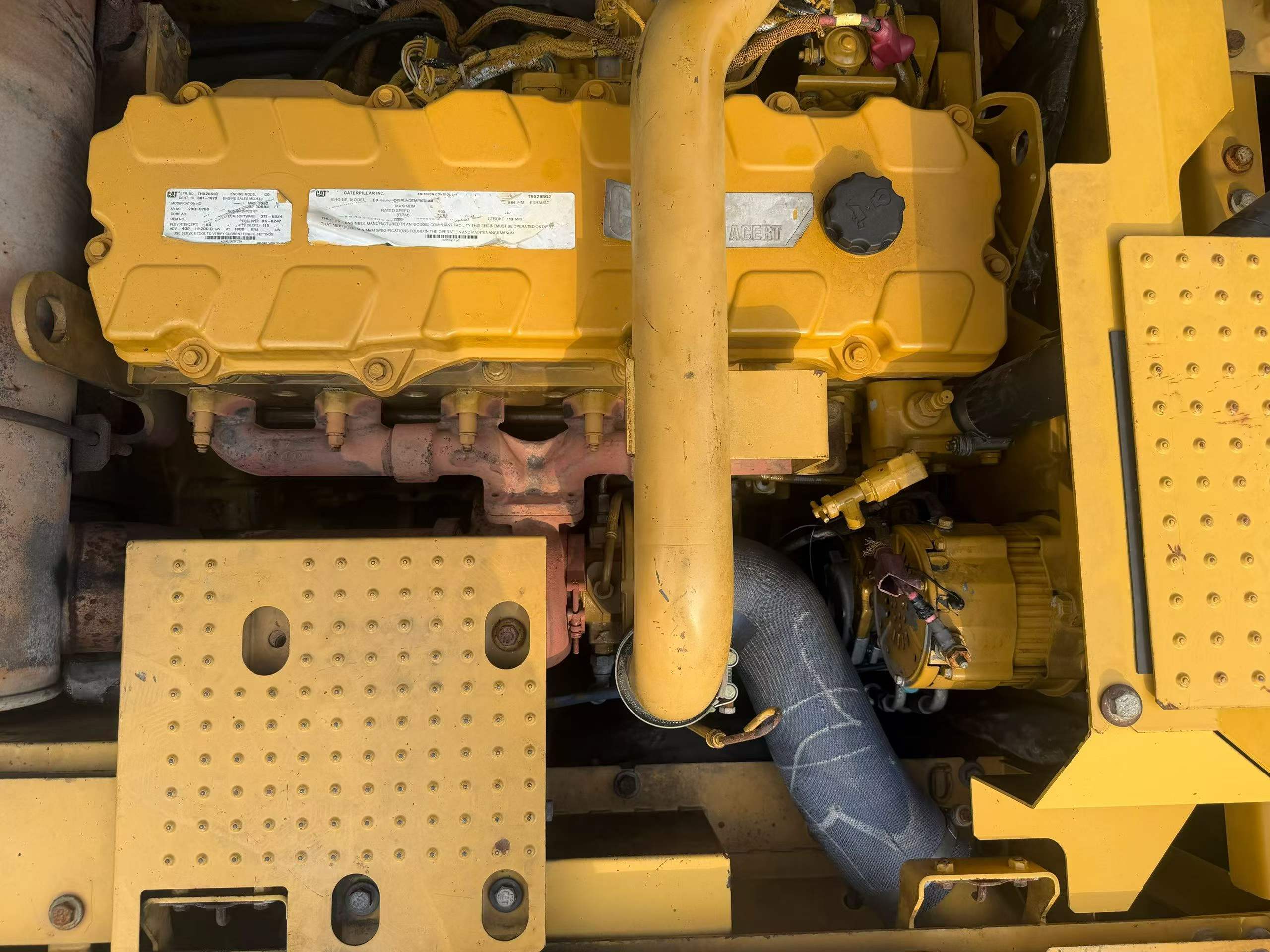

| Engine type | C9ACERT |
| Rated power (kw/rpm) | 200/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 146 |
| Travel speed (km/h) | March 5th |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 280 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.8 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410(including fuel tank) |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3340 |
| Full cab height (mm) | 3140 |
| Counterweight ground clearance (mm) | 1220 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5020 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3290 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 7390 |
| Maximum excavation height (mm) | 10240 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7230 |
Overview
No.1076730
Brand Name：
CaterpillarModel Number：
336DLYear：
2020
Location：
Guangdong China
Pub Date：
