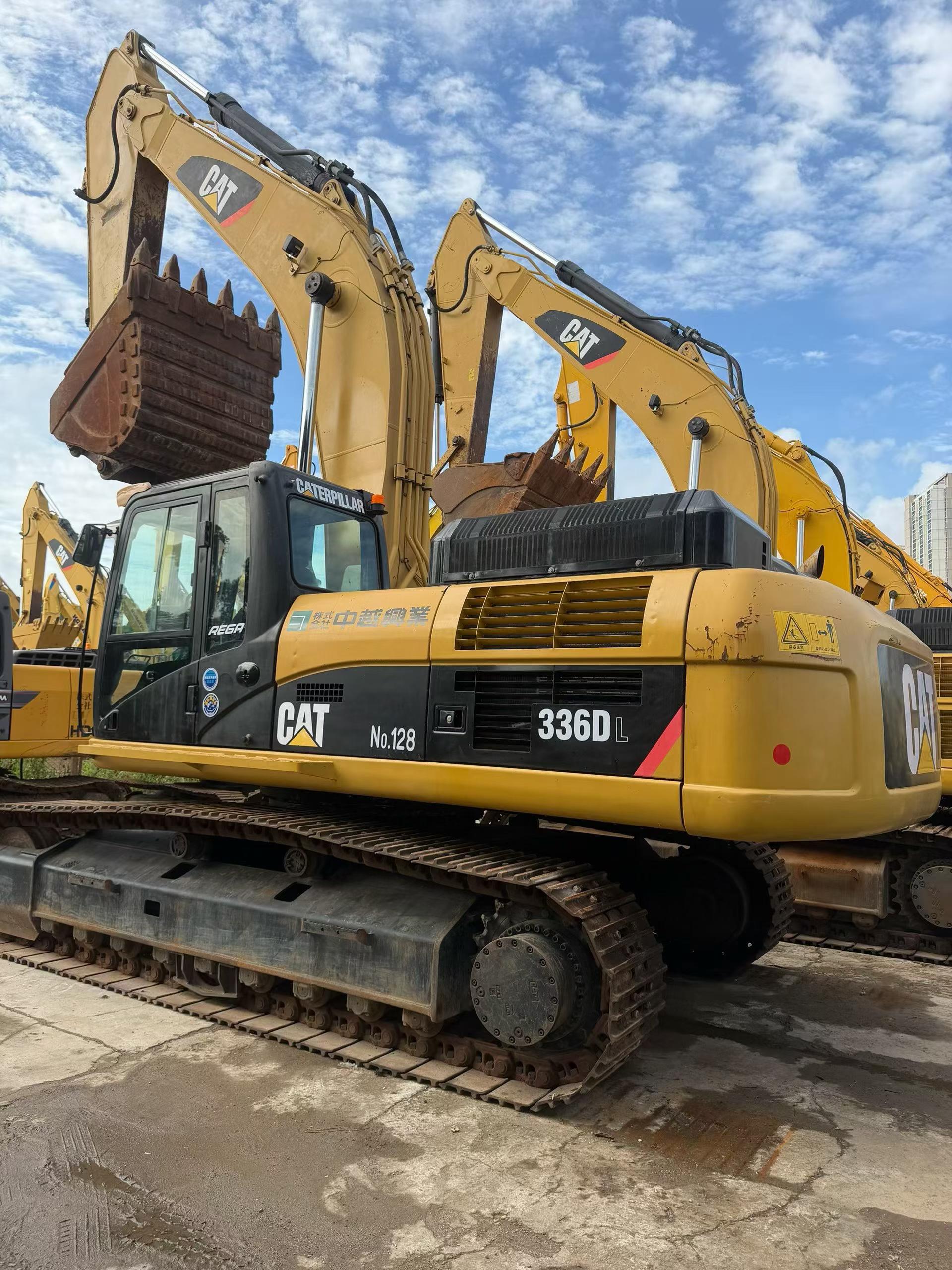

2020 Caterpillar 336DL
Product Description
This 2020 Caterpillar 336DL hydraulic excavator represents a reliable mid-size solution for demanding earthmoving operations. Currently located in Guangdong, China, this original import unit delivers the proven performance and durability that construction and mining professionals expect from Caterpillar's 336 series.
The 336DL features a robust hydraulic system, fuel-efficient engine, and operator-focused cab design that maximizes productivity on site. Its versatile configuration suits a wide range of applications including excavation, material handling, and demolition work.
- Year of Manufacture: 2020
- Make: Caterpillar
- Model: 336DL
- Location: Guangdong, China
- Type: Hydraulic Excavator
- Status: Original Import Unit
Contact FairTradeMachinery today to discuss this excavator's availability, inspection options, and international shipping arrangements to your project site.
| Specifications | Value |
|---|---|
| No. | 1120644 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 35020 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3200 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C9ACERT |
| Rated power (kw/rpm) | 200/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 146 |
| Travel speed (km/h) | March 5th |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 280 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.8 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410(including fuel tank) |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3340 |
| Full cab height (mm) | 3140 |
| Counterweight ground clearance (mm) | 1220 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5020 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3290 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 7390 |
| Maximum excavation height (mm) | 10240 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7230 |
