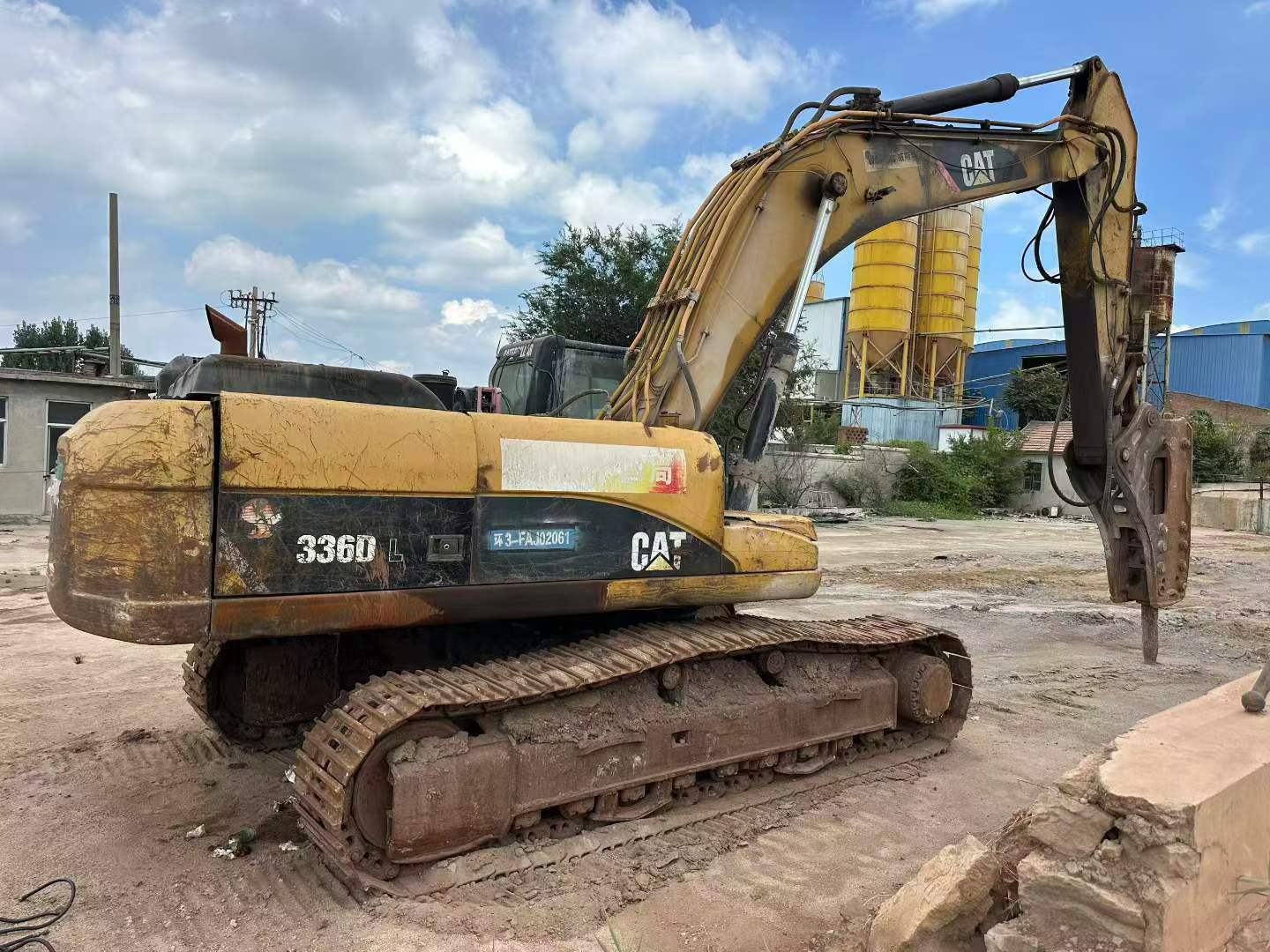

2020 Caterpillar 336DL
Product Description
Discover the reliability and power of the 2020 Caterpillar 336DL, available now in Shandong, China. This used excavator is a robust choice for any construction or excavation project, offering the durability and performance that Caterpillar is known for. Equipped with advanced features, this model ensures efficient operation and easy maintenance, making it a valuable asset to your fleet. Detailed images and a video are available upon request, providing a comprehensive view of the machine's condition and capabilities.
- Year: 2020
- Brand: Caterpillar
- Model: 336DL
- Location: Shandong, China
- Detailed photos and video available
| Specifications | Value |
|---|---|
| No. | 1125128 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 35020 |
| Bucket capacity (m³) | 1.5 |
| Boom length (mm) | 6500 |
| Rod length (mm) | 3200 |
| Country of origin | Japan/Xuzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | C9ACERT |
| Rated power (kw/rpm) | 200/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 110 x 127 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.8 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 222 |
| Rod digging force (kN) | 146 |
| Travel speed (km/h) | March 5th |
| Main overflow set pressure (Mpa) | 3.5 |
| Maximum flow of main pump (l/min) | 280 |
| Traveling Hydraulic Circuit (Mpa) | 3.5 |
| Rotary Hydraulic Circuit (Mpa) | 2.8 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 3.5 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 x 1151 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 40 |
| Coolant (L) | 40 |
| Hydraulic System (L) | 410(including fuel tank) |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3340 |
| Full cab height (mm) | 3140 |
| Counterweight ground clearance (mm) | 1220 |
| Minimum ground clearance (mm) | 450 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5020 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3290 |
| Track ground length (mm) | 4040 |
| Maximum digging depth (mm) | 7390 |
| Maximum excavation height (mm) | 10240 |
| Maximum unloading height (mm) | 7200 |
| Maximum vertical digging depth (mm) | 5830 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7230 |
see more
Overview
No.1125128
Brand Name：
CaterpillarModel Number：
336DLYear：
2020
Location：
Shandong China
Pub Date：
