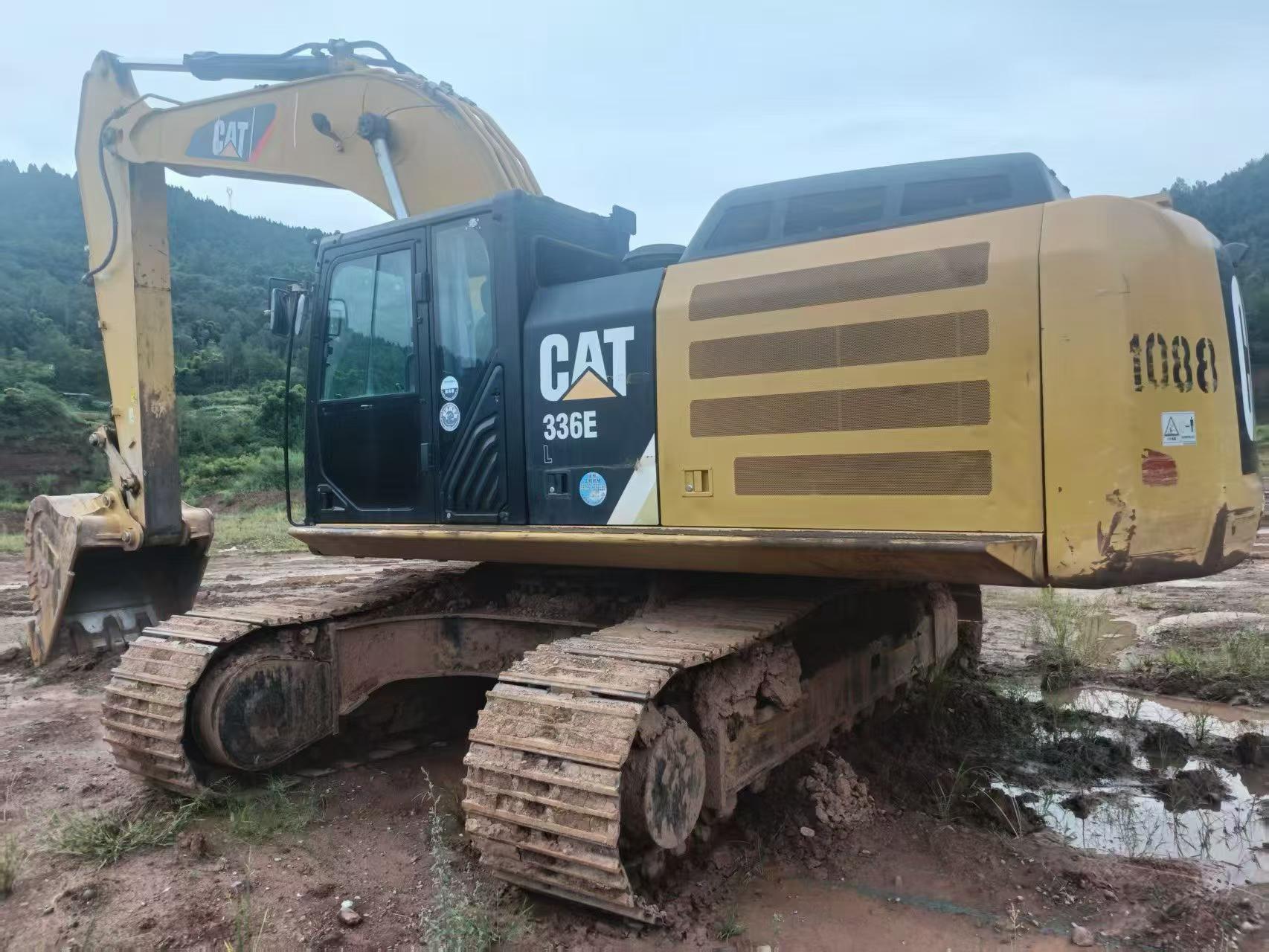

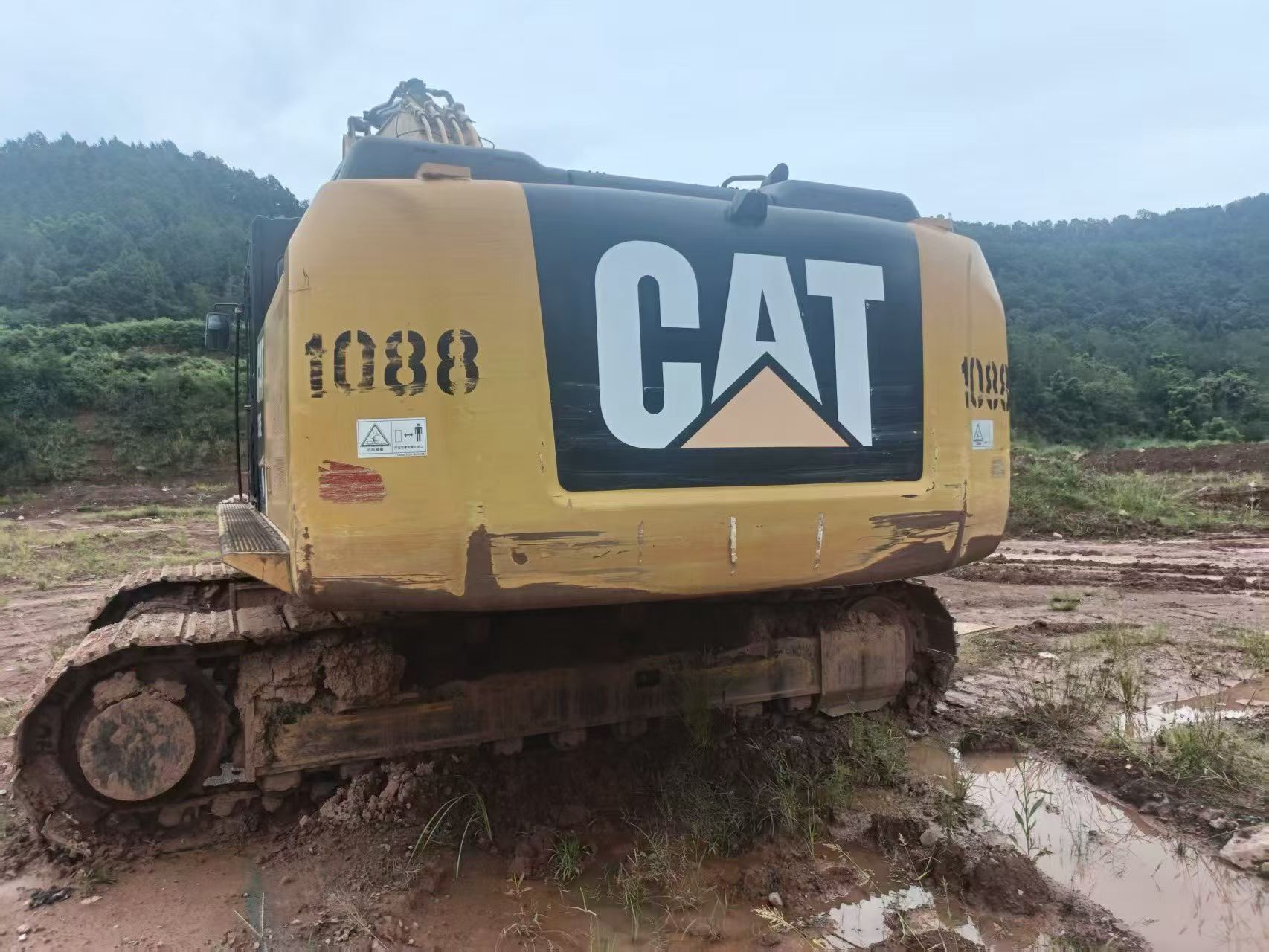

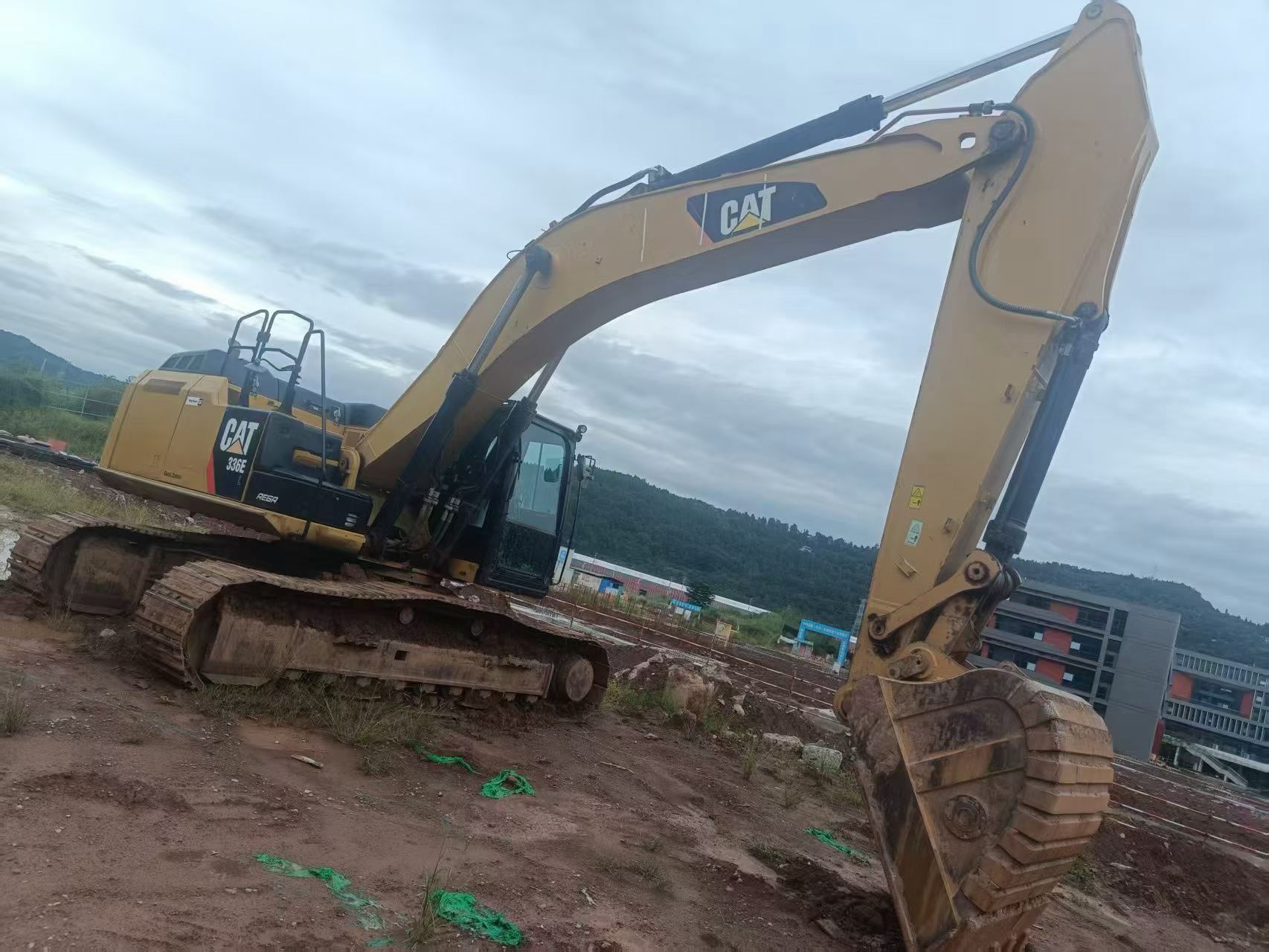

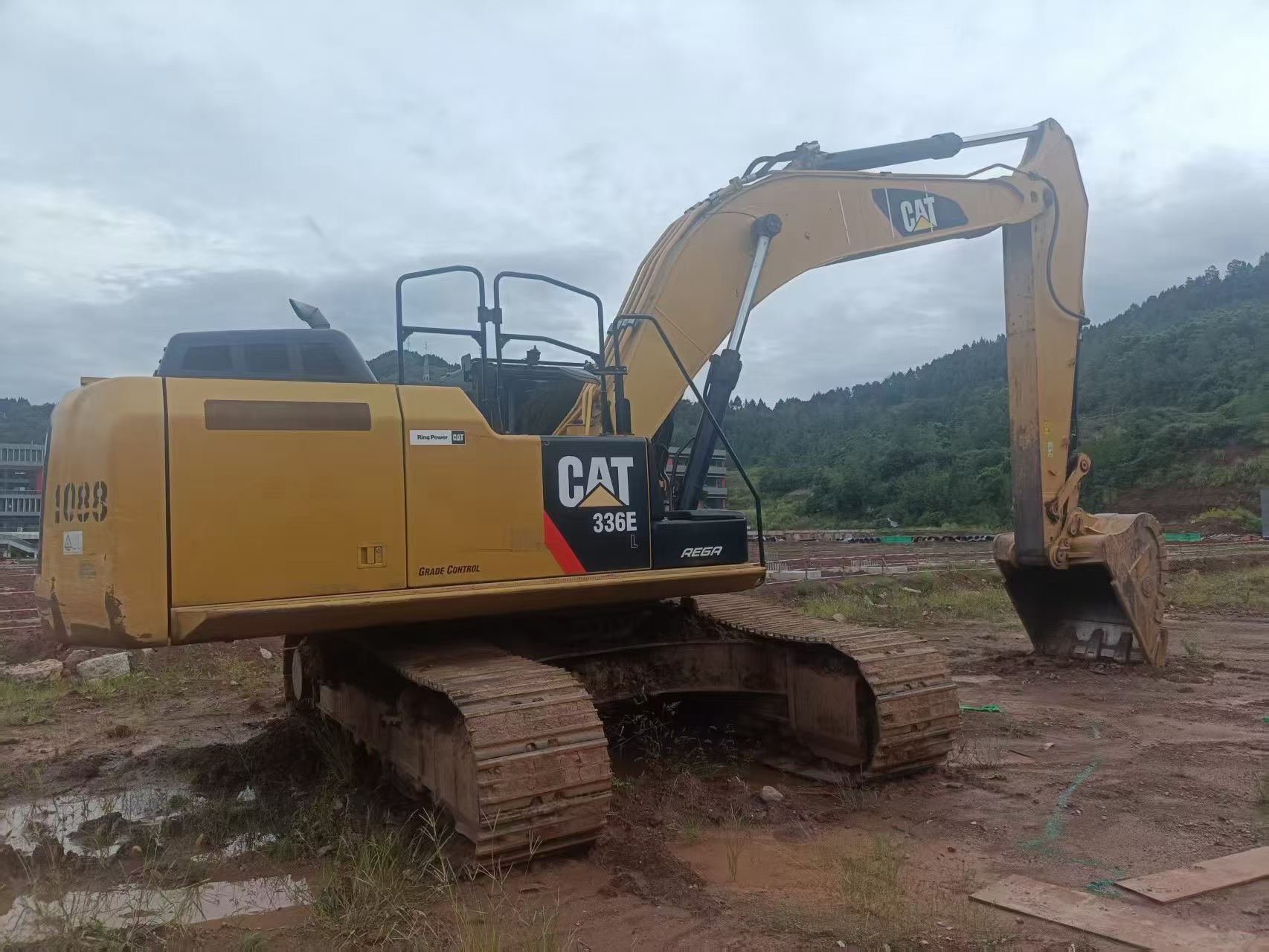

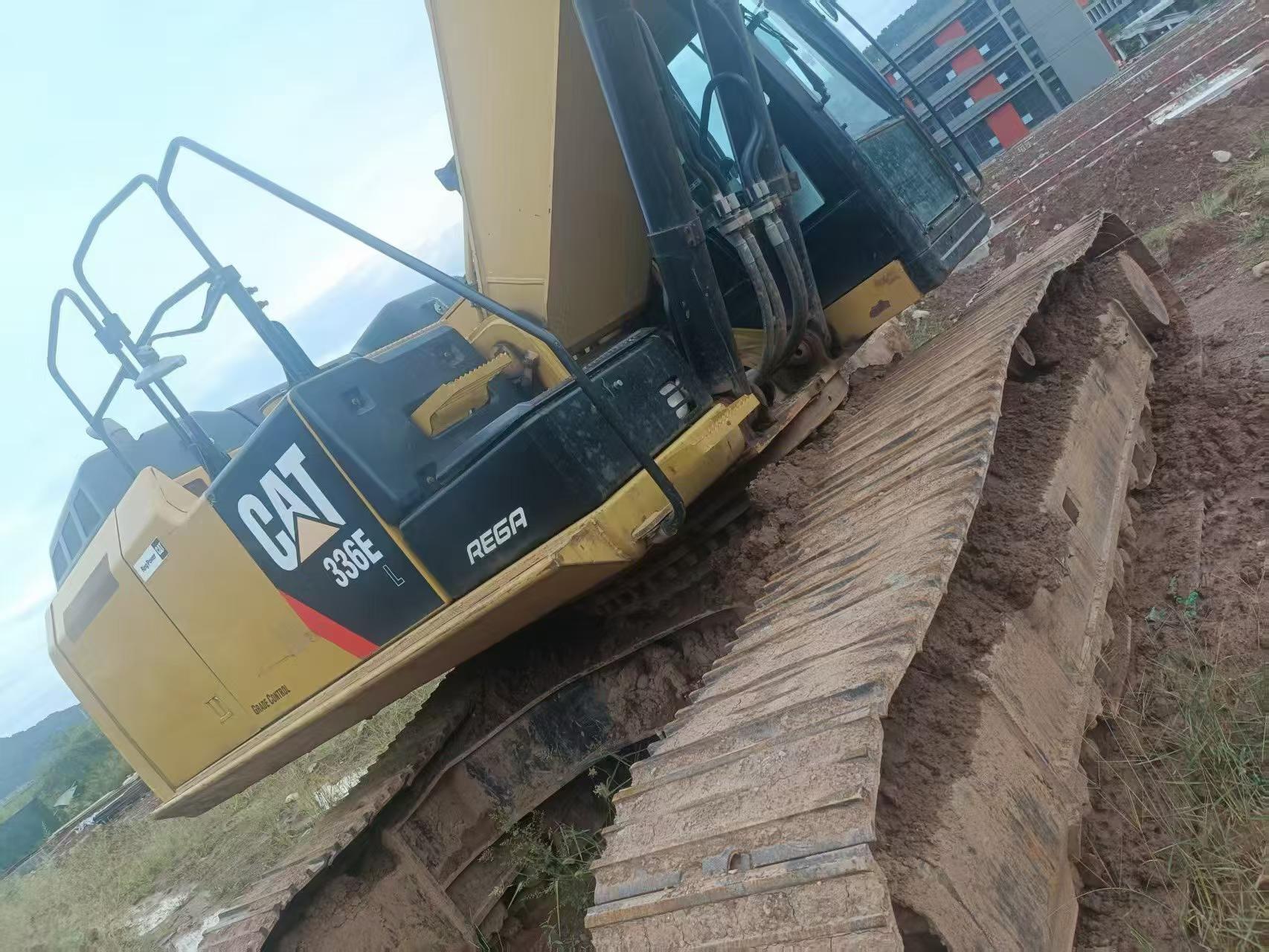

2020 Caterpillar 336EL
Product Description
This 2020 Caterpillar 336EL hydraulic excavator offers proven performance for medium to heavy-duty earthmoving and construction applications. Manufactured by Caterpillar, a globally recognized leader in heavy equipment, this model combines operational efficiency with the durability expected from the 336 series. Currently located in Yunnan, China, this machine is available for international export through FairTradeMachinery's verified supply network.
Key features of the Caterpillar 336EL include:
- Reliable hydraulic system designed for demanding job sites
- Spacious operator cabin with ergonomic controls
- Fuel-efficient engine meeting modern emission standards
- Versatile attachment compatibility for various applications
- Robust undercarriage built for extended service life
This unit represents an excellent opportunity for contractors and operators seeking quality used equipment. Complete inspection reports and shipping arrangements are available upon request. Contact FairTradeMachinery today to discuss specifications, pricing, and delivery options for this Caterpillar 336EL excavator.
| Specifications | Value |
|---|---|
| No. | 1170683 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 36570-39370 |
| Bucket capacity (m³) | 2.28 (General) |
| Boom length (mm) | 2550/3200/3900 |
| Rod length (mm) | 6180/6500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

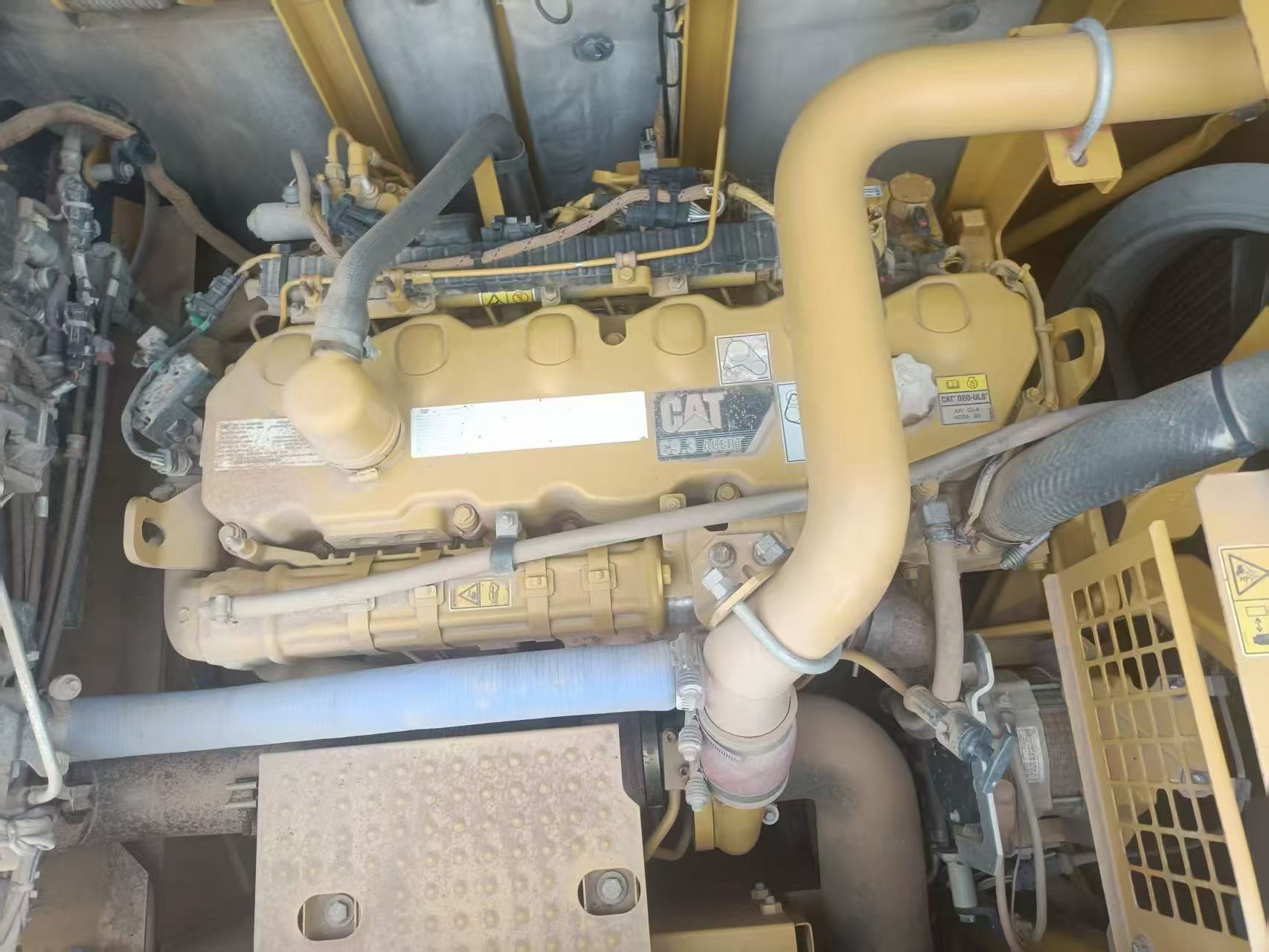

| Engine type | Caterpillar Cat C9.3(ATAAC) |
| Rated power (kw/rpm) | 224 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 115 x 149 |
| Displacement (L) | 9.3 |
| Working form | Air-to-air cooling meets EPA Tier 4 (US Environmental Protection Agency Phase 4) emission standards |
| Rotation speed (rpm) | 9.2 |
| Maximum tractive force (kN) | 295 |
| Travel speed (km/h) | 4.9 |
| Maximum flow of main pump (l/min) | 578 |
| Traveling Hydraulic Circuit (Mpa) | 35 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Pilot Oil Circuit (MPa) | 4.1 |
| Pilot pump flow (L/min) | 26 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-160 x 1356 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-170 x 1738 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-150 x 1440 |
| Fuel Tank (L) | 620 |
| Hydraulic Tank (L) | 175 |
| Engine Oil changes (L) | 30.5 |
| Coolant (L) | 56 |
| Hydraulic System (L) | 380 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3290/3390/3440 |
| Total transport height (mm) | 3660 |
| Full cab height (mm) | 3360 |
| Counterweight ground clearance (mm) | 3360 |
| Minimum ground clearance (mm) | 510 |
| Back end turning radius (mm) | 3500 |
| Total track length (mm) | 5020 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 700/800/850 |
| Maximum digging radius (mm) | 11720 |
| Maximum digging depth (mm) | 8190 |
| Maximum excavation height (mm) | 10740 |
| Maximum unloading height (mm) | 7500 |
| Maximum vertical digging depth (mm) | 6310 |
| Maximum effective digging depth (mm) | 7610 |
Overview
No.1170683
Brand Name：
CaterpillarModel Number：
336ELYear：
2020
Location：
Yunnan China
Pub Date：
